Garland  |  Garland Cuisine  |  SKU: C36-17M

Garland C36-17M Garland Cuisine Gas Ranges

$5,877.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Owner's manual Brochure Check list Garland cuisine models guide
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

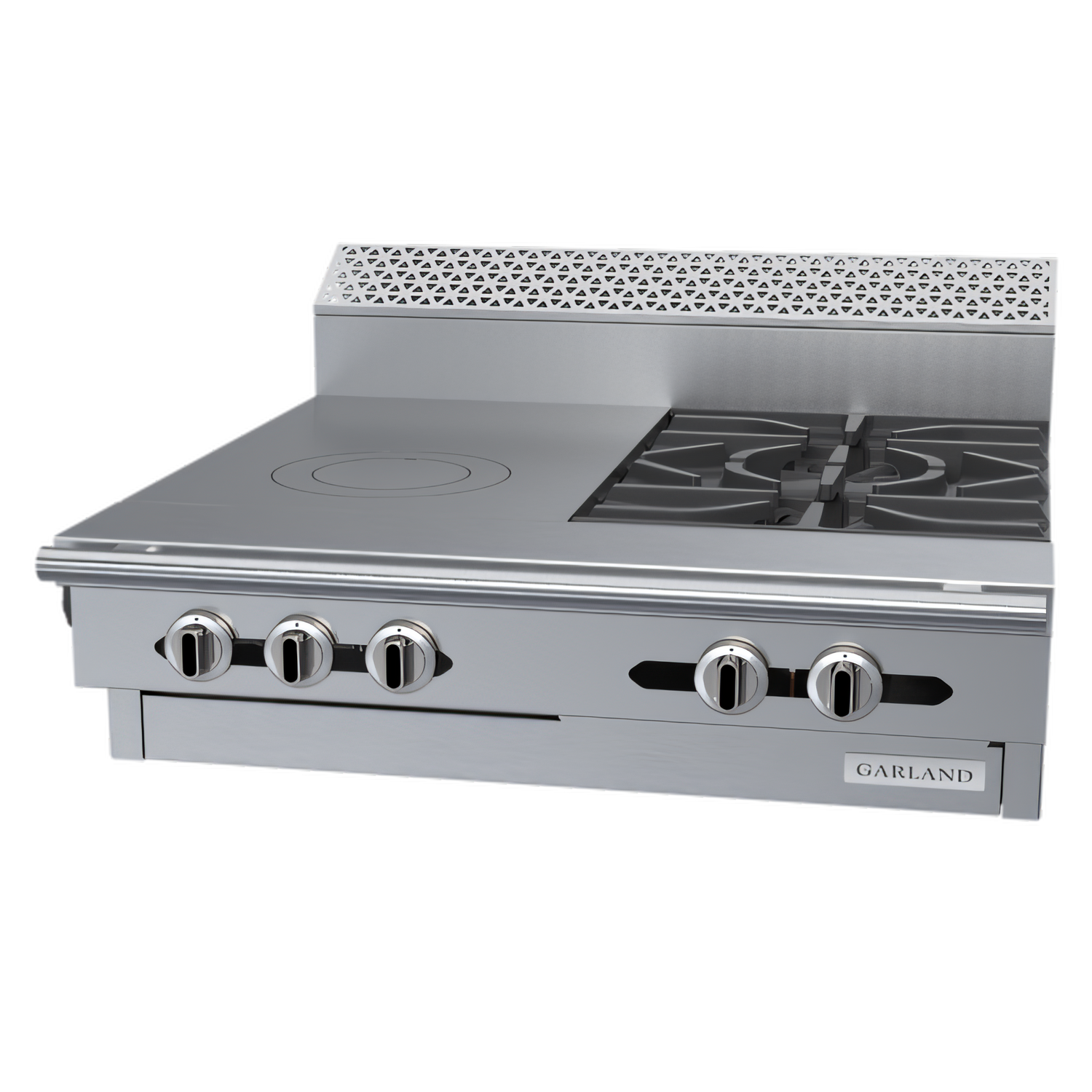

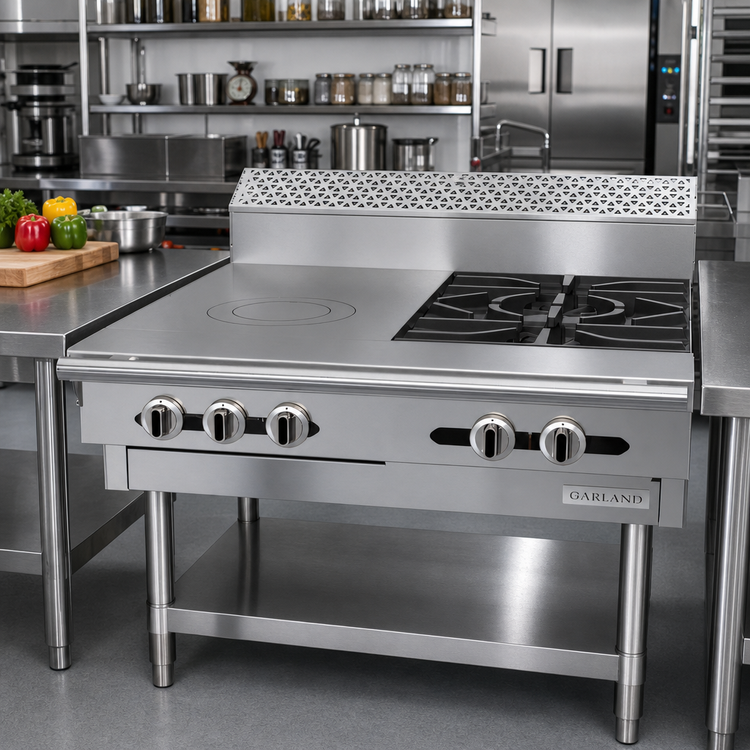

Garland Cuisine Series C36-17M Modular Top Range

36" Gas • 2 Starfire Open Burners + 18" Front-Fired Hot Top • 117,500 BTU

Built for heavy-duty, high-volume kitchens, this low-profile Garland Cuisine modular range top delivers the raw power of two 40,000 BTU Starfire open burners plus the even heat of an 18" front-fired hot top — all on a rock-solid 36" chassis that drops straight onto a stand, refrigerated base or counter line.

Key Features

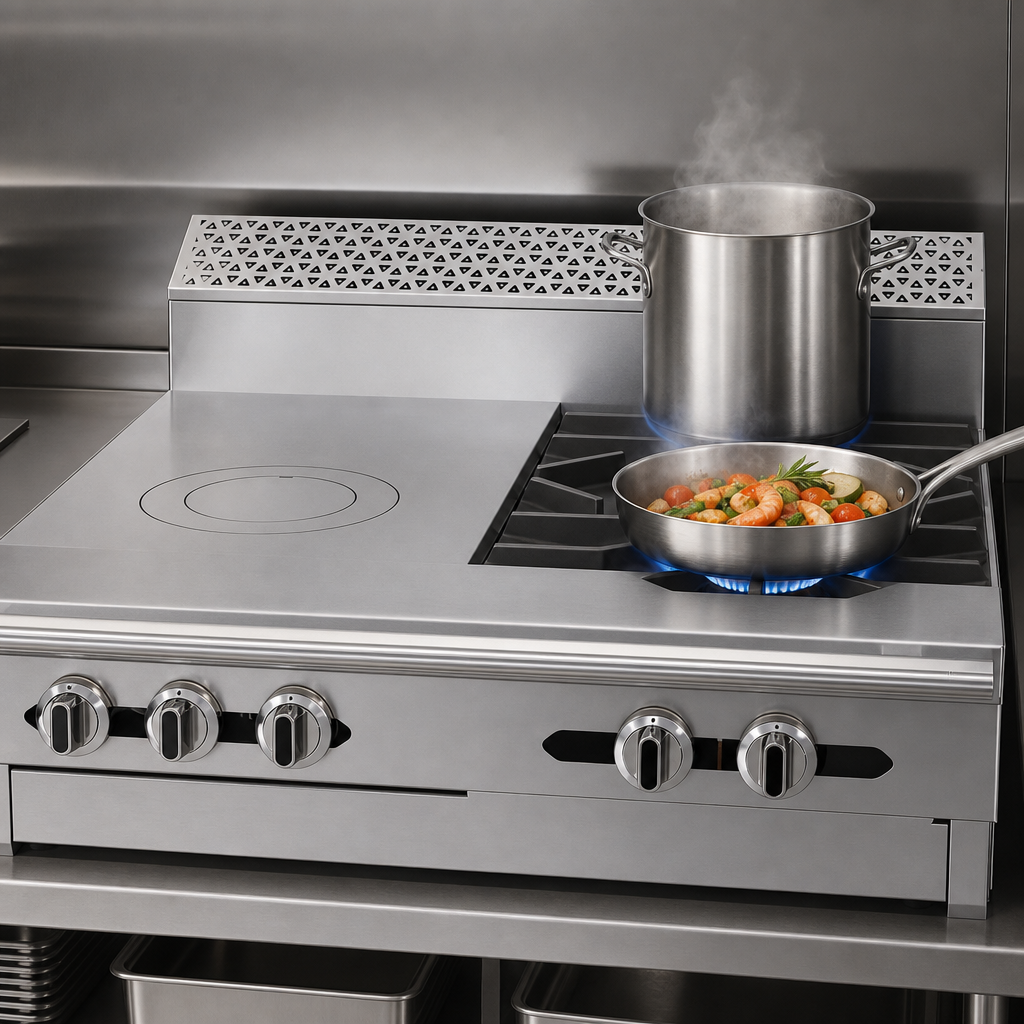

  • Two 18" Starfire open burners – 40,000 BTU/h each for rapid boil and searing heat.

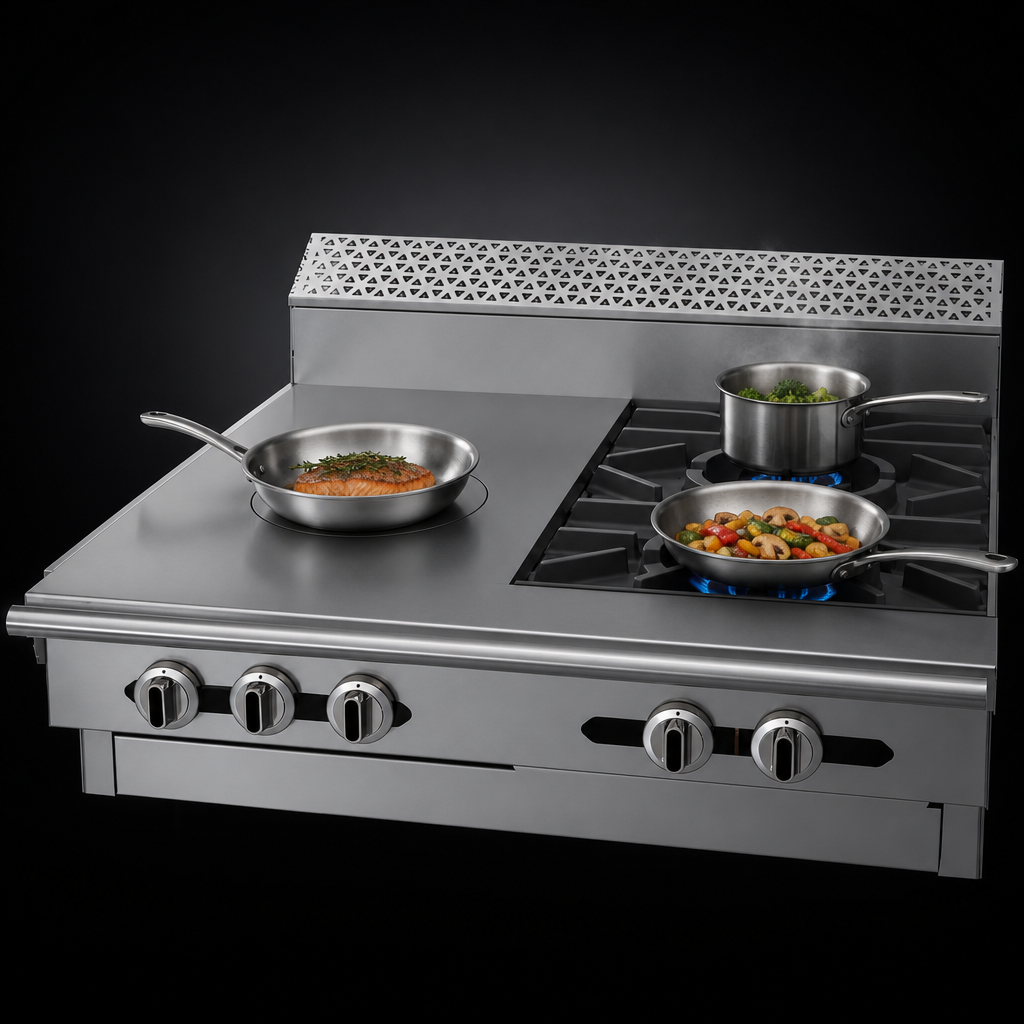

  • 18" front-fired hot top – 37,500 BTU/h, ideal for stock pots, saucier pans & holding.
  • Removable lids & rings for instant conversion from full-surface to ring cooking.
  • 7" (178 mm) stainless steel stub back/backguard protects walls without blocking sightlines.
  • Heavy-gauge stainless steel front, sides, continuous plate rail & burner box.
  • Low-profile modular design mounts on a Cuisine stand, refrigerated base or existing counter.
  • Front 1-1/4" NPT gas manifold with factory pressure regulator; field convertible for LP.
  • One-piece cast-iron grates & bowls; pilots located outside the spill zone for reliability.
  • Certified to CSA Flame, CSA Star & NSF standards.

Performance

With a combined 117,500 BTU/h of natural-gas fire power, the C36-17M makes quick work of everything from flash-searing to low-and-slow braising. The hot top’s uniform heat band keeps sauces and stocks at a steady simmer while the twin Starfire burners deliver pinpoint, high-intensity flames on demand.

Specifications

Model C36-17M (Modular Top)
Overall width 36" / 914 mm
Overall depth ≈ 34-3/8" / 873 mm *
Overall height ≈ 11-1/8" / 282 mm *
Total input (NG) 117,500 BTU/h (34.4 kW)
Open burners (2) 40,000 BTU/h each
Front-fired hot top 37,500 BTU/h (three 12,500 BTU burners)
Gas connection 1-1/4" NPT front manifold (¾" rear connection kit optional)
Manifold pressure 6" W.C. Natural • 10" W.C. Propane
Certifications CSA Flame, CSA Star, NSF
Net weight ≈ 355 lb / 161 kg

*Dimensions shown are for the countertop modular top only. Height and depth will vary when mounted on an optional stand or refrigerated base.

Ideal For

  • Upscale & high-volume restaurants
  • Hotel & resort kitchens
  • Catering commissaries
  • Institutional & collegiate foodservice

Popular Accessories (sold separately)

  • Full-height equipment stand with adjustable legs or locking casters
  • Single or double deck high shelf / back riser
  • Rear gas connection kit
  • Flanged feet for curb or dais mounting
  • 1/9-pan extension bar
Important: Garland Cuisine Series equipment is intended for commercial use only. Installation must conform to all local gas and ventilation codes. Units supplied on casters require a field-supplied restraining device.

Features & Specs

Manufacturer

Garland

Brand_name

Garland Cuisine

Certifications

NSF, CSA Star, CSA Flame

Height

10.0in

Width

36.0in

Depth

39.38in

Shipping Weight

355.0lbs

Base

modular

Exterior Finish

stainless steel front & sides

Top

(2) open burners, (1) 18" hot top

Specifications

Garland Cuisine Series Heavy Duty Range, gas, 36", modular top, (2) 40,000 BTU open burners, (1) 18" front fired hot top, removable lids & rings, 7"H backguard, stainless steel front, sides, plate rail & burner box, 117,500 BTU (NG), CSA Flame, CSA Star, NSF (Garland)
