Garland C36-14S Garland Cuisine Gas Ranges
Description

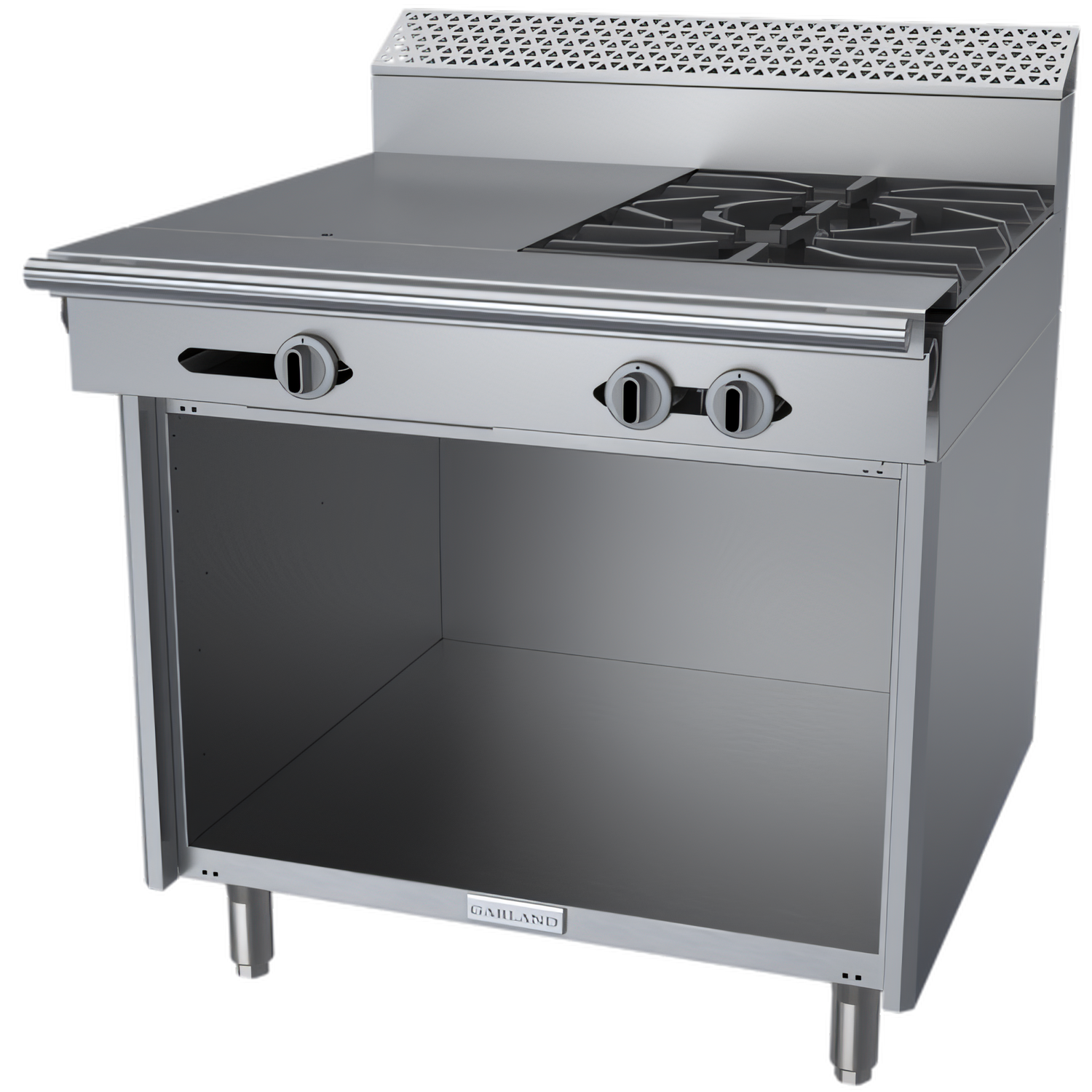

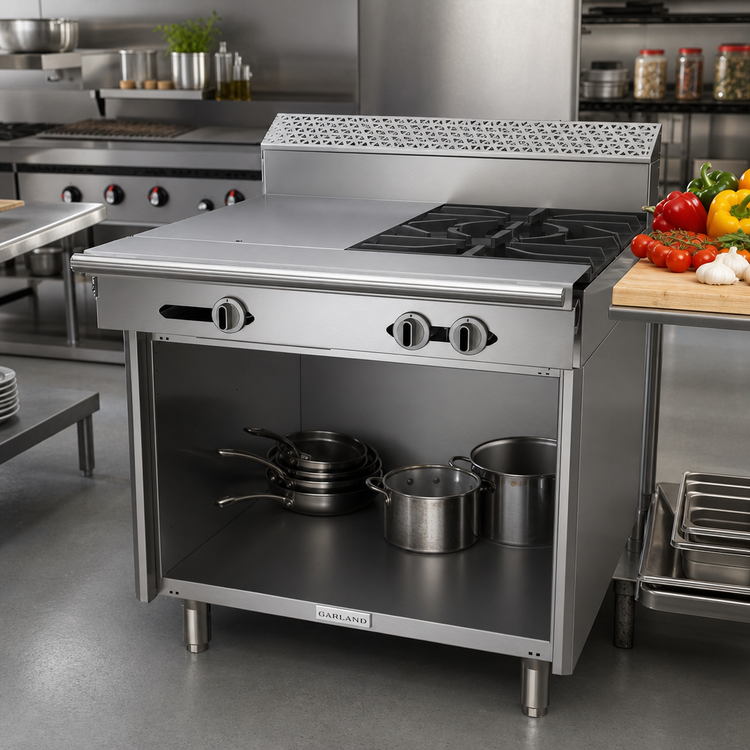

Garland Cuisine Series 36" Heavy-Duty Combination Range – Model C36-14S
2 x 40,000 BTU Starfire Burners • 18" Even-Heat Hot Top • Open Cabinet Base • 112,500 BTU (NG)Built for the busiest commercial kitchens, the Garland C36-14S delivers the muscle of two 40,000 BTU open burners, the versatility of a 32,500 BTU even-heat hot top, and the convenience of an open storage base—all inside a rugged 36-inch footprint that lines up perfectly with the rest of your Cuisine Series battery.
Key Performance Features

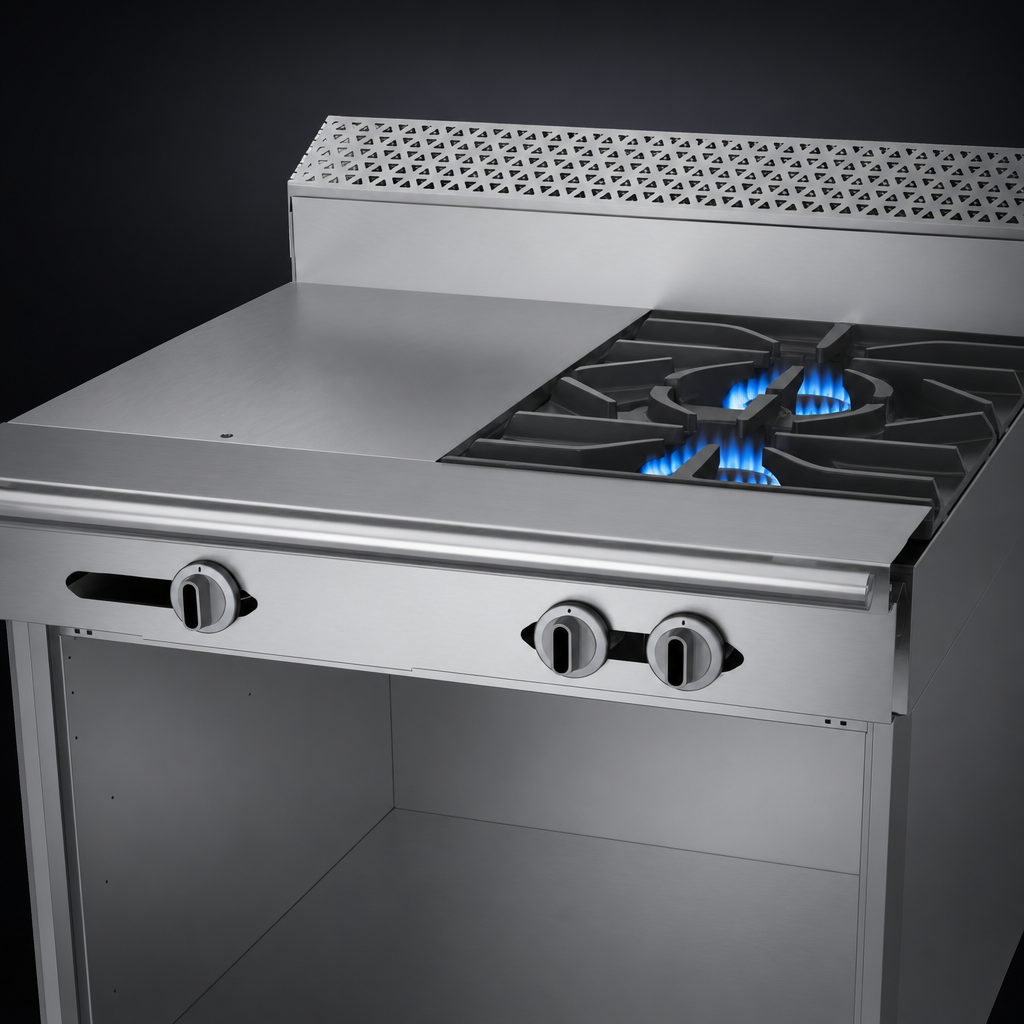

- Instant fire-power: two 18" Garland Starfire burners at 40,000 BTU/h each for rapid boil, sear and sauté.

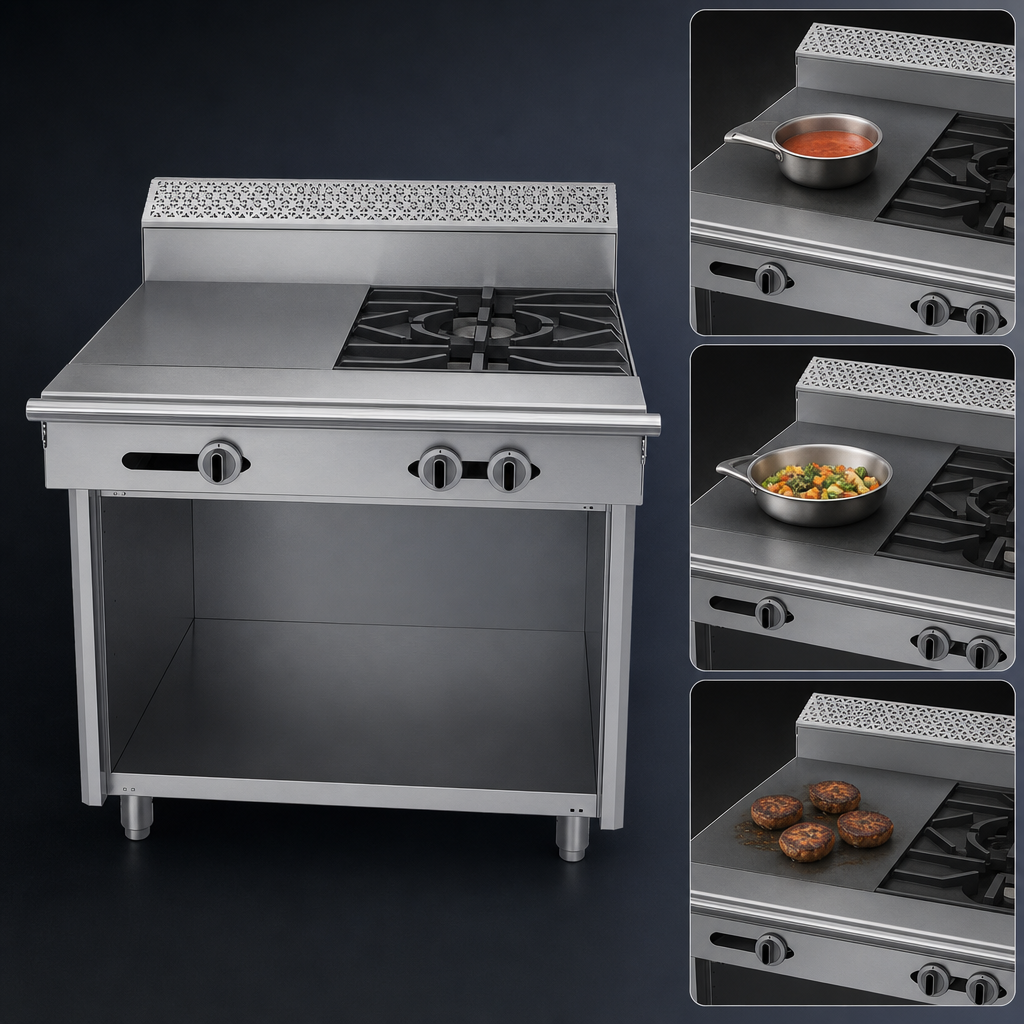

- Even-Heat™ 18" hot top: 32,500 BTU cast-iron plate distributes heat uniformly—ideal for stock pots, finishing sauces or holding.
- Total output: 112,500 BTU/h (natural gas) keeps service moving at peak periods.
- All-stainless exterior: front, sides, plate rail and burner box resist corrosion and wipe clean fast.
- One-piece cast-iron grates & bowls: stand up to heavy stock pots and slide out for quick cleaning.
- Open cabinet base: full-width storage for sheet pans, hotel pans or smallwares—add an optional intermediate shelf or stainless doors when you’re ready.
- 7" stainless stub backguard protects walls while maintaining a low profile for island suites.
- 6" adjustable stainless legs level the unit on uneven floors; flanged feet or heavy-duty casters available.
- 1 ¼" NPT front gas manifold makes it easy to connect singly or battery with additional Cuisine Series equipment.
- CSA Flame, CSA Star & NSF certified for gas safety, sanitation and performance.
Popular Options & Accessories
- Stainless steel doors and/or intermediate shelf for cabinet base
- 5" or 6" swivel casters with front brakes (requires restraining device)
- Single or double high shelf / back riser
- Rear gas connection kit, gas regulator or quick-disconnect hose (¾", 1" or 1 ¼")
- Continuous plate rail (48"–72") for multi-unit batteries
Technical Specifications
| Model | C36-14S (Open Cabinet Base) |
|---|---|
| Overall width | 36" / 914 mm |
| Overall depth | ≈ 37 ¼" / 947 mm |
| Working height | ≈ 34 ⅛" / 866 mm to cook surface |
| Total heat input | 112,500 BTU/h (Natural Gas) • 108,500 BTU/h (Propane) |
| Open burners | 2 × 40,000 BTU/h |
| Even-Heat hot top | 1 × 32,500 BTU/h |
| Gas connection | 1 ¼" NPT front manifold (rear connection optional) |
| Combustible clearance | Sides 10" / 254 mm • Back 6" / 152 mm |
| Shipping weight | Approx. 438 lb / 199 kg |
| Certifications | CSA Flame • CSA Star • NSF |
Need to build a full line? Garland’s Cuisine Series ranges, fryers and storage bases share the same 34 ⅛" depth and front manifold, so you can create a seamless battery with common plate rails and backguards.
