Garland C36-14M Garland Cuisine Gas Ranges
Description

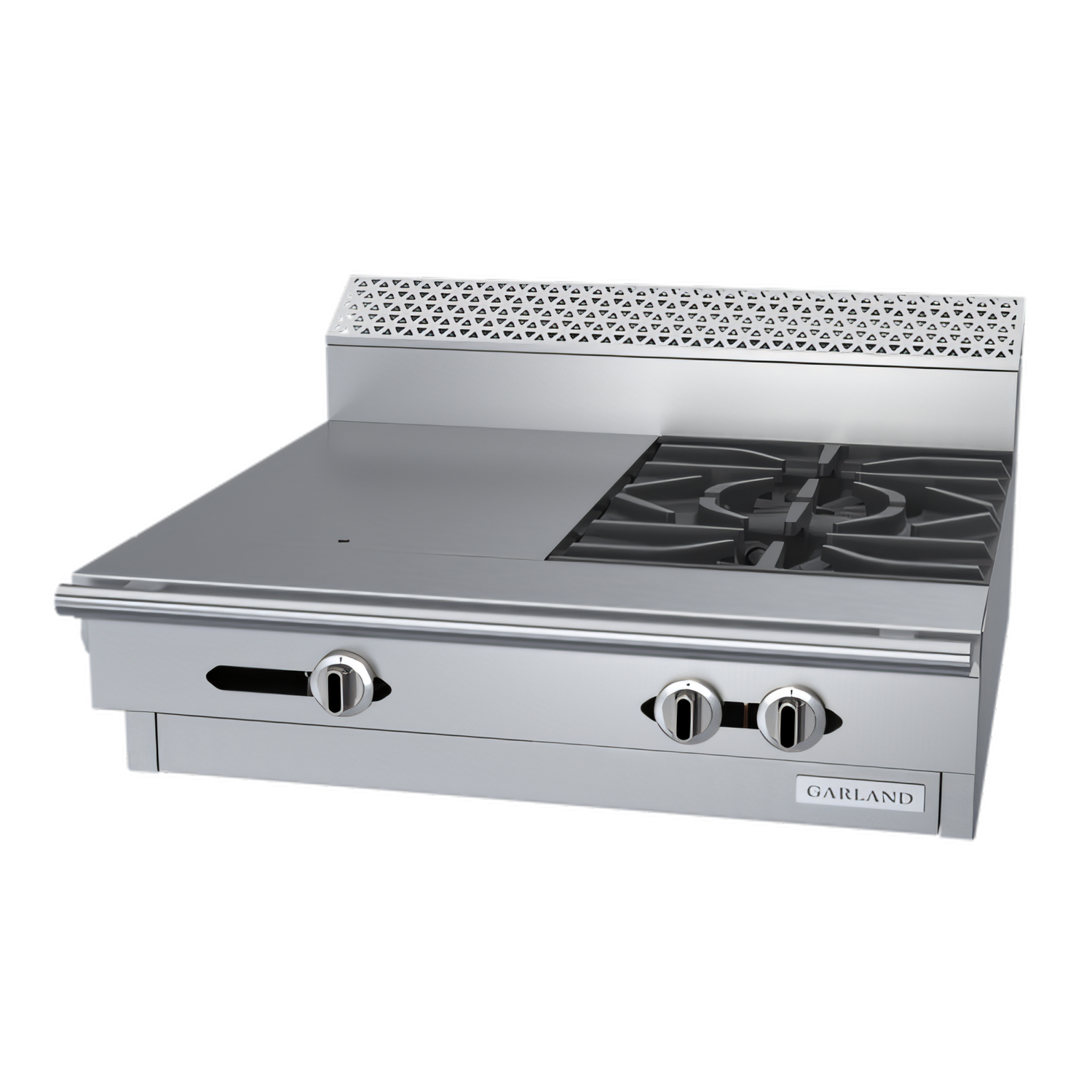

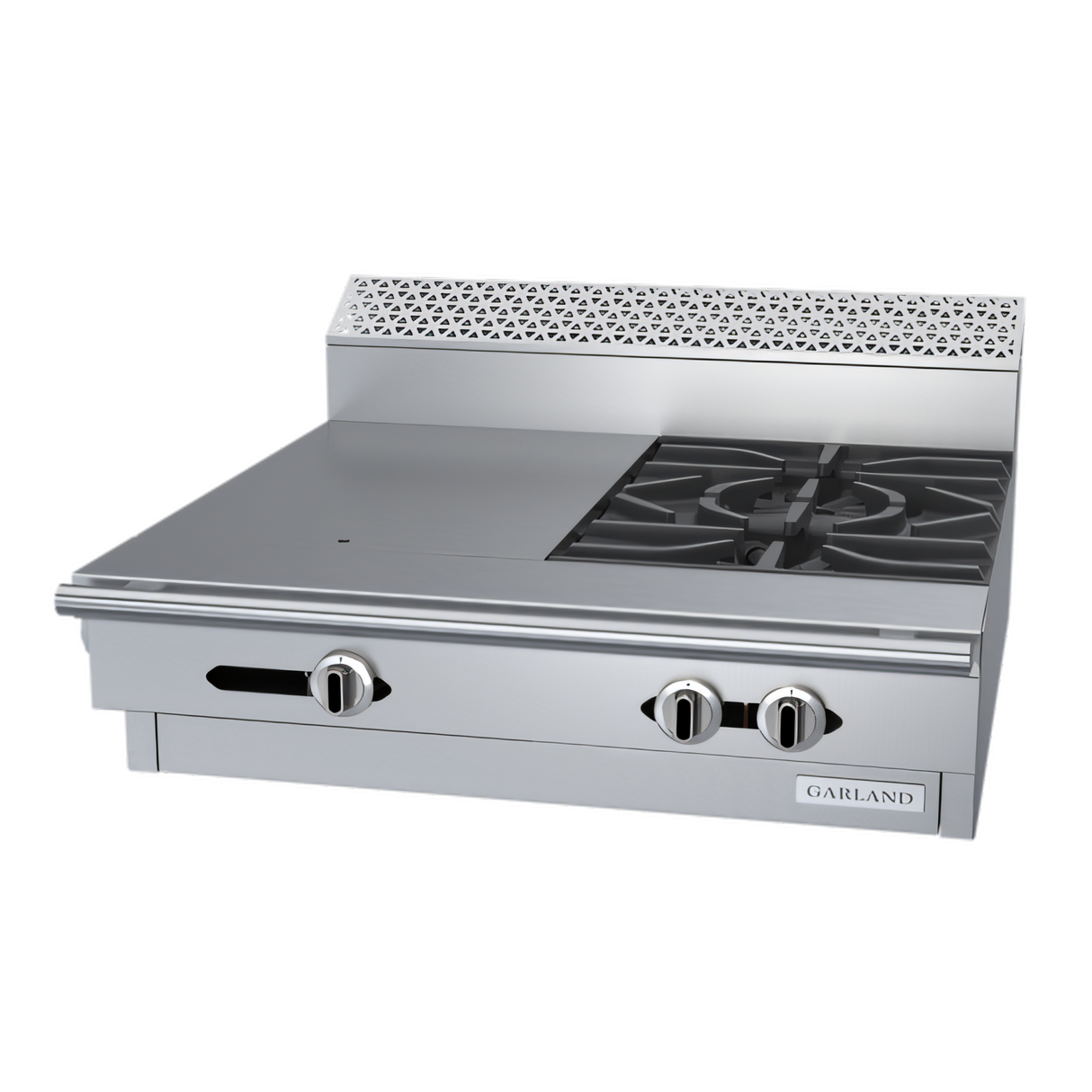

Garland Cuisine Series C36-14M 36" Heavy Duty Modular Range Top

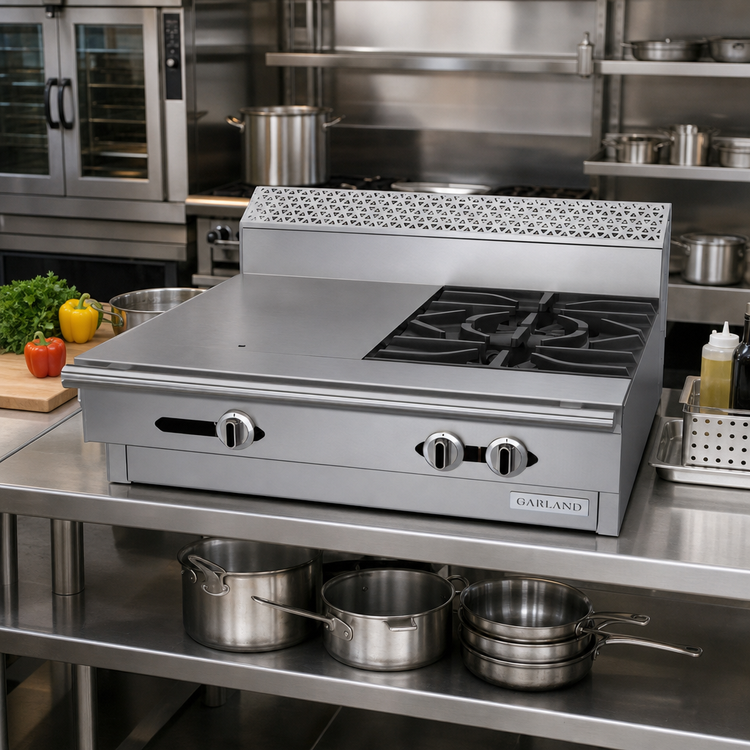

2 Open Burners + 18" Even-Heat Hot Top • 112,500 BTU/h Natural GasBuilt for chefs who demand versatility, speed and rugged durability, the Garland C36-14M combines two 40,000 BTU Starfire open burners with a 32,500 BTU Even-Heat hot top—giving you instant high-heat sauté power and a steady, uniform surface for sauce pots, braising pans or holding vessels. Its modular design drops directly on an approved equipment stand or refrigerated base, making it the perfect addition or replacement section in a battery line-up.
Why You’ll Love It

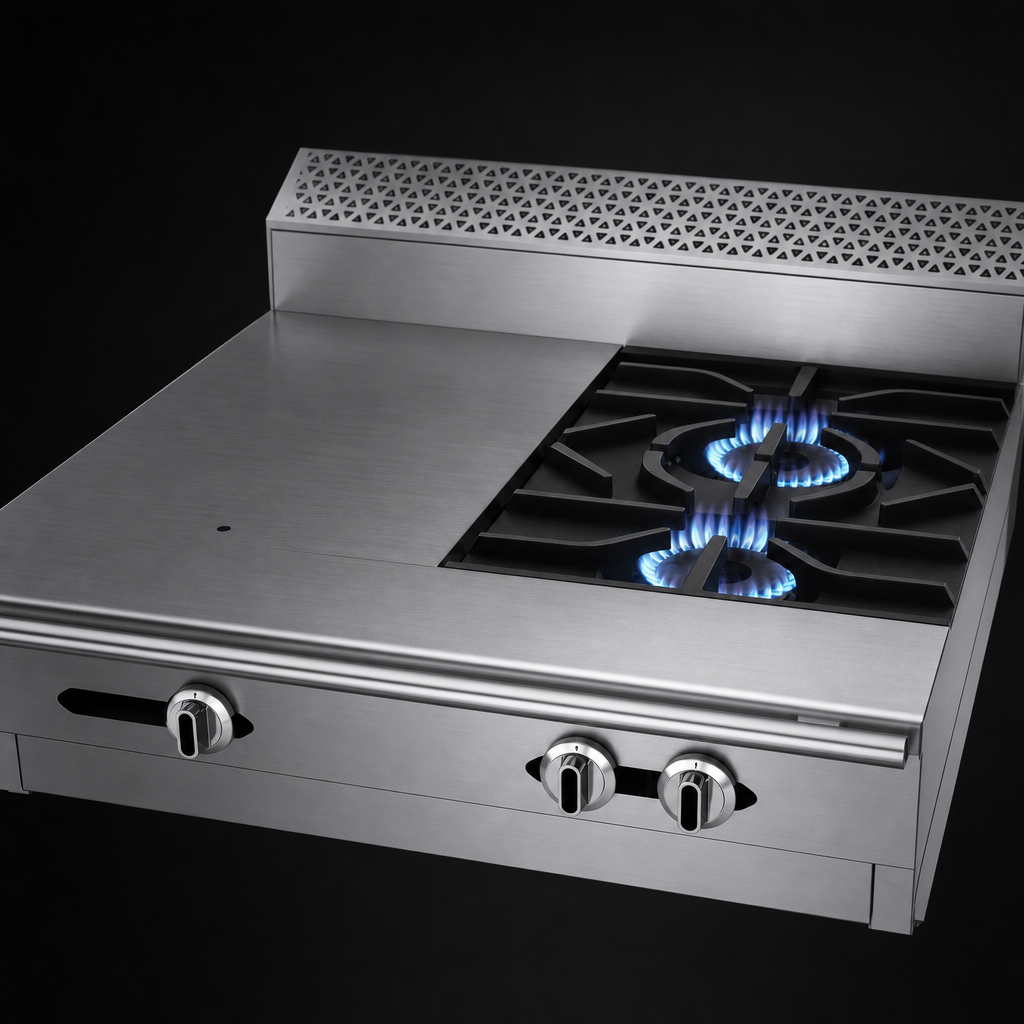

- Pair of 40,000 BTU/h Starfire open burners deliver rapid boil times and responsive low-end control.

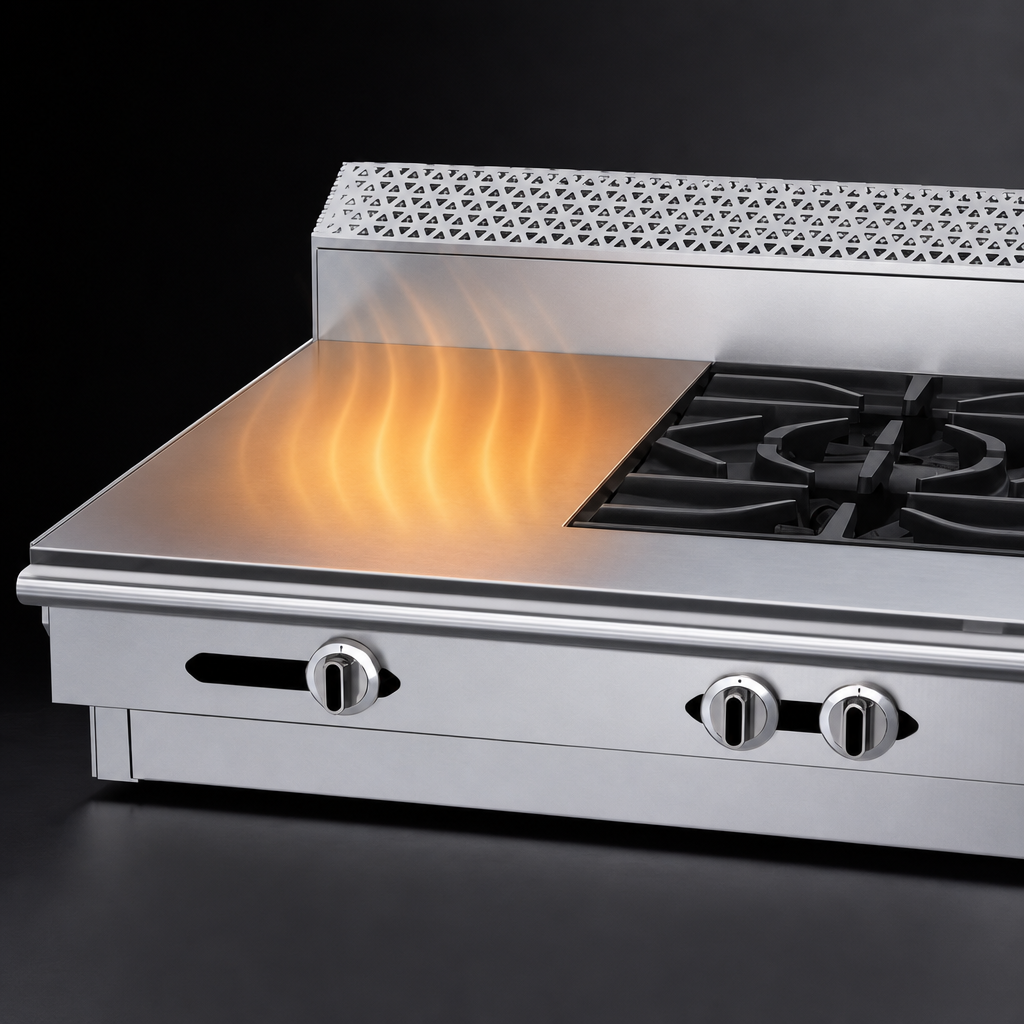

- 18" (457 mm) Even-Heat hot top (32,500 BTU/h) spreads heat evenly across the plate—ideal for stock pots and pan finishing.
- One-piece cast-iron grates and bowls lift off for fast, tool-free cleanup.
- Stainless steel front, sides, plate rail and burner box stand up to the heaviest commercial abuse.
- 7" (178 mm) stainless stub backguard protects the wall while keeping sightlines clear.
- 1-1/4" NPT front gas manifold with cap—connect as a stand-alone or hard-battery with adjacent Garland Cuisine units.
- Certified for commercial safety: CSA Flame, CSA Star & NSF.
Common Add-Ons
- Stainless equipment stand with adjustable legs or locking casters
- Full-height or double-deck high shelf / back riser
- Rear gas connection kit & quick-disconnect hose
- Continuous plate rail for 48-72" battery installations
Technical Specifications
| Model | C36-14M |
|---|---|
| Configuration | Modular top: (2) open burners & 18" hot top |
| Total Input | 112,500 BTU/h (Natural Gas) | 108,500 BTU/h (Propane) |
| Individual Burner Ratings |
Open burner – 40,000 BTU/h (each) Even-Heat hot top – 32,500 BTU/h |
| Gas Connection | 1-1/4" NPT front manifold (rear connection kit optional) |
| Manifold Pressure | 6" WC (Natural) | 10" WC (Propane) |
| Minimum Supply Pressure | 7" WC (Natural) | 11" WC (Propane) |
| Clearances (to combustibles) |
Sides – 10" (254 mm) | Rear – 6" (152 mm) |
| Dimensions (W × D × H) | 36" × 34-1/8" × 37-1/4" (914 × 866 × 947 mm to top of stub backguard) |
| Shipping Weight | 355 lb (161 kg) |
| Certifications | CSA Flame, CSA Star, NSF |
Garland reserves the right to change specifications without notice. For exact rough-in and ventilation requirements, always reference the latest manufacturer’s specification sheet.
