Garland C36-14C Garland Cuisine Gas Ranges
Description

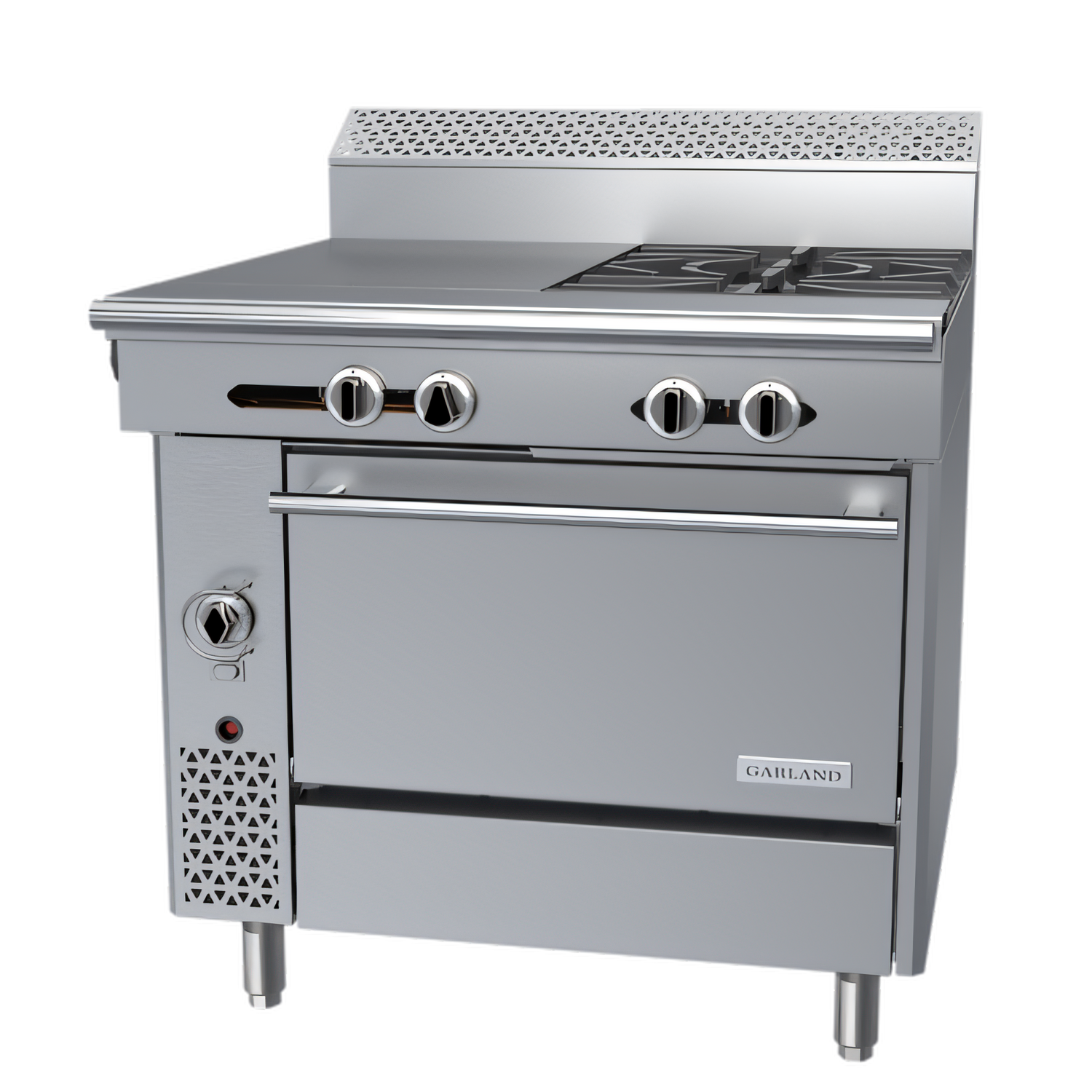

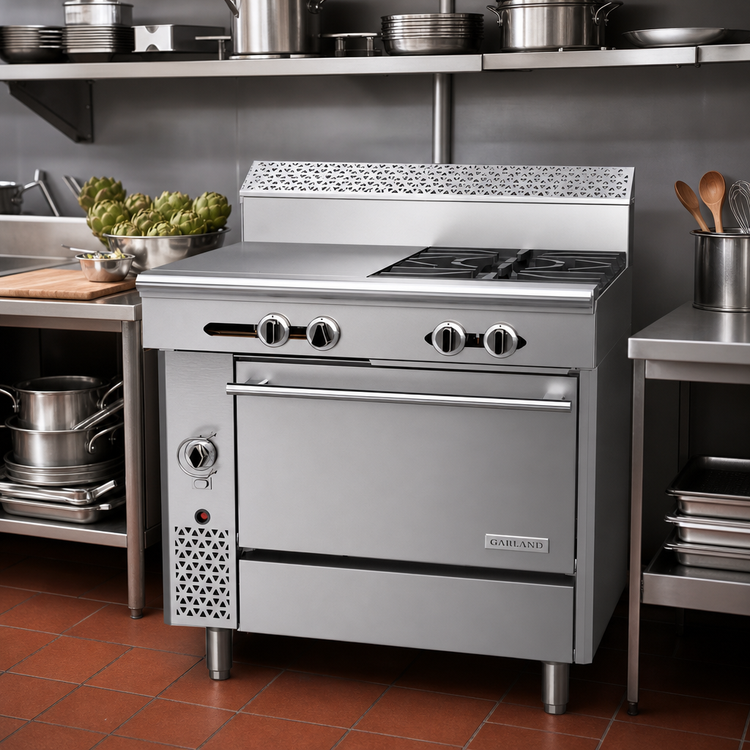

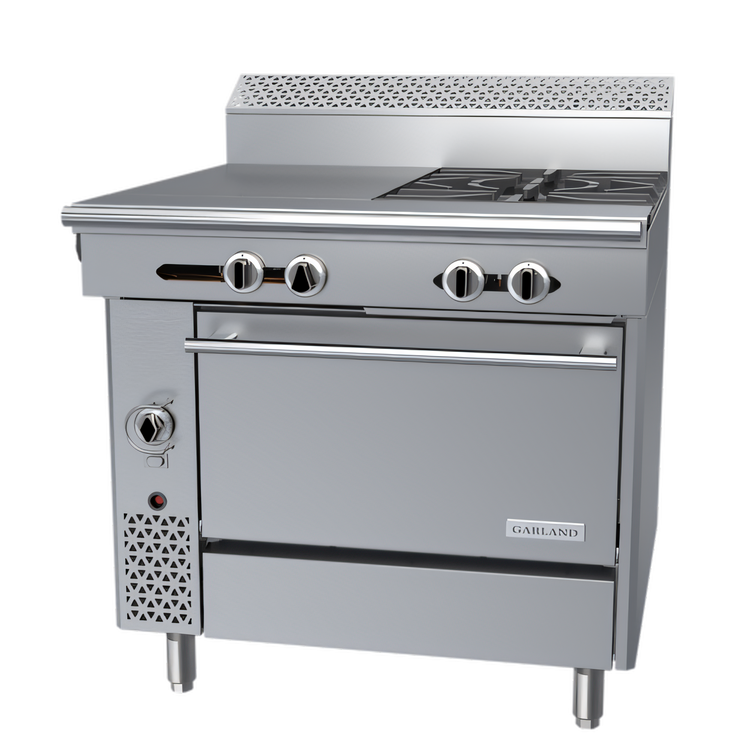

Garland Cuisine Series 36" Heavy-Duty Combination Range
Model C36-14C – 2 Starfire Burners · 18" Even-Heat Hot Top · Convection OvenGet the fire-power of a full cookline in just 36 inches. Garland’s Cuisine Series C36-14C couples two 40,000 BTU Starfire open burners, a 32,500 BTU Even-Heat hot top and a high-performance convection oven into one rugged, stainless-steel workhorse – perfect for restaurants, hotels, and institutional kitchens that demand speed, consistency and long-term reliability.
Why You’ll Love It

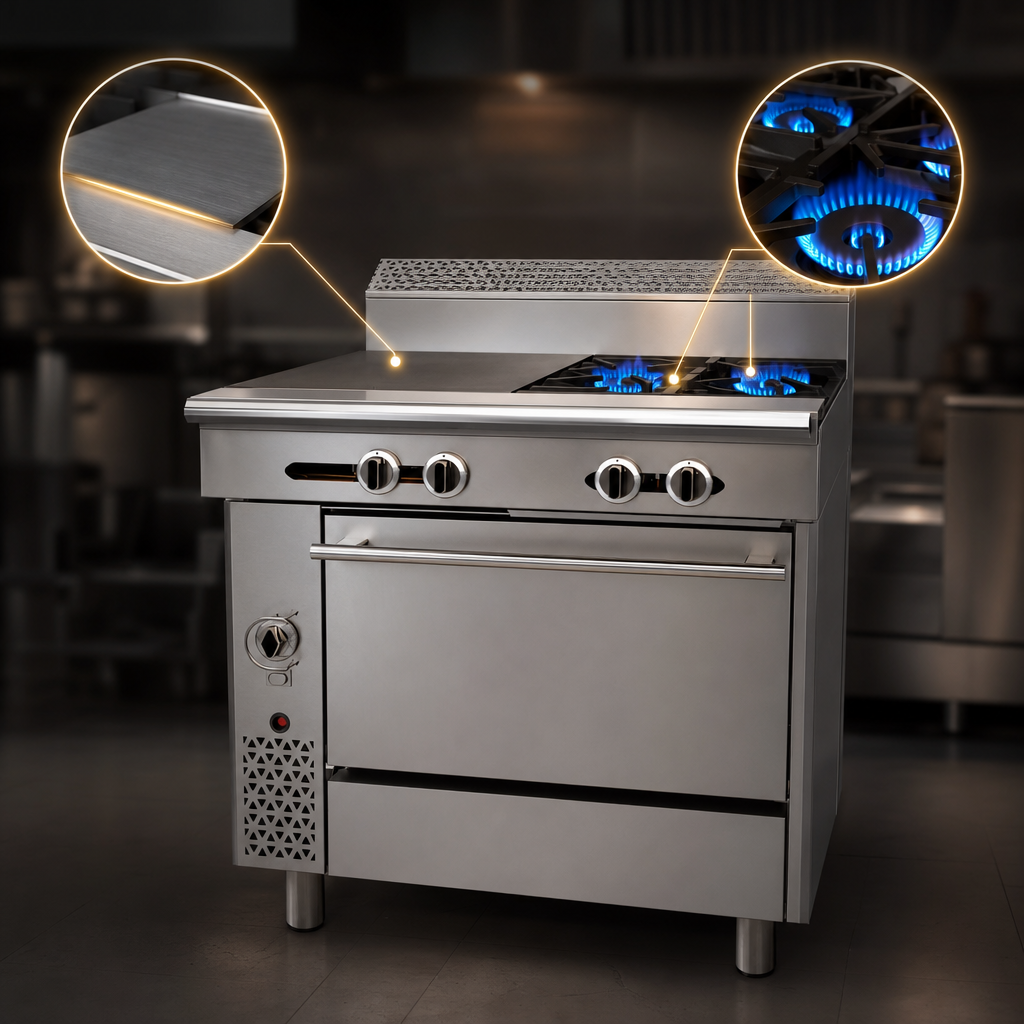

- Serious surface heat – 2 Starfire 18" burners (40,000 BTU each) deliver rapid boil times and lightning-fast recovery.
- 18" Even-Heat Hot Top – 32,500 BTU plate provides uniform heat from edge-to-edge; ideal for stockpots, sauté pans & holding sauces.
- True commercial convection – 37,000 BTU oven with 1/3 HP fan bakes, roasts and finishes evenly on all three racks.
- Built to last – All-stainless front, sides, plate rail & burner box plus one-piece cast-iron grates and bowls.
- Operator friendly – “Keep-cool” door handle, 150-500 °F thermostat & front-mounted 1 ¼" NPT gas manifold for easy battery installations.
- Code ready – CSA Flame, CSA Star & NSF certified for North-American kitchens.
At-a-Glance Specs

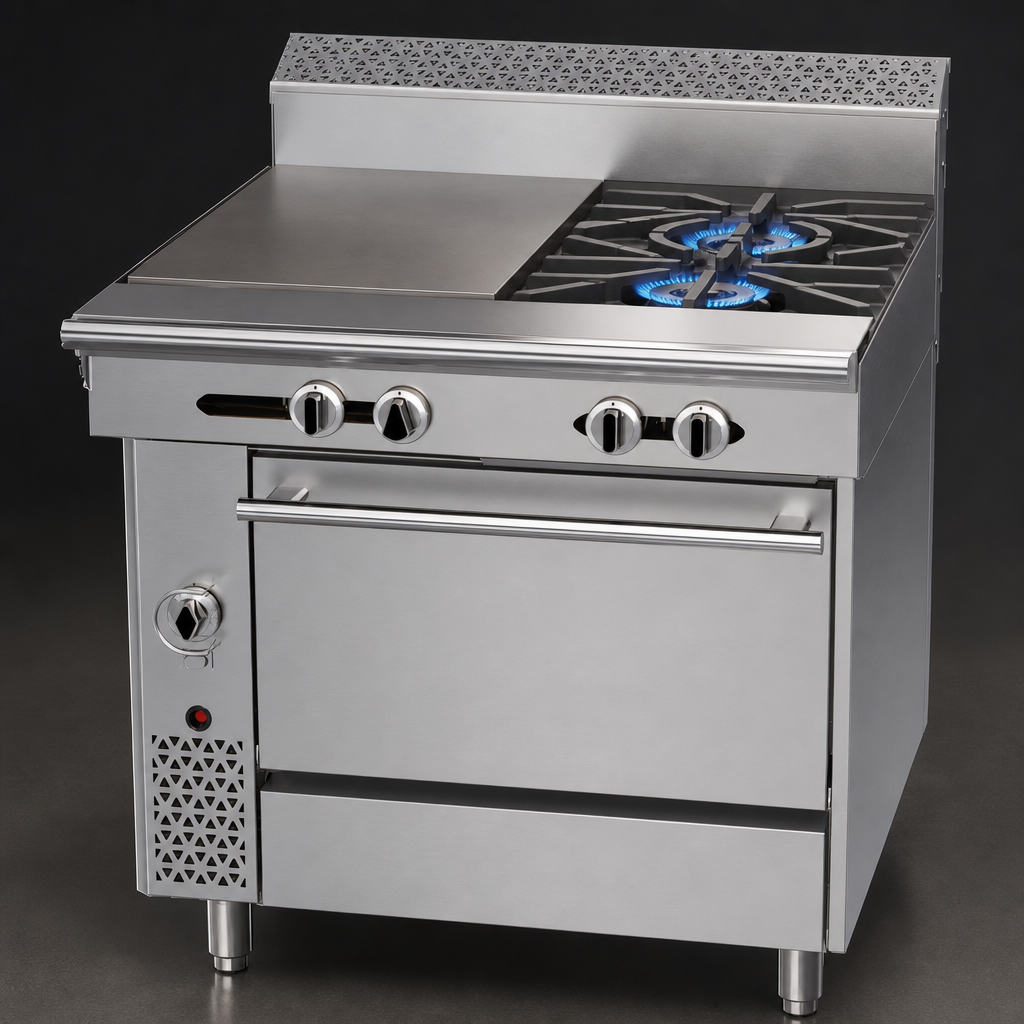

| Cooking Top | (2) open burners @ 40,000 BTU each (1) 18" Even-Heat hot top @ 32,500 BTU |
|---|---|
| Oven Type / BTU | Convection, 37,000 BTU – 150 °F to 500 °F |
| Oven Interior (H×W×D) | 13.5" × 26.25" × 25" (343 × 667 × 635 mm), stainless, 3 chrome racks / 3 positions |
| Total Input | 149,500 BTU/h (Natural Gas) / 143,500 BTU/h (Propane) |
| Gas Connection | 1 ¼" NPT front manifold (optional rear), 7" WC min. NAT / 11" WC min. LP |
| Electrical (oven fan) | 120 V, 60 Hz, 1-ph, 0.6 A, 1/3 HP motor, NEMA 5-15P cord & plug |
| Exterior Dimensions | 36" W × 34-1/8" D × 37-1/4" H (914 × 866 × 946 mm) incl. 7" backguard |
| Clearances (combustible) | Sides 10" (254 mm) | Back 6" (152 mm) |
| Construction | Stainless front, sides, plate rail & burner box; 6" adjustable stainless legs |
| Shipping | 53 ft³ | 624 lb (283 kg) |
| Certifications | CSA Flame, CSA Star, NSF |
Ideal Applications
- Scratch kitchens that need maximum menu flexibility in a compact footprint
- Hotel & resort banquet lines requiring consistent, high-volume output
- Institutional kitchens (schools, healthcare, correctional) demanding long-life equipment
Ranges supplied with casters must be installed with an approved restraining device. Garland products are designed for commercial use only.
