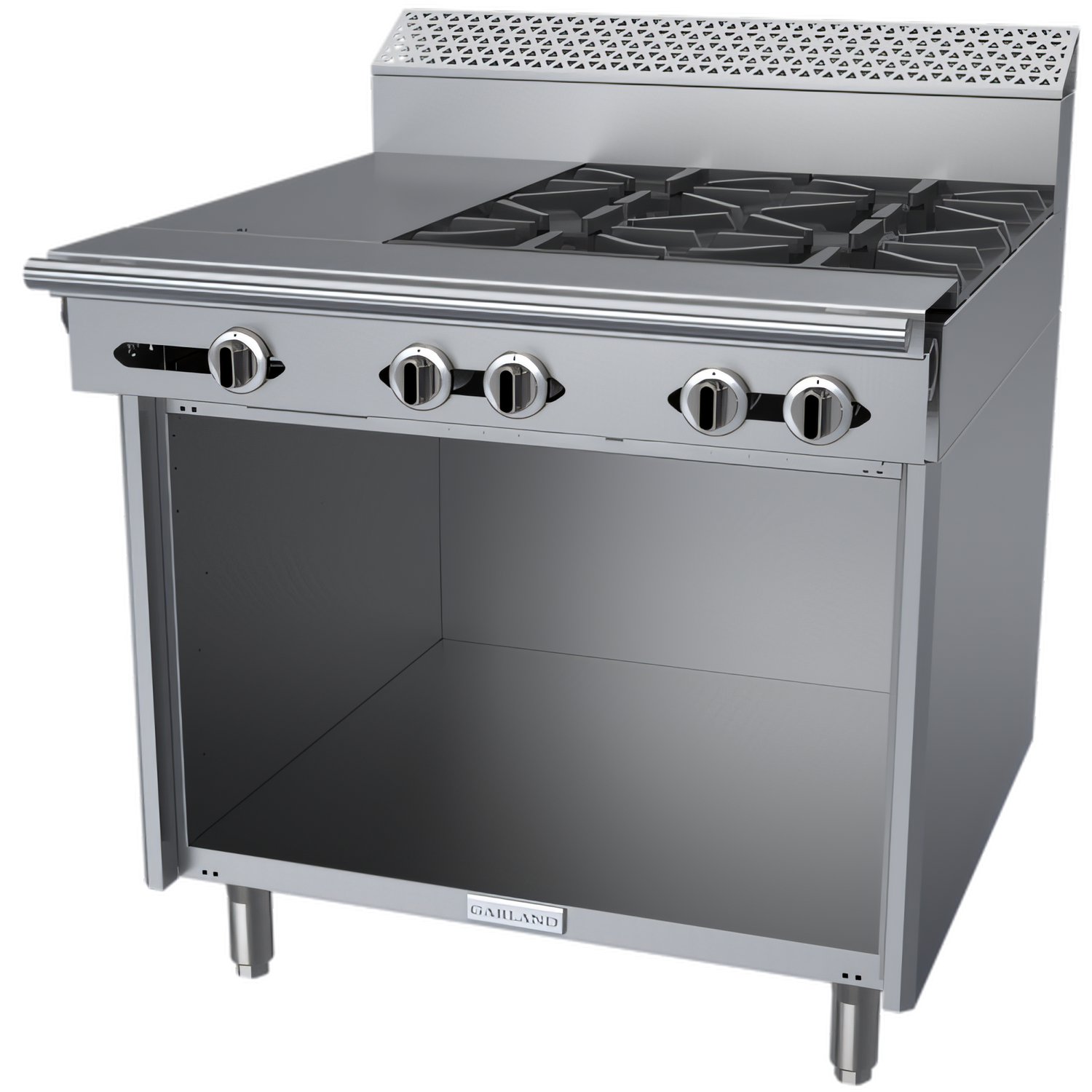

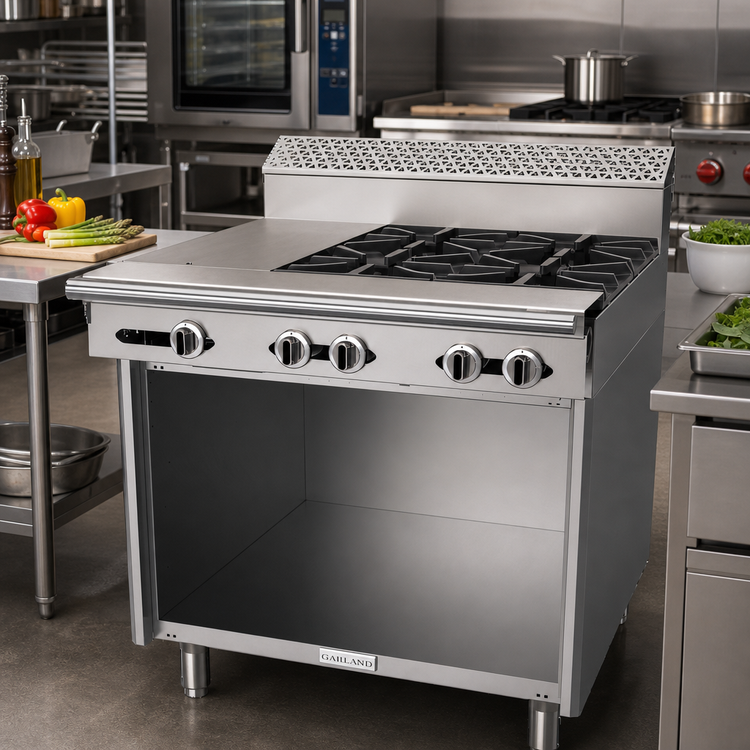

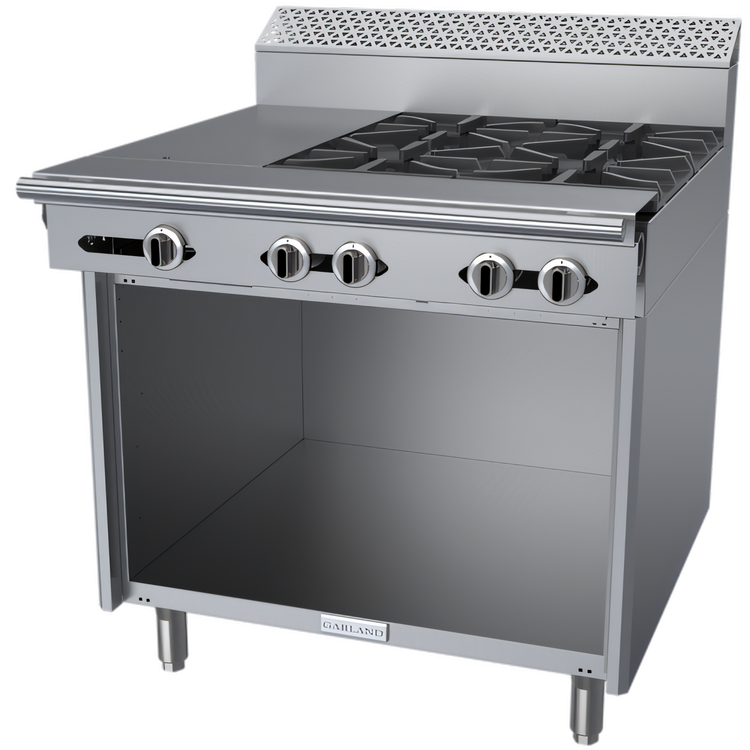

Garland Cuisine Series 36-Inch Heavy Duty Gas Combination Top Range with 4 Open Burners, 12-Inch Hot Top, and Storage Base

Stainless Steel Front/Sides, 7-Inch Backguard, 165,000 BTU

This 36-inch heavy-duty gas combination top range pairs four high-output open burners and a 12-inch hot top with a convenient storage base for efficient back-of-house performance.

  • 36-inch heavy-duty combination top range with an open cabinet storage base
  • Four 35,000 BTU open burners deliver fast, even heat for sautéing, boiling, and general cooking
  • 12-inch even-heat hot top provides a dedicated surface for simmering and pan work
  • Stainless steel front, sides, plate rail, and burner box help improve durability and cleanup
  • 7-inch stainless steel backguard and 6-inch adjustable legs support easier installation
  • 1-1/4-inch NPT front gas manifold and battery-ready design add installation flexibility

Overall Dimensions:

36.0"W x 39.38"D x 42.0"H

Product Weight:

404.0 lb

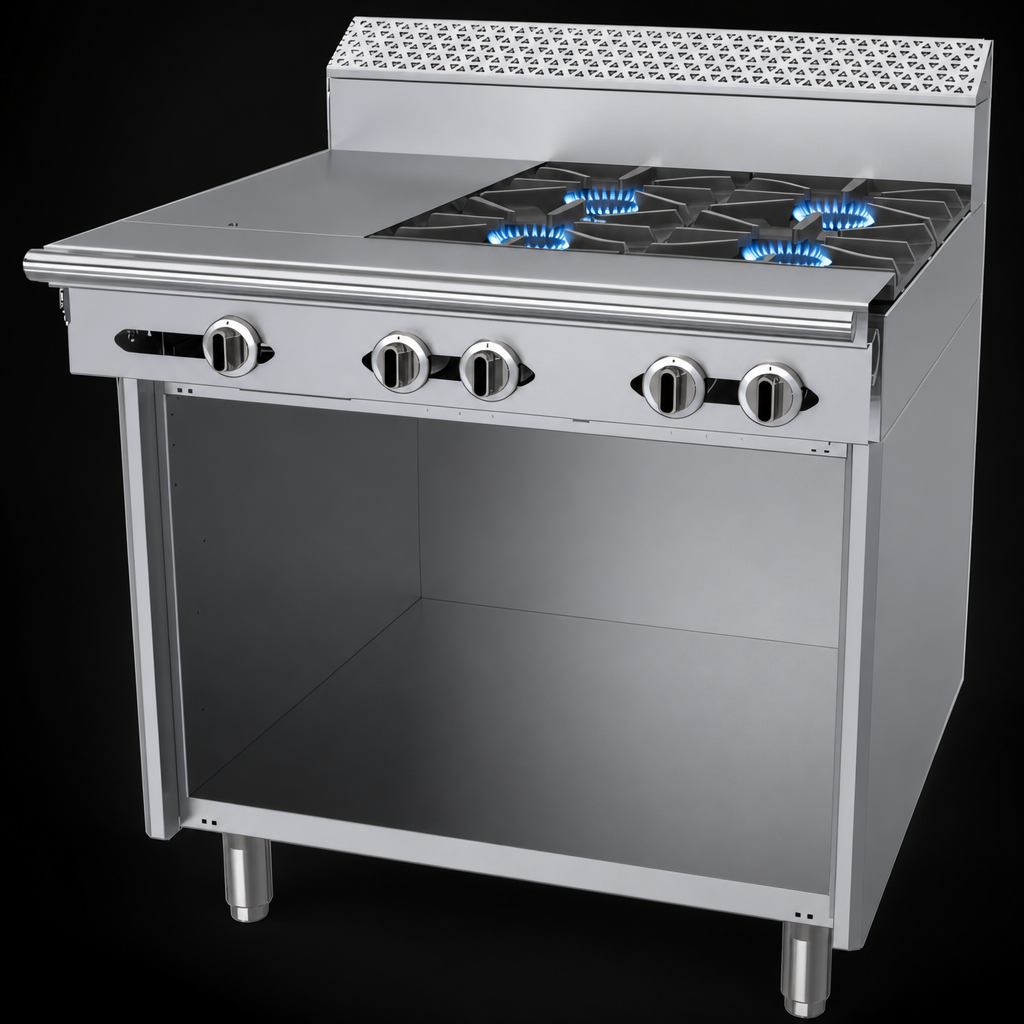

Four Open Burners

Four 35,000 BTU/h open burners provide high-output heat for demanding production service.

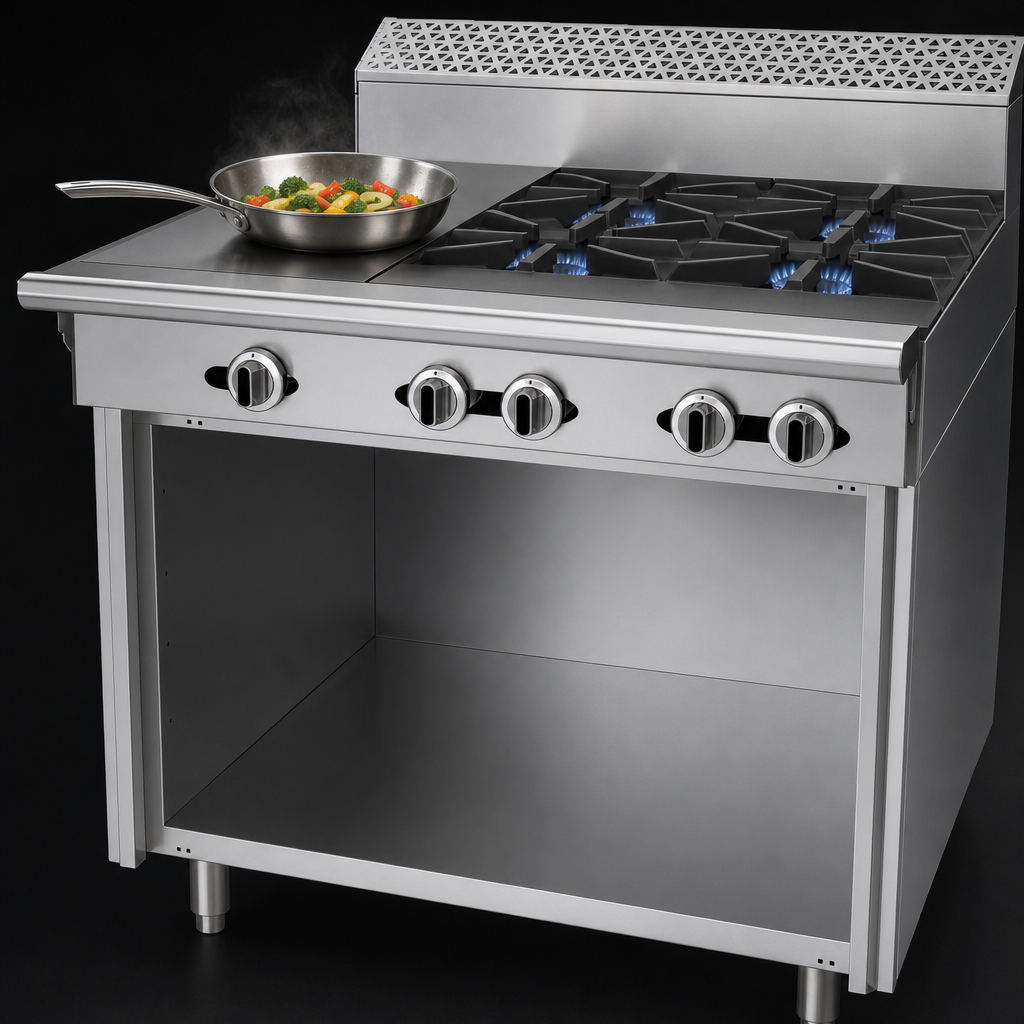

12-Inch Even-Heat Hot Top

The 12-inch hot top section is rated at 25,000 BTU/h and is ideal for simmering and holding pans.

Open Cabinet Storage Base

The cabinet-style storage base gives the range undercounter storage space without adding an oven.

Stainless Steel Construction

Stainless steel front, sides, plate rail, and burner box improve durability and make cleaning easier.

7-Inch Backguard

The stainless steel stub back helps protect the wall behind the range.

Adjustable Legs

6-inch adjustable stainless steel legs help level the unit during installation.

Front Gas Manifold

A 1-1/4-inch NPT front gas manifold supports gas hookup.

Battery-Ready Design

The range can be installed individually or as part of a battery setup.

Heavy-Duty Burner Components

One-piece cast iron grates and bowls sit over each open top burner for rugged daily use.

Hot Top Control

The hot top section uses hi-lo valve burner control for better heat management.

Type Combination Top Range
Style Open Burners / Hot Top / Storage Base
Installation Type Floor Model
BTU 165,000 BTU
Gas Type Natural Gas / Propane
Gas Connection Size 1-1/4 Inch NPT
Material Stainless Steel
Finish Stainless Steel
Shipping Width 36 Inches
Shipping Depth 40 Inches
Shipping Height 42 Inches
Shipping Weight 404 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Garland cuisine models guide PDF Download PDF Owner's manual PDF Download PDF Check list PDF Download PDF Brochure PDF Download

Frequently Asked Questions

No. The C36-13S is the storage-base version of the 36-inch combination top range.
It includes four 35,000 BTU open burners and one 12-inch even-heat hot top rated at 25,000 BTU/h.
The range uses a 1-1/4-inch NPT front gas manifold.
Yes. The documentation states it can be installed individually or in a battery.
Minimum supply pressure is 7 inches W.C. for natural gas and 11 inches W.C. for propane. Manifold operating pressure is 6 inches W.C. for natural gas and 10 inches W.C. for propane.
