Garland C36-13R Garland Cuisine Gas Ranges
$7,342.00
Unit price
/
Unavailable
Description

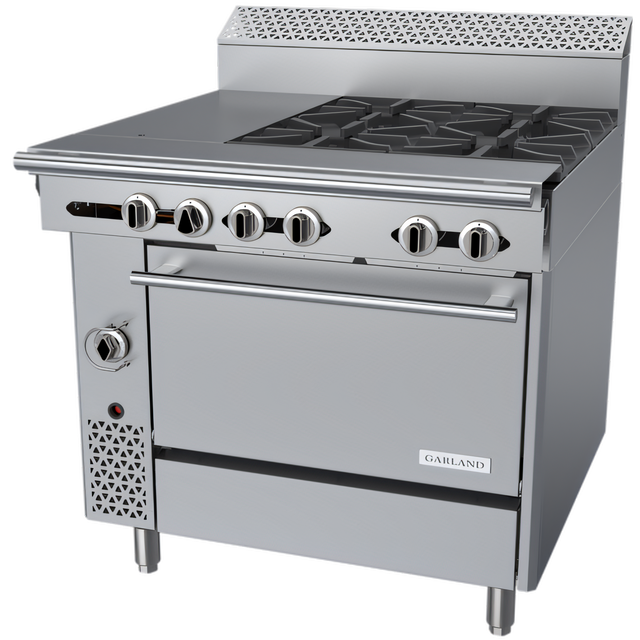

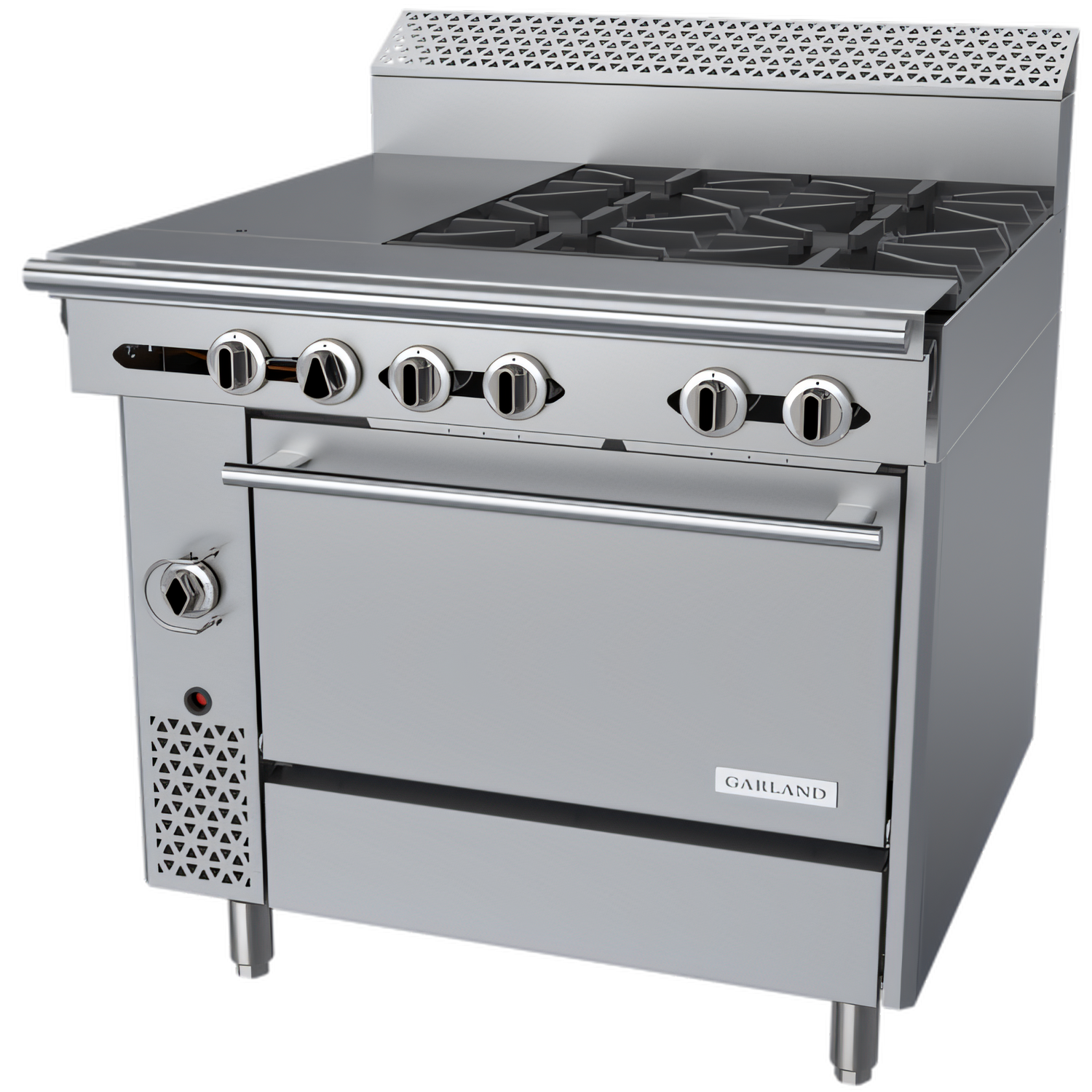

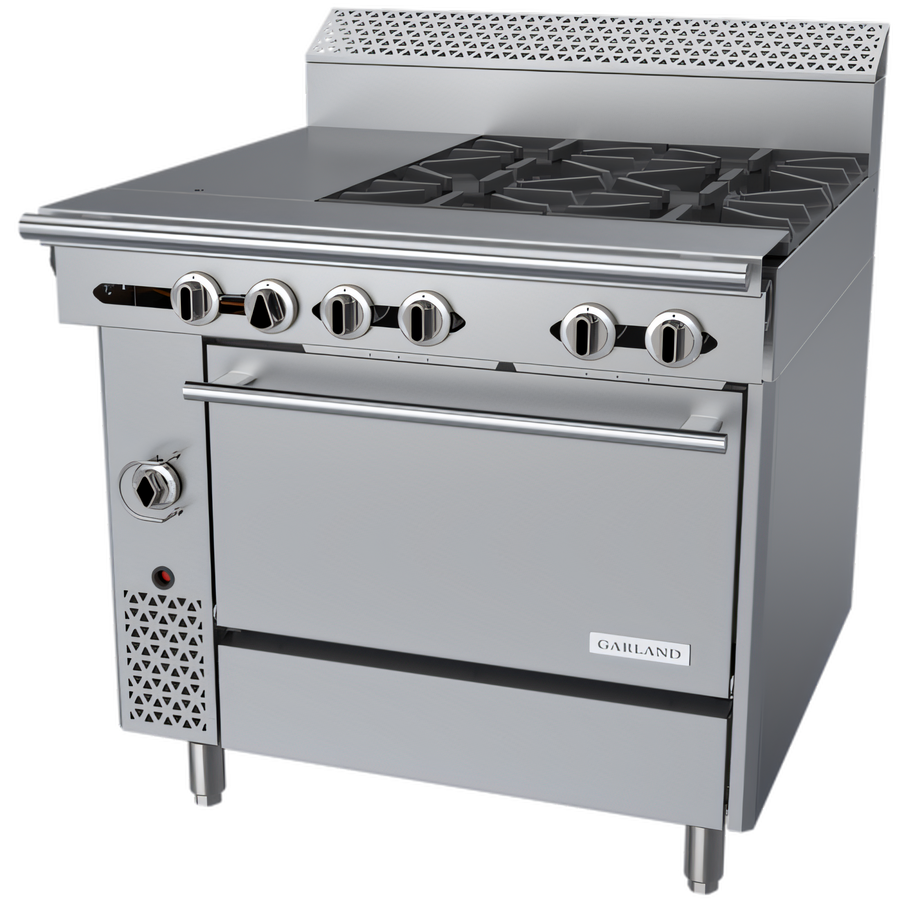

Garland Cuisine Series 36" Heavy-Duty Gas Range

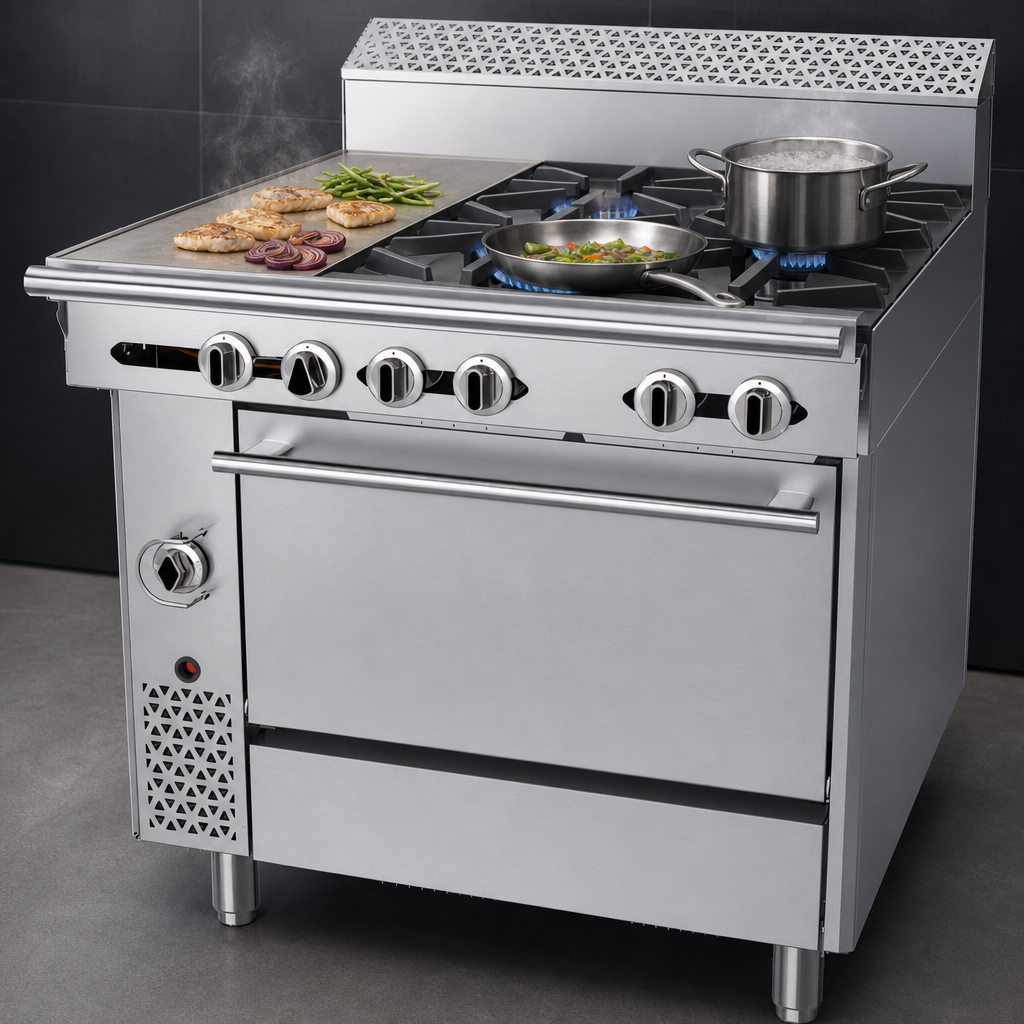

4 Starfire™ Open Burners • 12" Even-Heat Hot Top • Standard Oven • 205,000 BTU (NG)Power, versatility and Garland’s legendary build-quality—perfectly packaged for the busiest commercial kitchens. The Cuisine Series C36-13R combines blistering burner output with a precision hot top and a full-size oven, all on a compact 36 inch footprint.
Performance & Construction Highlights

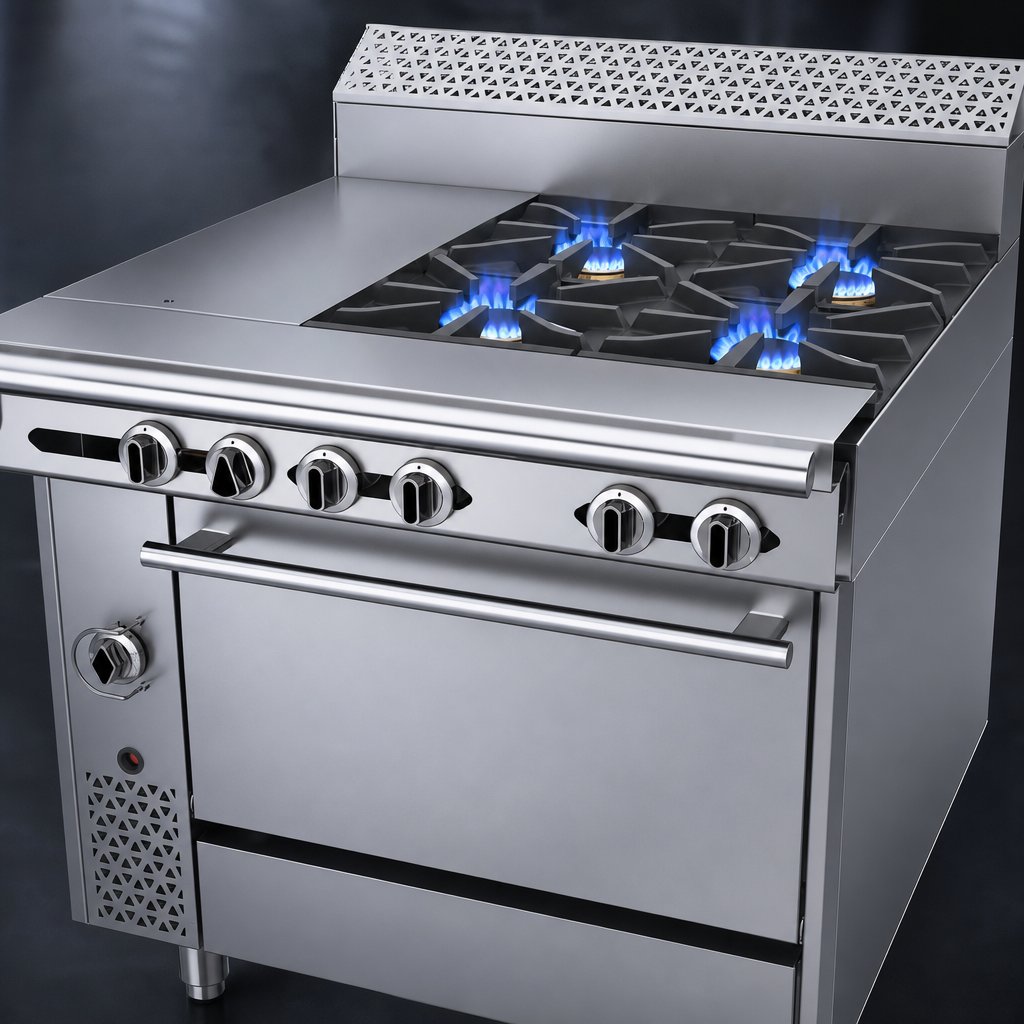

- 4 × 35,000 BTU/h Starfire™ cast-iron open burners for rapid boil-to-simmer control.
- 12" (305 mm) even-heat hot top — 25,000 BTU/h, ideal for sauces, stocks and holding pans.
- Hi-lo valve lets you dial in exact hot-top temperatures.
- 40,000 BTU/h standard oven, thermostat-controlled 150-500 °F (66-260 °C).
- Oven includes 1 chrome rack with 4 rack positions; porcelain interior for easy clean-up.
- One-piece cast-iron grates and bowls keep pots level and capture spills.
- Stainless steel front, sides, 7" stub backguard, plate rail and burner box resist corrosion and daily abuse.
- 6" (152 mm) adjustable stainless steel legs for a rock-solid, level installation.
- Front 1-1/4" NPT gas manifold for simple line-ups; optional rear connection available.
- Certified: CSA Flame, CSA Star and NSF.
Specification Sheet
| Model | C36-13R (Natural Gas) |
|---|---|
| Range width | 36 in / 914 mm |
| Total input | 205,000 BTU/h |
| Open burners | 4 × 35,000 BTU/h |
| Hot top section | 1 × 25,000 BTU/h (12") |
| Oven burner | 40,000 BTU/h |
| Oven cavity (H × W × D) | 13.5 × 26.25 × 29 in (343 × 667 × 737 mm) |
| Temperature range | 150 – 500 °F (66 – 260 °C) |
| Gas connection | 1-1/4" NPT (front) |
| Min. supply pressure | 7" W.C. (Natural Gas) |
| Combustible clearances | Sides 10" (254 mm) • Back 6" (152 mm) |
| Height to cook surface | 37.25 in / 947 mm |
| Shipping weight | ≈ 590 lb / 268 kg |
Perfect For

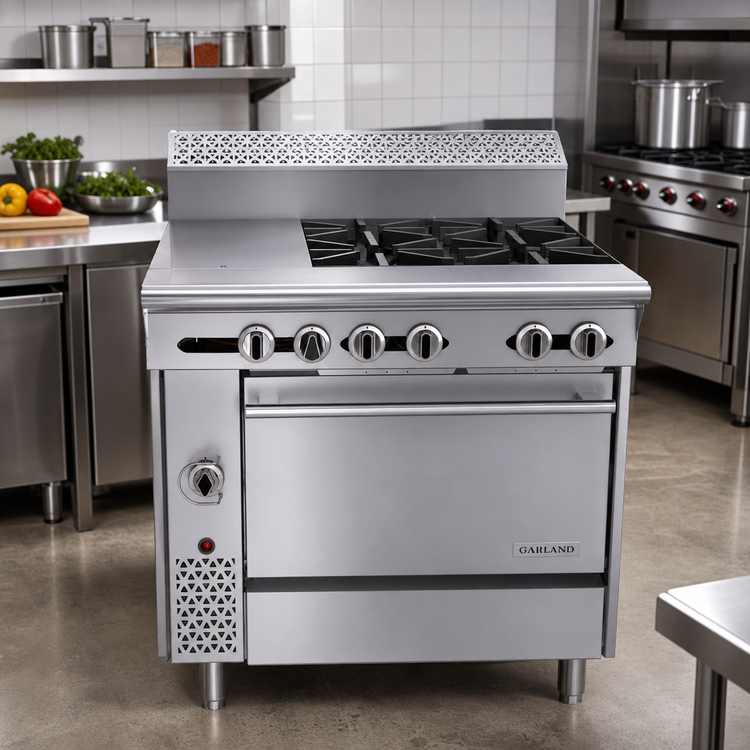

- High-volume restaurants and hotel production kitchens
- Catering operations that need flexible burner & holding zones
- Institutional and educational foodservice facilities
Factory Options & Accessories
- Single or double-deck high shelf / back riser
- Extra oven racks
- Swivel or polyurethane casters with front brakes
- Rear gas connection kit
- Stainless steel oven interior upgrade
- Flanged feet for curb or dais mounting
Safety Notice: Ranges installed on casters must be secured with an approved restraining device (not included).
Garland equipment is engineered for commercial applications only.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
Garland Cuisine
Certifications
NSF, CSA Star, CSA Flame
Height
42.0in
Width
36.0in
Depth
39.38in
Shipping Weight
590.0lbs
Base
(1) standard oven
Exterior Finish
stainless steel front & sides
Top
(4) open burners, (1) hot top
Specifications
Garland Cuisine Series Heavy Duty Range, gas, 36", (4) 35,000 BTU open burners, (1) 12" even heat hot top, standard oven, includes (1) rack, 7"H backguard, stainless steel front, sides, plate rail & burner box, 6" adjustable legs, 205,000 BTU (NG), CSA Flame, CSA Star, NSF (Garland)
