Garland C36-12R Garland Cuisine Gas Ranges
Description

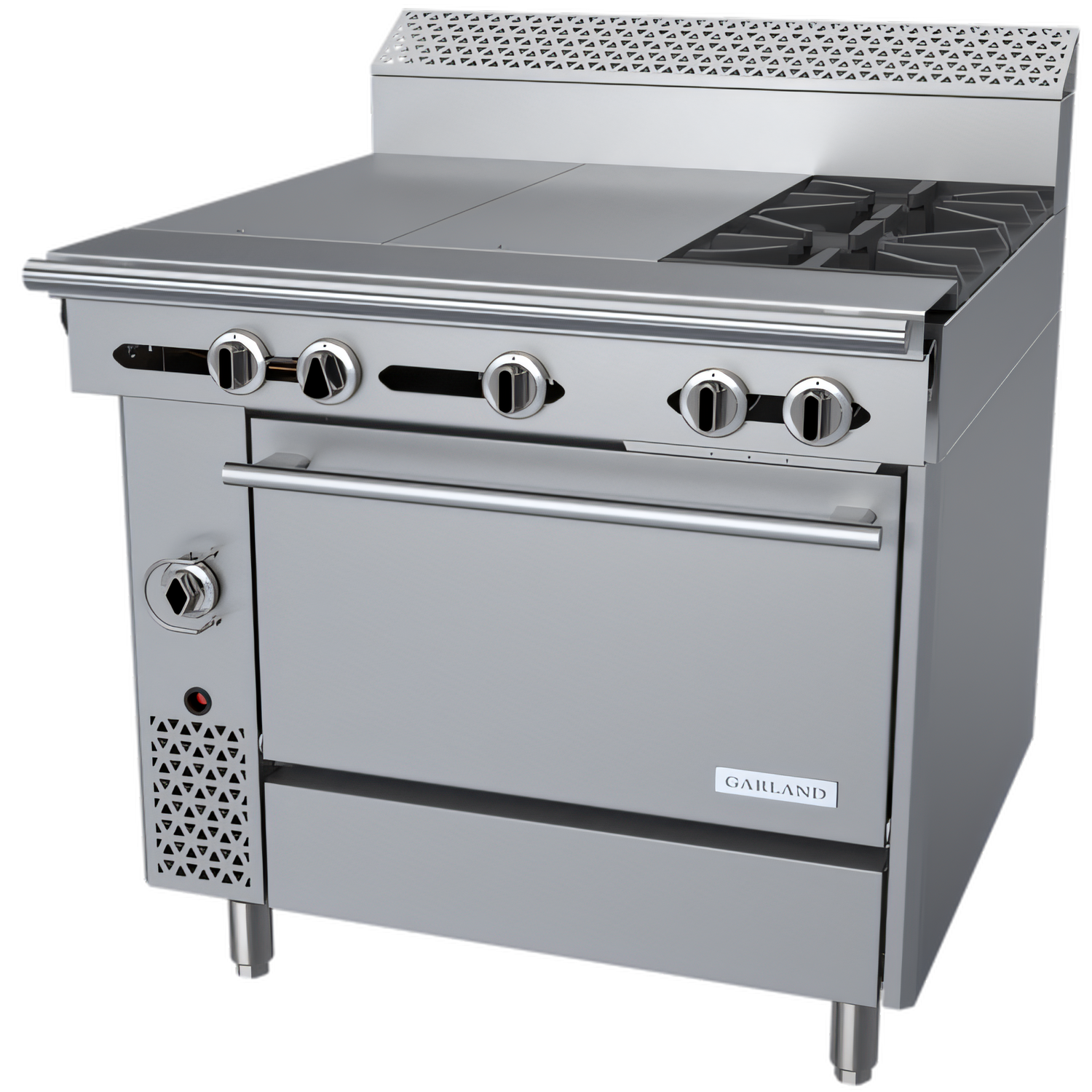

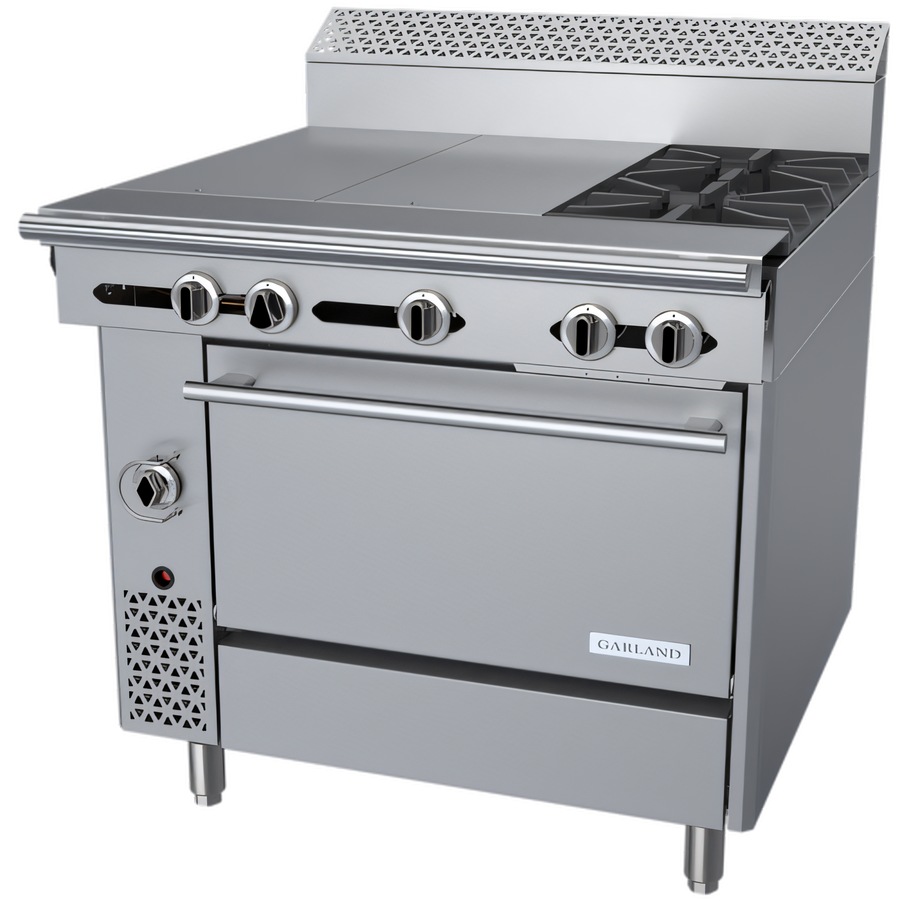

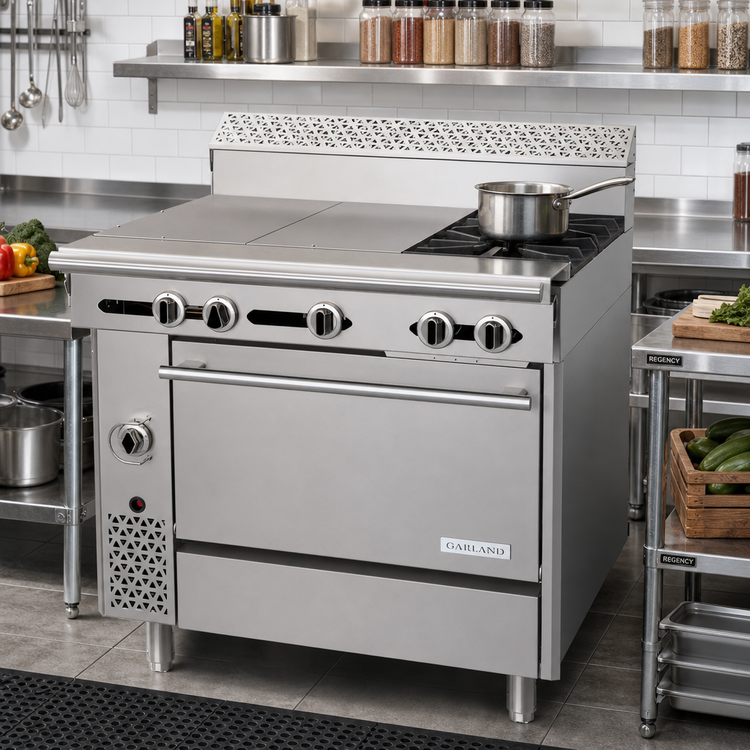

Garland Cuisine Series 36" Heavy-Duty Gas Range – 2 Open Burners / 2 Hot Tops / Standard Oven (C36-12R)
160,000 BTU | Natural or Propane Gas | CSA & NSF CertifiedBuilt for the busiest commercial kitchens, the Garland Cuisine Series C36-12R combines the blistering heat of Garland Starfire™ open burners with the even, gentle warmth of heavy-duty hot tops – all on one rugged 36-inch chassis. From quick sears to low-and-slow braises, this range delivers the versatility chefs demand day after day.
Performance & Convenience

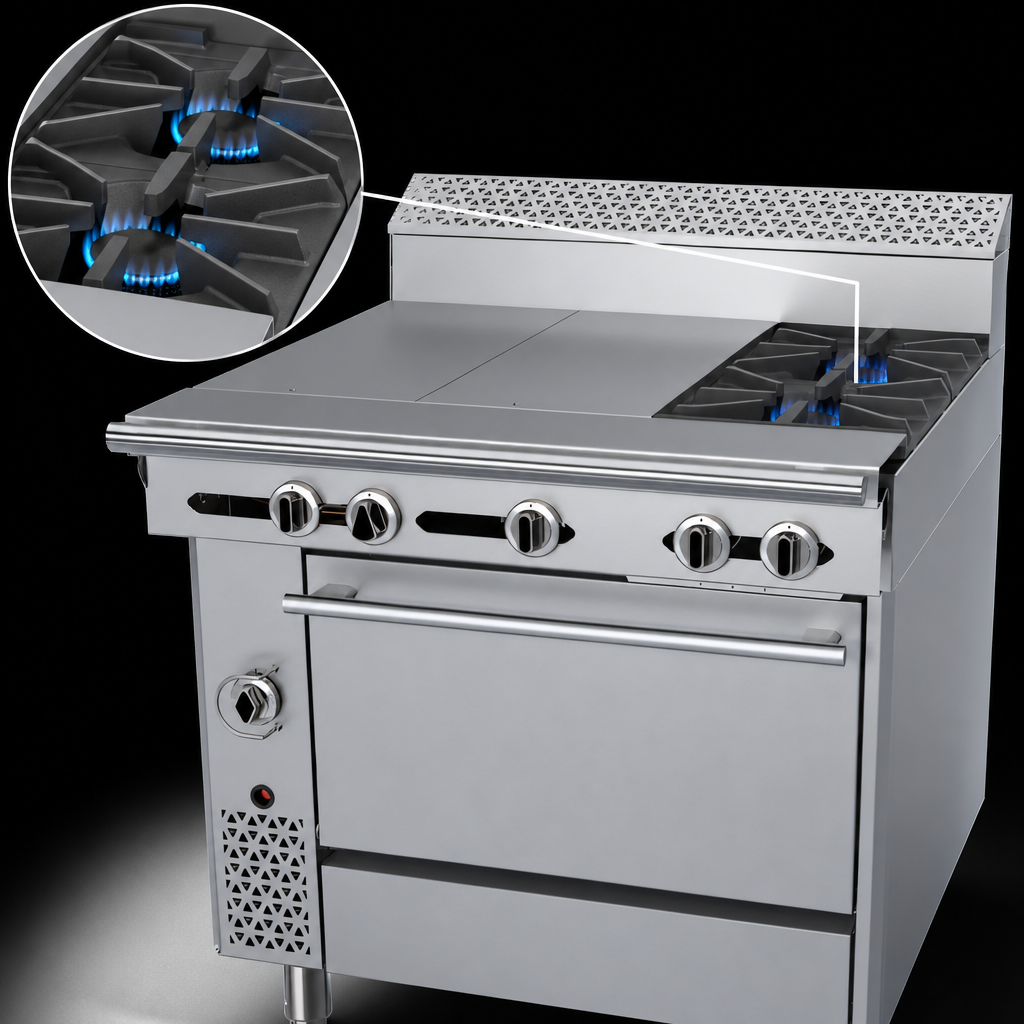

- Two 35,000 BTU/h Garland Starfire open burners with one-piece cast-iron grates & bowls

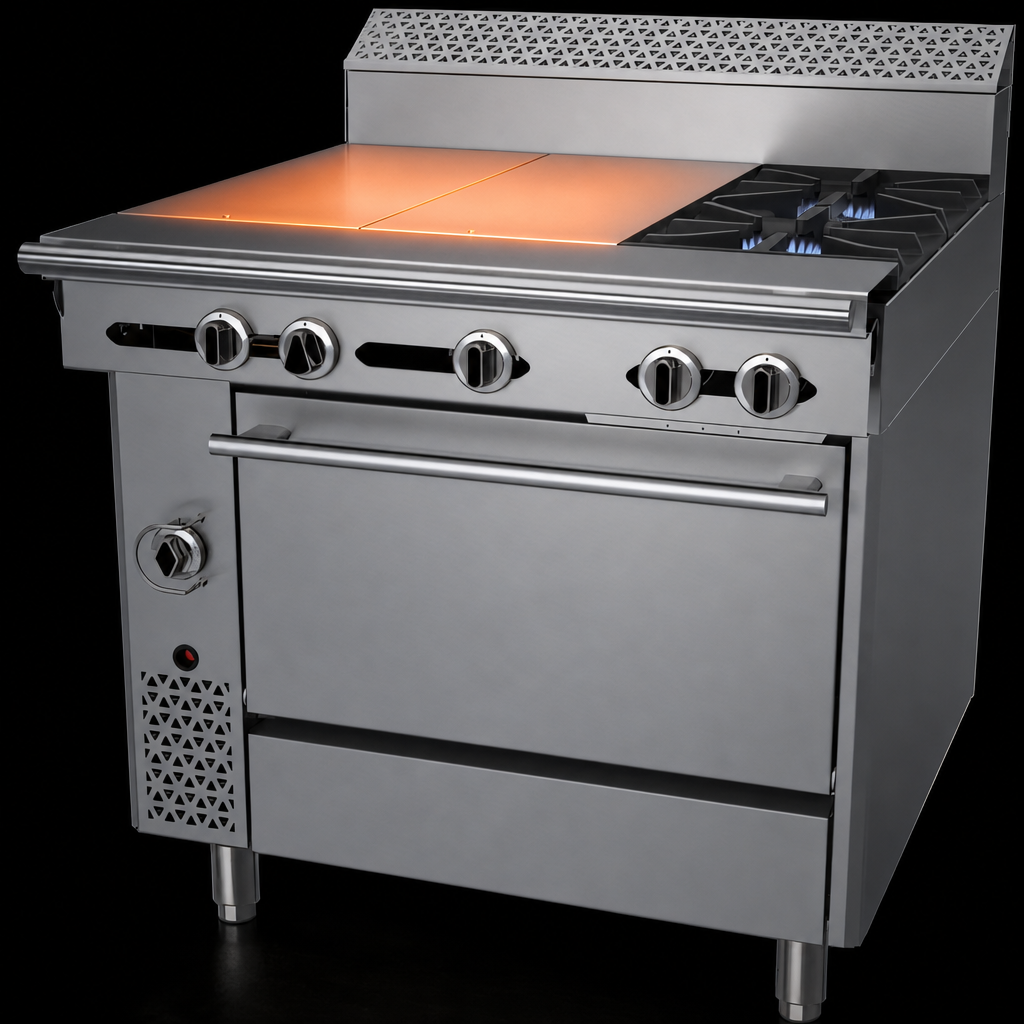

- Two 12" even-heat hot tops, 25,000 BTU/h each, with smooth cast-iron plates and hi-lo valve control
- 40,000 BTU/h standard oven with 150 °F – 500 °F (66 °C – 260 °C) thermostat
- Four oven rack positions; supplied with one chrome-plated rack
- Pilots positioned outside the spill zone for reliable ignition and long service life
- 6" (152 mm) stainless-steel adjustable legs and 6" backguard for easy cleaning and splash protection
Built to Last
- Stainless-steel front, sides, front rail and burner box resist corrosion and stand up to daily abuse
- Fully insulated porcelain oven cavity with “keep-cool” door handle
- 1-1/4" NPT front gas manifold allows quick battery installations; optional rear connection available
- Heavy one-piece cast-iron cooktop – the heaviest in its class – maximises thermal efficiency
- CSA Flame, CSA Star and NSF listings for safety & sanitation compliance
At-a-Glance Specifications
| Model | C36-12R |
|---|---|
| Cooking Configuration | (2) 35,000 BTU open burners + (2) 12" hot tops |
| Total Input | 160,000 BTU/h (Natural) | 151,000 BTU/h (Propane) |
| Oven Type / Input | Standard, 40,000 BTU/h |
| Temperature Range | 150 °F – 500 °F (66 °C – 260 °C) |
| Cooking Surface | 36" W × 32" D (914 mm × 813 mm) |
| Overall Height | 41-5/8" (1,058 mm) with 6" backguard |
| Oven Interior (H×W×D) | 13-1/2" × 26-1/4" × 29" (343 mm × 667 mm × 737 mm) |
| Gas Connection | 1-1/4" NPT front manifold (7" WC NG / 11" WC LP minimum supply) |
| Clearances – Combustible | 10" (254 mm) sides | 6" (152 mm) rear |
| Certifications | CSA Flame, CSA Star, NSF |
| Included Accessories | (1) chrome oven rack, 6" backguard, adjustable legs |
Optional Accessories (sold separately)
- Single or double-deck high shelf / back riser
- Extra oven racks
- Rear gas connection kit
- Locking swivel casters or flanged feet
- Gas shut-off valves and flex hose kits
Need a different top configuration? Ask our specialists about the full Garland Cuisine Series line-up.
