Garland C36-12C Garland Cuisine Gas Ranges
Garland C36-12C Garland Cuisine Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland C36-12C Garland Cuisine Gas Ranges
Description

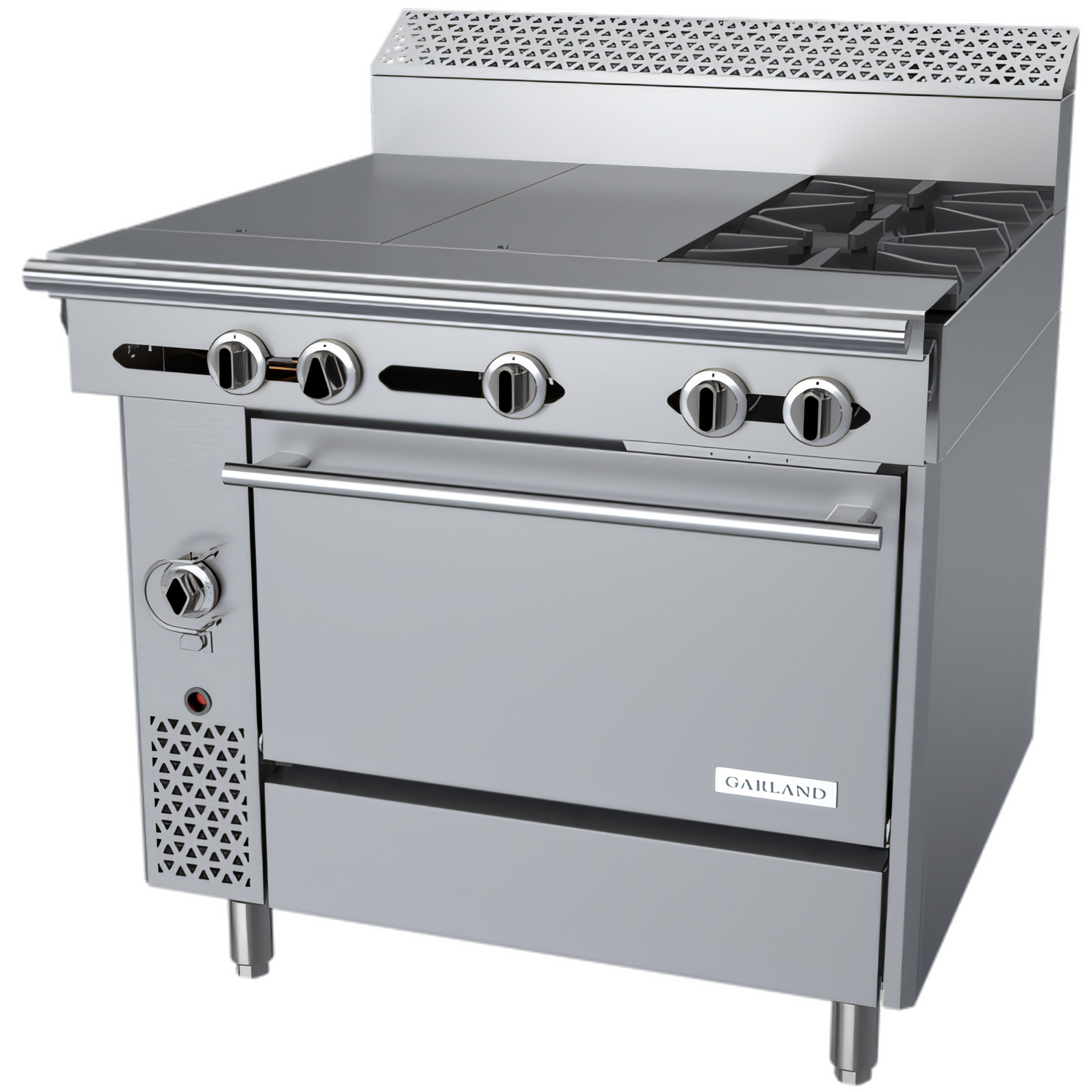

Garland Cuisine Heavy-Duty 36″ Range – 2 Burners + 2 Hot Tops w/ Convection Oven
Model C36-12C | Natural Gas 157,000 BTUPower, versatility and Garland build-quality come together in one compact footprint. The Cuisine C36-12C pairs two high-performance Starfire open burners with two 12″ Even-Heat hot tops, then finishes the package with a full-size forced-air convection oven—giving chefs every cooking method they need without adding another piece of equipment.
Performance highlights

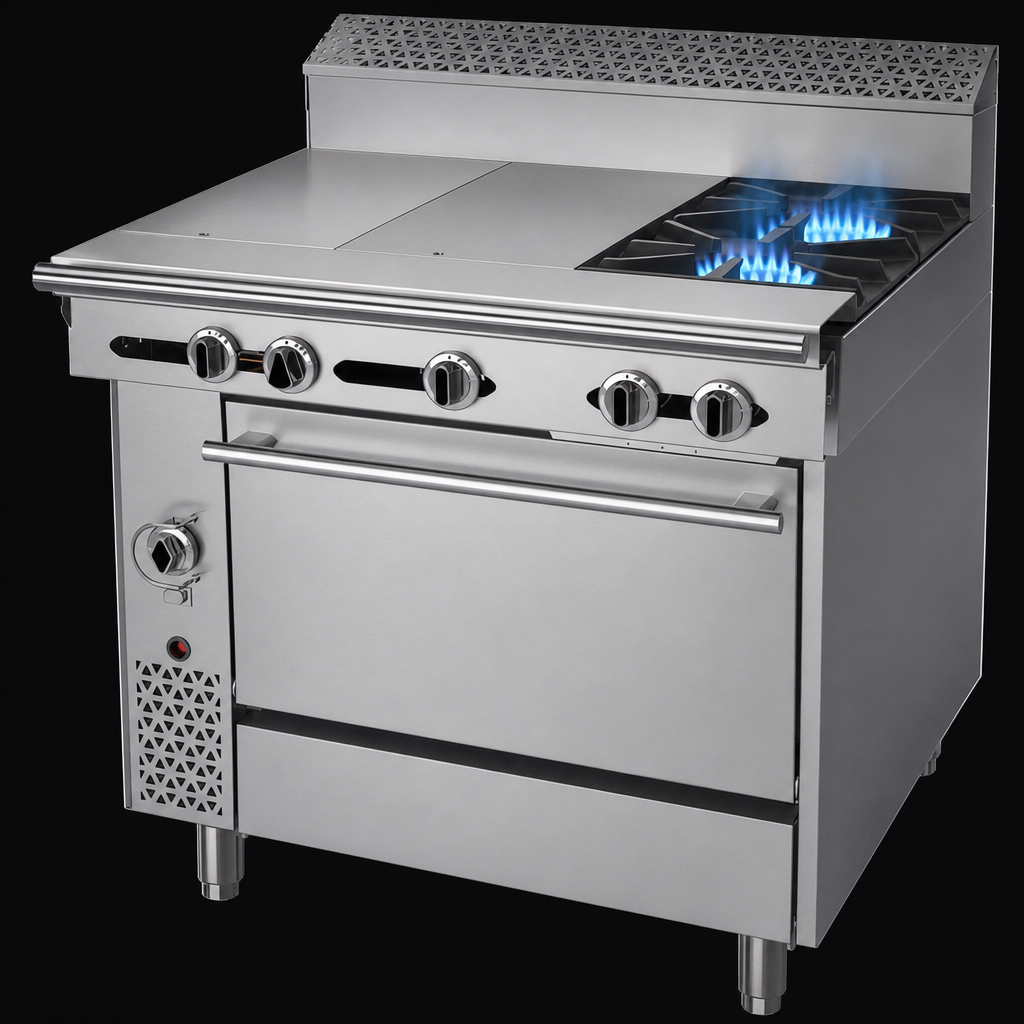

- 2 × 35,000 BTU open burners with removable cast-iron bowls & grates for lightning-fast boil times

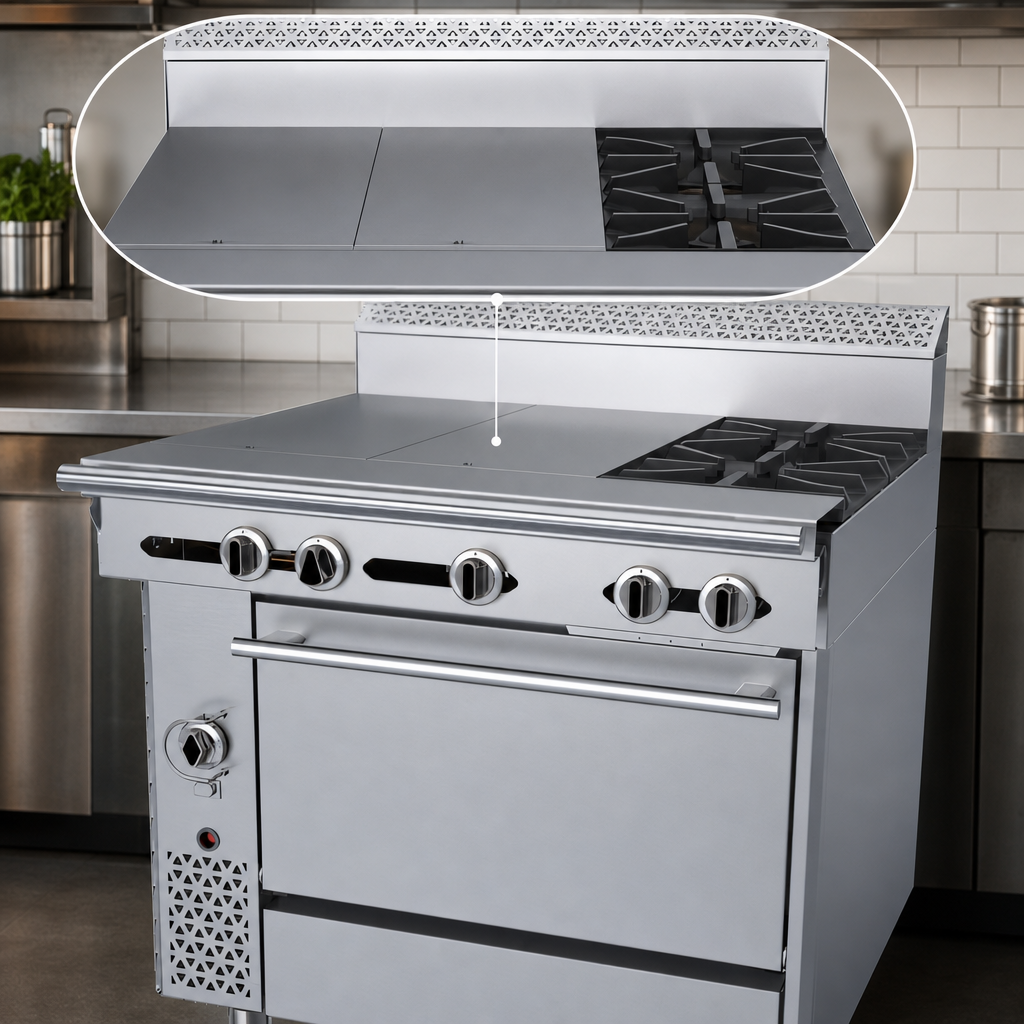

- 2 × 12″ hot tops (25,000 BTU each) deliver an even, continuous surface for sauces, stocks or holding pans
- 37,000 BTU convection oven with 1/3 HP blower—three chrome racks on three positions for uniform baking
- Stainless steel front, sides, plate rail & burner box stand up to daily commercial abuse
- 7″ stainless stub backguard protects walls while keeping a low profile on the line
- 6″ adjustable stainless legs for quick leveling and effortless floor maintenance
- Oven thermostat 150 °F–500 °F (66 °C–260 °C) with full insulation and safety pilot
- 1-1/4″ NPT front gas manifold (rear connection option) makes battery installation simple
Kitchen-changing benefits
- Accelerate service times—saute, boil, simmer and bake simultaneously on one appliance
- Convection airflow eliminates hot spots, reducing cook times and food waste
- Smooth recessed controls and stainless surfaces wipe clean in seconds, lowering labour costs
- Flexible gas pressures and optional LP kit simplify field conversion
Technical specifications
| Model | C36-12C (Cuisine Series Heavy Duty Combination Top Range) |
|---|---|
| Cooking surface | 2 open burners @ 35,000 BTU + 2 hot tops @ 25,000 BTU |
| Total input | 157,000 BTU h (Natural) | 151,000 BTU h (LP) |
| Oven | Convection, 37,000 BTU |
| Oven interior (H × W × D) | 13.5″ × 26.25″ × 25″ (343 × 667 × 635 mm) |
| Rack positions / supplied | 3 / 3 chrome-plated racks |
| Thermostat range | 150 °F – 500 °F (66 °C – 260 °C) |
| Electrical (blower) | 120 V, 60 Hz, 1-ph, 0.6 A, NEMA 5-15P cord, 1/3 HP motor |
| Gas connection | 1-1/4″ NPT front manifold | 7″ WC min. supply (Nat) |
| Overall size (W × D × H) | 36″ × 34-3/8″ × 41-5/8″ (914 × 873 × 1058 mm) inc. 7″ stub back |
| Combustible clearances | 10″ (254 mm) sides | 6″ (152 mm) rear |
| Shipping weight | Approx. 604 lb (274 kg) |
| Certifications | CSA Flame, CSA Star, NSF |
What’s in the box
- (3) Chrome oven racks
- NEMA 5-15P power cord (factory-installed)
- 6″ adjustable stainless legs
- Installation & operation manual
Garland equipment is engineered for commercial kitchens only and must be installed in accordance with all local gas & electrical codes by qualified personnel. Accessories such as casters, regulators and flex-hose kits are sold separately.
