Garland C36-10S Garland Cuisine Gas Ranges
Description

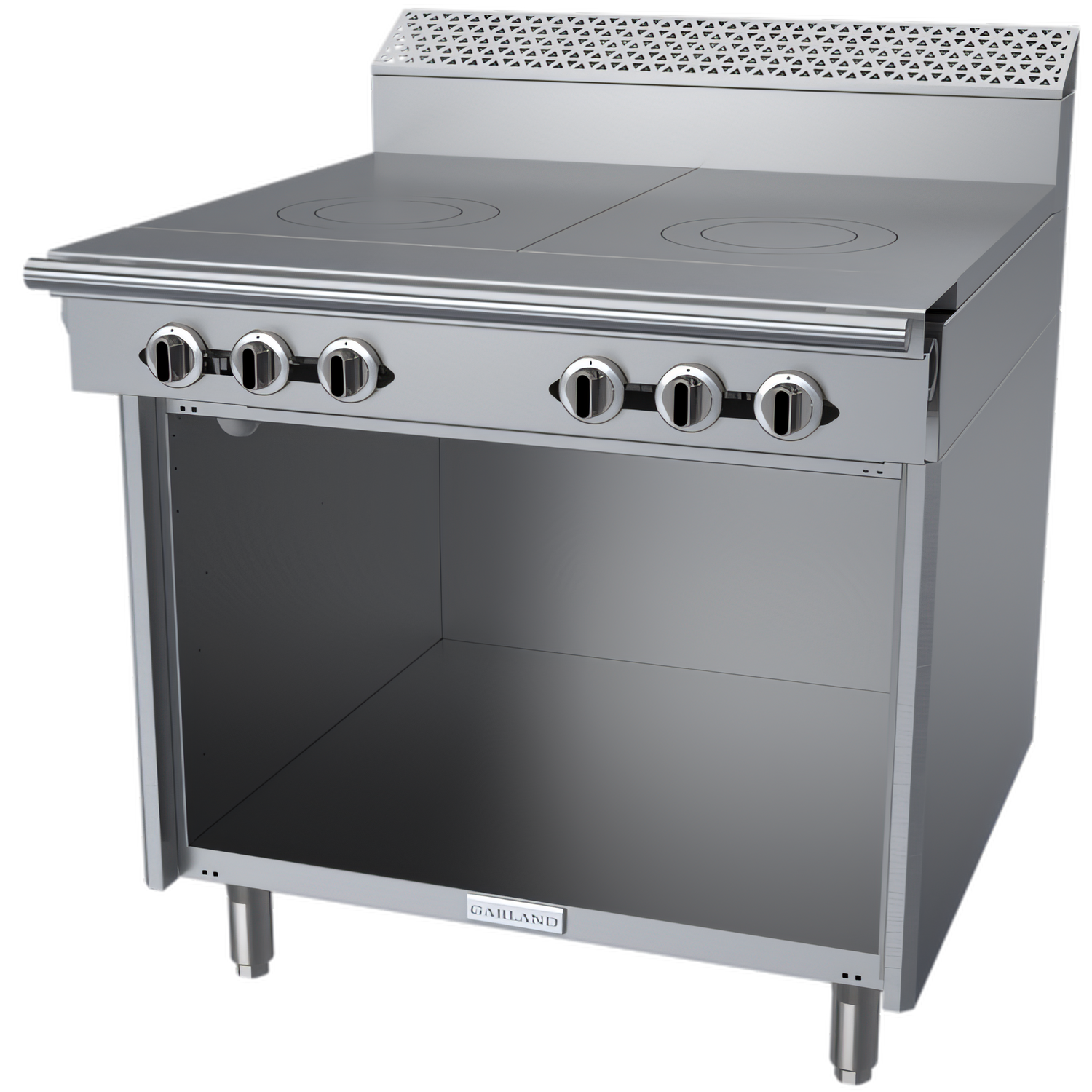

Garland Cuisine Series 36" Heavy-Duty Front-Fired Hot-Top Range
Model C36-10S | Open Cabinet Base | 75,000 BTUBuilt for high-volume, all-day production, the Garland C36-10S puts two powerful 18" front-fired hot tops in a compact 36" footprint—ideal for stock-pot, sauce, and sauté work where precise surface heat and rock-solid durability are non-negotiable. A fully open storage base keeps sheet pans, stock pots, and utensils right at hand, streamlining workflow on the cookline.
Why you’ll love it
- True heavy-duty construction—stainless steel front, sides, plate rail, burner box, and 7" stub back withstand relentless commercial use.

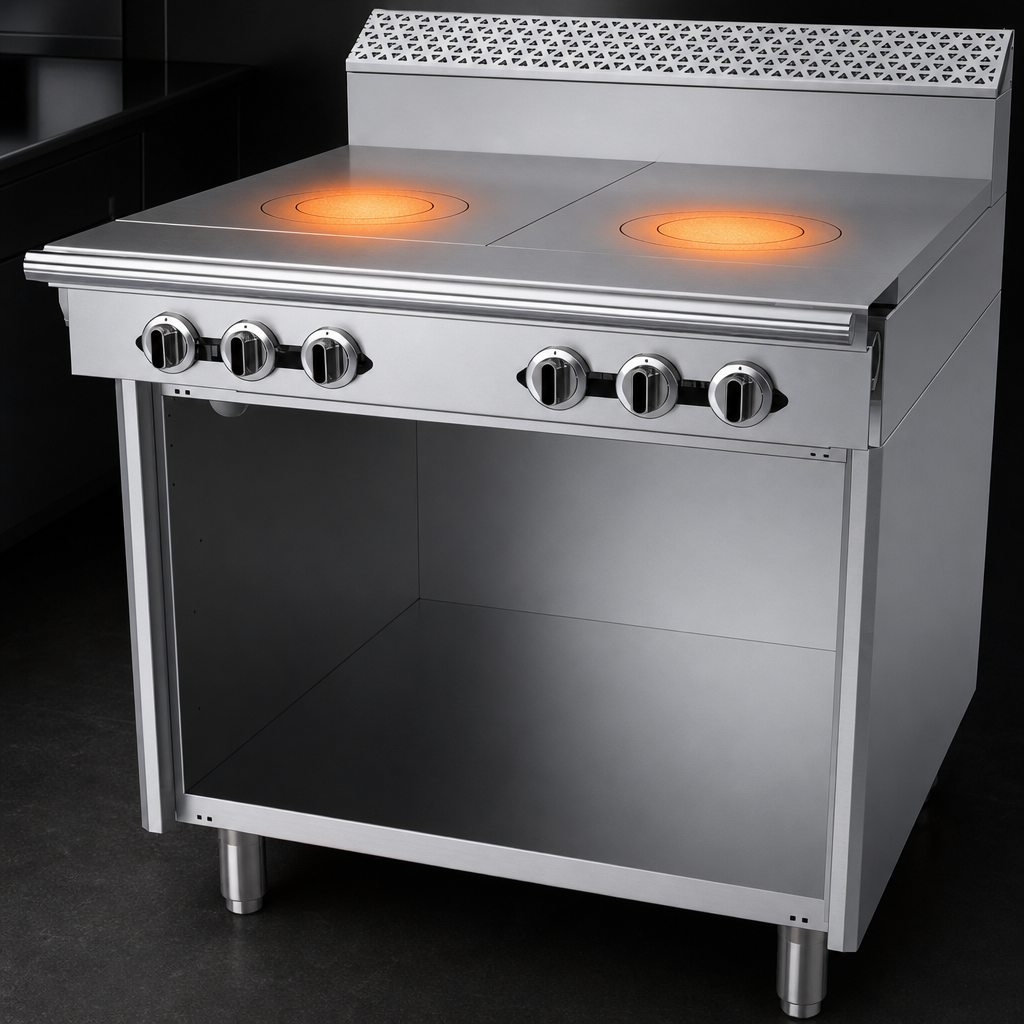

- Two 18" hot tops, each front-fired at 37,500 BTU, deliver even, edge-to-edge heat for large stock pots or multiple sauté pans.

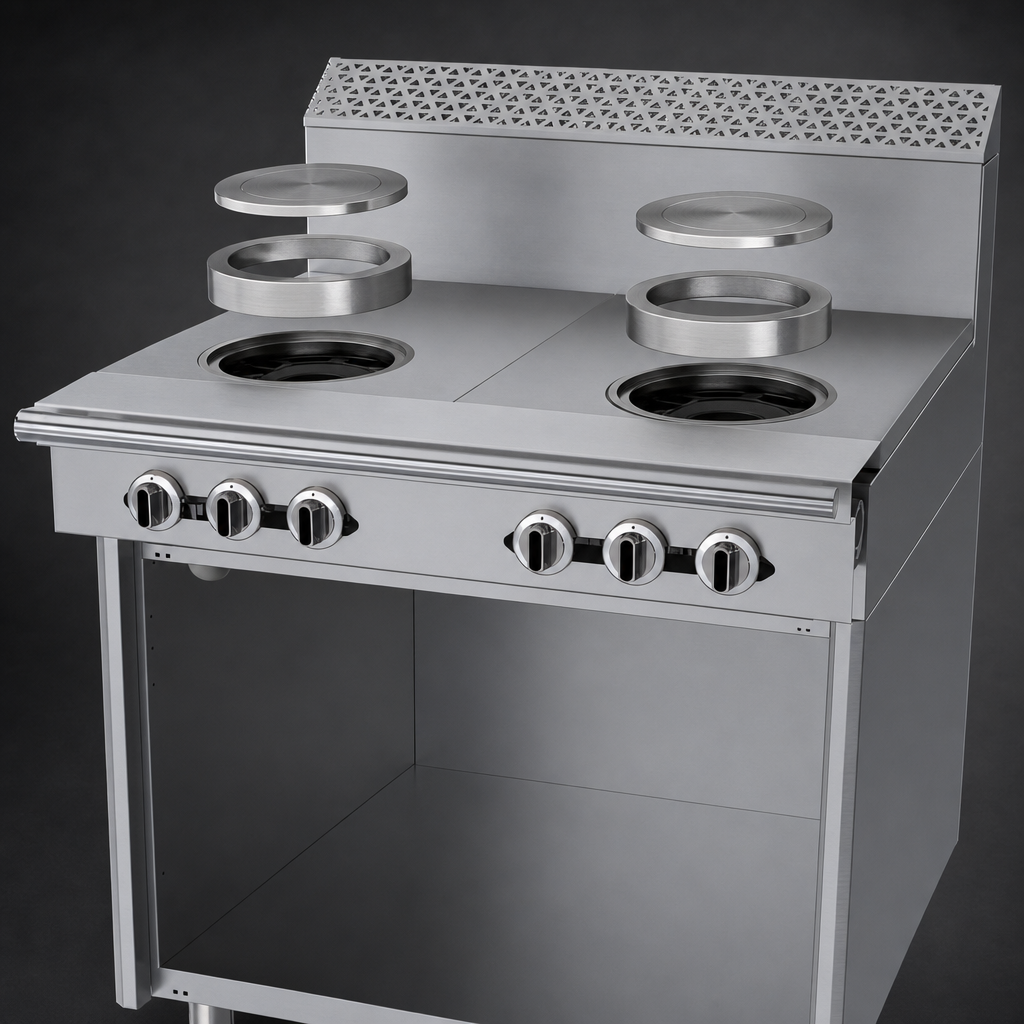

- Removable lids & rings let you switch from full-surface heating to ring-only simmering in seconds.
- Generous open cabinet base keeps mise en place close—no doors to slow you down.
- 6" stainless steel legs with 1-5/2" adjustment; bolt-on flanges accept optional casters.
- 1-1/4" NPT front gas manifold simplifies drop-in battery installation and service access.
- Certified safe & clean: CSA Flame, CSA Star, and NSF listed.
At-a-Glance Specifications
| Model | C36-10S (Garland Cuisine Series) |
|---|---|
| Range type | Gas – two 18" front-fired hot tops with removable lids & rings |
| Total input | 75,000 BTU/h (Natural or Propane) |
| Individual hot-top rating | 37,500 BTU per 18" section (three 12,500 BTU concentric burners) |
| Cooking surface area | 36" W × 27-3/8" D (914 × 696 mm) |
| Overall dimensions | 36" W × 34-5/16" D × 39-1/2" H to cook surface 46-5/8" H to top of 7" stub back (approx.) |
| Base configuration | Open cabinet storage (no oven) |
| Gas connection | 1-1/4" NPT front manifold (rear connection optional) |
| Clearances (combustible) | 10" sides | 6" rear |
| Certifications | CSA Flame, CSA Star, NSF |
| Shipping weight | Approx. 414 lb / 188 kg |
Popular options (sold separately)
- Single or double-deck high shelf / back riser
- Full-height equipment stand for modular installation
- Stainless steel intermediate shelf for cabinet base
- 5" polyurethane or 6" stainless swivel casters with front brakes
- Gas shut-off valves & regulators (¾", 1", 1-¼" NPT)
Need a custom battery line-up or additional documentation? Contact our team for quick quotes and CAD blocks.
