Garland C36-1-1R Garland Cuisine Gas Ranges
Description
Garland Cuisine Series 36" Thermostatic Griddle Range – 130,000 BTU
Model C36-1-1R | Gas | CSA Flame & Star | NSFBuilt for the punishing pace of high-volume kitchens, the Garland Cuisine C36-1-1R combines a precision-controlled 36" griddle with a rugged 40,000 BTU standard oven in one heavy-duty workstation. Thick steel, all-stainless construction and industry-leading BTU density deliver unmatched recovery, even heat and years of worry-free service.
Key advantages

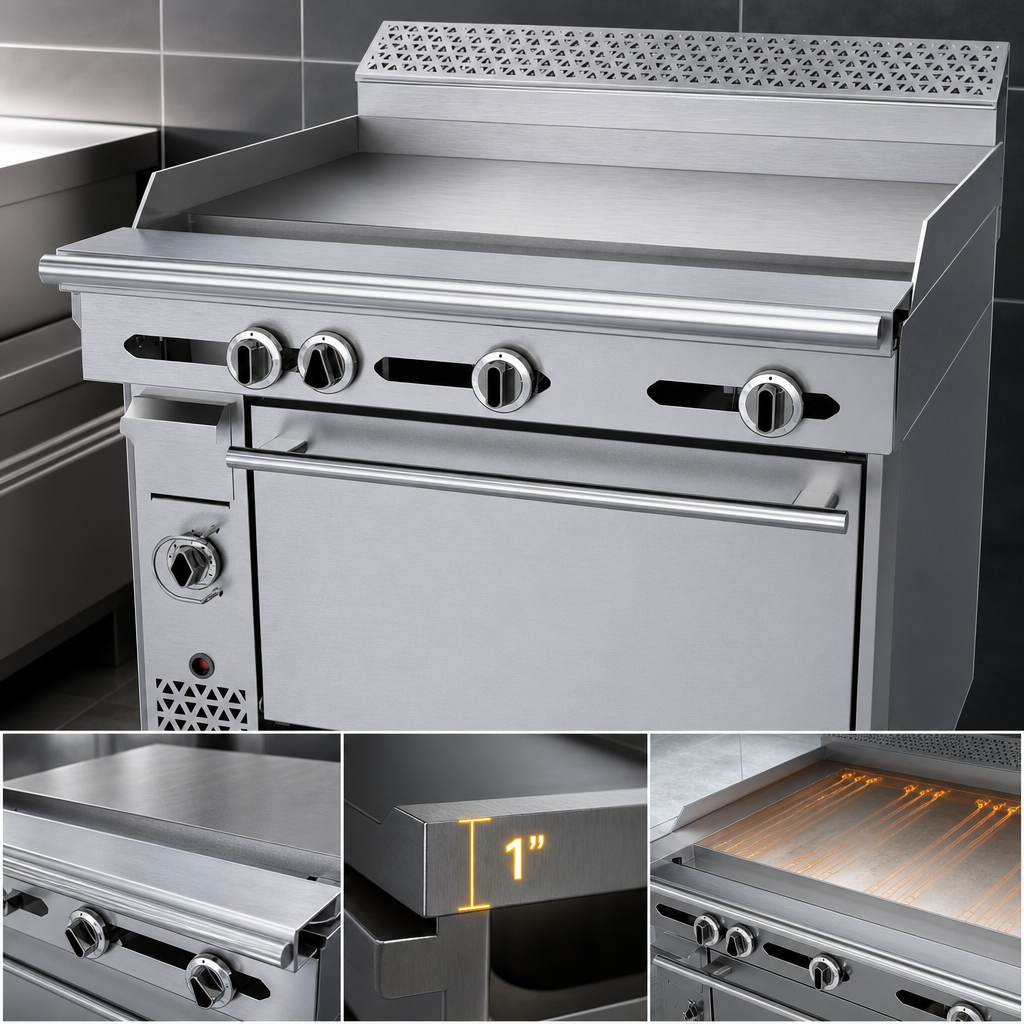

- 1" (25 mm) thick polished steel griddle plate for superior heat retention & even searing

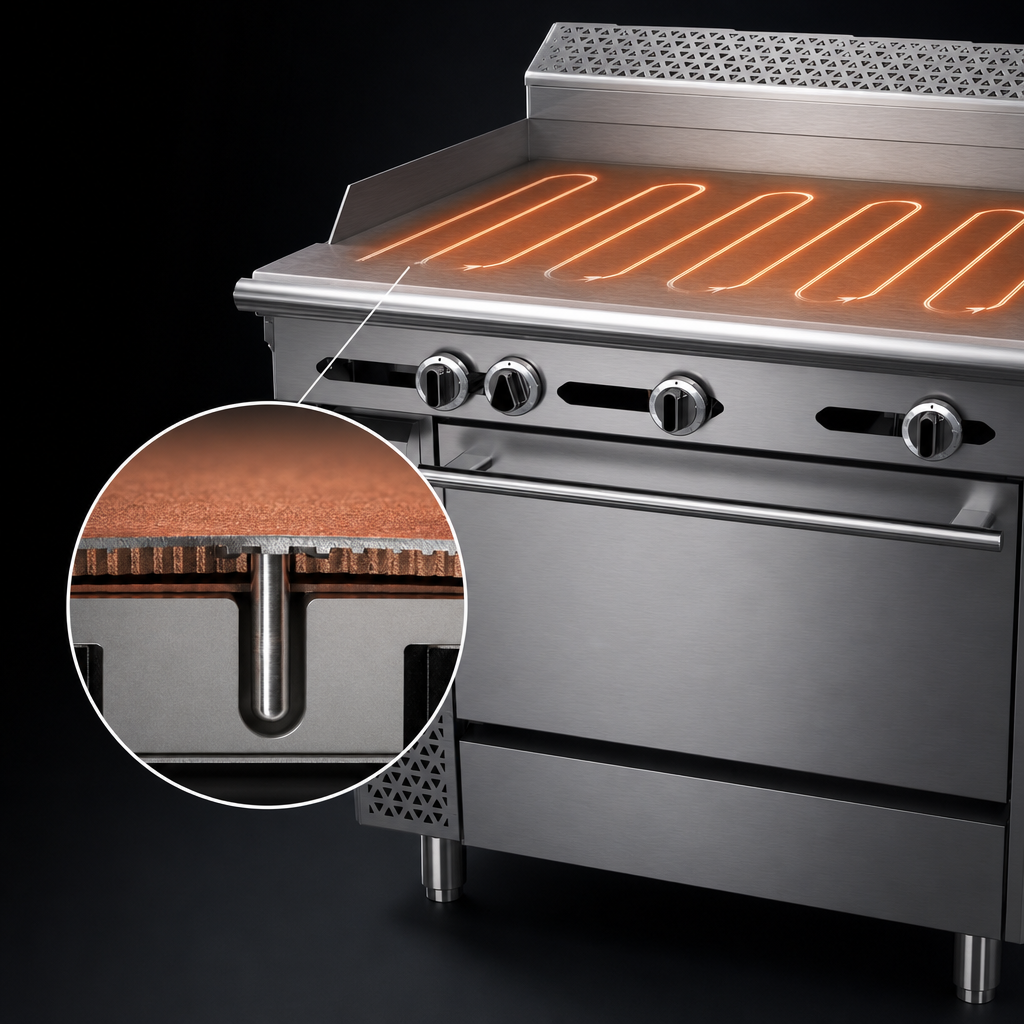

- Three 30,000 BTU burners (one per 12" section) with embedded thermostatic sensor – accurate from ≈200 °F to 450 °F (93-232 °C)
- 40,000 BTU standard oven with 4 rack positions; includes 1 chrome rack
- Fast recovery and consistent surface temps boost throughput for breakfast, lunch & dinner menus
- 7" stainless stub back & deep 3" grease trough keep splatter and runoff under control
- All-stainless front, sides, rail and burner box resist corrosion and are simple to wipe down
- 6" adjustable stainless legs for level installation on uneven floors
- Front 1 ¼" NPT gas manifold – ideal for battery line-ups; ¾" rear connection provided
- Fully insulated oven door with “keep-cool” handle and safety pilot
- Certified to NSF, CSA Star (Sanitation) & CSA Flame (Gas) standards
Why choose thermostatic control?
- Set-and-forget temperature precision – no constant knob jockeying
- Reduces plate-to-plate variance for pancakes, burgers, eggs & delicate proteins
- Prevents scorching and extends griddle life by eliminating over-firing
Specifications
| Model | C36-1-1R |
|---|---|
| Gas type | Natural or Propane (field convertible) |
| Total BTU input | 130,000 BTU/h (90,000 BTU griddle + 40,000 BTU oven) |
| Griddle surface | 36" W × 24" D, 1" thick steel |
| Oven temperature range | 150 – 500 °F (66 – 260 °C) |
| Rack positions / racks supplied | 4 / 1 chrome rack |
| Overall dimensions (WxDxH) | 36" × 34-1/4" × 37-1/4" to cooking surface (44-1/4" to top of 7" stub back) |
| Gas connection | Front 1 ¼" NPT manifold & ¾" rear connection |
| Clearances | Combustible: 10" sides, 6" rear |
| Certifications | CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (USA/Canada) |
Need a convection oven base, refrigerated base, casters or high-shelf? Garland Cuisine accessories let you configure a seamless cookline – contact us for custom quotes.
