Garland C36-1-1M Garland Cuisine Gas Ranges
$7,616.00
Unit price
/
Unavailable
Description

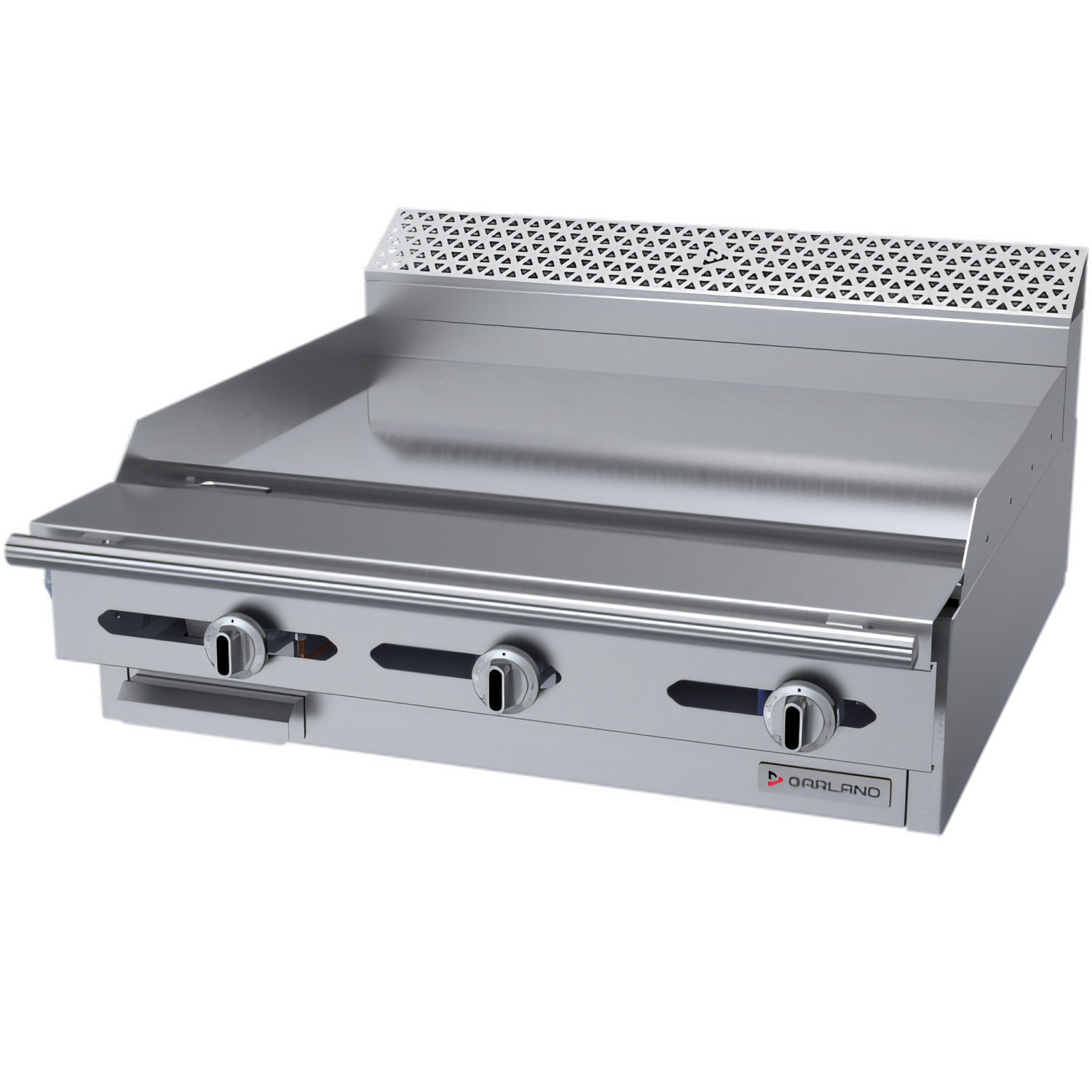

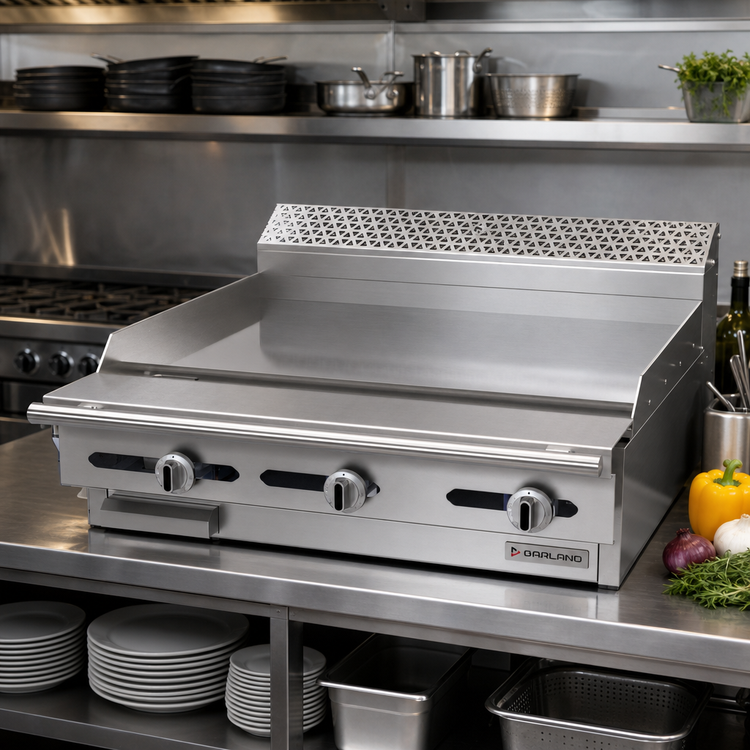

Garland Cuisine Series 36" Heavy-Duty Gas Griddle Range – Modular Top, Thermostatic
Model C36-1-1M | 90,000 BTU | NSF, CSA Flame & StarPurpose-built for high-volume, all-day production, the Garland Cuisine Series modular griddle range blends rock-solid construction with precise thermostatic control. Mount it on a refrigerated chef base, equipment stand or curb and start turning out picture-perfect pancakes, burgers and steaks—shift after shift.
Why you’ll love it

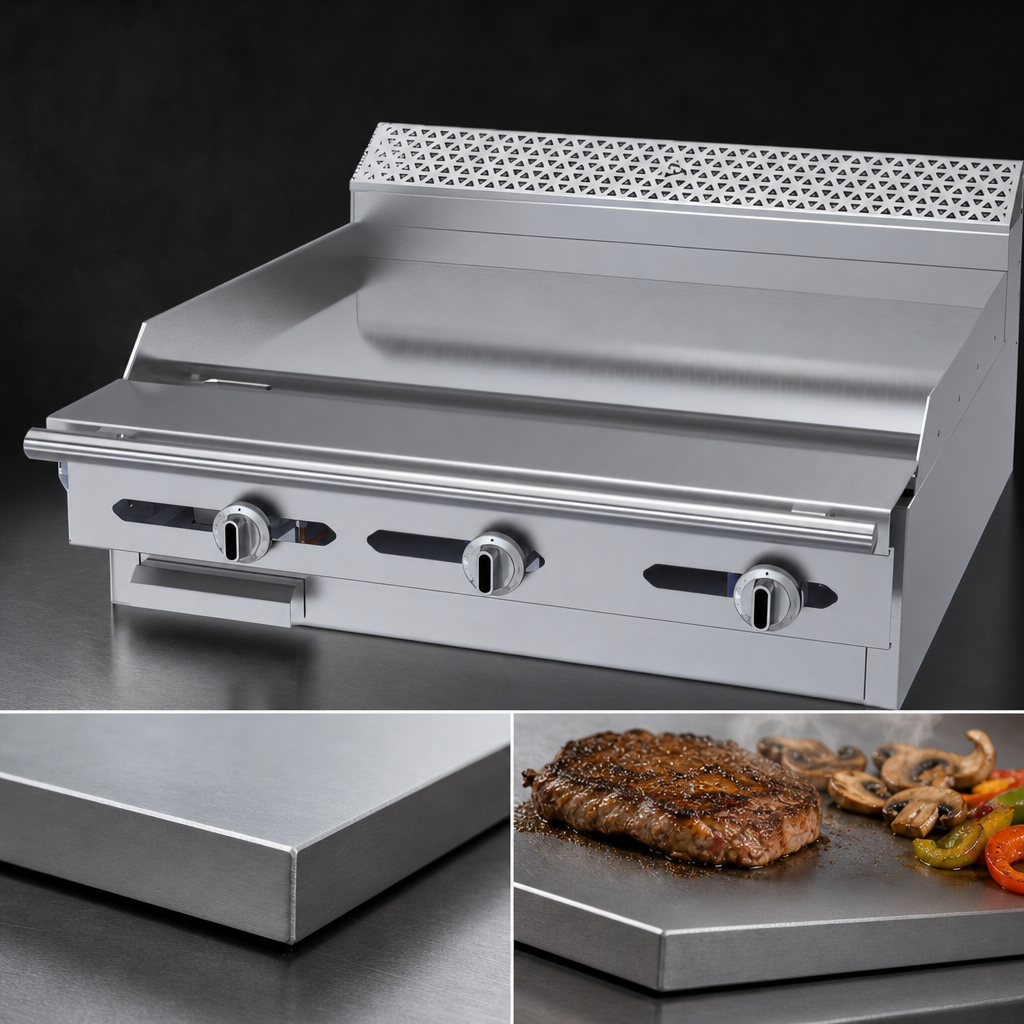

- 1" (25 mm) thick polished steel plate delivers fast recovery and even searing.
- Three 30,000 BTU U-style burners (one every 12") provide a total of 90,000 BTU/h.

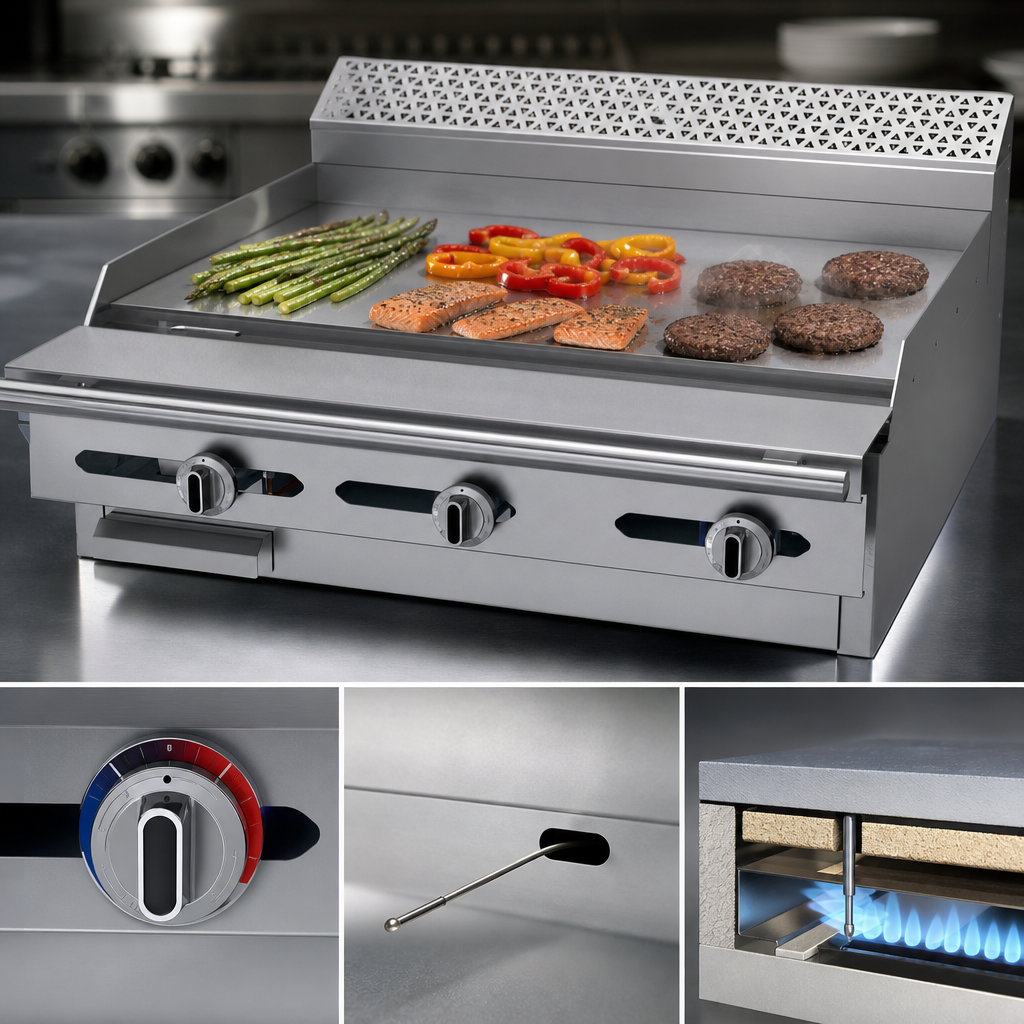

- Embedded bulb thermostats dial from LOW to 450 °F (232 °C) for pinpoint surface temps.
- 7" (178 mm) stainless backguard keeps splatter contained and meets code against a wall.
- Stainless steel front, sides & burner box stand up to daily abuse and wipe clean fast.
- Full-width 3" (76 mm) grease trough with large slide-out crumb tray speeds cleanup.
- Front 1¼" NPT manifold lets you connect solo or battery with other Cuisine Series units.
- Ships as a low-profile modular top—pair with any Garland stand, refrigerated base or custom counter.
Built for the real world
- Front-serviceable components minimize downtime.
- 6 mm stainless plate rail offers handy staging for utensils and plating.
- One-year parts & labor warranty (USA/Canada).
- NSF, CSA Flame & CSA Star certified.
Technical specs
| Model | C36-1-1M (modular, thermostatic) |
|---|---|
| Gas type | Natural or Propane (field convertible) |
| Total input | 90,000 BTU/h |
| Burners | 3 × 30,000 BTU atmospheric |
| Temperature range | Low – 450 °F (232 °C) |
| Griddle plate | Polished steel, 1" (25 mm) thick |
| Cooking surface | 36" W × 24" D (914 × 610 mm) |
| Backguard height | 7" (178 mm) stainless stub |
| Gas connection | 1¼" NPT front manifold • ¾" rear optional |
| Overall dimensions* | 36" W × 34-1/4" D × 16" H (914 × 871 × 406 mm) |
| Shipping weight | 405 lb (184 kg) |
| Combustible clearances | Sides 10" (254 mm) • Rear 6" (152 mm) |
*Height listed to cooking surface; overall height varies with stand or base selection.
Ideal for
- Diners & short-order restaurants
- Hotel banquet and catering kitchens
- Institutional feeding & commissaries
- Food trucks and concession trailers (drop-in applications)
Commercial use only: Garland equipment is not approved for residential installation.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
Garland Cuisine
Certifications
NSF, CSA Star, CSA Flame
Height
10.0in
Width
36.0in
Depth
39.88in
Shipping Weight
405.0lbs
Base
modular
Top
(1) griddle with thermostat
Exterior Finish
stainless steel front & sides
Plate Thickness
1.000" = 1"
Specifications
Garland Cuisine Series Heavy Duty Range, gas, 36", modular, griddle, 1" thick steel plate, thermostatic controls, 7"H backguard, stainless steel burner box, stainless steel front & sides, 90,000 BTU, CSA Flame, CSA Star, NSF (Garland)
