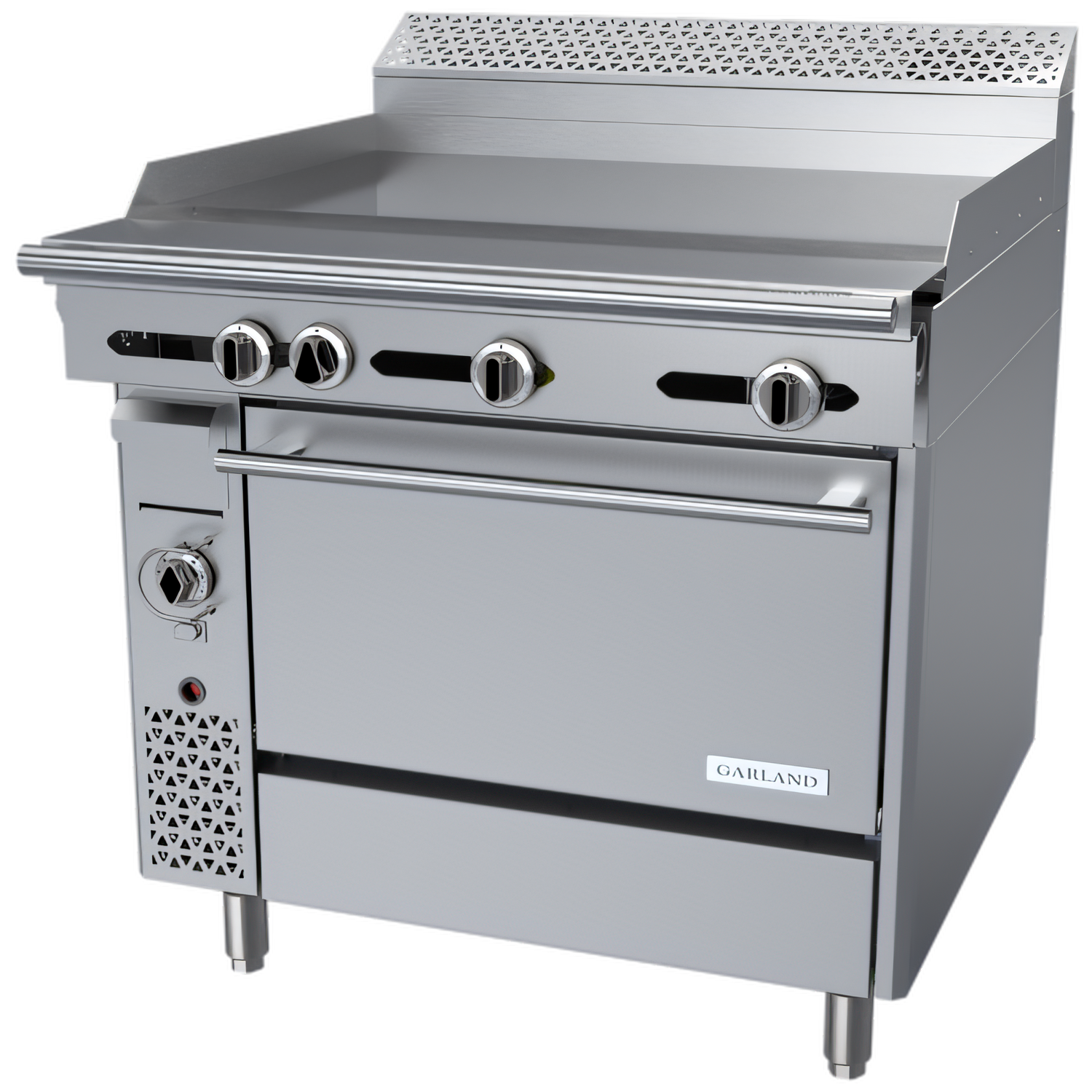

Garland Cuisine C36-1-1C 36-Inch Heavy Duty Gas Griddle Top Range with Convection Oven

SKU: C36-1-1C
$11,703.15
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Garland Gas Ranges New Arrivals Ranges Restaurant Equipment

Garland Cuisine C36-1-1C 36-Inch Heavy Duty Gas Griddle Top Range with Convection Oven

1-Inch Steel Plate, Thermostatic Controls, Stainless Steel Exterior

Built for busy commercial kitchens, this 36-inch Garland Cuisine range combines a thermostatic griddle and convection oven in a durable stainless steel package.

  • 36-inch heavy-duty gas range pairs a 1-inch steel griddle plate with a convection oven base.
  • Thermostatic griddle control supports precise, consistent cooking temperatures.
  • Convection oven includes 3 chrome-plated racks, a porcelain interior, and a safety pilot.
  • Stainless steel front, sides, burner box, and front rail help with durability and cleaning.
  • 127,000 BTU output delivers the power needed for high-volume service.
  • 120V convection motor uses a NEMA 5-15P plug, 0.6 amps, and 1/3 HP.

Overall Dimensions:

36.0"W x 39.88"D x 42.0"H

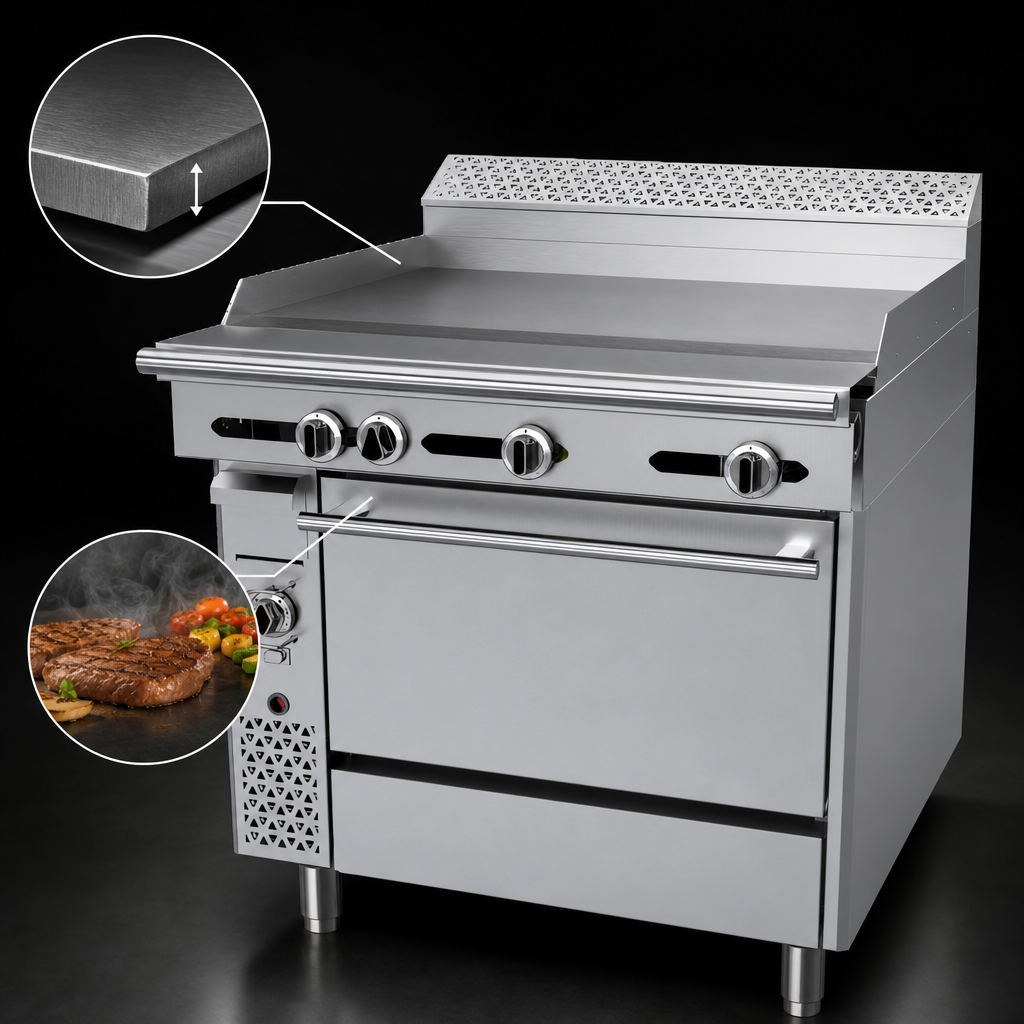

1-Inch Steel Griddle Plate

Heavy-duty griddle surface with thermostatic control for even heating and reliable daily use.

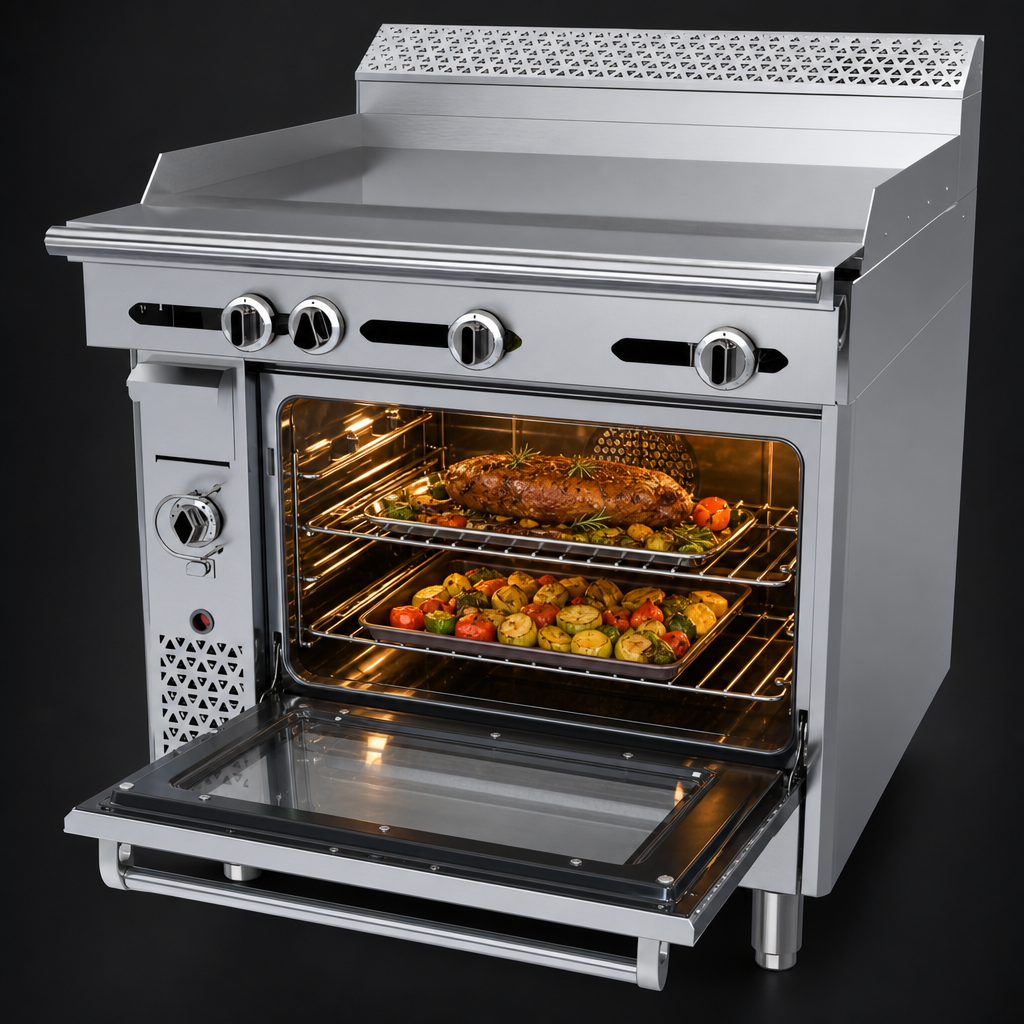

Built-In Convection Oven

Adds a convection oven base for baking and roasting beneath the griddle top.

Three Included Oven Racks

Ships with 3 chrome-plated racks so the oven is ready for immediate use.

Stainless Steel Construction

Stainless steel front, sides, burner box, and front rail support durability and easier cleanup.

7-Inch Stainless Backguard

Stub back helps protect the wall behind the range while keeping the footprint compact.

6-Inch Adjustable Legs

Provides installation flexibility and helps level the unit on uneven floors.

120V Oven Motor Connection

Convection oven uses a 120V/60Hz, 1-phase connection with a NEMA 5-15P cord and plug.

High-Output Gas Design

127,000 BTU total output supports high-volume commercial cooking.

Battery-Ready Layout

Documentation states the range can be connected individually or in a battery with other equipment.

Type Griddle Top Gas Range
Style Heavy Duty
Installation Type Floor Model
Controls Thermostatic
Compartments 1
Temperature Range 150°F to 500°F
Material Stainless Steel
Interior Finish Porcelain
BTU 127,000 BTU
Gas Connection Size 1 1/4 Inch NPT
Voltage 120 Volts
Amps 0.6 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Motor Power 1/3 HP
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 40 Inches
Shipping Height 42 Inches
Shipping Weight 592 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Check list PDF Download PDF Garland cuisine models guide PDF Download PDF Brochure PDF Download

Frequently Asked Questions

The convection oven includes 3 chrome-plated racks.
The griddle uses a 1-inch thick steel plate.
The oven requires 120V, 60Hz, single-phase power, draws 0.6 amps, and uses a NEMA 5-15P cord and plug.
The oven thermostat range is 150°F to 500°F.
Yes. The documentation states it can be connected individually or in a battery.
The series documentation lists both natural gas and propane ratings; confirm the exact fuel configuration when ordering.
