Garland C24-NRS Garland Cuisine Gas Ranges
Description

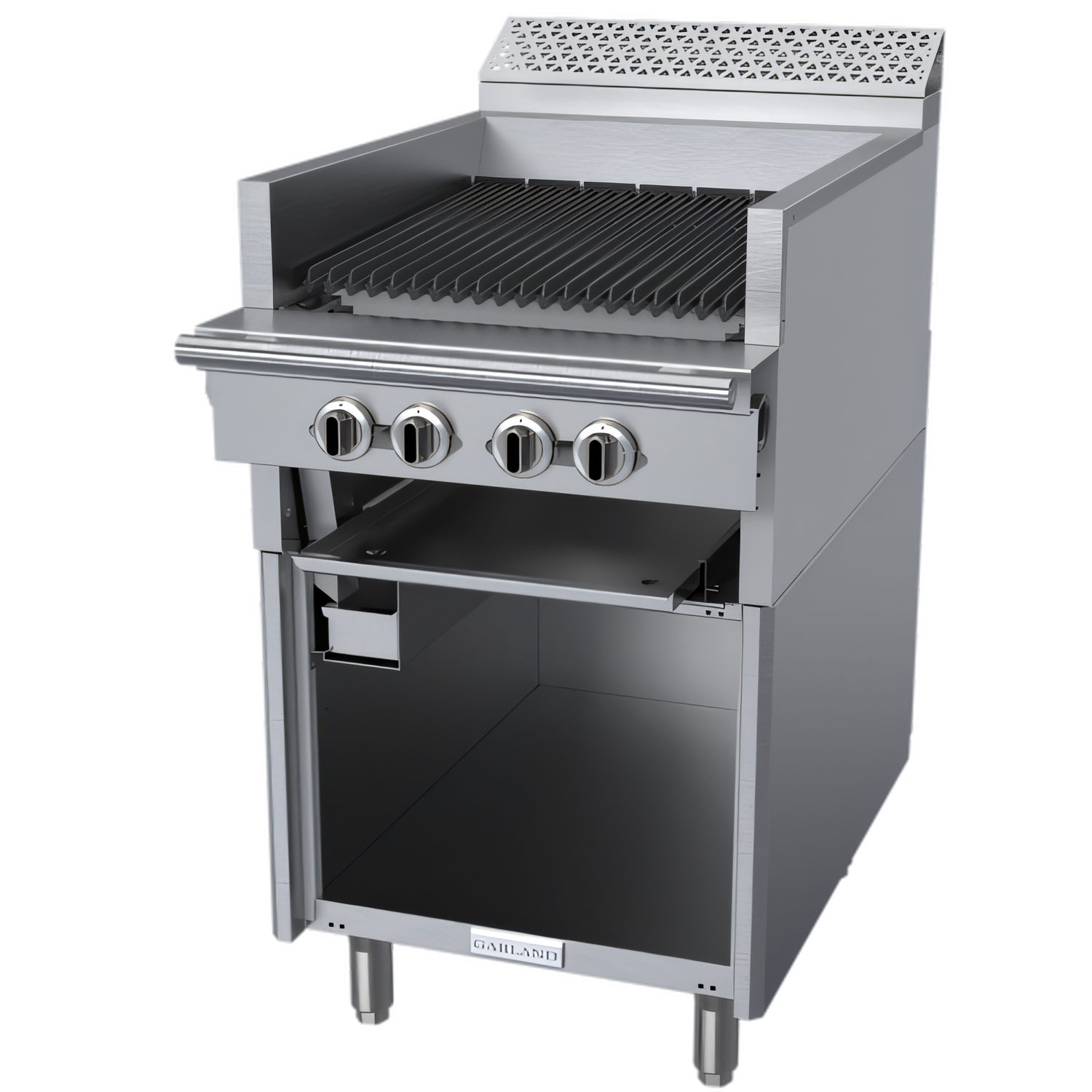

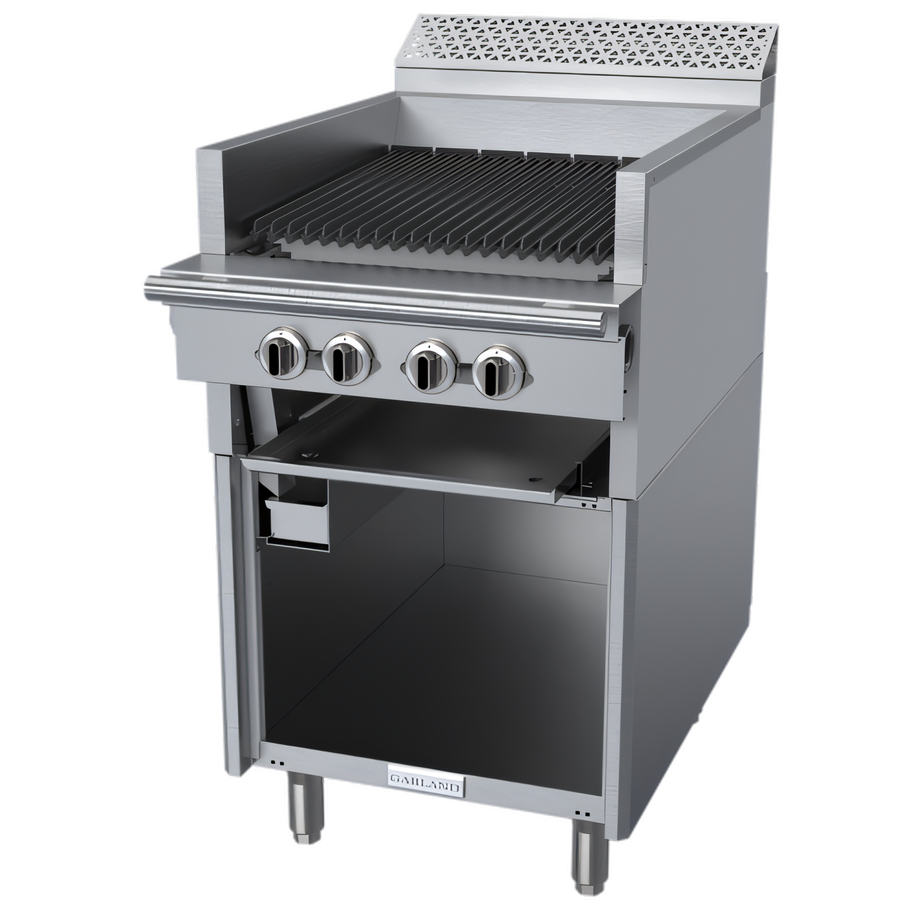

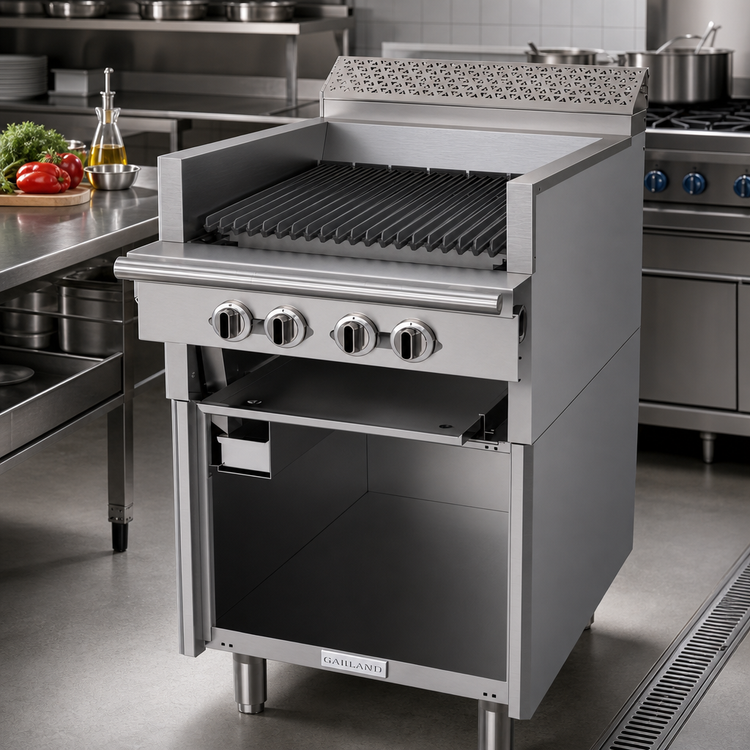

Garland Cuisine Series 24" Heavy-Duty Gas Charbroiler + Under-Fired Broiler
72,000 BTU • Open Cabinet Base • Model C24-NRS (Range-Match)Engineered for the relentless pace of commercial kitchens, the 24-inch Garland Cuisine Series charbroiler/broiler range brings steak-house performance to a compact footprint. A rugged stainless-steel chassis, cast-iron radiants and a fixed grid assembly deliver even, powerful heat and unmistakable grill marks—service after service.
Key advantages
- Four independently valved 18 kBTU burners (72 kBTU total) create flexible heat zones for beef, poultry or vegetables.

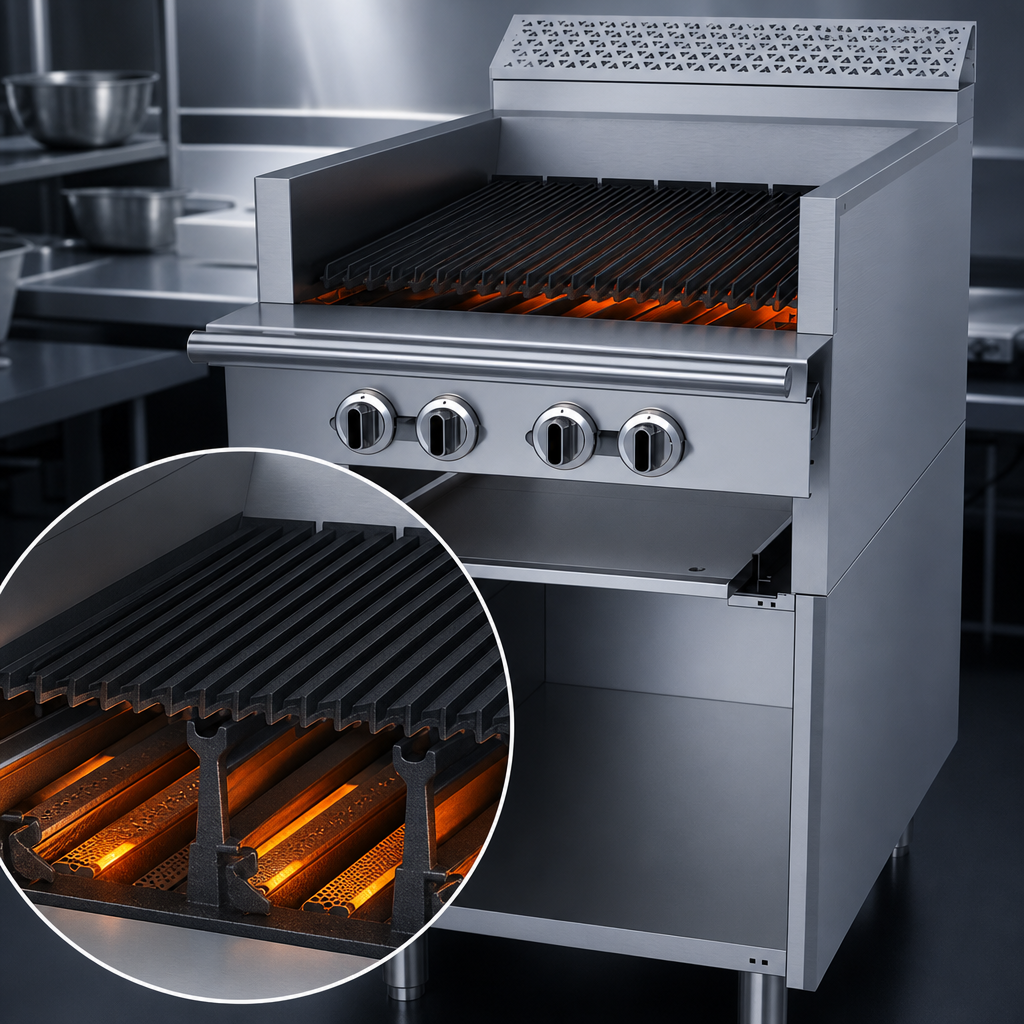

- Cast-iron radiants distribute heat evenly and vaporise drippings for authentic charbroiled flavour.
- Fixed cast-iron grate assembly stands up to heavy loads and high-heat cleaning.
- Under-fired broiler design maximises production without consuming extra line space.
- Stainless-steel front, sides, stub-back, rail and burner box resist corrosion and simplify clean-up.

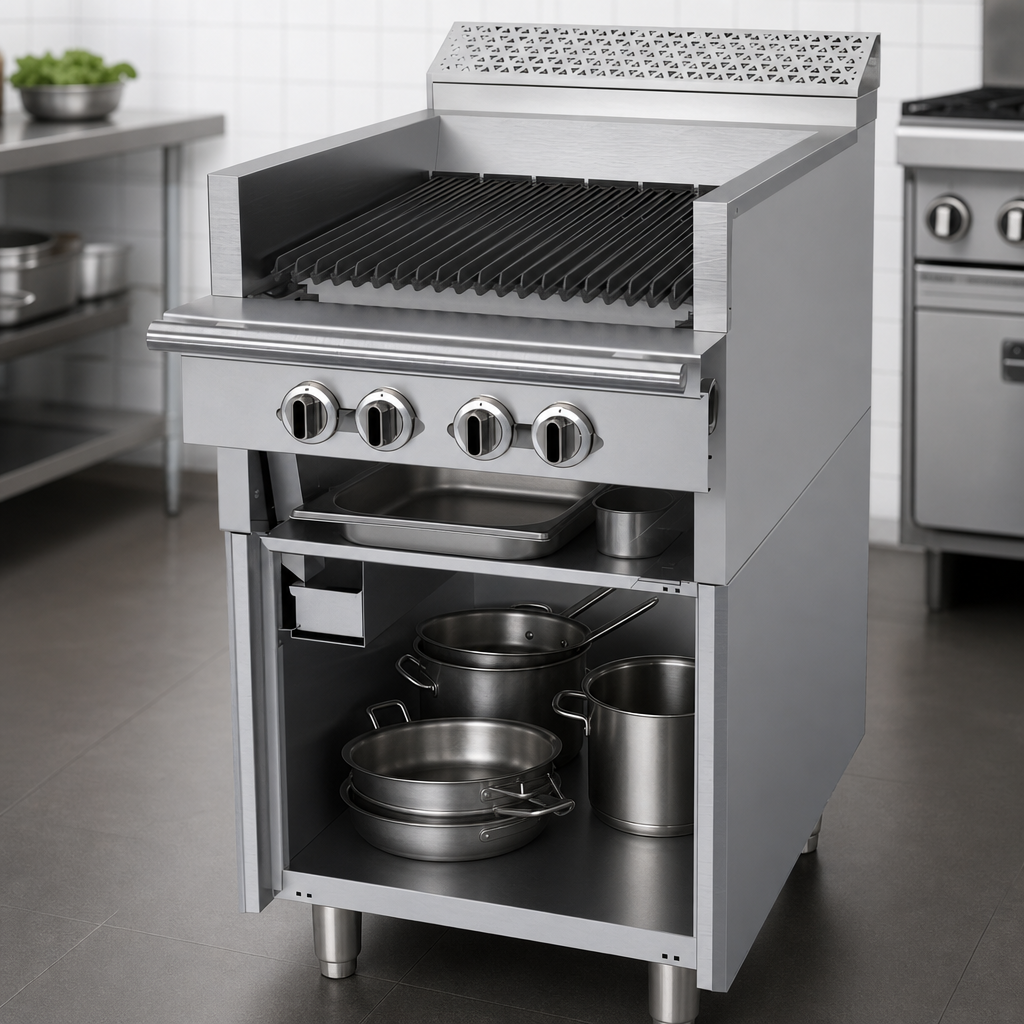

- Open cabinet base keeps hotel pans, utensils or chemicals close at hand.
- 6" (152 mm) adjustable stainless legs level the unit on curbs, stands or uneven floors.
- 1-1/4" NPT front gas manifold (optional rear connection) speeds installation or battery line-up with other Cuisine Series equipment.
Technical specifications
| Footprint (W × D) | 24" × 32-5⁄8" (610 mm × 830 mm) – standard depth |
|---|---|
| Working height | 36-7⁄8" (937 mm) to cooking grid 37-1⁄4" (947 mm) stub back |
| Total input | 72,000 BTU/h – Natural or Propane |
| Burner configuration | 4 × 18,000 BTU cast-iron, controls every 6" (152 mm) |
| Cooking surface | 19" (483 mm) deep fixed cast-iron grids |
| Base | Open cabinet |
| Gas connection | 1-1/4" NPT front manifold (standard) |
| Clearances * | Sides – 10" (254 mm) • Back – 6" (152 mm) to combustibles |
| Legs | 6" (152 mm) stainless, adjustable |
| Construction | Stainless-steel front, sides, stub-back, rail & burner box • Cast-iron radiants & grids |
| Certifications | CSA Flame • CSA Star • NSF |
Assured compliance
- CSA Flame – gas safety & performance
- CSA Star – sanitation standards
- NSF – food-contact & hygiene
*Minimum installation clearances shown. Follow local codes and Garland installation manual for full requirements. Garland equipment is intended for commercial use only and is not warranted for residential installation.
