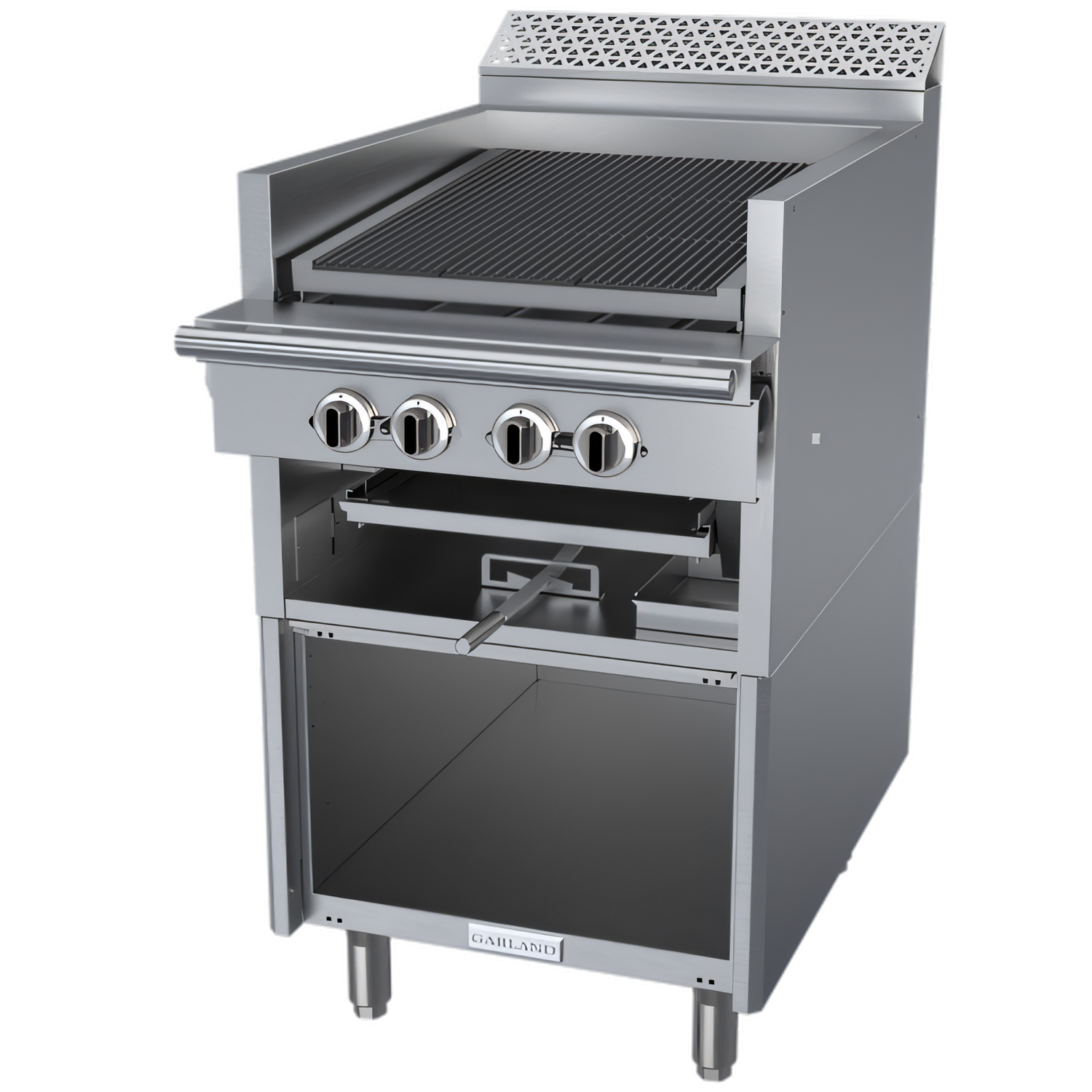

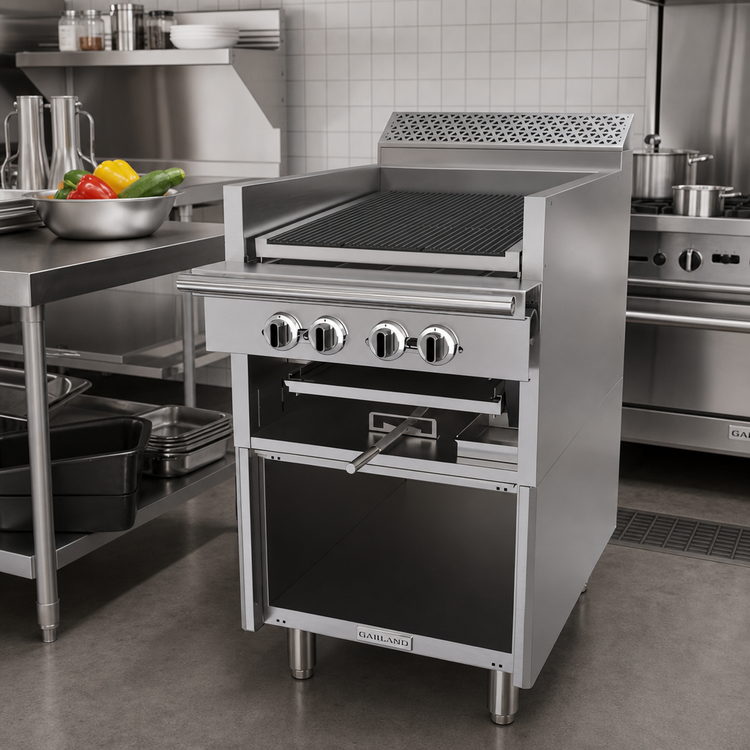

Garland Cuisine Series 24-Inch Commercial Gas Charbroiler with Cast Iron Radiants, Adjustable Grates and Open Cabinet Base

SKU: C24-ARS
$7,366.95
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Garland Gas Ranges New Arrivals Ranges Restaurant Equipment

Garland Cuisine Series 24-Inch Commercial Gas Charbroiler with Cast Iron Radiants, Adjustable Grates and Open Cabinet Base

Heavy-Duty, 72,000 BTU, Stainless Steel Front & Sides

Built for demanding line cooking, this 24-inch gas charbroiler combines cast iron radiants, adjustable grates, and a durable stainless steel cabinet base.

  • 24-inch commercial gas charbroiler with cast iron radiants and adjustable top grates
  • 72,000 BTU/h total output for dependable high-heat performance
  • Stainless steel front, sides, stub back, front rail, and burner box for long service life
  • Open cabinet/storage base adds convenient underunit storage
  • Individual burner controls and a 1-1/4 Inches NPT front gas manifold
  • 6-inch adjustable stainless steel legs help with leveling and installation
  • NSF, CSA Flame, and CSA Star certified for commercial kitchen use

Overall Dimensions:

24.0"W x 39.38"D x 45.33"H

Product Weight:

320.0 lb

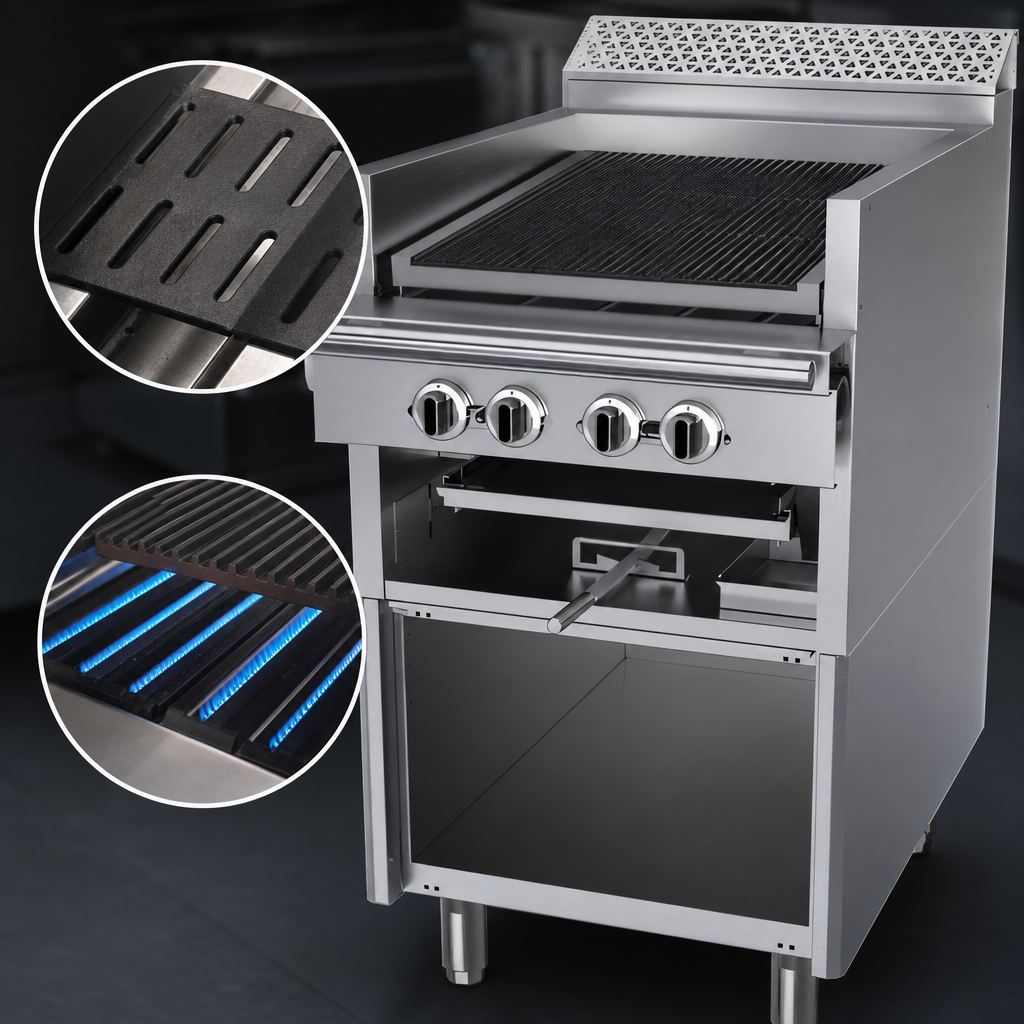

Cast Iron Radiants

Heavy-duty cast iron radiants provide even heat distribution for broiling.

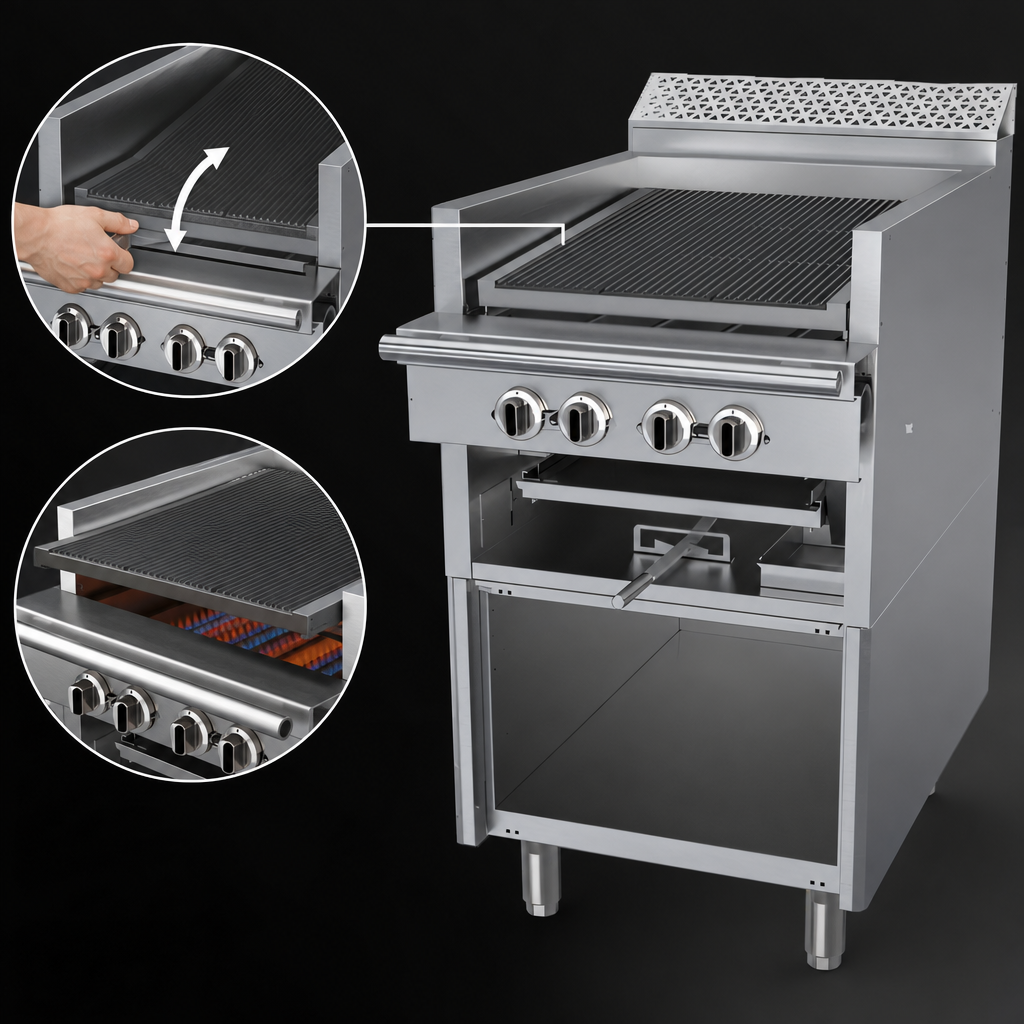

Adjustable Top Grates

Tilting grates let operators fine-tune contact and broiling intensity.

Open Cabinet Storage Base

Open base space can be used for storage beneath the cooking section.

Stainless Steel Construction

Front, sides, stub back, front rail, and burner box are stainless steel for durability and easier cleaning.

Individual Burner Controls

Separate burner controls help manage heat output by section.

Front Gas Manifold

1-1/4 Inches NPT front gas manifold supports straightforward gas hookup.

Adjustable Stainless Steel Legs

6-inch adjustable legs simplify leveling during installation.

Extra-Large Grease Container

Collects drippings to help keep the work area cleaner.

Flexible Installation

Can be installed individually or in a battery with compatible units.

Type Charbroiler
Style Heavy Duty
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
BTU 72,000 BTU/h
Controls Individual Burner Controls
Gas Connection Size 1-1/4 Inches NPT
Shipping Width 24 Inches
Shipping Depth 40 Inches
Shipping Height 46 Inches
Shipping Weight 320 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Check list PDF Download PDF Garland cuisine models guide PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It uses cast iron radiants with adjustable grates.
The total output is 72,000 BTU/h.
It uses a 1-1/4 Inches NPT front gas manifold.
Natural gas minimum supply is 7 Inches W.C. with 6 Inches W.C. manifold operating pressure. Propane minimum supply is 11 Inches W.C. with 10 Inches W.C. manifold operating pressure.
The required clearances are 10 Inches on the sides and 6 Inches at the back.
Yes, it can be installed individually or in a battery.
