Garland  |  Garland Cuisine  |  SKU: C24-ABS

Garland C24-ABS Garland Cuisine Gas Ranges

$7,515.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Brochure Check list Garland cuisine models guide Owner's manual
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

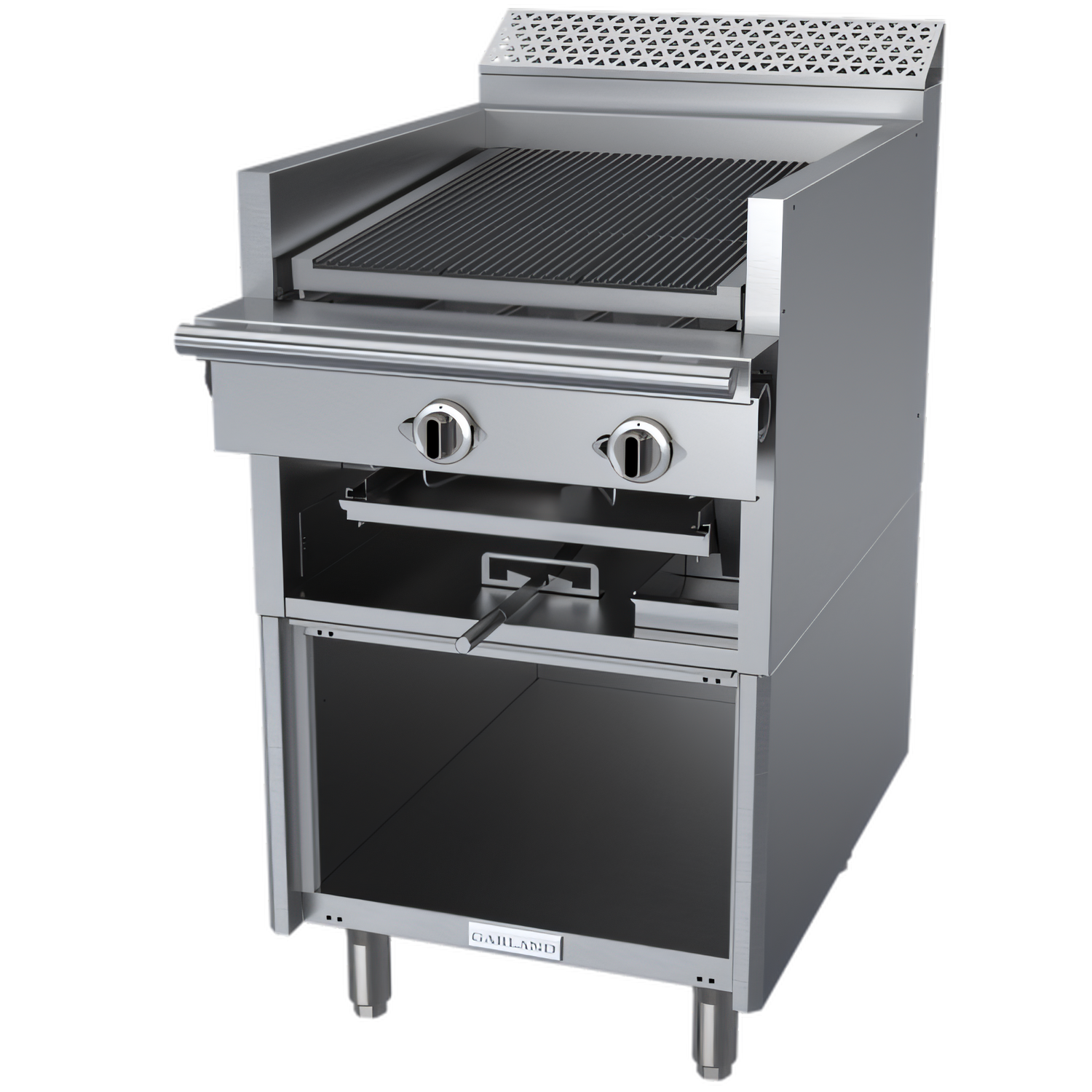

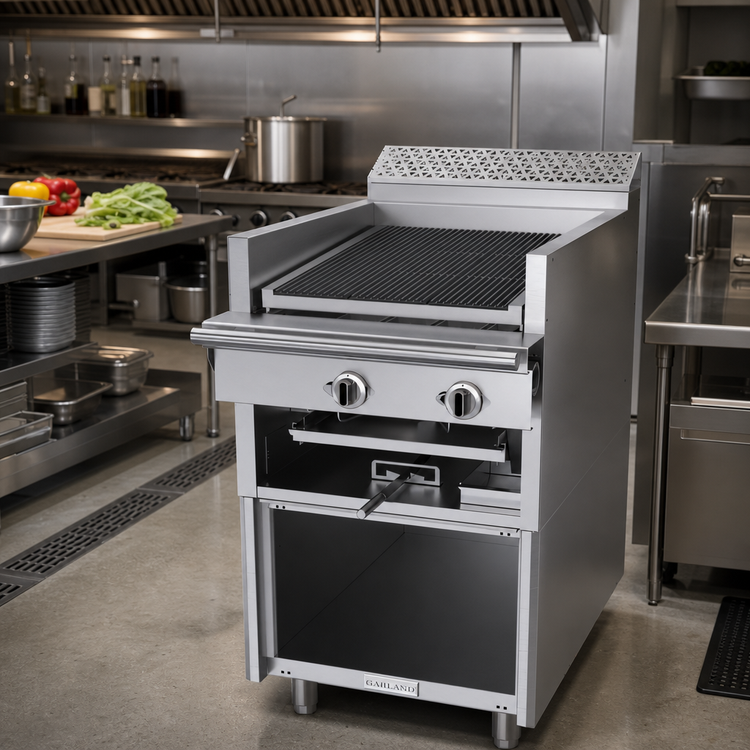

Garland Cuisine Series 24" Heavy-Duty Charbroiler Range Match

Model C24-ABS – 90,000 BTU Gas, Briquette Underfired Broiler, Open Cabinet Base

Bring full-size charbroiler performance to even the tightest cookline. The 24" Garland Cuisine Series C24-ABS delivers a searing 90,000 BTU of briquette-fired heat, precision zone control and the rugged stainless-steel construction that has made Garland a trusted name in professional kitchens for more than a century.

Why you’ll love it

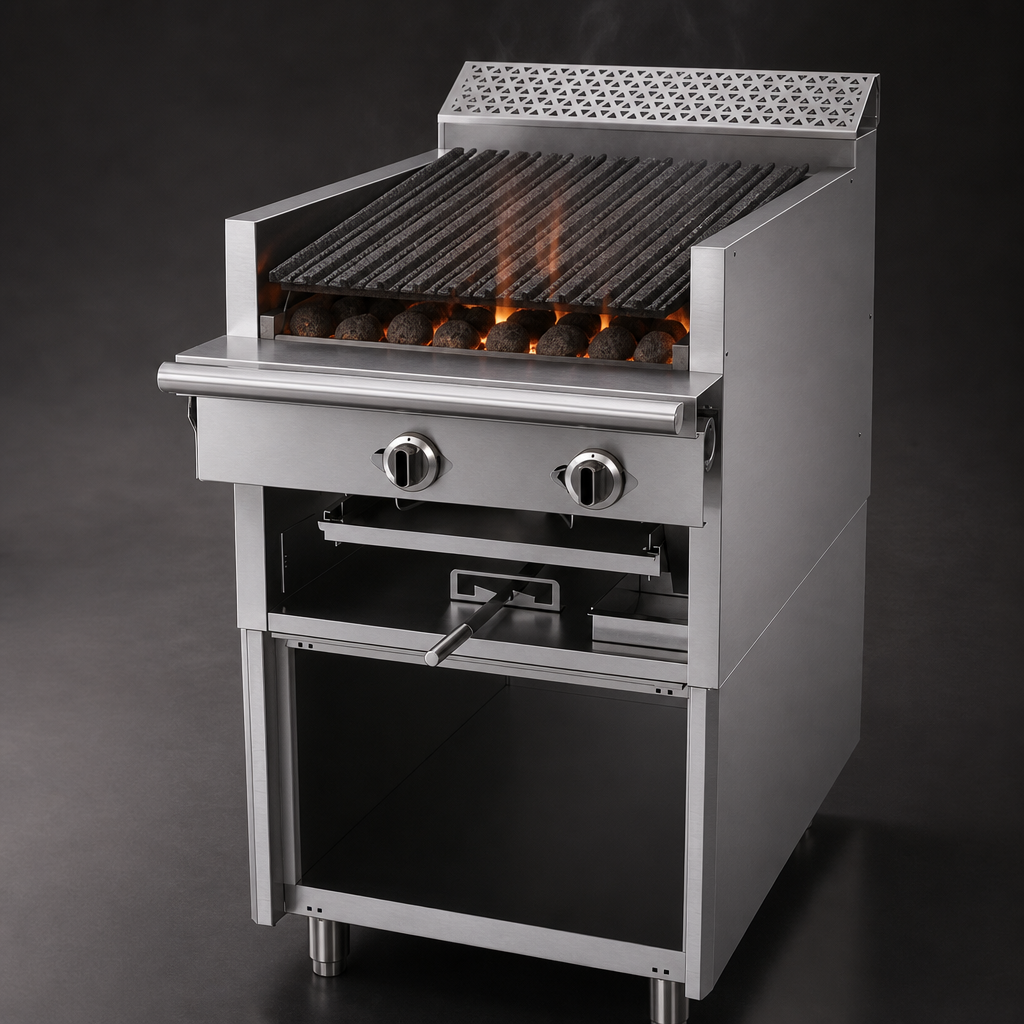

  • Briquette power, steak-house results – two 45,000 BTU burners heat ceramic briquettes for intense, even heat and authentic char-flavor.
  • Tilting adjustable grates let you set the perfect cooking angle and distance from the flame for burgers, seafood or delicate vegetables.
  • Independent burner controls create two independent heat zones for maximum menu flexibility.

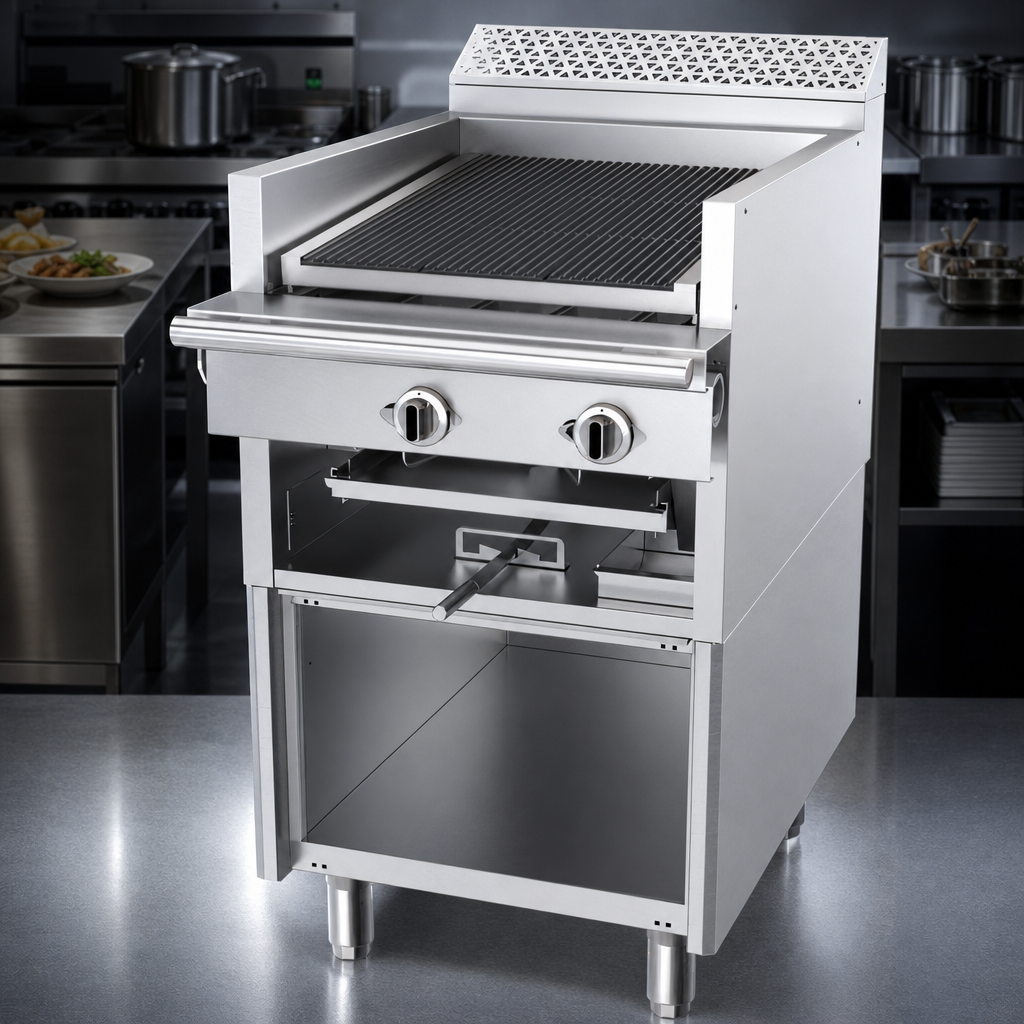

  • Stainless steel everywhere – stub-back, front, sides, front rail and burner box stand up to daily abuse and wipe clean fast.
  • Open cabinet base gives quick access to sheet pans, hotel pans or cleaning tools without adding footprint.
  • Extra-large grease container slides out for mess-free clean-up.
  • 6" (152 mm) adjustable stainless legs simplify leveling on uneven floors.
  • Field convertible for Natural or Propane gas with 1 ¼" NPT front manifold for easy line-up installation.
  • Safety & compliance: CSA Flame, CSA Star & NSF listed for use in commercial foodservice.

Specifications

Model C24-ABS
Cooking width 24"  (610 mm)
Total input (Natural / Propane) 90,000 BTU / h
Burners 2 × 45,000 BTU briquette burners
Grates Tilting, adjustable, cast iron
Exterior dimensions (w × d × h*) 24" × 32.75" × 34.38"
(610 × 833 × 873 mm)
Working height 35.13" (893 mm) to grate top
Gas connection 1 ¼" NPT front manifold
Rear ¾" NPT (optional)
Manifold pressure 6" WC (Natural)  |  10" WC (Propane)
Minimum supply pressure 7" WC (Natural)  |  11" WC (Propane)
Certifications CSA Flame, CSA Star, NSF

*Height shown to cook surface; 7" stub-back adds overall height.

Popular options & accessories

  • Stainless doors for cabinet base
  • Single or double-deck back risers
  • 5" or 6" locking swivel casters
  • Rear gas connection kit
  • Flanged feet for curb mounting
Commercial use only. Garland equipment is engineered for professional kitchens and must be installed by a qualified technician in accordance with local codes.

Features & Specs

Manufacturer

Garland

Brand_name

Garland Cuisine

Certifications

NSF, CSA Star, CSA Flame

Height

36.0in

Width

24.0in

Depth

38.0in

Shipping Weight

390.0lbs

Top

(1) charbroiler

Exterior Finish

stainless steel front & sides

Base

cabinet(s)

Specifications

Garland Cuisine Series Heavy Duty Range, gas, 24", charbroiler, underfired broiler, briquettes, adjustable top grates, open cabinet base, stainless steel stub-back, front, sides, front rail & burner box, 6" adjustable legs, 90,000 BTU, CSA Flame, CSA Star, NSF (Garland)
