Garland C24-6S Garland Cuisine Gas Ranges
Description

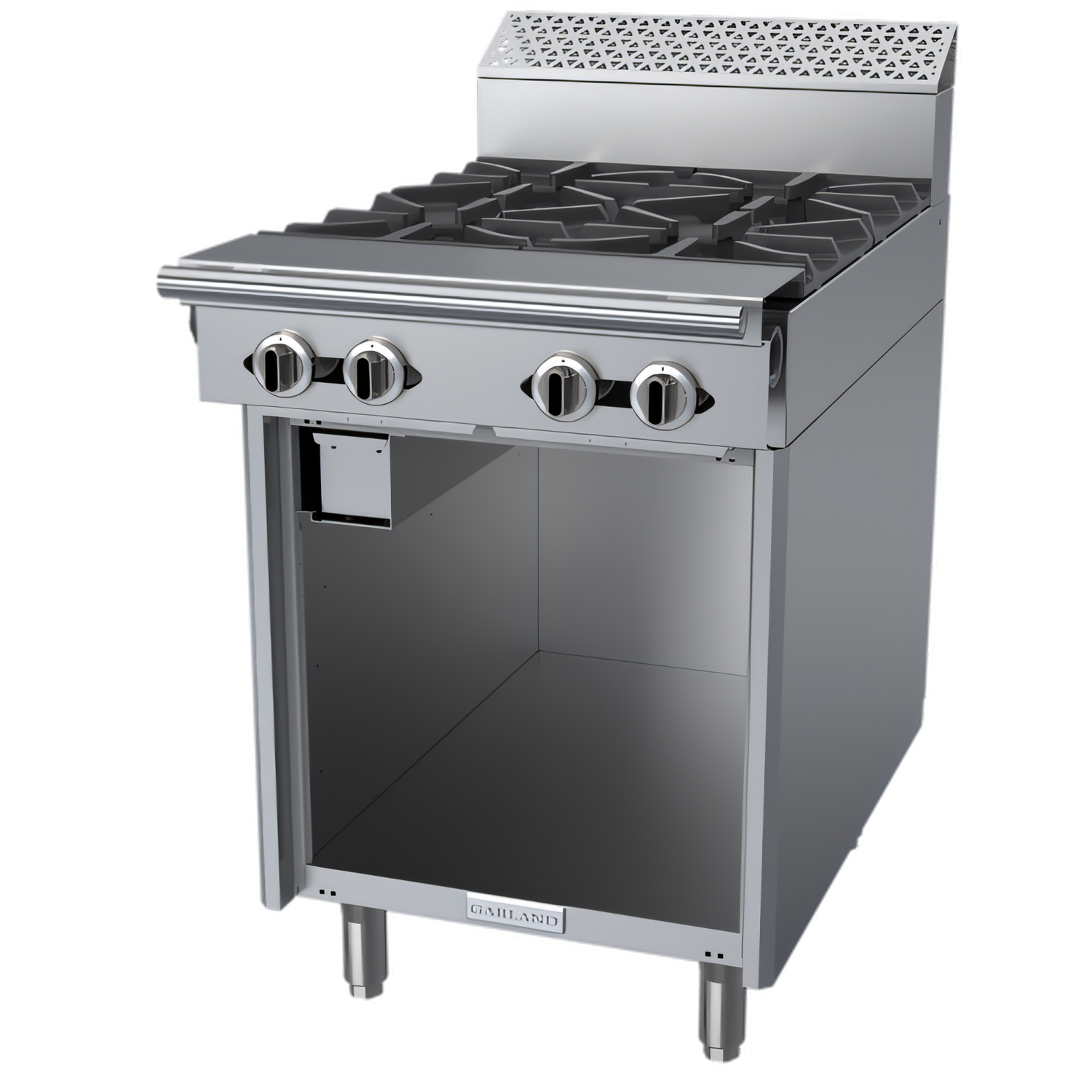

Garland Cuisine Series 24" Heavy-Duty Add-A-Unit Range
4 × 35,000 BTU Starfire™ Open Burners | 140,000 BTU TotalBuild out a powerful cookline one section at a time. The 24" Garland Cuisine Add-A-Unit delivers the same rugged performance as a full-size heavy-duty range while letting you expand or re-configure whenever you need to. Four high-output Starfire open burners, an open cabinet base and all-stainless construction make this the perfect workhorse for busy commercial kitchens.
Key Features

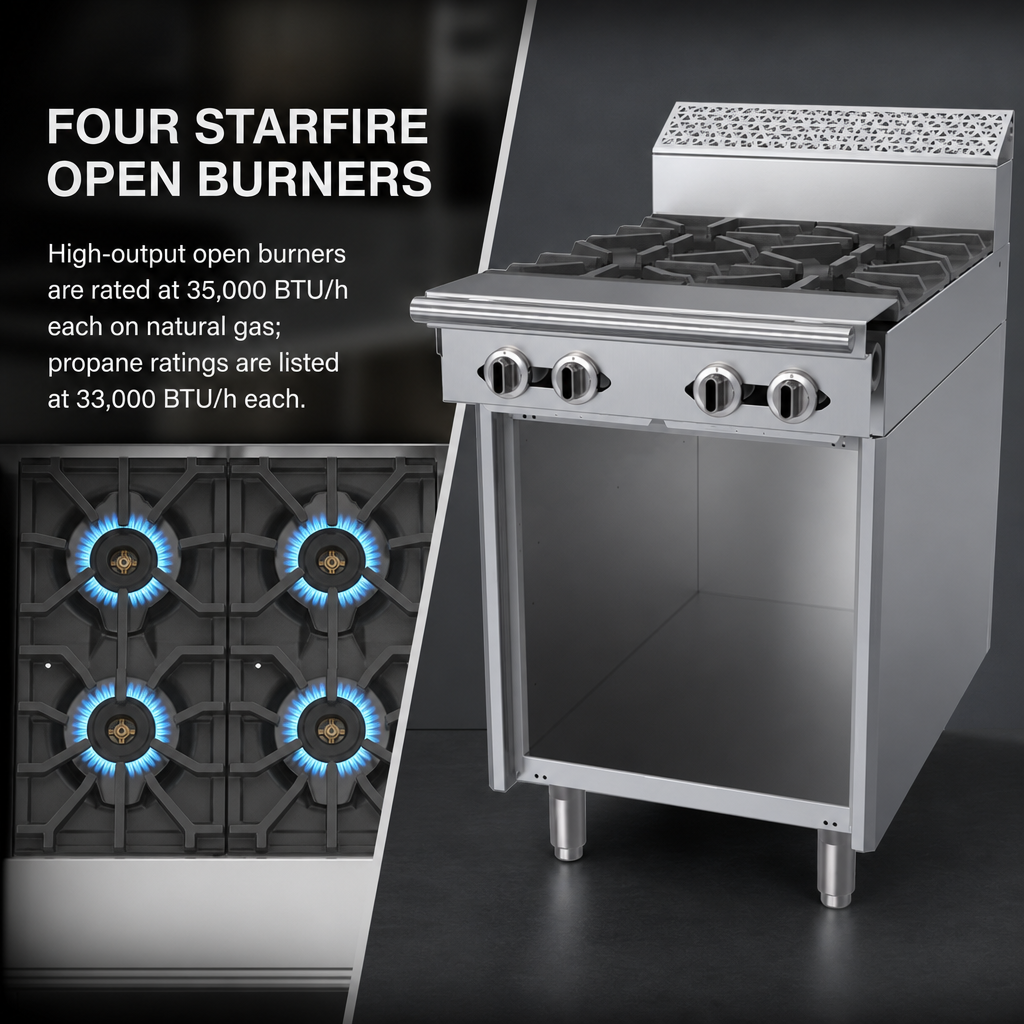

- Four 12" Starfire burners, each rated 35,000 BTU/h (NG) for rapid heat-up and precise simmer control
- One-piece cast-iron grate & bowl over every burner for superior durability and even heat distribution
- 140,000 BTU total input (132,000 BTU when fired on propane)

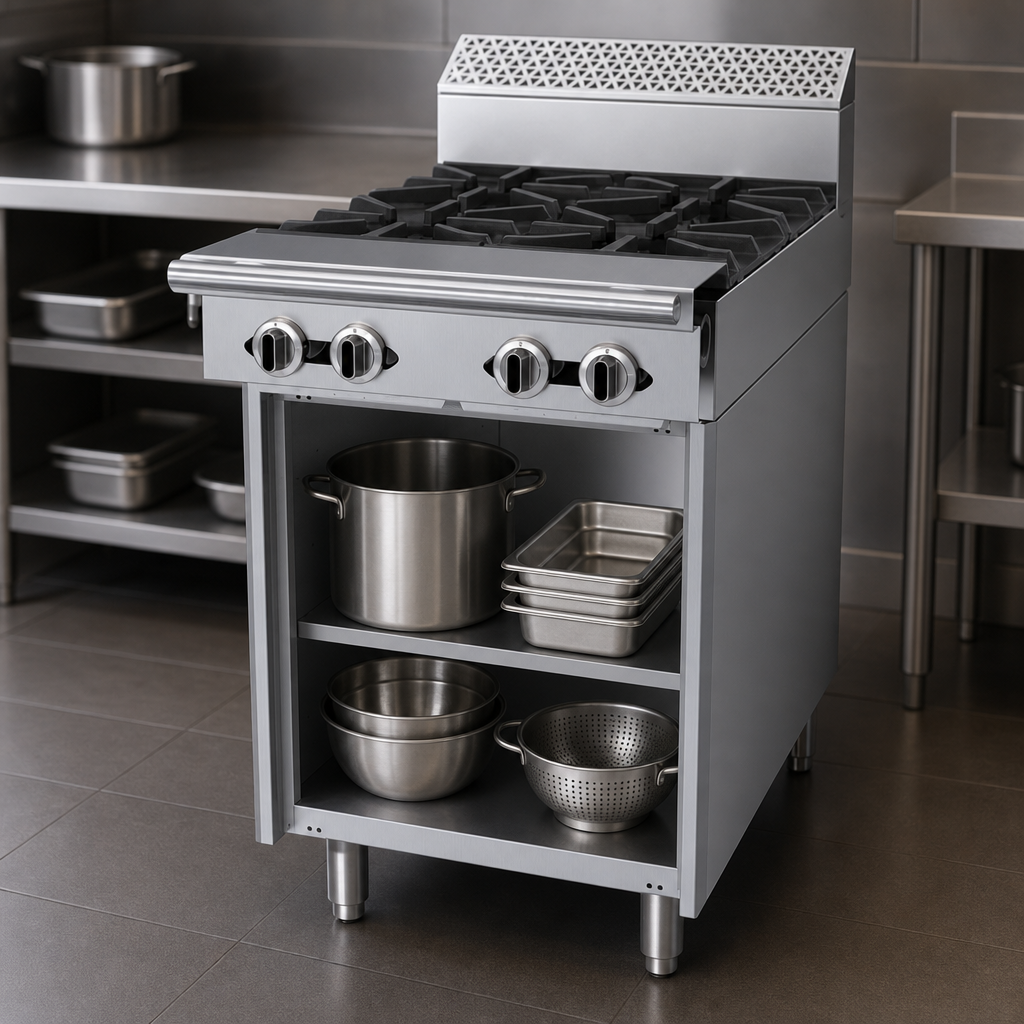

- Open cabinet base gives fast access to pans, utensils or inserts—no doors to slow you down
- Heavy-gauge stainless steel front, sides, plate rail and burner box stand up to daily wear
- 7" (178 mm) stainless stub backguard protects the wall without increasing height
- 6" (152 mm) adjustable stainless legs for easy leveling on uneven floors
- 1-1/4" NPT front gas manifold simplifies line-up installation; rear gas connection kit available
- Field-upgradable with single or double hi-shelf, back riser, cabinet doors, or caster sets
- Certified to CSA Flame, CSA Star and NSF standards for gas safety, sanitation & performance
Specifications
| Model | Garland Cuisine C24-6S (Add-A-Unit, Open Cabinet) |
|---|---|
| Footprint (W × D) | 24" × 37 7⁄8" (610 mm × 962 mm) |
| Working Height (with 6" legs) |
36 1⁄4" (921 mm) |
| Individual Burner Rating | 35,000 BTU/h (NG) | 33,000 BTU/h (LP) |
| Total Input | 140,000 BTU/h (NG) | 132,000 BTU/h (LP) |
| Gas Connection | 1-1/4" NPT front manifold (rear connection optional) |
| Manifold Pressure | 6" WC Natural | 10" WC Propane |
| Minimum Supply Pressure | 7" WC Natural | 11" WC Propane |
| Combustible Clearance | Sides 10" (254 mm) | Rear 6" (152 mm) |
| Certifications | CSA Flame, CSA Star, NSF |
Popular Options & Accessories
- Single or double-deck stainless hi-shelf/back riser
- Stainless cabinet doors or intermediate shelf kit
- 5" non-marking swivel casters (front brakes) or 6" heavy-duty casters
- Factory-installed rear gas connection kit
- Gas shut-off valves, regulators & flex hose assemblies (¾", 1", 1¼")
- Flanged feet for curb/dais mounting
Need a multi-unit battery line-up? Add-A-Units are designed to join seamlessly with other Garland Cuisine modules—contact us for planning assistance.
