Description

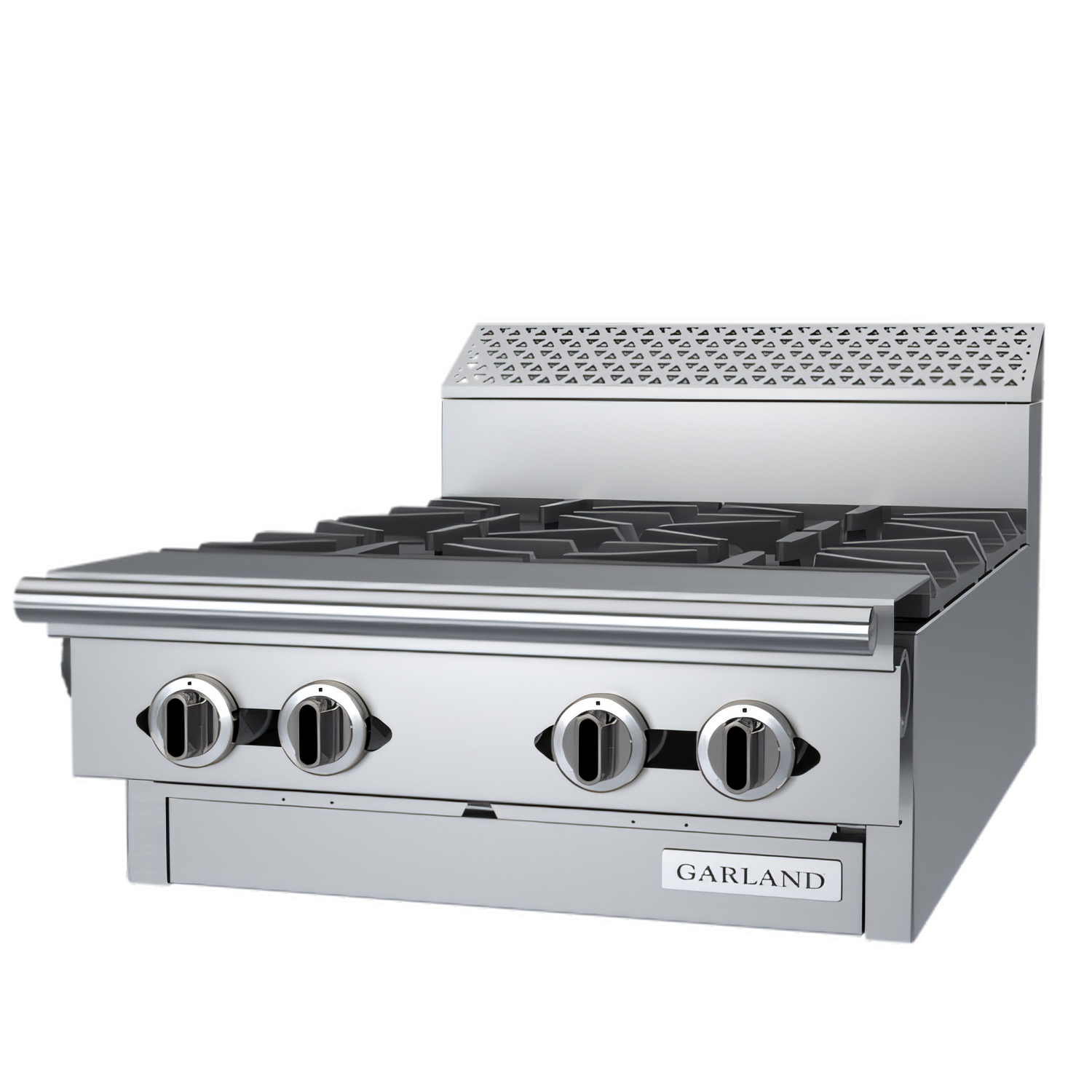

Garland Cuisine Series 24" Heavy-Duty Modular Range – 4 Starfire Open Burners (Add-A-Unit)

Model C24-6M | 140,000 BTU/h | CSA & NSF Listed

Drop powerhouse performance into a compact footprint. The Garland Cuisine 24" Modular Add-A-Unit delivers 140,000 BTU/h across four ultra-responsive Starfire burners, giving chefs the speed and durability they need while slotting seamlessly into any Cuisine Series battery.

Key Features

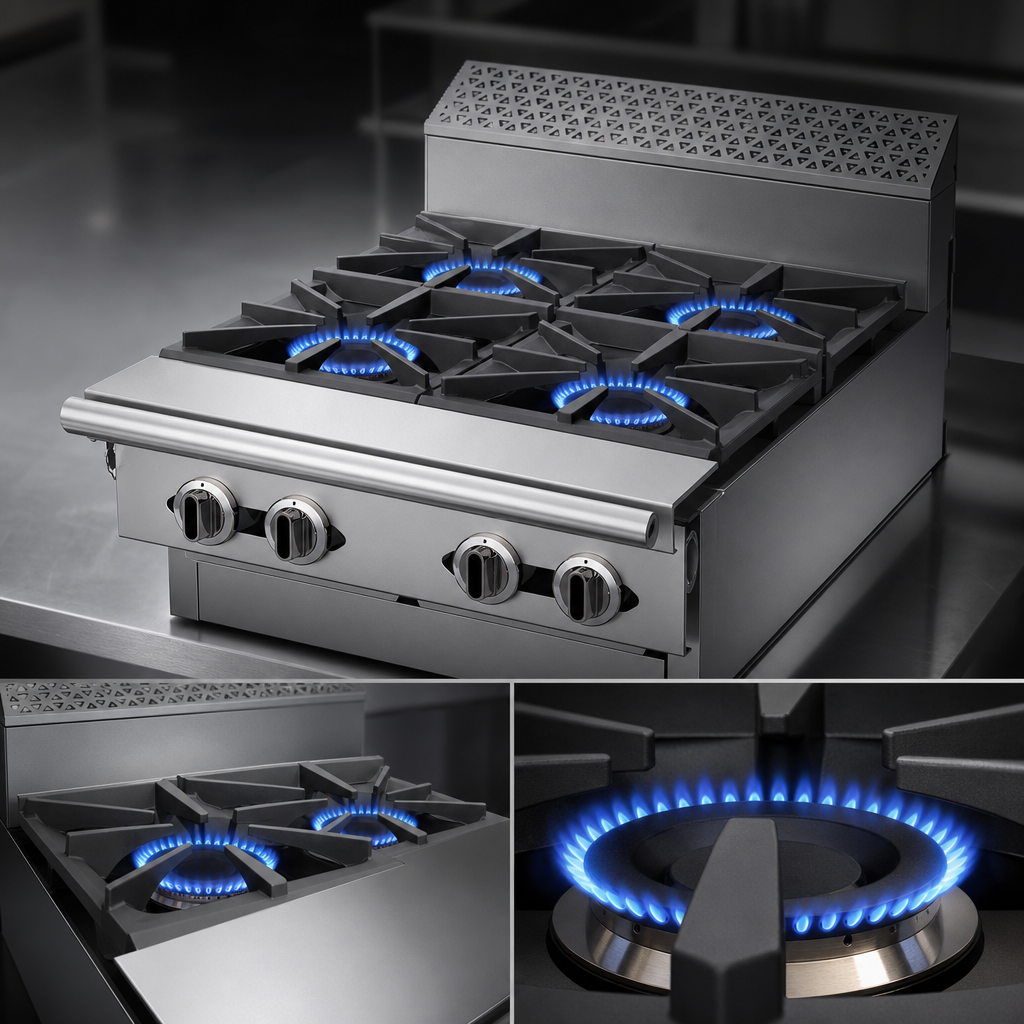

  • Four 35,000 BTU/h Garland Starfire open burners with center pilot for instant ignition.
  • One-piece cast-iron grates and bowls lift off for effortless cleaning and long life.
  • Rugged stainless steel front, sides, continuous plate rail and burner box resist corrosion.
  • 7" (178 mm) stainless steel stub backguard protects surrounding surfaces.
  • Factory-installed 1-1/4" NPT front gas manifold; optional rear connection kits available.

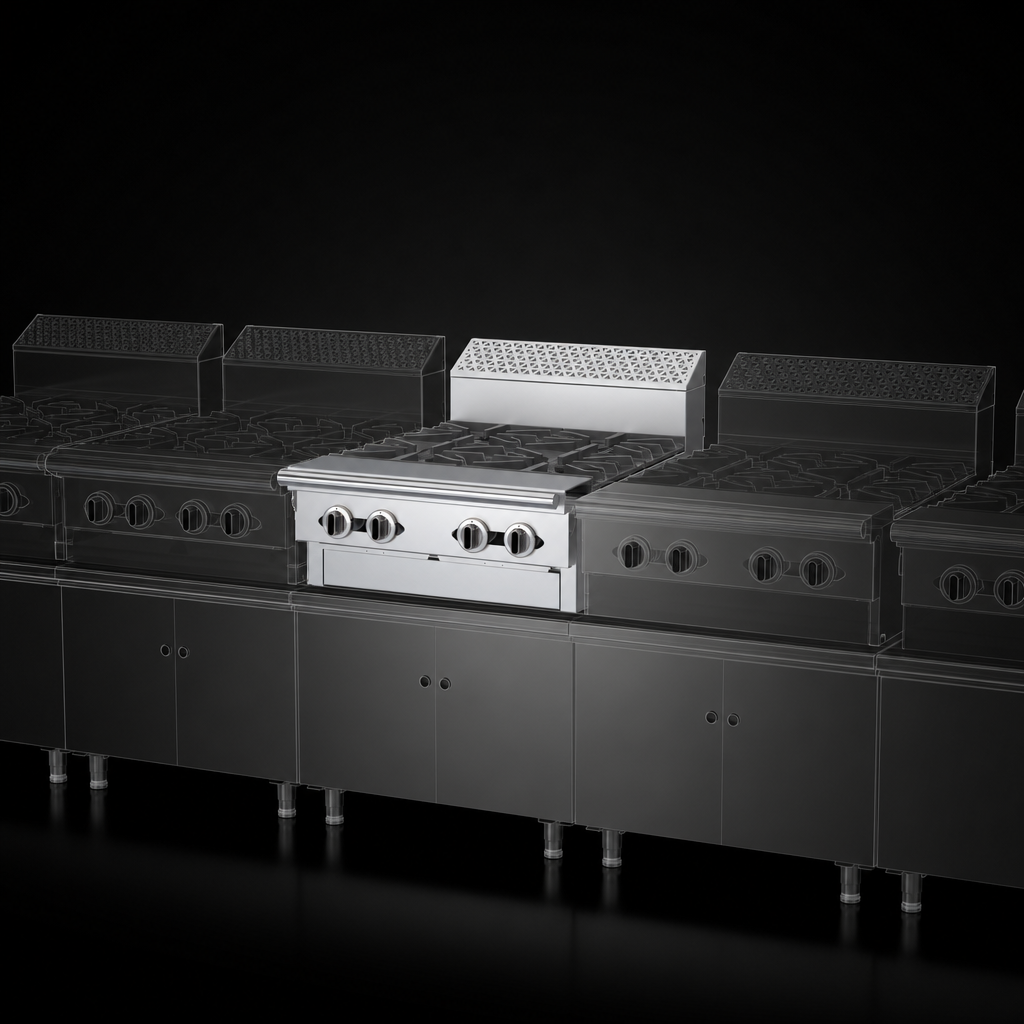

  • Modular top mounts directly on a refrigerated chef base or Garland equipment stand (sold separately).
  • Field convertible for Natural or Propane gas without performance loss.
  • Certified to CSA Flame, CSA Star and NSF standards for safety and sanitation.

Specifications

Width 24" / 610 mm
Depth 37-7/8" / 962 mm
Height (module) 30-1/4" / 767 mm
Working height on stand 36-1/4" / 921 mm
Number of burners 4 Starfire 12" open burners
Total output 140,000 BTU/h (Natural)  |  132,000 BTU/h (Propane)
Gas inlet 1-1/4" NPT (front)
Operating pressure 6" WC Natural  |  10" WC Propane
Minimum supply pressure 7" WC Natural  |  11" WC Propane
Combustible clearance Sides – 10" / 254 mm  |  Back – 6" / 152 mm
Shipping weight ≈ 225 lb / 102 kg
Certifications CSA Flame, CSA Star, NSF

Popular Options & Accessories

  • Stainless steel equipment stand with intermediate shelf (CS24 series).
  • Single or double-deck high shelf / back riser.
  • Rear gas connection kit.
  • 5" or 6" swivel casters with front brakes.
  • Flanged feet for permanent floor mounting.
  • Gas regulators & flex hoses with quick disconnect (¾", 1", 1¼").
Installation Note: Garland 24" modular Add-A-Units ship without legs and must be mounted on a compatible stand, chef base, or flanged feet and secured per local code. Units on casters require an approved restraining device.

Garland reserves the right to modify specifications without notice. Need help designing your cookline? Contact our specialists at garlandusorder@welbilt.com.

Features & Specs

Manufacturer

Garland

Brand_name

Garland Cuisine

Certifications

NSF, CSA Star, CSA Flame

Height

10.0in

Width

24.0in

Depth

34.38in

Shipping Weight

225.0lbs

Top

(4) open burners

Base

modular

Type

add-a-unit

Specifications

Garland Cuisine Series Heavy Duty Range, gas, 24", modular top, Add-A-Unit, (4) 35,000 BTU Starfire open burners, 7" backguard, stainless steel front, sides, plate rail & burner box, 140,000 BTU , CSA Flame, CSA Star, NSF (Garland)
