Garland C24-1S Garland Cuisine Gas Ranges
Description

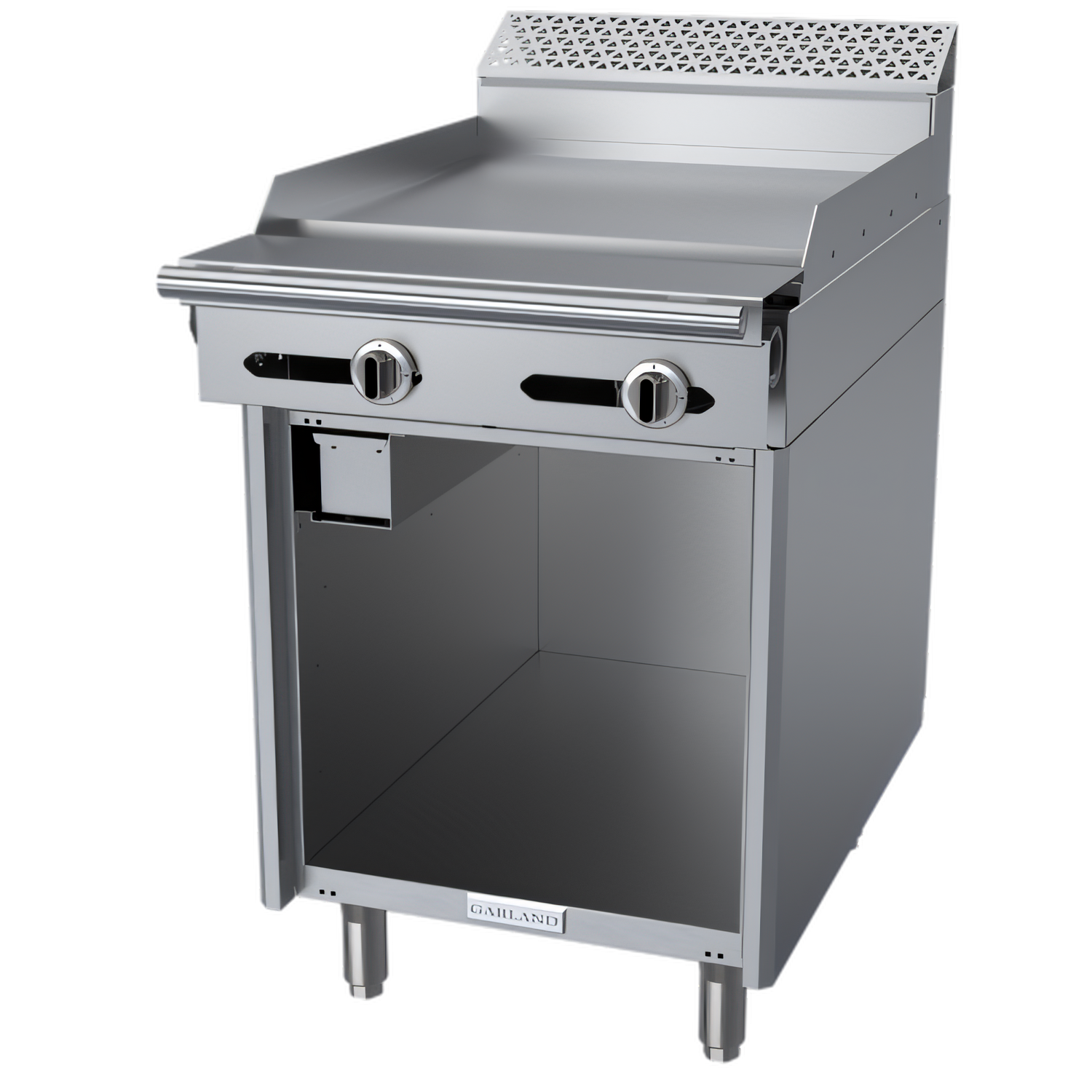

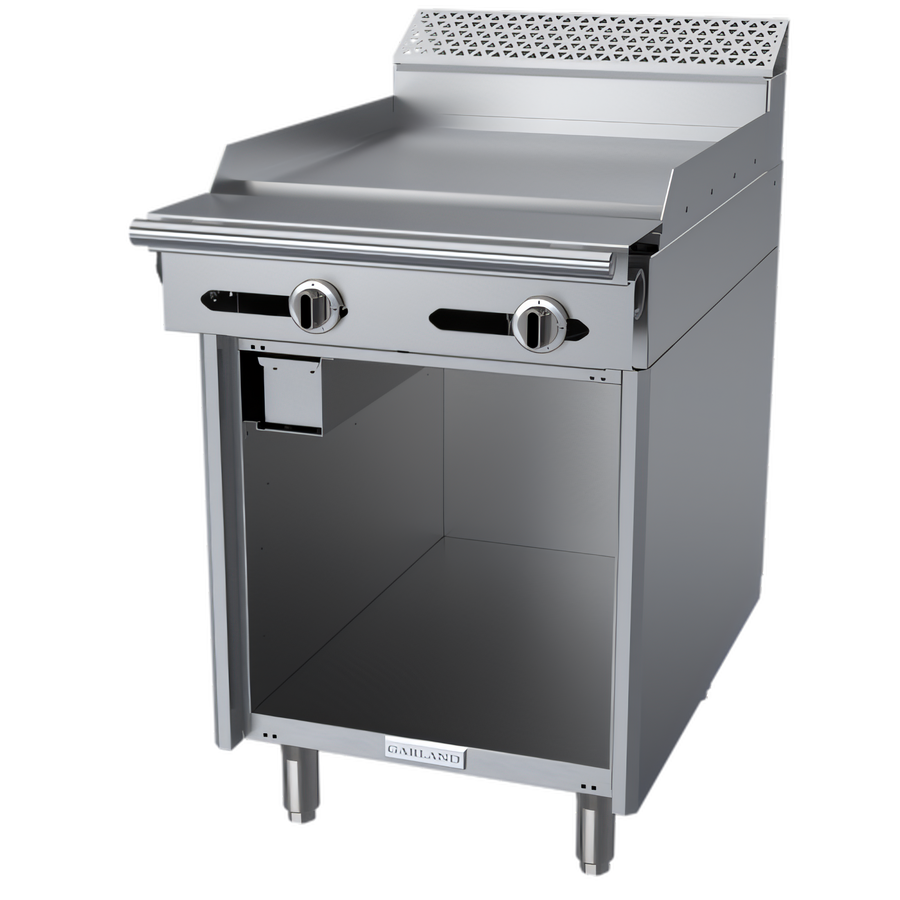

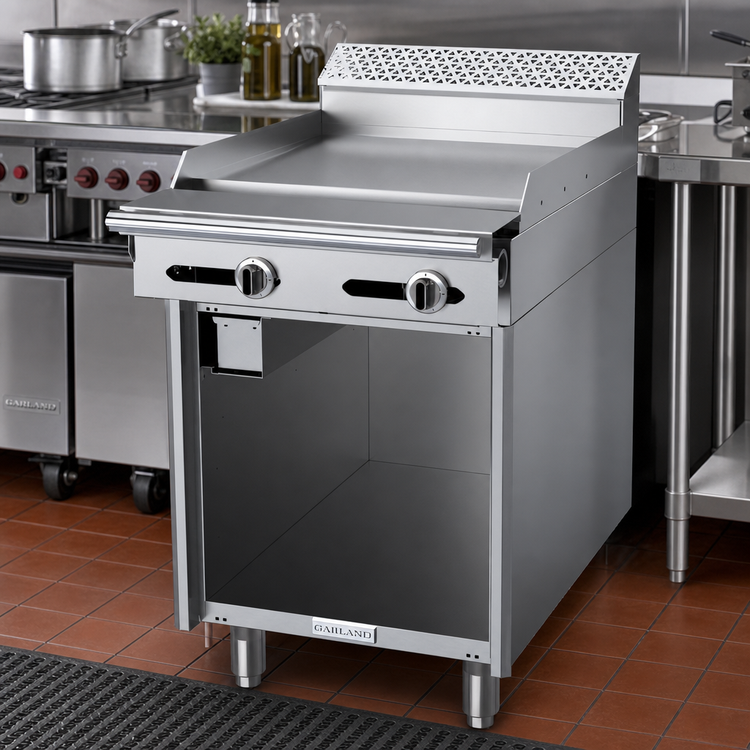

Garland Cuisine Series 24" Heavy-Duty Add-A-Unit Gas Griddle Range
Model C24-1S • 60,000 BTU • Manual Controls • Open Cabinet BaseDrop powerful, high-output griddle performance into any cook-line with the Garland C24-1S. This 24 inch Add-A-Unit delivers the legendary durability of the Cuisine Series in a compact module that slides right into a battery or stands on its own with a full stainless cabinet base.
Key Advantages

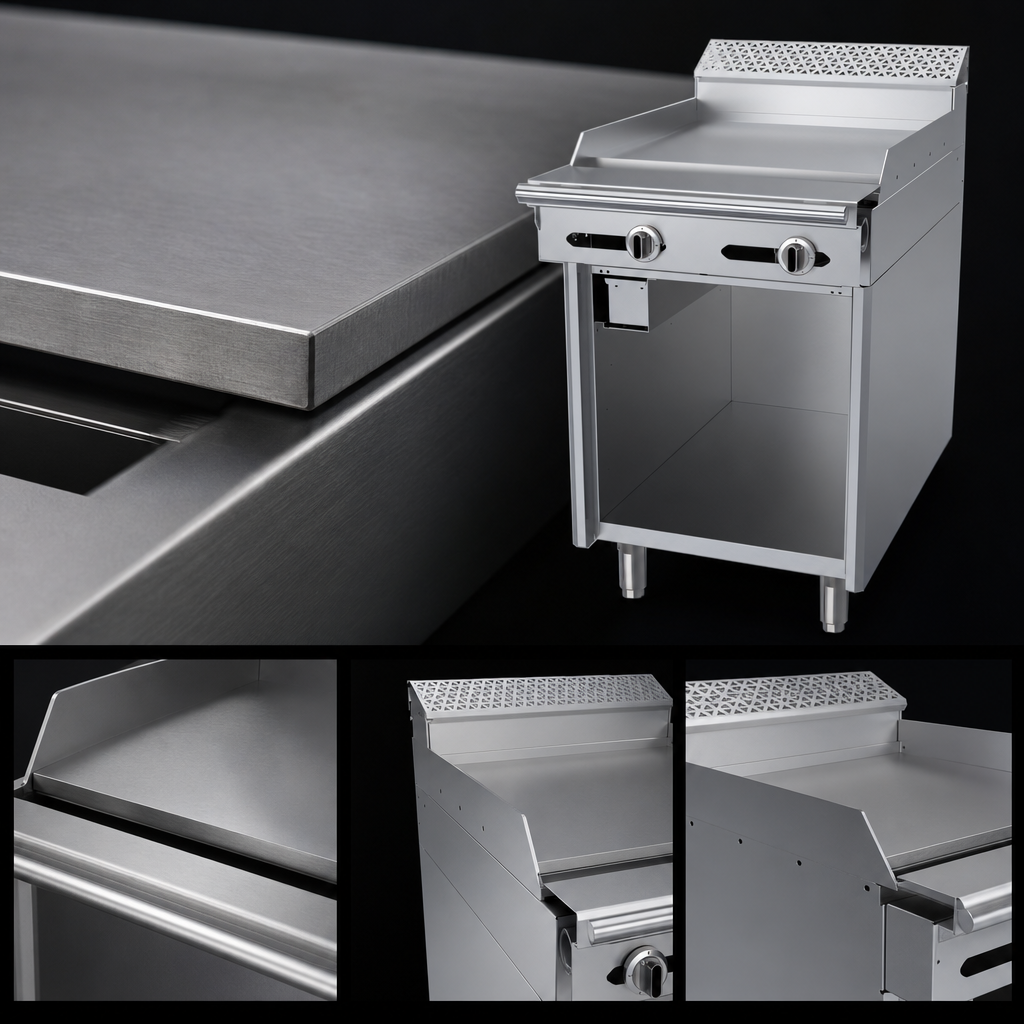

- 1" (25 mm) thick polished steel griddle plate for fast recovery and even heat.
- Two 30,000 BTU burners (one every 12") — 60,000 BTU total.

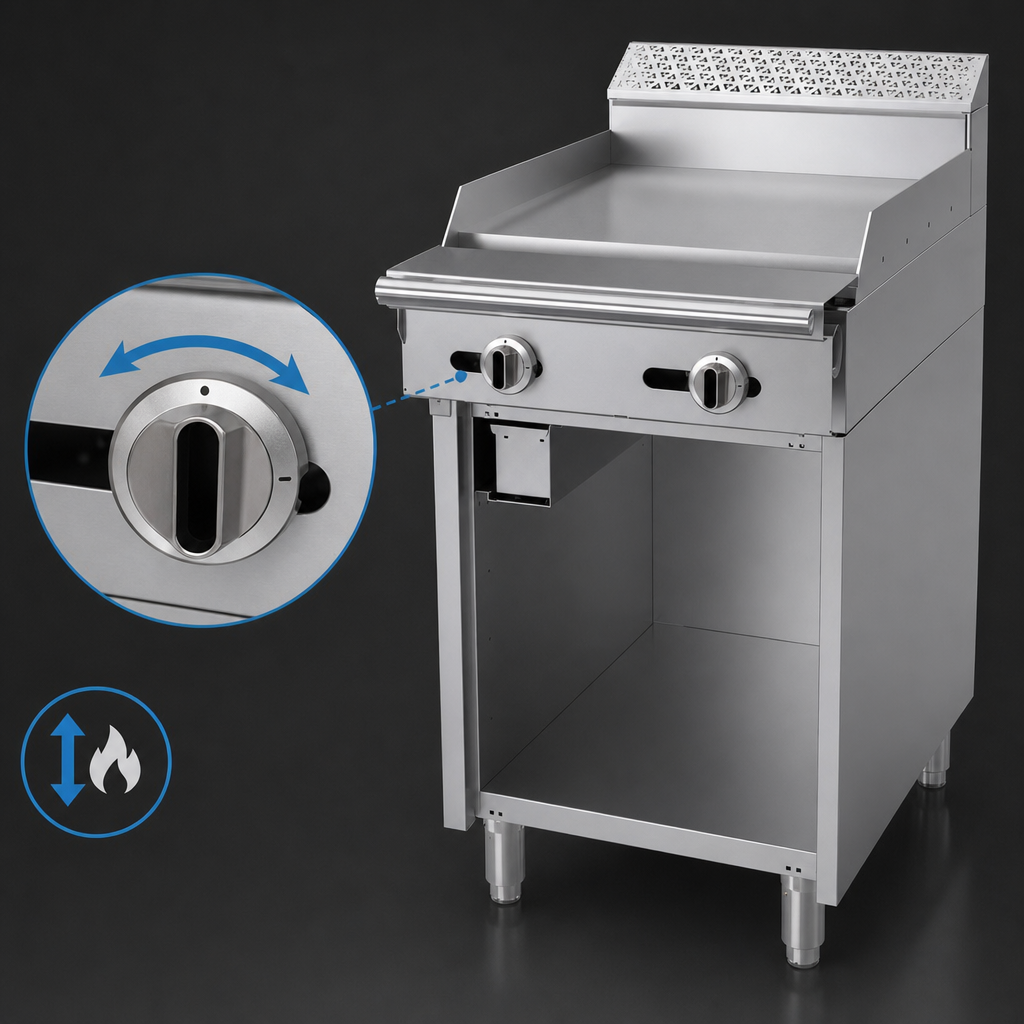

- Manual Hi-Lo valve controls for instant, repeatable flame response.
- 3" (76 mm) wide grease trough with large, front-access drawer.
- Open cabinet base keeps sheet pans and smallwares within arm’s reach.
- Rugged stainless steel front, sides, continuous plate rail and burner box.
- 7" (178 mm) stainless stub back guards walls and directs heat to the plate.
- 6" (152 mm) adjustable stainless legs for easy leveling.
- Front 1-1/4" NPT gas manifold for quick battery connections.
- Certified CSA Flame, CSA Star and NSF for commercial kitchens.
Performance You Can Taste
The thick steel plate behaves like a mini plancha—holding searing heat for perfect caramelisation on smash burgers, breakfast favourites or finishing steaks. Pilots sit outside the spill zone, so start-ups stay reliable shift after shift.
Specifications
| Footprint | 24" W × 37 7/8" D × 36 1/4" H with legs (610 × 962 × 921 mm) |
|---|---|
| Cooking Surface | 24" × 23 1/4" (610 × 591 mm) — 1" thick steel |
| Total Heat Input | 60,000 BTU / 17.6 kW (Natural or Propane) |
| Burners | 2 × 30,000 BTU U-shaped griddle burners |
| Gas Connection | 1-1/4" NPT front manifold (optional 3/4" rear) |
| Operating Pressure | Natural 6" WC | Propane 10" WC |
| Minimum Supply Pressure | Natural 7" WC | Propane 11" WC |
| Combustible Clearances | Sides 10" (254 mm) | Back 6" (152 mm) |
| Shipping Weight | ≈ 380 lb / 172 kg |
| Certifications | CSA Flame, CSA Star, NSF |
Popular Factory Options
- Grooved griddle plate (full or half).
- Single or double-deck high-shelf / back riser.
- Full-height stand or refrigerated base for modular installs.
- Stainless steel door kit for the cabinet base.
- 5" or 6" locking swivel casters.
- Gas regulators, flex hoses & quick-disconnect kits (¾", 1", 1¼").
- Extension rail for 1/9 pans.
Commercial use only. One-year limited parts & labor warranty (USA & Canada).
