Garland  |  Garland Cuisine  |  SKU: C24-1M

Garland C24-1M Garland Cuisine Gas Ranges

$4,388.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Garland cuisine models guide Check list Brochure Owner's manual
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

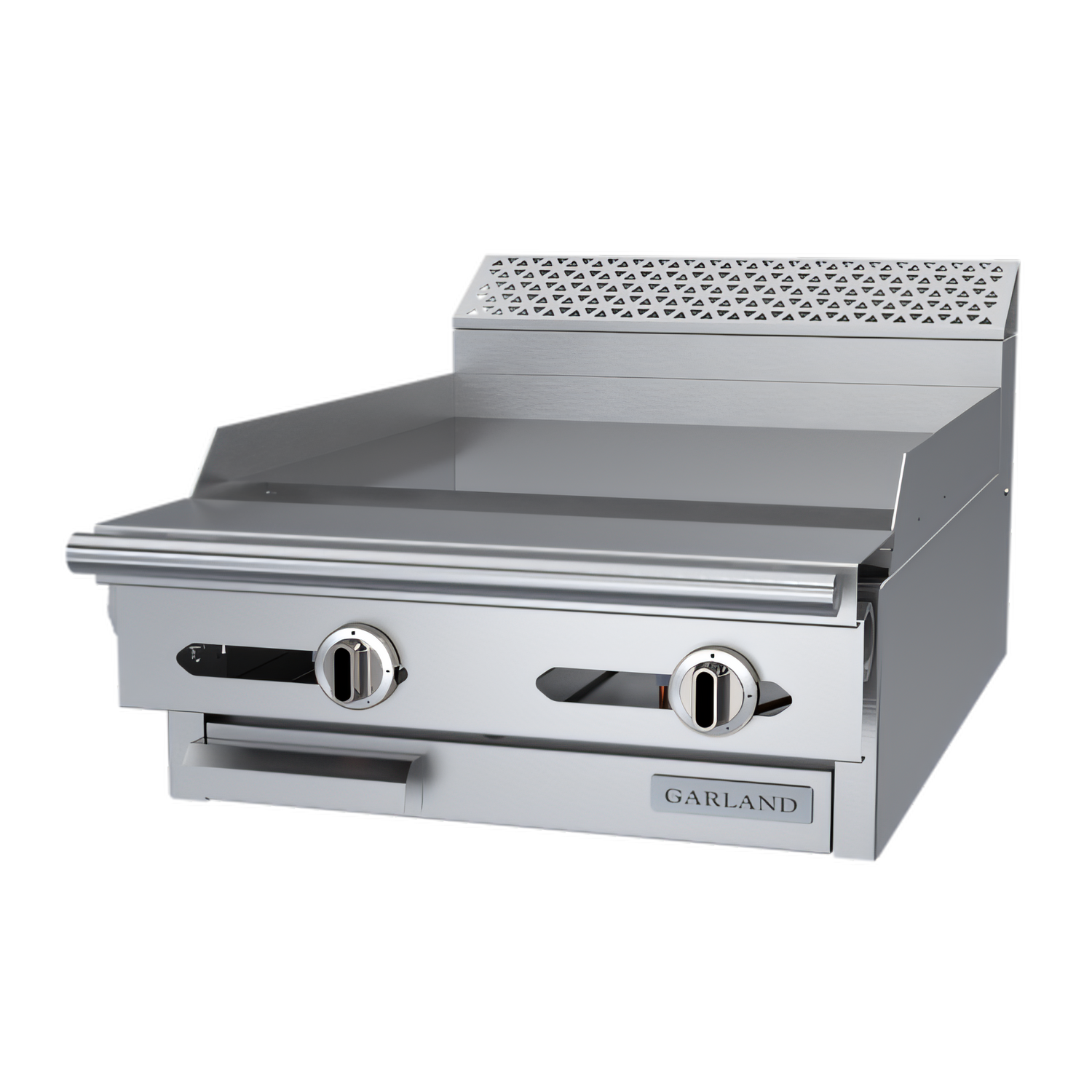

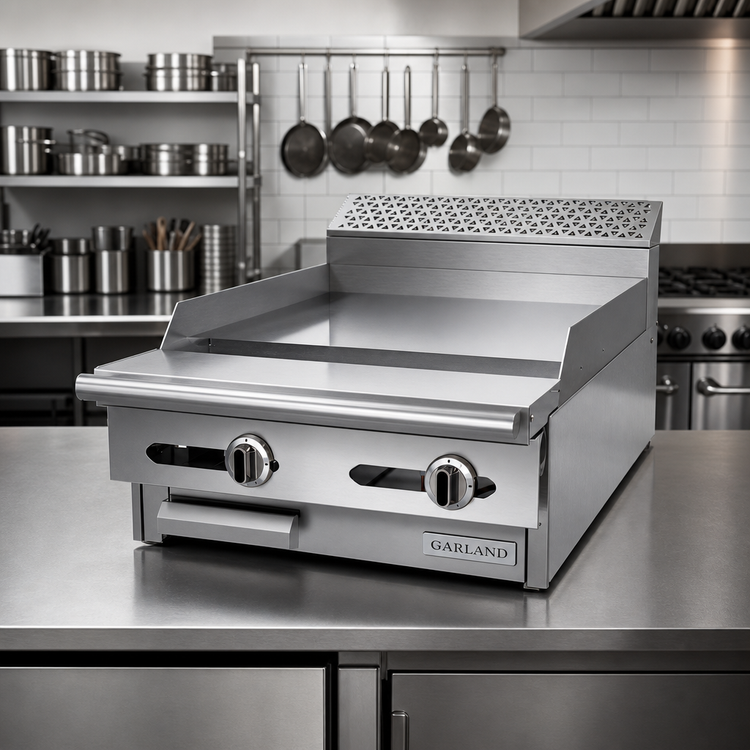

Garland Cuisine Series 24" Heavy-Duty Add-A-Unit Gas Griddle

Model C24-1M  •  60,000 BTU  •  Manual Valve Control

Built for demanding commercial kitchens, the 24" Garland Cuisine Add-A-Unit brings full-size griddle performance to the smallest footprints. Its 1-inch thick steel plate, twin 30,000 BTU burners and rugged stainless construction give chefs the power, consistency and durability they expect from a Garland range—now in a modular format that drops straight into any Cuisine Series battery.

Highlights

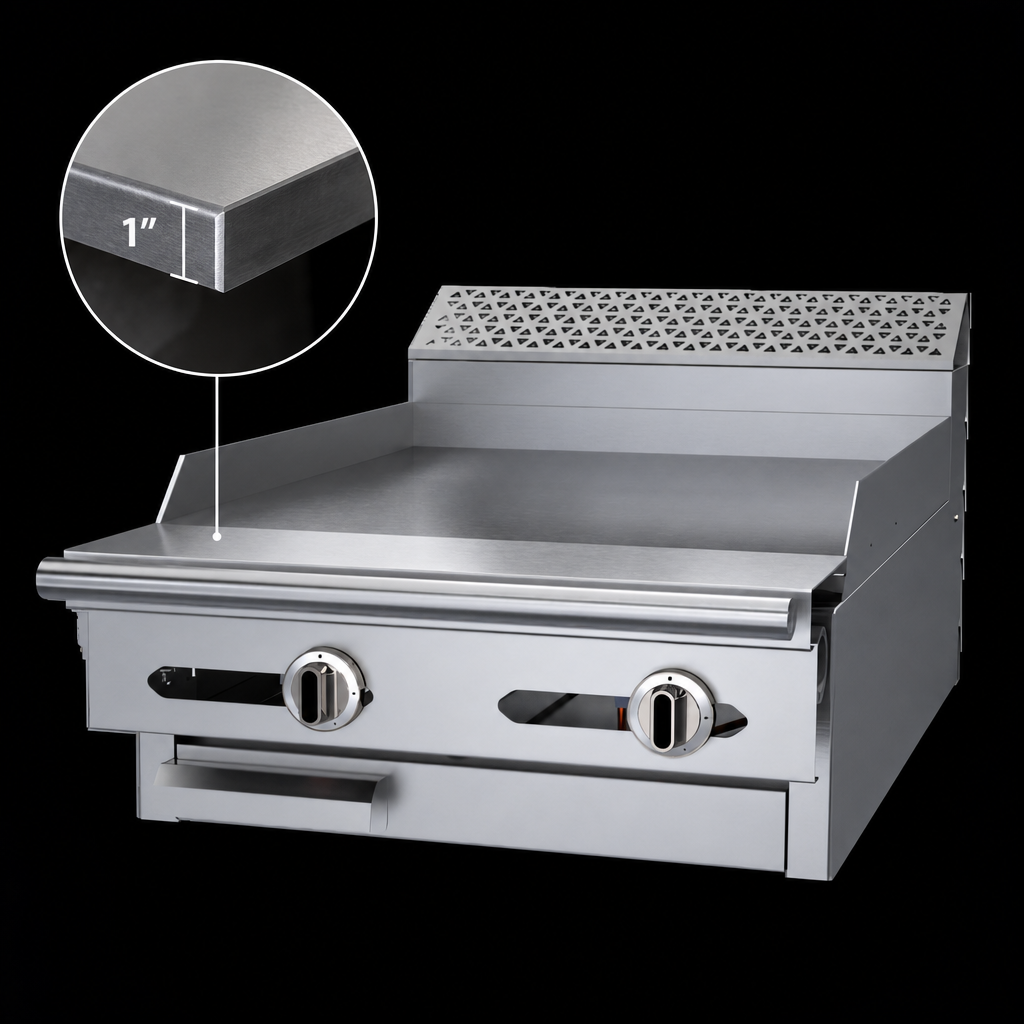

  • 1" (25 mm) polished steel plate with 3" (76 mm) grease trough

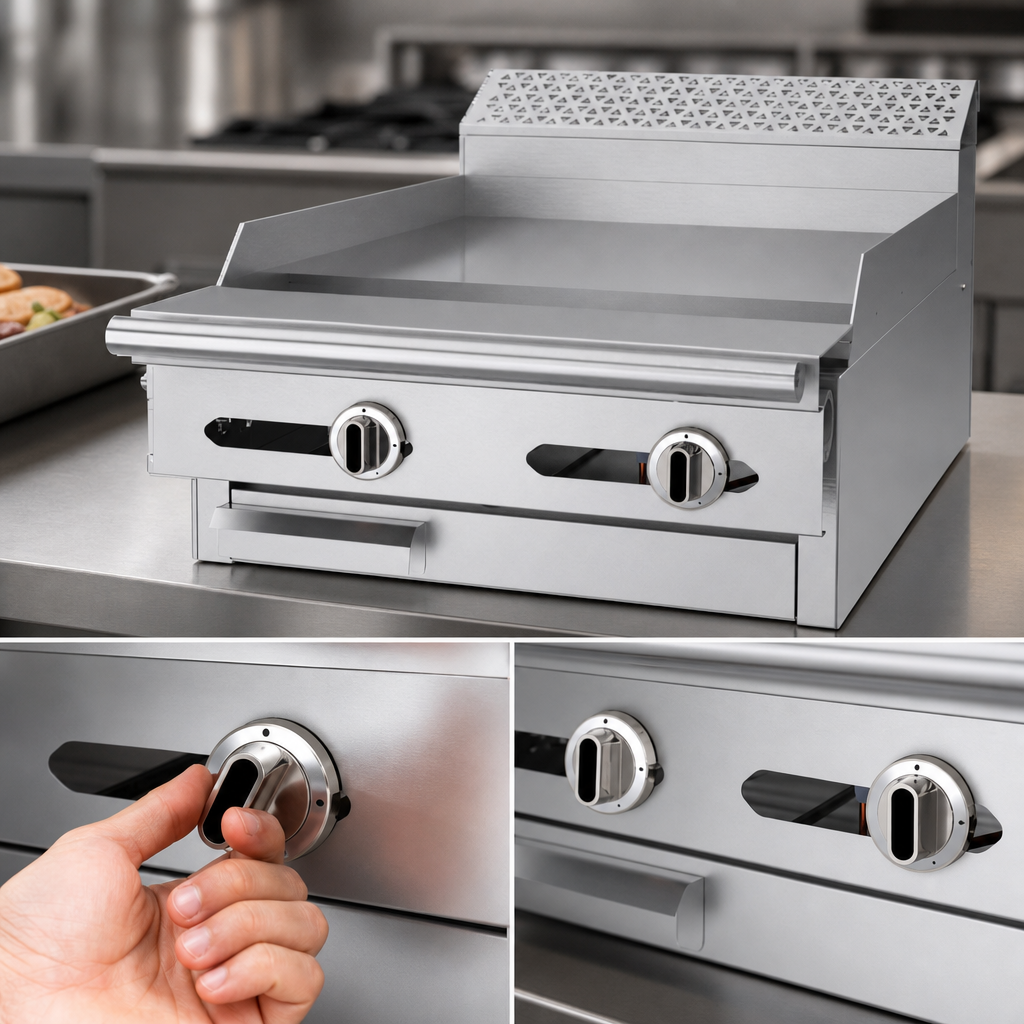

  • Manual Hi-Lo valve controls for simple, dependable operation
  • Total output: 60,000 BTU/h (natural or propane)
  • Two cast-iron burners—30,000 BTU each—ensure even heat across the entire surface
  • 7" (178 mm) stainless stub backguard matches Cuisine battery installations
  • All-stainless front, sides, continuous plate rail and heavy-duty burner box for quick clean-up
  • 1 ¼" NPT front gas manifold; can be field-connected in a single line-up or operated independently
  • Modular top design (no legs supplied) mounts to an equipment stand, refrigerated base or adjoining Garland range
  • Certified: CSA Flame, CSA Star, NSF
  • 1-year limited parts & labour warranty (USA & Canada)
Specifications
Cooking width 24" (610 mm)
Plate thickness 1" (25 mm) polished steel
Total BTU 60,000 BTU/h
Burners 2 × 30,000 BTU
Control type Manual Hi-Lo valves
Overall dimensions 24" W × 37 7⁄8" D × 30 1⁄4" H (to plate surface)
Shipping weight ≈ 342 lb (155 kg)
Gas inlet 1 ¼" NPT (front)
Manifold pressure 6" WC Nat • 10" WC LP
Minimum supply pressure 7" WC Nat • 11" WC LP
Combustible clearances Sides 10" (254 mm) • Back 6" (152 mm)
Certifications CSA Flame, CSA Star, NSF
Options & Accessories
  • Full-height stainless stand with adjustable legs or casters
  • Single or double-deck high shelf / back riser
  • Grooved plate (full or half)
  • Rear gas connection kit
  • Gas regulators, shut-off valves & quick-disconnect hoses (¾", 1", 1 ¼")
  • Flanged feet for curb/dais mounting
Installation Note: Supplied without legs, this modular Add-A-Unit must be installed on an approved stand, refrigerated base, or bolted to the floor when used alone. Units on casters require a restraining device. Gas connections must be completed by a qualified technician in accordance with local codes.

Have questions or need help building a custom Garland battery? Contact our product specialists—we’re here to help.

Features & Specs

Manufacturer

Garland

Brand_name

Garland Cuisine

Certifications

NSF, CSA Star, CSA Flame

Height

10.0in

Width

24.0in

Depth

37.88in

Shipping Weight

342.0lbs

Type

add-a-unit

Exterior Finish

stainless steel front & sides

Base

open stand with shelf

Top

(1) griddle

Plate Thickness

1.000" = 1"

Specifications

Garland Cuisine Series Heavy Duty Range, gas, 24", Add-A-Unit, modular top griddle, 1" thick steel plate, manual controls, 7" backguard, stainless steel front, sides, plate rail & burner box, 60,000 BTU , CSA Flame, CSA Star, NSF (Garland)
