Garland

Garland Cuisine Series 24-Inch Heavy-Duty Gas Plancha Top Range with Storage Base

SKU: C24-19S
$7,300.35
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Garland Gas Ranges New Arrivals Ranges Restaurant Equipment

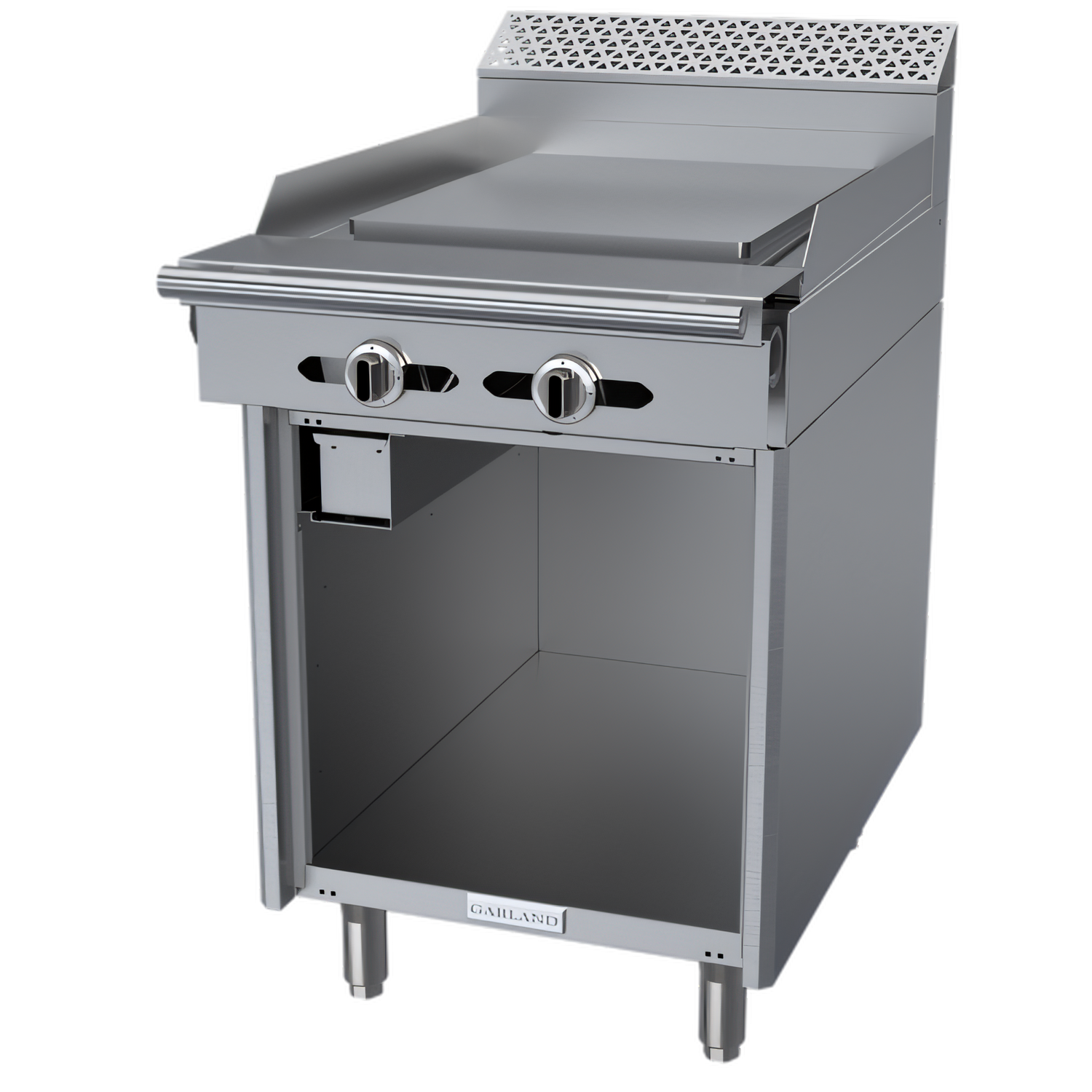

Garland Cuisine Series 24-Inch Heavy-Duty Gas Plancha Top Range with Storage Base

5/8-Inch Steel Plate, Hi-Lo Manual Controls, 40,000 BTU Natural Gas

Combines a thick steel plancha surface, manual Hi-Lo heat control, and a stainless steel storage base for a durable flat-top cooking station.

  • 24-inch plancha top with a 5/8-inch thick steel plate and 3-inch wide grease trough.
  • 40,000 BTU natural gas output with Hi-Lo manual valve controls.
  • Open cabinet storage base for convenient under-unit storage.
  • Stainless steel front, sides, front rail, and 7-inch stub back for durability.
  • Can be installed individually or in a battery for flexible kitchen layouts.
  • 6-inch adjustable legs and a 1-1/4-inch NPT front gas manifold support installation.

Overall Dimensions:

24.0"W x 37.5"D

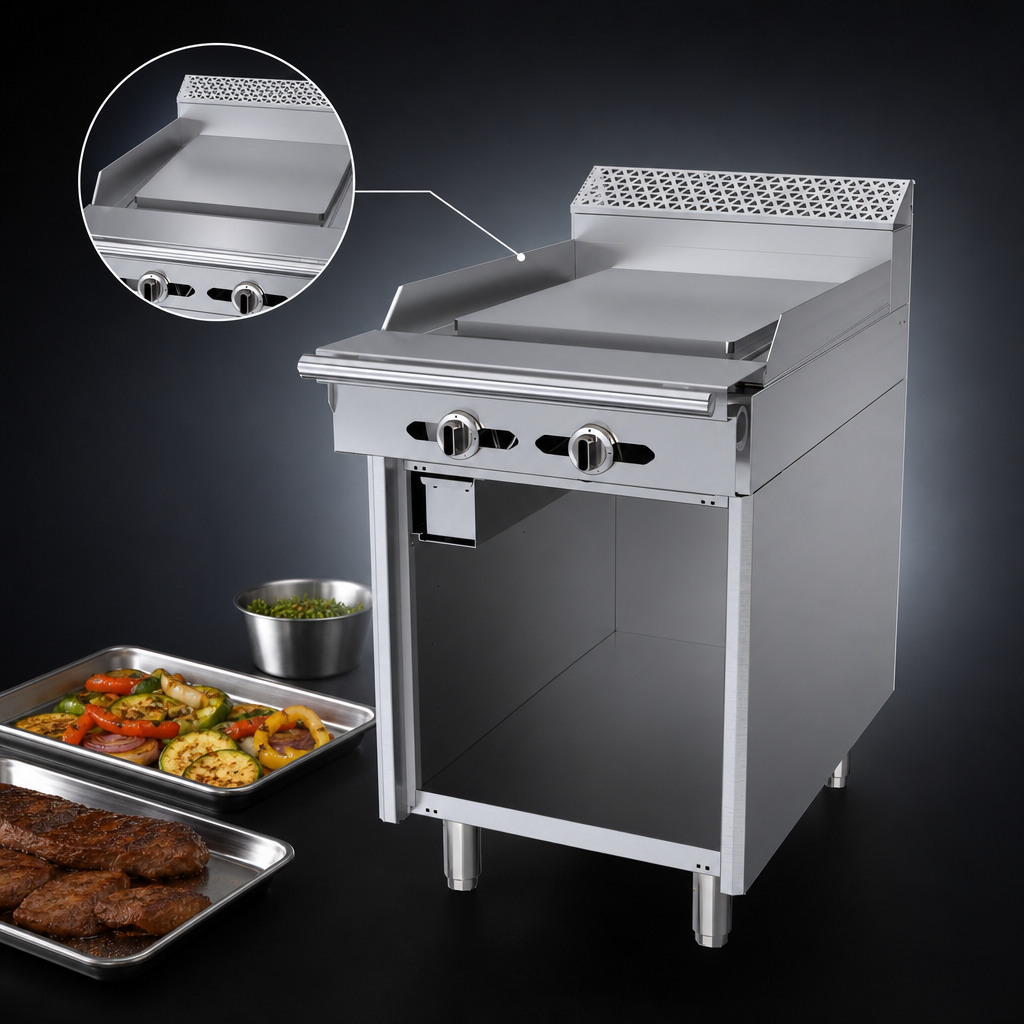

24-Inch Plancha Top

Heavy-duty 24-inch plancha range designed for flat-top cooking service.

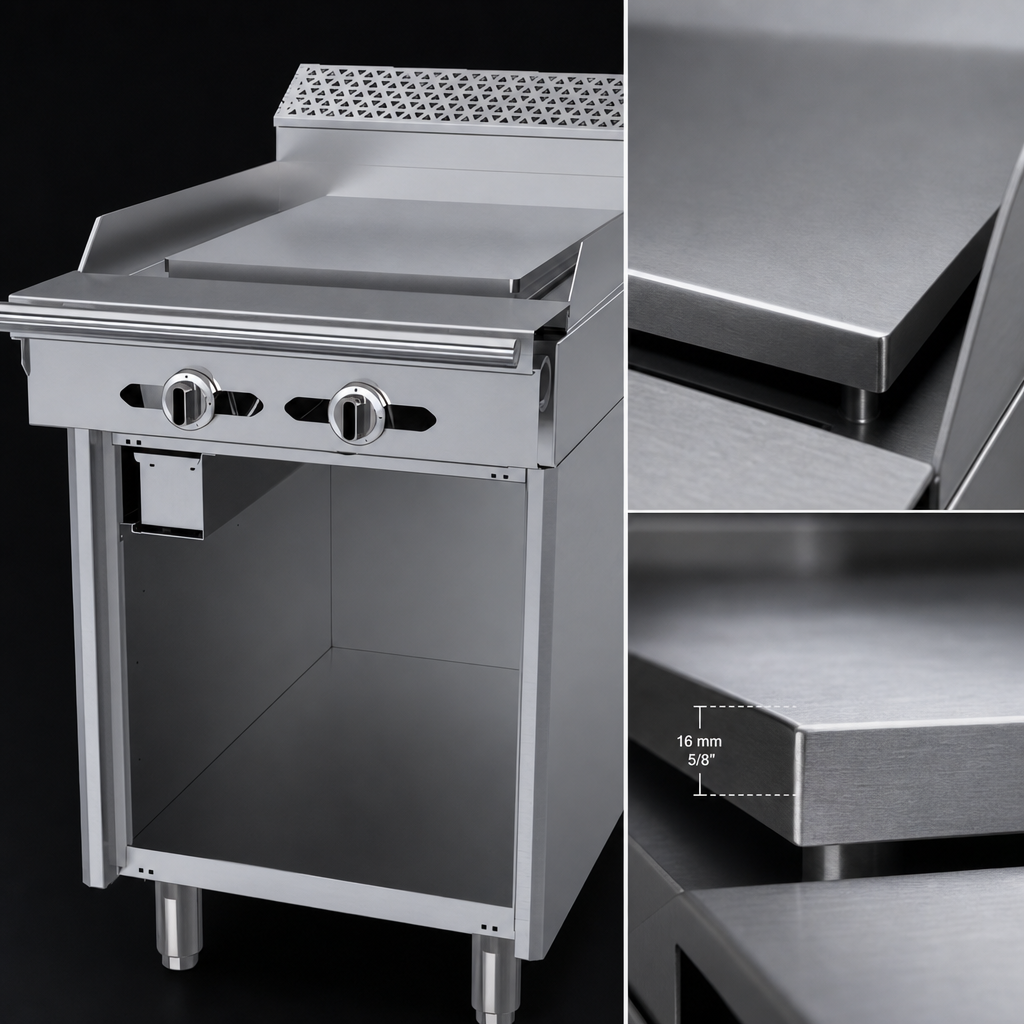

5/8-Inch Steel Plate

Thick 16 mm steel plate griddle surface built for demanding daily use.

Hi-Lo Manual Controls

Manual Hi-Lo valve controls provide straightforward heat adjustment.

40,000 BTU Natural Gas Output

Delivers 40,000 BTU/h total on natural gas; the documentation also lists a 38,000 BTU/h propane rating.

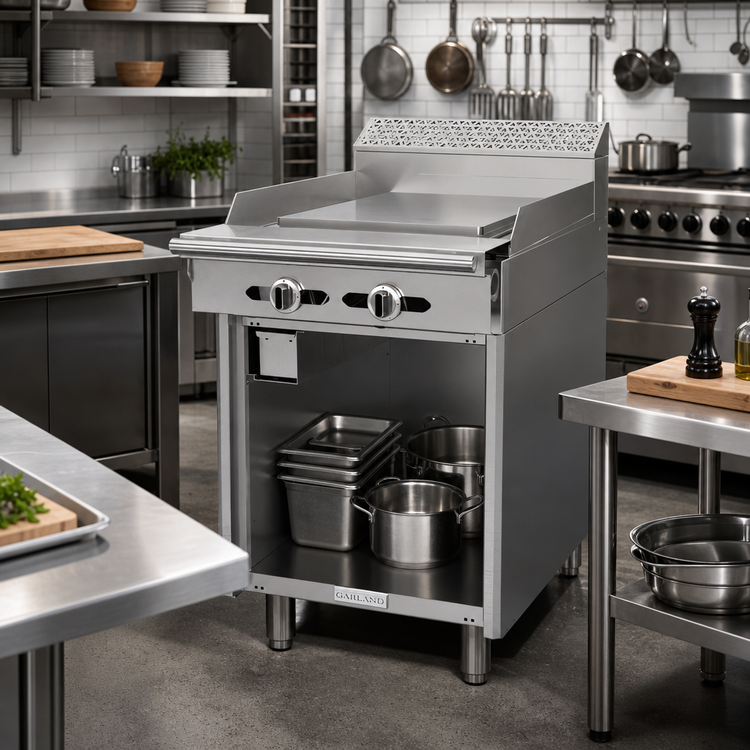

Open Storage Base

Cabinet base provides open storage underneath the cooking surface.

Stainless Steel Exterior

Stainless steel front, sides, and front rail for durability and easy cleaning.

7-Inch Stub Backguard

Stainless steel stub back helps protect the wall behind the range.

Flexible Installation

Can be installed individually or in a battery; includes 6-inch adjustable stainless steel legs.

Grease Management

Includes a 3-inch wide grease trough for catching drippings.

Gas Connection

Features a 1-1/4-inch NPT front gas manifold with optional rear gas connection.

Type Plancha Top Range
Style Heavy Duty
Installation Type Floor Model
Controls Hi-Lo Manual
BTU 40,000 BTU/h
Gas Type Natural Gas
Gas Connection Size 1-1/4 Inches NPT
Material Stainless Steel
Finish Stainless Steel
Shipping Width 24 Inches
Shipping Depth 38 Inches
Shipping Weight 380 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Check list PDF Download

Frequently Asked Questions

It has a 24-inch plancha top with a 5/8-inch thick steel plate and a 3-inch wide grease trough.
The model is listed at 40,000 BTU/h on natural gas, and the documentation also shows a 38,000 BTU/h propane rating.
Yes. The C24-19S is the storage-base version with an open cabinet base.
Yes. The range can be installed individually or in a battery.
It uses a 1-1/4-inch NPT front gas manifold. The documentation lists 10 inches of side clearance and 6 inches of rear clearance to combustible walls.
Heat is adjusted with Hi-Lo manual valve controls.
