Garland C24-19M Garland Cuisine Gas Ranges
Description

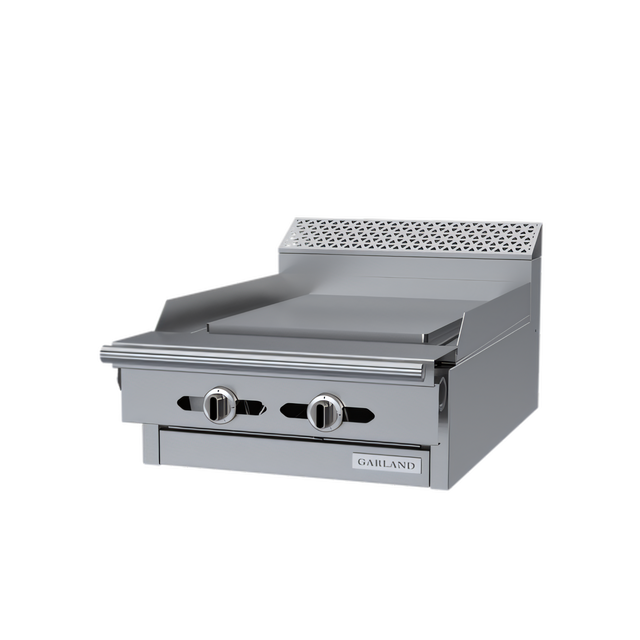

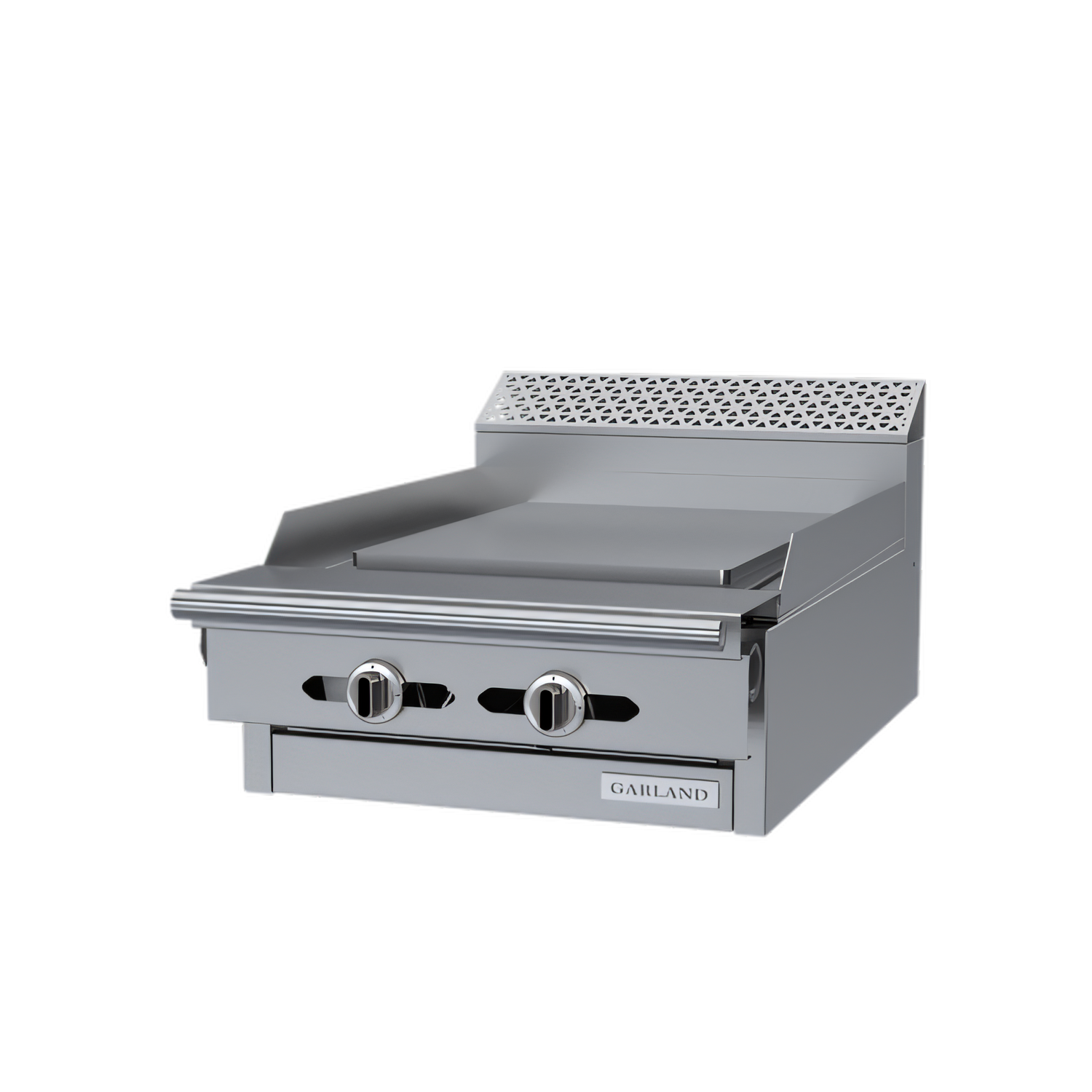

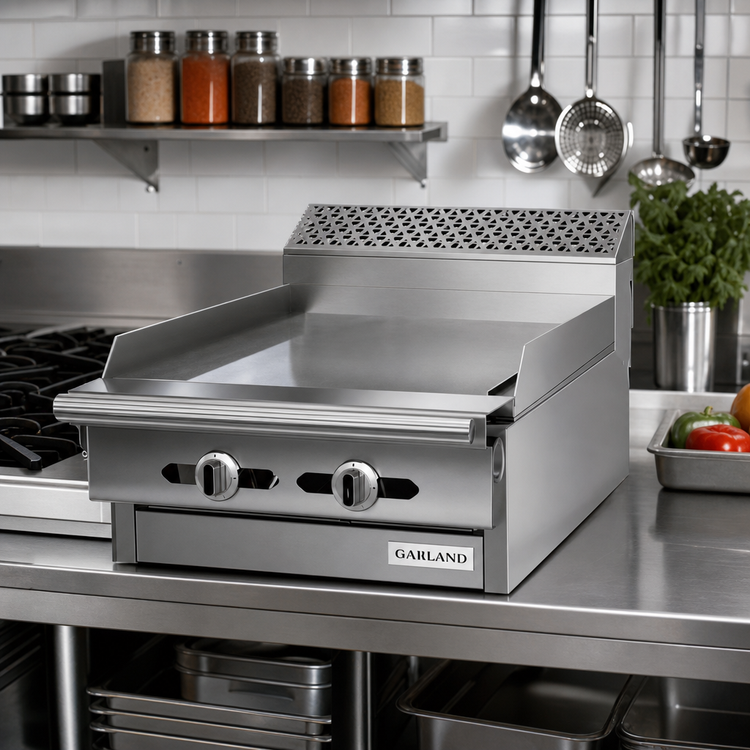

Garland Cuisine Series 24" Heavy-Duty Plancha Range – Modular Top
Model C24-19M | 40,000 BTU Natural Gas / 38,000 BTU PropaneBuilt for relentless commercial service, the Garland Cuisine Series 24 inch modular plancha gives chefs the power, precision, and rugged construction they demand. A 5/8" (16 mm) thick polished steel plate delivers even, high-intensity heat from two independently controlled 20,000 BTU burners, letting you sear, sauté, or hold delicate items with equal ease. Drop the C24-19M into a chef’s suite, battery lineup, refrigerated base, or equipment stand and unlock serious productivity in a compact footprint.

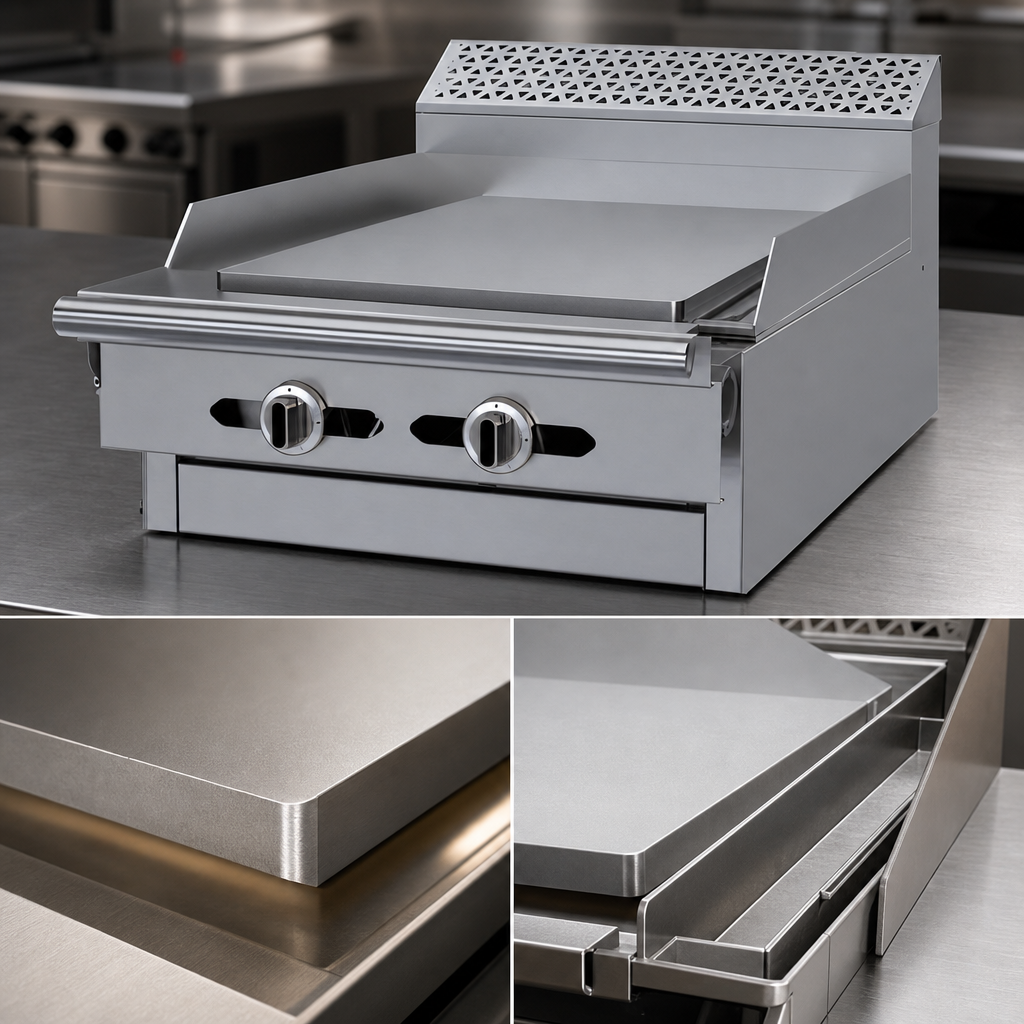

Highlights & Benefits- 5/8" (16 mm) thick steel plancha plate for superior heat retention and rapid recovery.

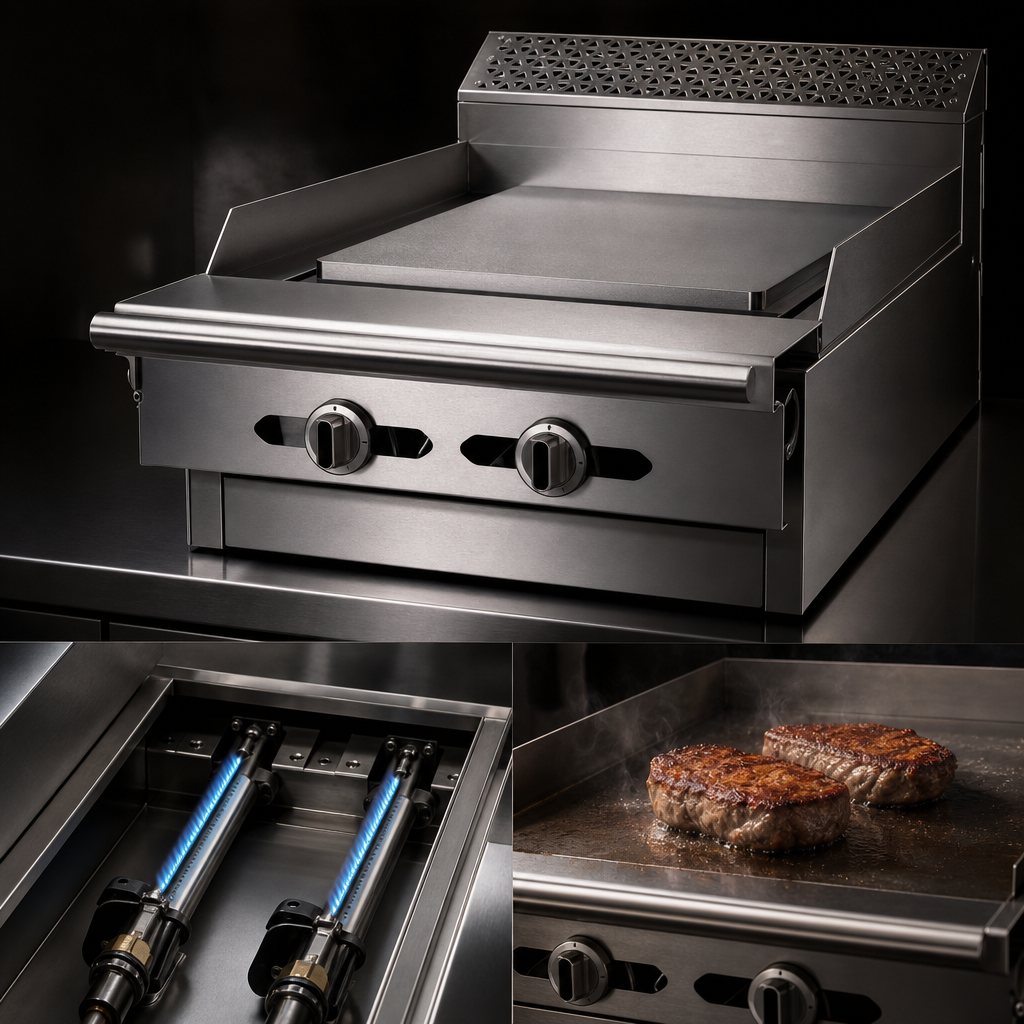

- Two 20,000 BTU/h burners (one per 12") with easy Hi-Lo manual valve control.
- Wide 3" (76 mm) grease trough speeds clean-up and keeps the surface clear.
- 7" (178 mm) stainless steel stub backguard protects walls and limits splatter.
- All-stainless steel front, sides, and continuous plate rail stand up to daily abuse and simplify wipe-down.
- 1-1/4" NPT front gas manifold is standard; factory rear 3/4" NPT connection available.
- Modular design mounts to a Garland CS24 stand, Polar Cuisine refrigerated base, or existing counter.
- Certified to CSA Flame, CSA Star, and NSF standards for gas safety & sanitation.
| Cooking surface | 24" W x 24-7/8" D (610 mm x 632 mm) |
|---|---|
| Plate thickness | 5/8" (16 mm) polished steel |
| Input (Natural Gas) | 40,000 BTU/h — two × 20,000 BTU burners |
| Input (Propane) | 38,000 BTU/h |
| Control type | Hi-Lo manual valves (one per burner) |
| Gas connection | 1-1/4" NPT front manifold (rear 3/4" NPT optional) |
| Minimum gas pressure | Natural 7" WC | Propane 11" WC |
| Overall width | 24" (610 mm) |
| Overall depth | 32-3/4" (830 mm) to plate rail * |
| Height to plate | Approx. 10" (254 mm) on modular top * |
| Shipping weight | 342 lb (155 kg) |
| Clearances (combustible) | Sides 10" (254 mm) | Back 6" (152 mm) |
| Certifications | CSA Flame, CSA Star, NSF |
*Dimensions shown are nominal; consult the specification drawing for detailed installation data.
Popular Options & Accessories- Full-height or stub high shelf / back riser
- CS24 heavy-duty stainless equipment stand (with or without casters)
- Polar Cuisine refrigerated base mounting kit
- Rear gas connection kit (3/4" NPT)
- 1/9-pan rail extension
- 5" or 6" swivel casters with front brakes
Need help building a battery line-up or selecting the right stand? Contact our food-service specialists via the Garland website or call 1-800-424-2411.
