Garland C24-1-1M Garland Cuisine Gas Ranges
Description

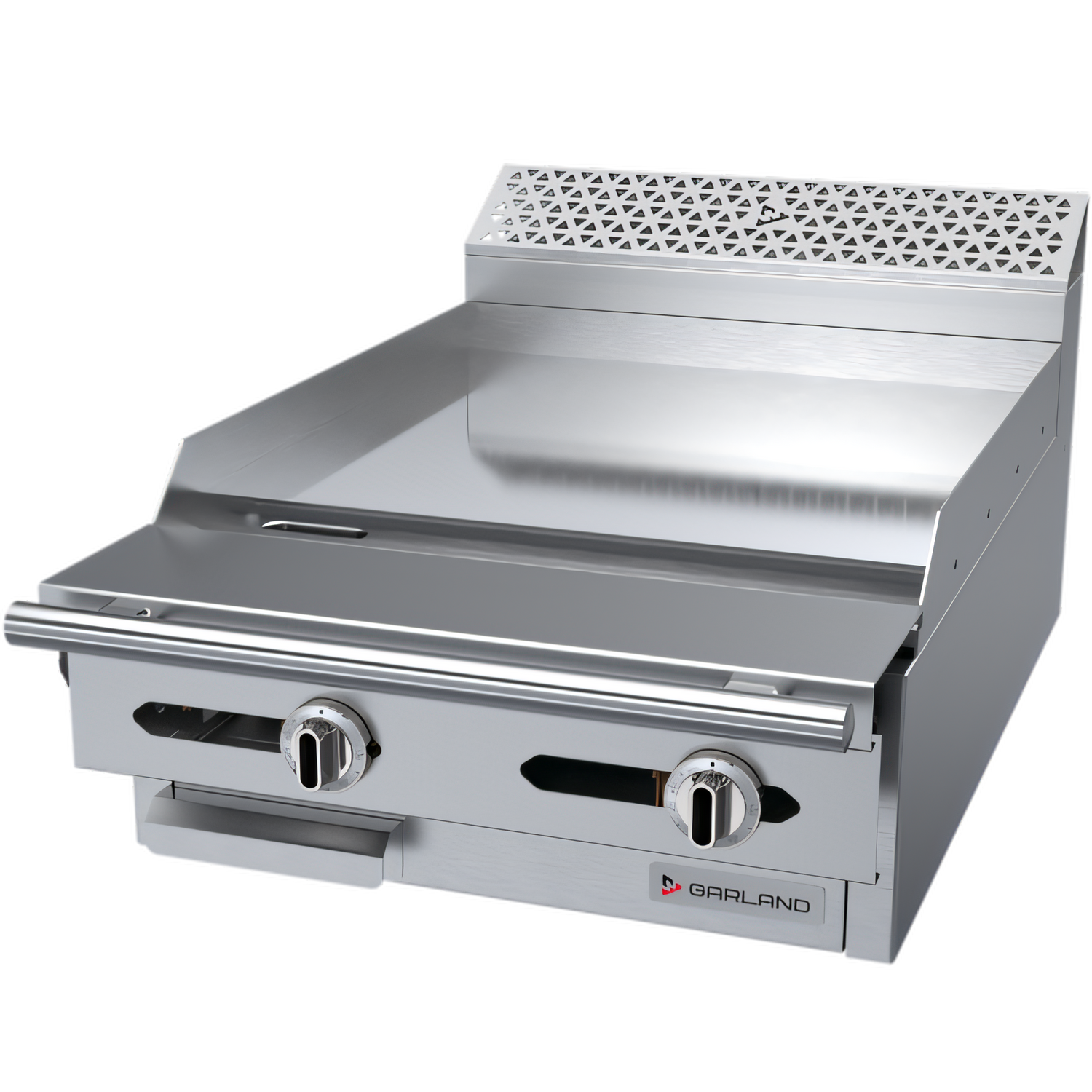

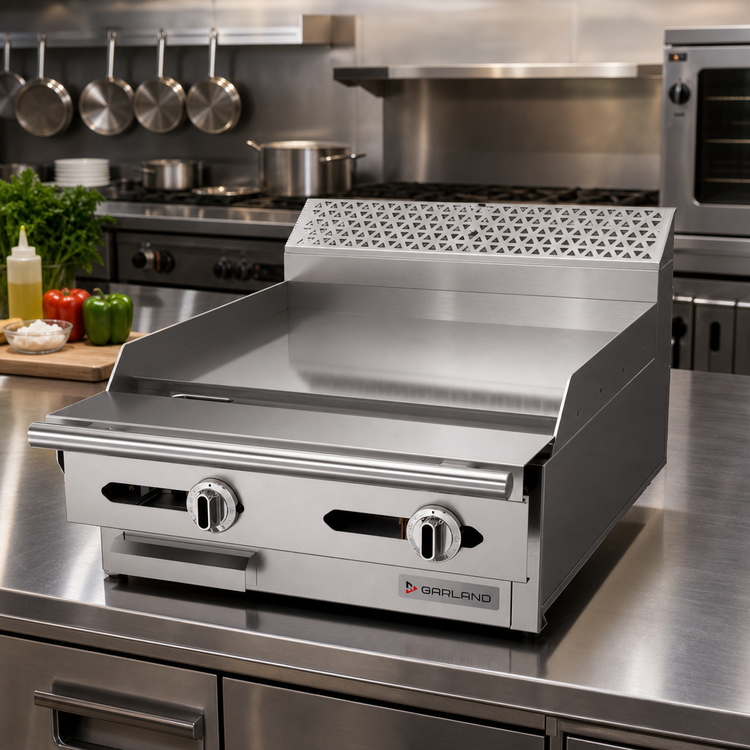

Garland Cuisine Series 24″ Heavy-Duty Gas Griddle Add-A-Unit
Model C24-1-1M • 60,000 BTU • Thermostatic ControlDrop powerful, precision griddling into any Cuisine Series battery with this 24-inch Add-A-Unit from Garland. Its 1″ thick steel plate, two high-output burners and quick-response thermostat put consistent sear marks, all-day pancakes or delicate seafood right at your fingertips—without giving up a single inch of cook-top flexibility.
Key Features

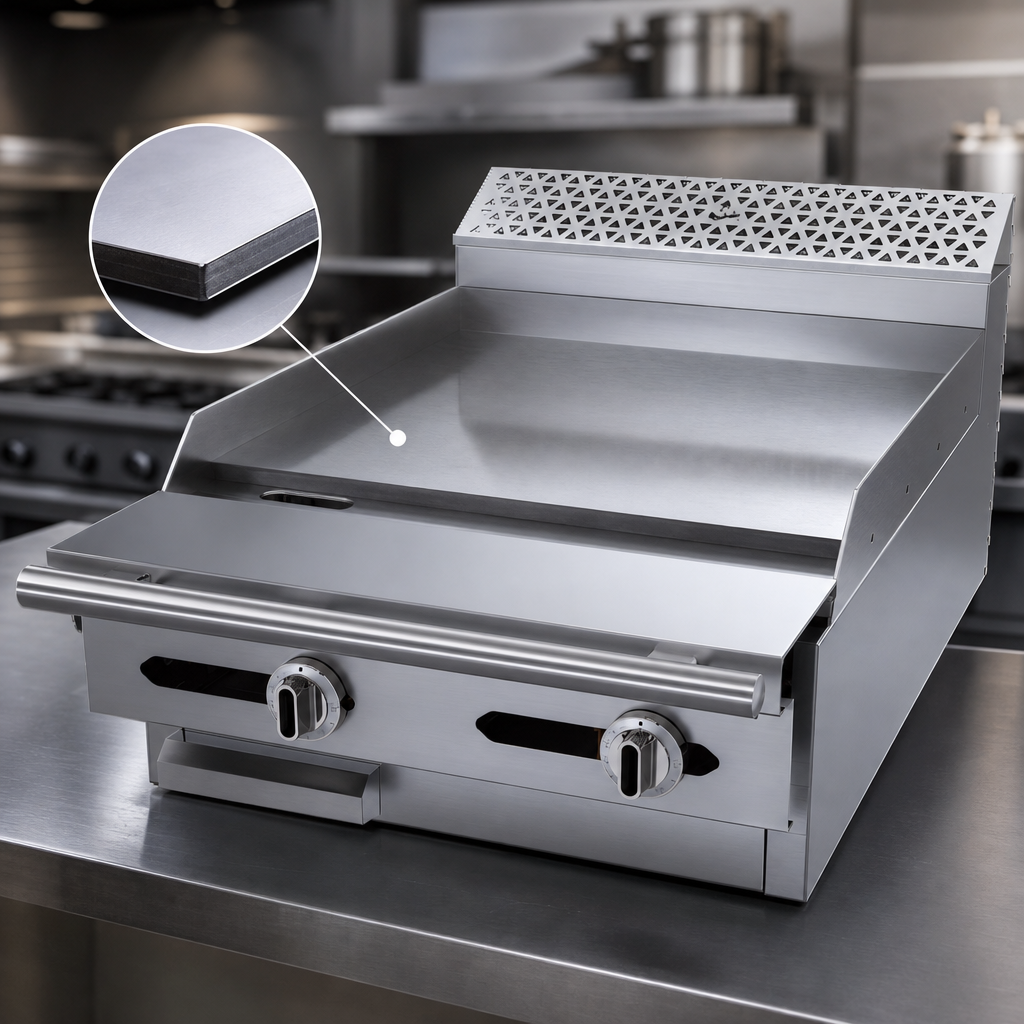

- 1 inch (25 mm) thick polished steel griddle plate for optimal heat retention & recovery.
- 60,000 BTU total (2 × 30,000 BTU burners) delivers even heat across the entire 24″ surface.

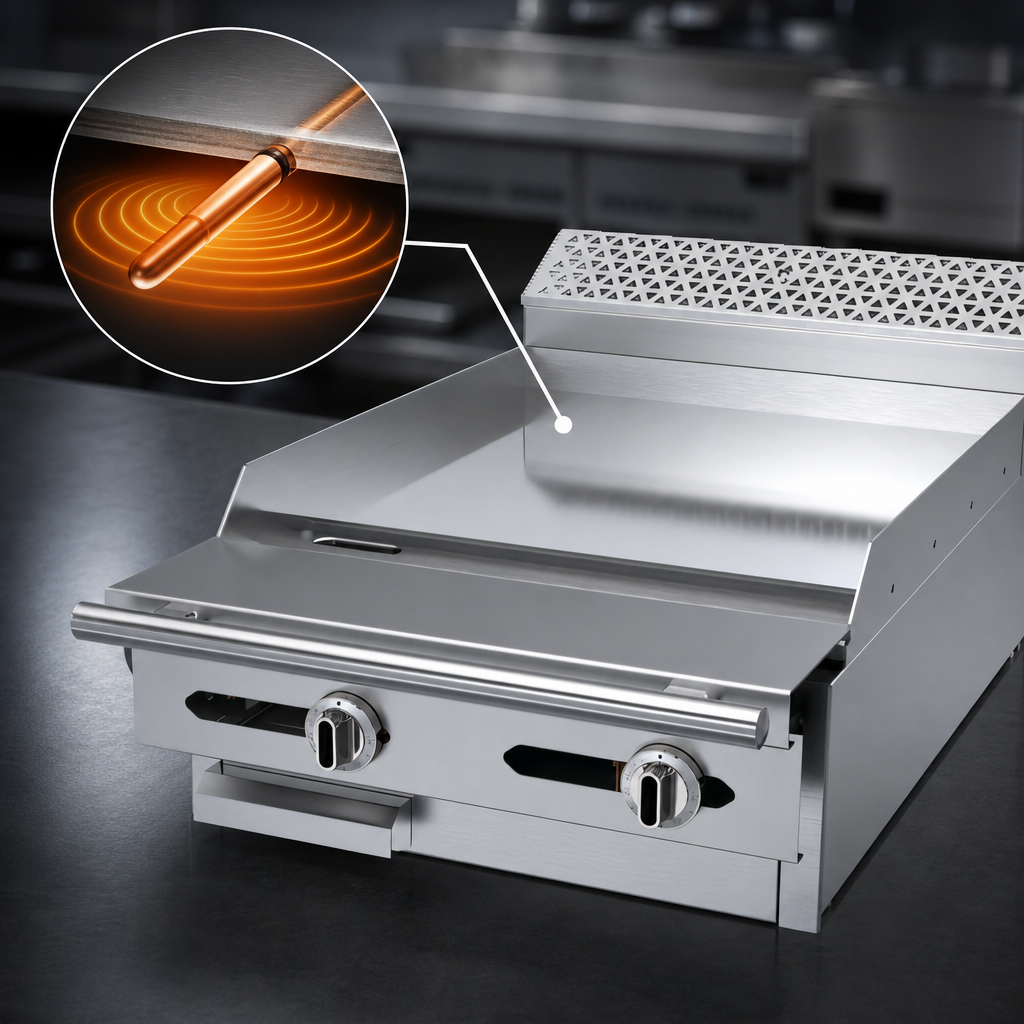

- Embedded bulb thermostatic controls (Low–450 °F / 232 °C) offer snap-back accuracy for diverse menus.
- 7″ (178 mm) stainless steel stub backguard protects surrounding equipment & walls.
- Stainless steel front, sides, continuous plate rail & burner box resist corrosion and wipe clean fast.
- 3″ (76 mm) wide front grease trough and large removable drawer speed end-of-shift cleanup.
- 1-1/4″ NPT front gas manifold – battery with additional Cuisine Series units without field retro-fits.
- Modular-top design drops onto a Garland stand, refrigerated base or custom counter.
- Field convertible natural or propane gas (regulator sold separately).
- Certified: CSA Flame, CSA Star, NSF.
At-a-Glance Specs
| Plate size | 24 in W × full depth (610 mm) |
|---|---|
| Plate thickness | 1 in (25 mm) polished steel |
| Total BTU | 60,000 BTU/hr (Natural or Propane) |
| Burners | 2 × 30,000 BTU cast-iron U-burners |
| Temperature range | Low to 450 °F (232 °C) |
| Unit dimensions | 24″ W × 37-7/8″ D × 30-1/4″ H (610 × 962 × 767 mm) |
| Height on legs/stand | 36-1/4″ (921 mm) |
| Gas connection | 1-1/4″ NPT front manifold (optional 3/4″ rear stub) |
| Manifold pressure | 6″ WC Natural | 10″ WC Propane |
| Minimum supply | 7″ WC Natural | 11″ WC Propane |
| Certifications | CSA Flame, CSA Star, NSF |
| Shipping weight | ≈ 342 lb (155 kg) |
Popular Options & Accessories
- Full- or half-grooved plate.
- Single or double-deck high shelves / risers.
- Full-height equipment stands (flanged feet or locking casters).
- Stainless door & intermediate shelf for cabinet bases.
- Gas regulators, flex hoses & quick-disconnect kits (¾″, 1″ or 1-¼″).
Garland reserves the right to change specifications without notice. For commercial use only.
