Garland C18-9S Garland Cuisine Gas Ranges
Description

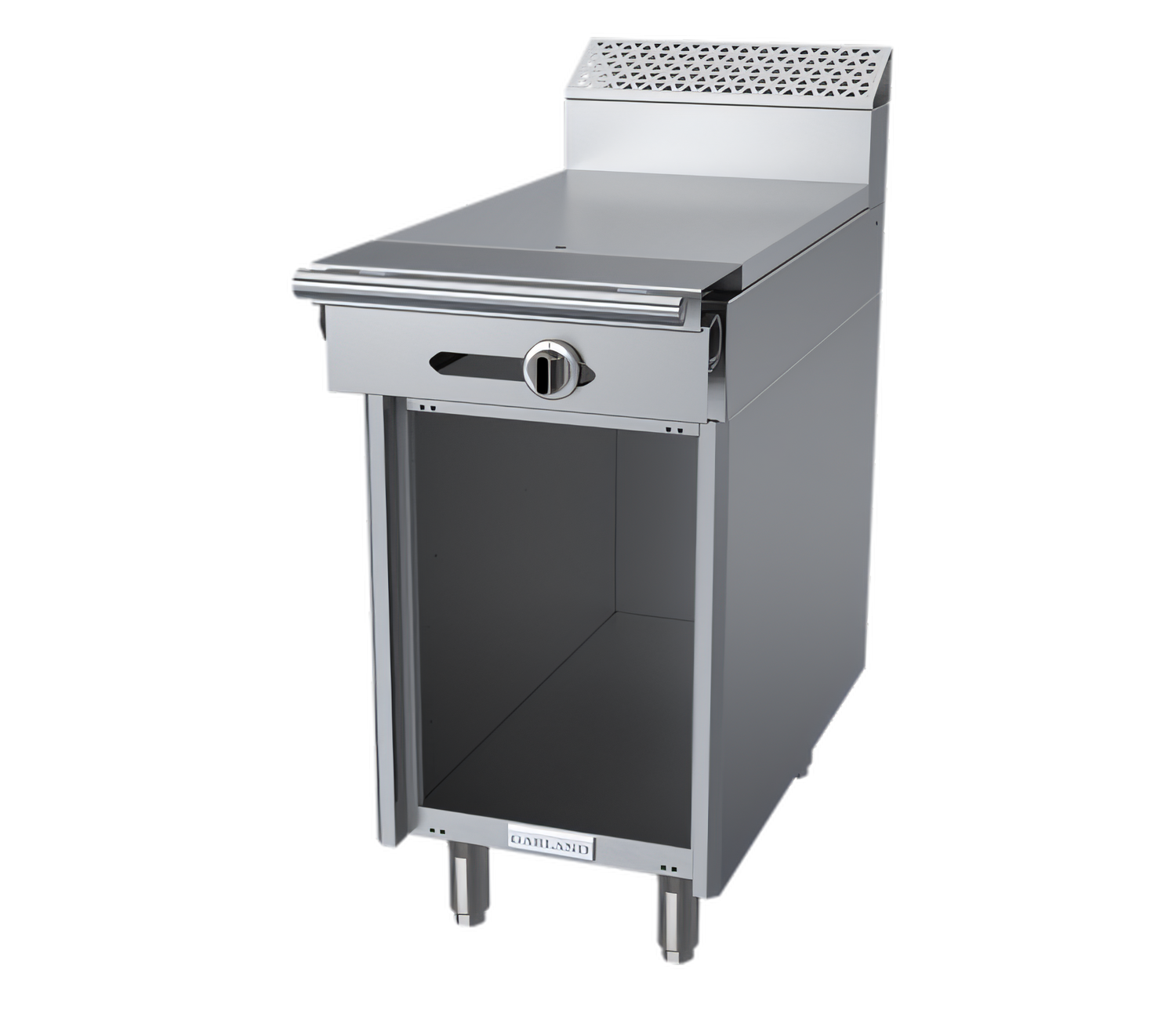

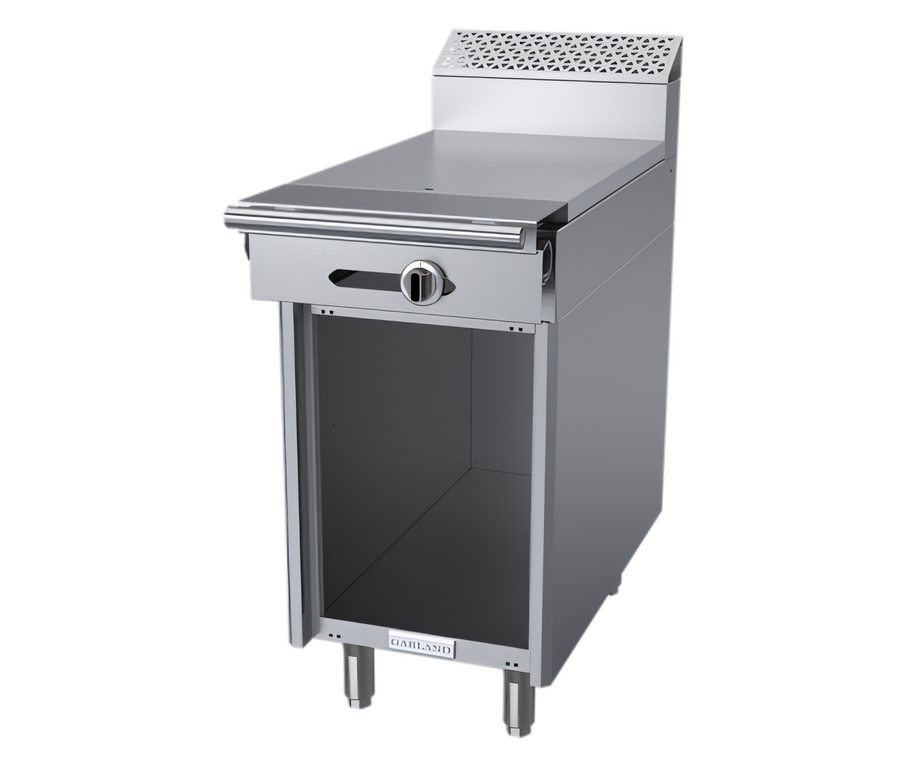

Garland Cuisine Series 18" Heavy-Duty Gas Hot Top Add-A-Unit
32,500 BTU | Open Cabinet Base | Model C18-9 (Hot Top)Expand your cook line—without sacrificing power. Engineered for demanding commercial kitchens, the 18" Garland Cuisine Add-A-Unit drops a full-size 18" hot top onto a compact, stainless chassis, giving you 32,500 BTU of even, edge-to-edge heat and instant scalability in a battery line-up or as a rugged stand-alone range.
Key Features

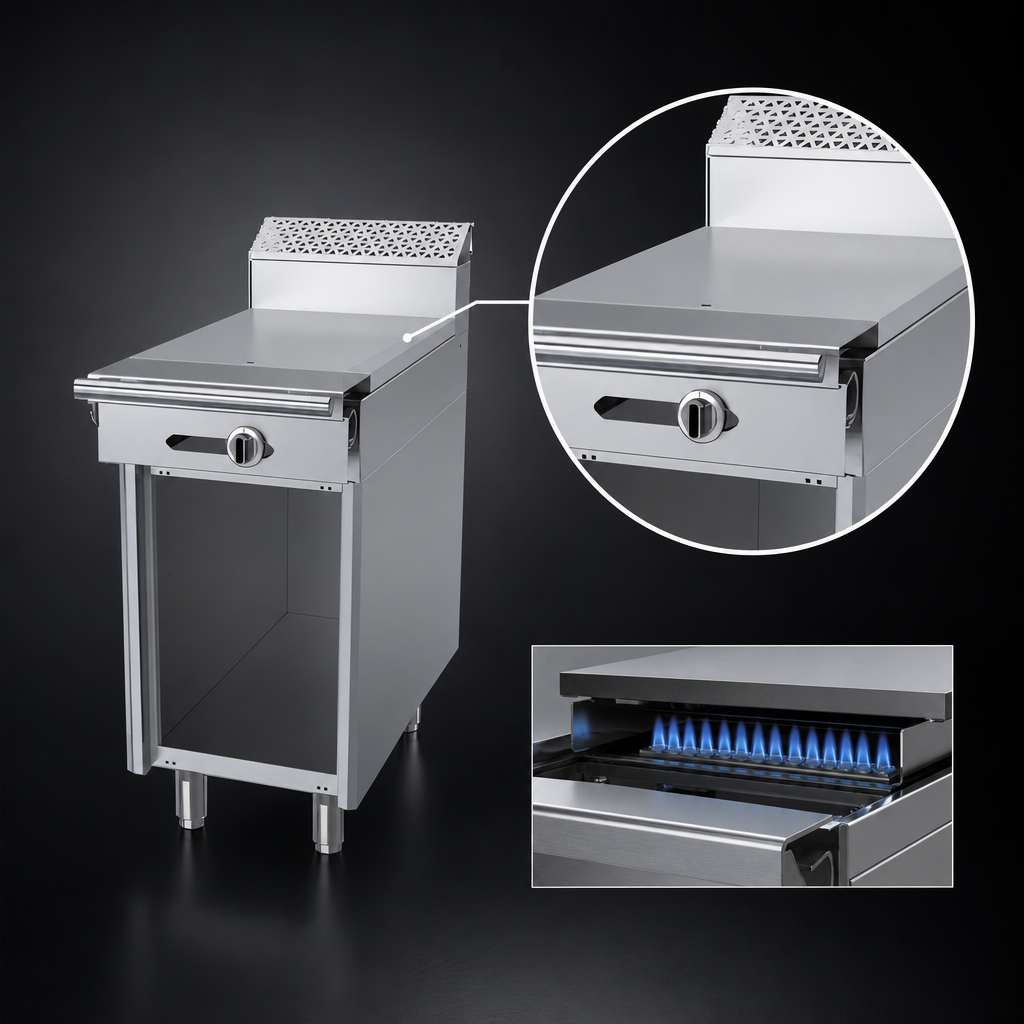

- One-piece 18" (457 mm) cast-iron hot top rated at 32,500 BTU/h (Natural or Propane).

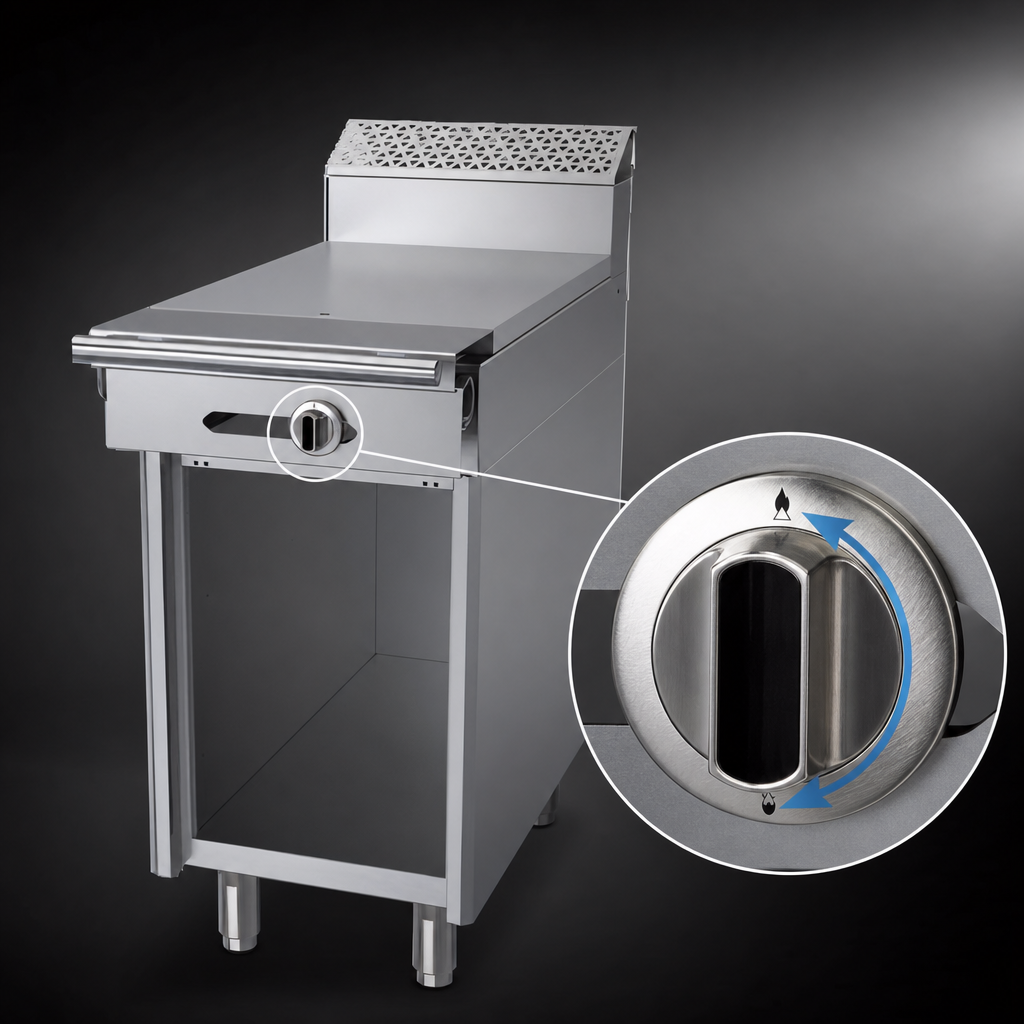

- Precise hi-lo valve lets you move effortlessly from high-heat searing to low holding zones.
- Open stainless-steel cabinet base keeps sheet pans, stock pots or hotel pans within reach.
- 7" (178 mm) stainless stub backguard protects walls and adjacent equipment.
- Heavy-gauge stainless front, sides, front rail and burner box stand up to daily abuse.
- 6" (152 mm) adjustable stainless legs level the unit on uneven floors.
- Front 1-1/4" NPT gas manifold allows quick tie-in to an existing battery; rear connection kit optional.
- Certified to CSA Flame, CSA Star and NSF for safe, sanitary operation.
Specifications
| Cooking surface | 18" x 18" (cast-iron hot top) |
|---|---|
| Input (BTU/h) | 32,500 BTU (Natural or Propane) |
| Width | 18" / 457 mm |
| Depth | 39 3⁄8" / 1001 mm |
| Height (w/ 6" legs) | 36 1⁄4" / 921 mm |
| Gas connection | 1-1/4" NPT (front standard) |
| Manifold pressure | 6" WC (NAT) | 10" WC (PRO) |
| Clearances (combustible) | 10" sides | 6" rear |
| Shipping weight | ≈ 200 lb / 90 kg |
| Certifications | CSA Flame, CSA Star, NSF |
Popular Options & Accessories
- Stainless cabinet door kit
- Single or double high shelf / back riser
- Rear gas connection kit (¾" NPT)
- 5" or 6" locking swivel casters (requires restraining device)
- Continuous plate rail for battery installations (48–72")
Performance ratings are for installations up to 2,000 ft (610 m). For higher altitudes, specify on order. Images may show optional accessories.
