Garland C18-7S Garland Cuisine Gas Ranges
Description

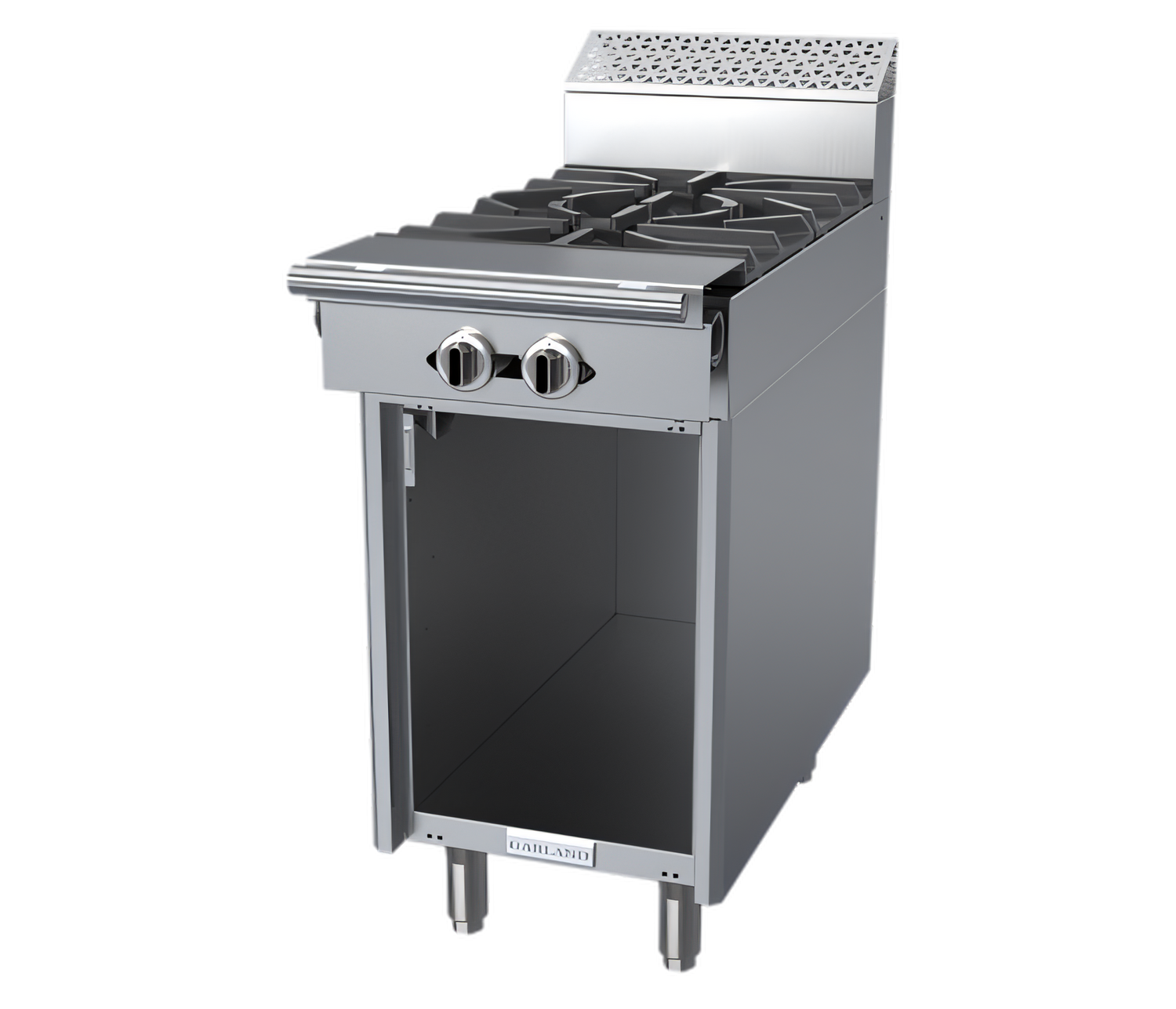

Garland Cuisine Series 18" Heavy-Duty Add-A-Unit Range
Model C18-7S • 2 Open Burners • Natural / Propane GasDesigned to slide seamlessly into any Garland Cuisine battery, the 18" C18-7S Add-A-Unit brings full-size cooking power to the smallest footprint in your kitchen. Two 40,000 BTU/h Starfire open burners deliver rapid heat for high-volume sautéing, searing and simmering, while the open cabinet base keeps sheet pans and smallwares right where you need them.
Why you’ll love it

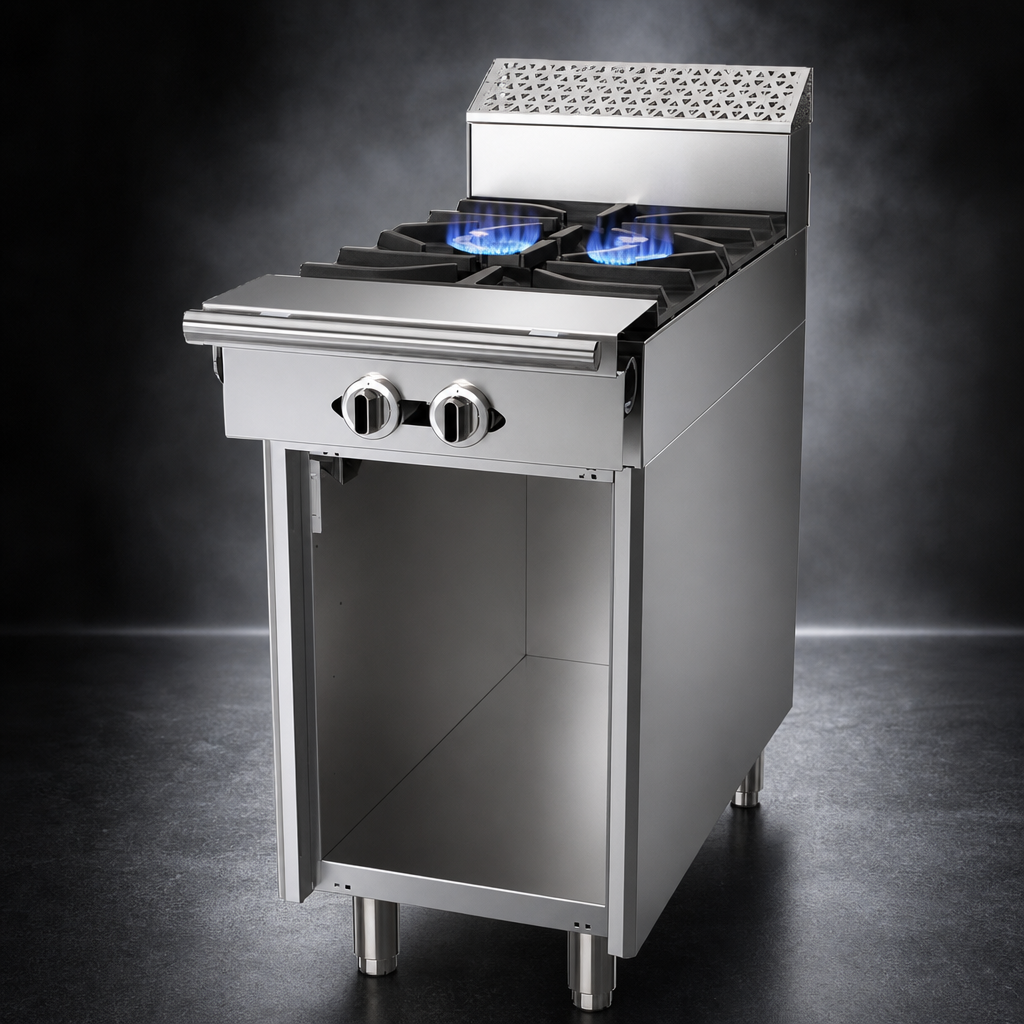

- 80,000 BTU total output – boils 18 qt of water in minutes.
- Starfire burners feature removable heads for easy cleaning & service.

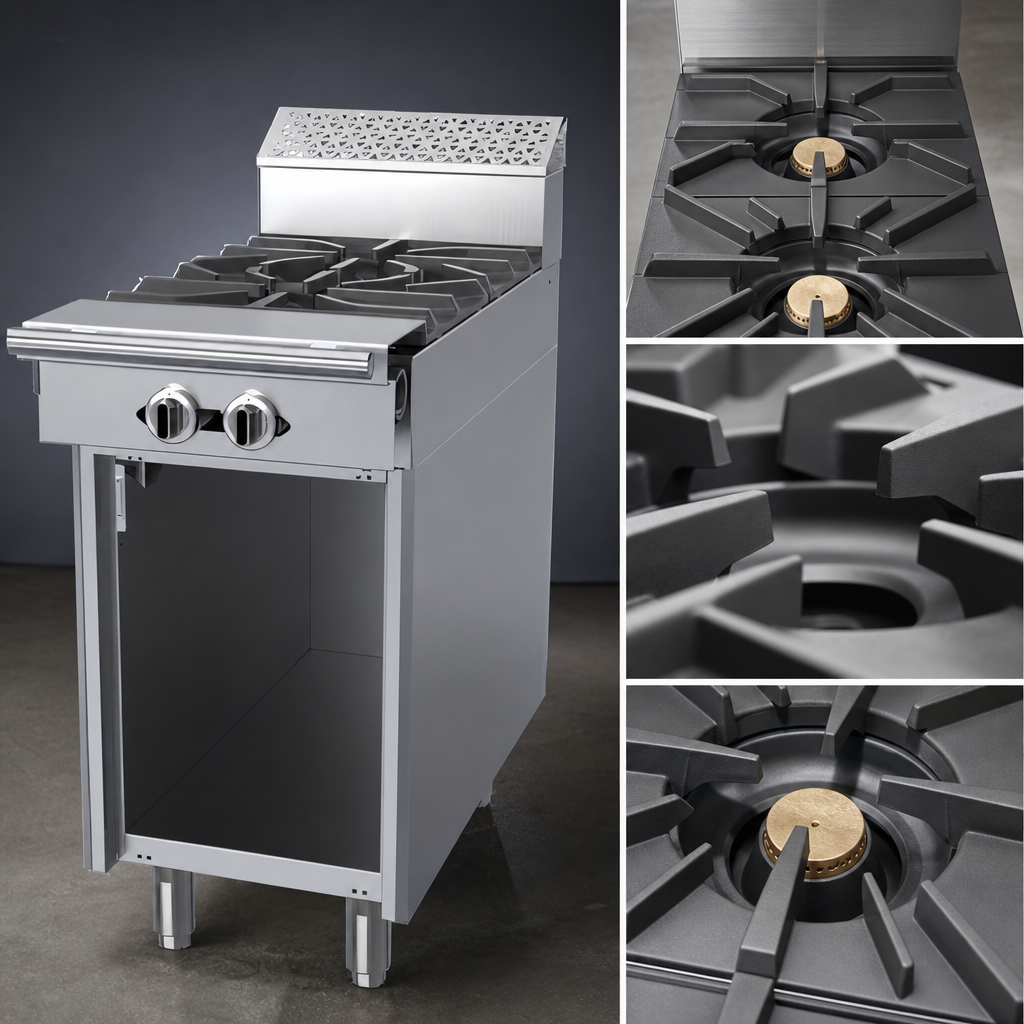

- One-piece cast-iron grate/bowl combo contains spills and stands up to heavy pots.
- Stainless steel front, sides, rail, burner box and 7" stub backguard resist corrosion and wipe clean fast.
- Front 1 ¼" NPT gas manifold speeds line hookups; optional rear connection available.
- 6" stainless steel legs adjust for a level cookline or curb installation.
- Open cabinet base supplies convenient, ventilated storage without adding floor space.
- CSA Flame, CSA Star & NSF listed for gas safety and food-zone sanitation.
Technical specifications
| Width | 18" / 457 mm |
|---|---|
| Depth | 39 3⁄8" / 1 001 mm |
| Height (to cook surface) | 30 1⁄4" / 769 mm |
| Height w/ 6" legs | 36 1⁄4" / 921 mm |
| Burners | 2 × 40,000 BTU/h open top (Starfire) |
| Total Input | 80,000 BTU/h Natural • 76,000 BTU/h Propane |
| Gas Connection | 1 ¼" NPT (front standard) |
| Manifold Pressure | 6" WC (Nat) • 10" WC (LP) |
| Min. Supply Pressure | 7" WC (Nat) • 11" WC (LP) |
| Combustible Clearance | Sides 10" / 254 mm • Back 6" / 152 mm |
| Shipping Weight | 227 lb / 103 kg |
| Listings | CSA Flame, CSA Star, NSF |
Popular options & accessories
- High-shelf or back riser for pan storage and heat deflection.
- Full-height modular stand with adjustable feet or locking casters.
- Stainless steel door kit for the cabinet base.
- Rear gas connection & gas flex hose with quick disconnect.
- 1⁄9-pan extension rail for mise-en-place on the line.
Options ship loose for field installation unless factory-installed is specified at time of order.
