Description

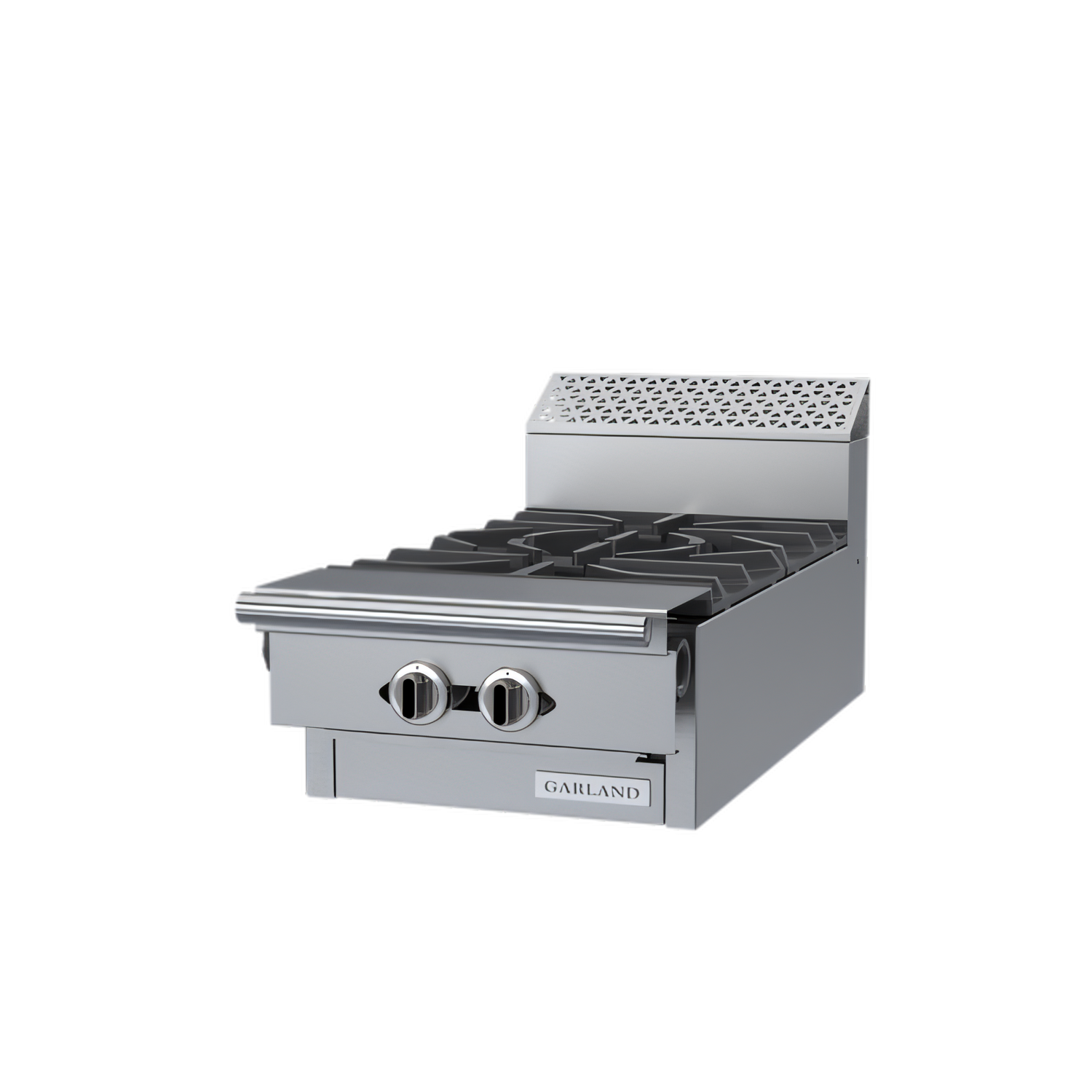

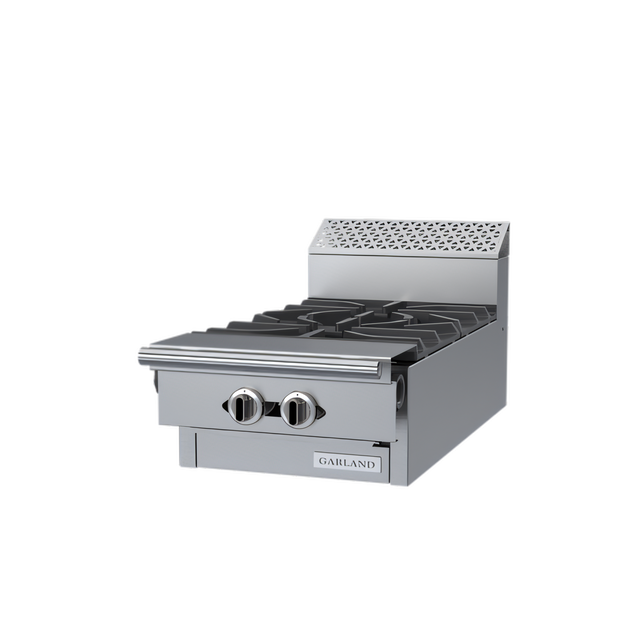

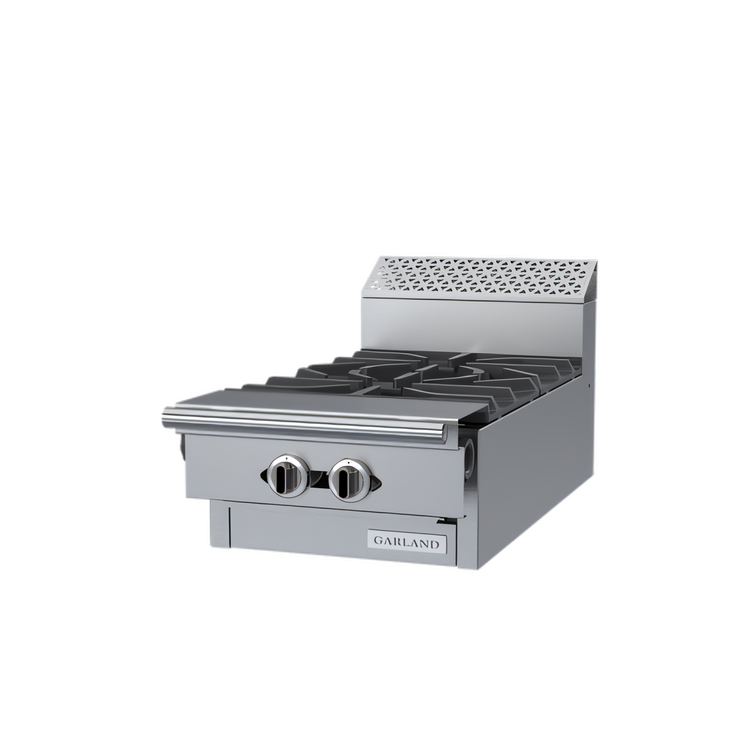

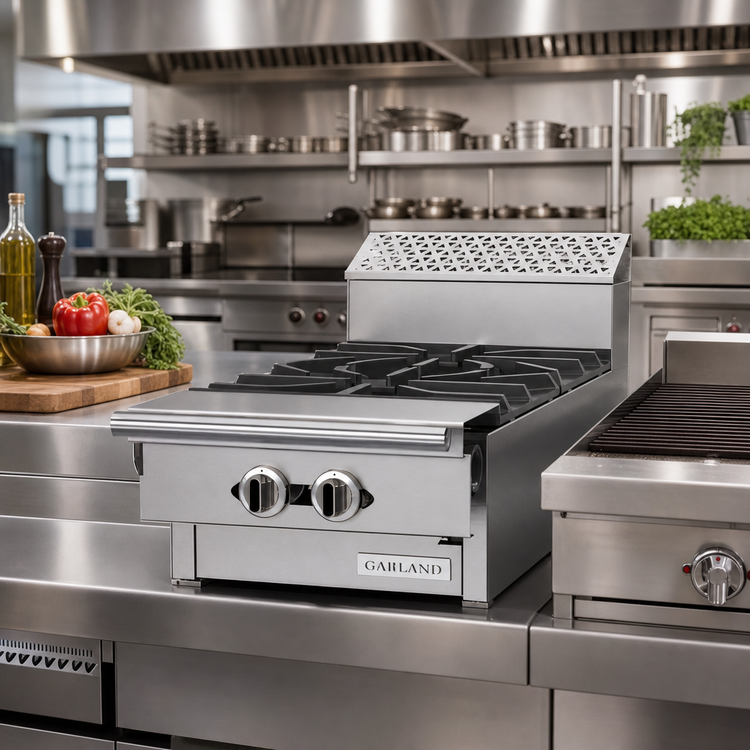

Garland Cuisine Series 18" Heavy-Duty Add-A-Unit – 2-Burner Modular Range

Model C18-7M | 80,000 BTU Total Output

Expand your cookline the smart way. The Garland Cuisine Series 18" Add-A-Unit drops two powerful 40,000 BTU Starfire™ open burners into just 18 inches of space, giving you heavy-duty performance, rugged stainless steel construction and seamless line-up flexibility.

Key Features

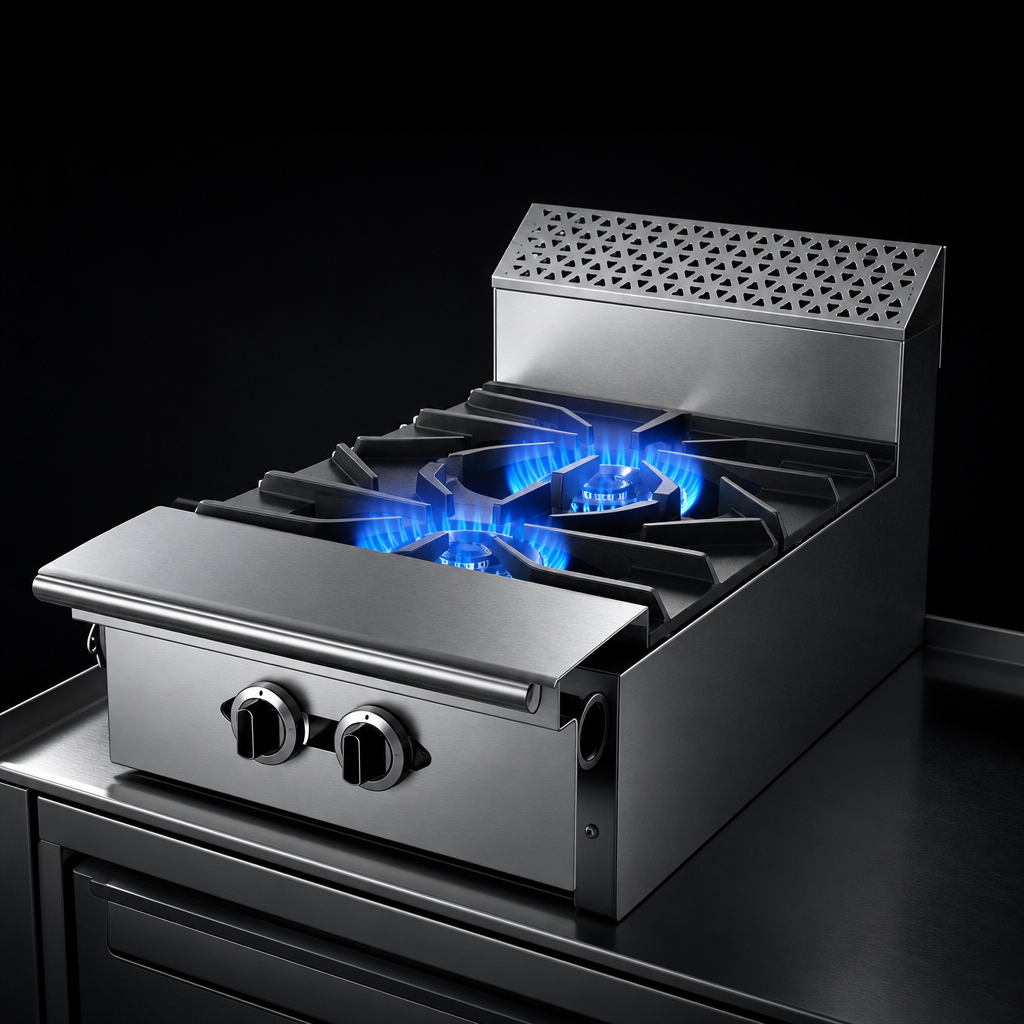

  • Two Garland Starfire open burners – 40,000 BTU/h each (38,000 BTU/h propane).
  • One-piece cast-iron grate & bowl over every burner for maximum heat transfer and easy cleaning.
  • 7 in (178 mm) stainless steel stub backguard protects the wall while keeping the footprint compact.

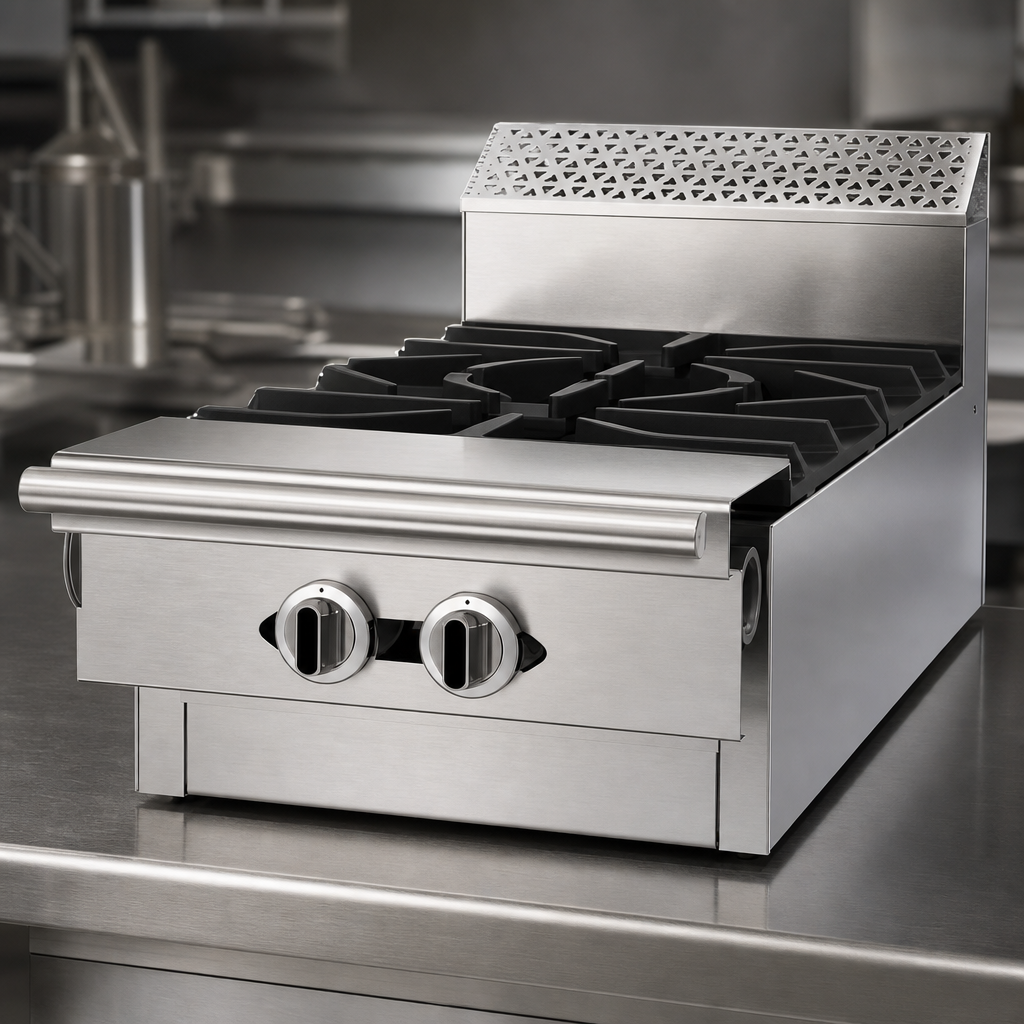

  • Full stainless steel construction: front, sides, burner box and 4 in deep front rail built to withstand high-volume kitchens.
  • 1 ¼ in NPT front gas manifold simplifies battery connections; rear ¾ in NPT connection available.
  • Modular design installs alone or mates perfectly with other Cuisine Series ranges, refrigerated bases or equipment stands.
  • CSA Flame, CSA Star and NSF certified for worry-free code compliance.
Technical Specifications
Exterior width 18 in  / 457 mm
Exterior depth 39 3⁄8 in  / 1,001 mm
Height (to grate) 30 1⁄4 in  / 769 mm (with 6 in legs)
Total input 80,000 BTU/h (Natural) • 76,000 BTU/h (Propane)
Individual burner input 40,000 BTU/h (Natural) • 38,000 BTU/h (Propane)
Gas connection Front 1 ¼ in NPT manifold (standard)  • Minimum supply: 7 in WC (Nat), 11 in WC (LP)
Manifold pressure 6 in WC (Nat)  • 10 in WC (LP)
Clearances – combustible 10 in (254 mm) sides • 6 in (152 mm) rear
Certification CSA Flame • CSA Star • NSF
Popular Options & Accessories

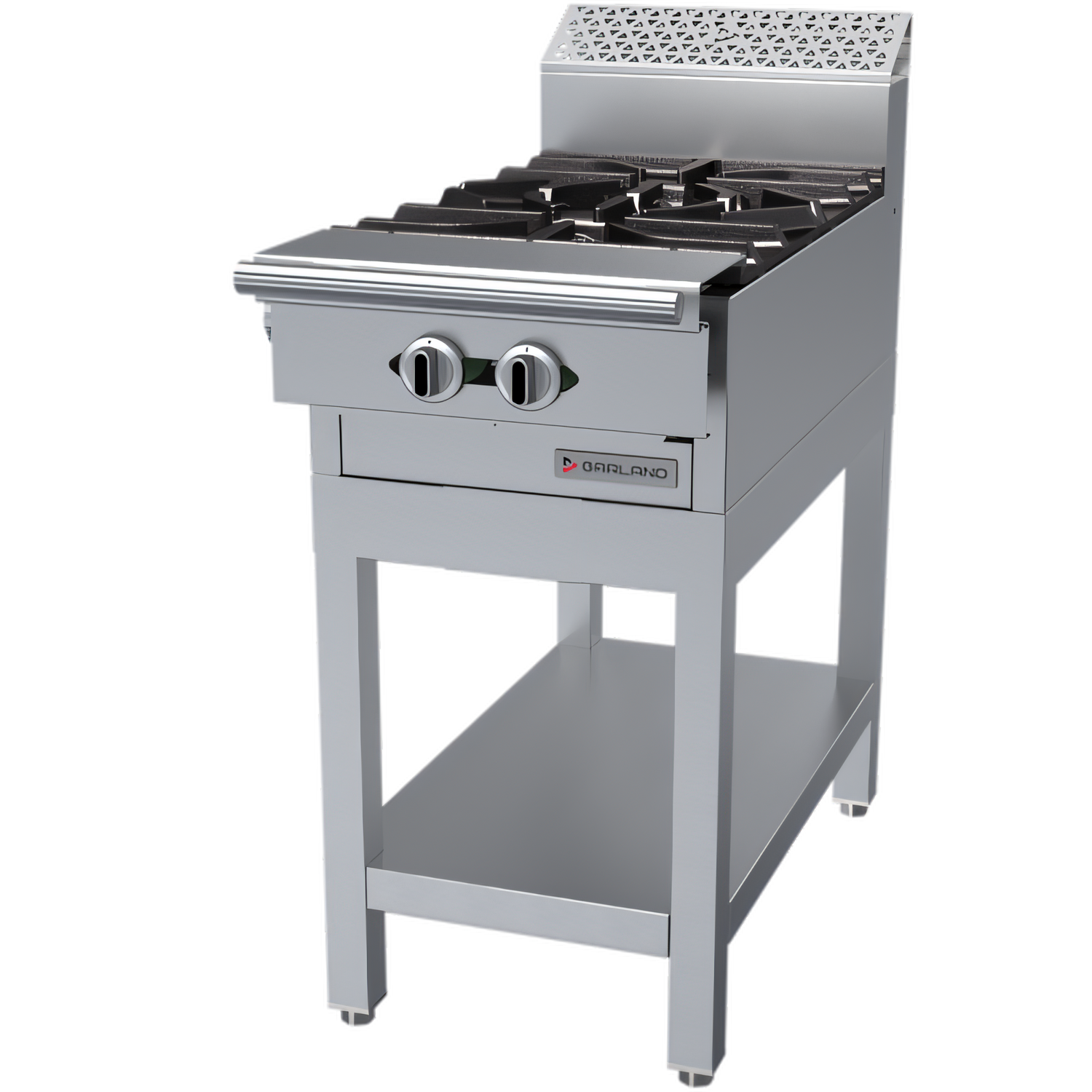

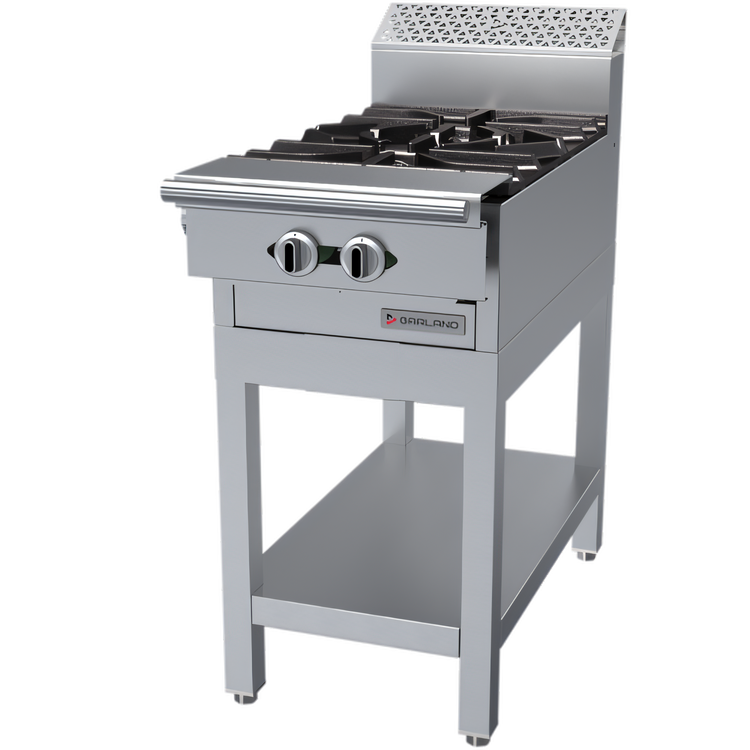

  • Full-height stainless steel stand (solid top, holding shelves, optional casters).
  • Single or double-deck high shelf / back riser.
  • Continuous plate rail (48-72 in) for battery installations.
  • Gas shut-off valves, regulators & flex hoses (¾", 1", 1 ¼" NPT – specify).
  • Stainless steel cabinet door or intermediate shelf when mounted on storage base.
Commercial use only: Garland Cuisine Series equipment is engineered for professional kitchens and is not approved for residential installation.

Need a larger battery or refrigerated base? Ask our team about matching Cuisine Series units to build the exact cookline your menu demands.

Features & Specs

Manufacturer

Garland

Brand_name

Garland Cuisine

Certifications

NSF, CSA Star, CSA Flame

Height

10.0in

Width

18.0in

Depth

38.0in

Shipping Weight

227.0lbs

Exterior Finish

stainless steel front & sides

Type

add-a-unit

Base

modular

Top

(2) open burners

Specifications

Garland Cuisine Series Heavy Duty Range, gas, 18", modular, Add-A-Unit, (2) 40,000 BTU burners, 7"H backguard, stainless steel front, sides, front rail & burner box, 80,000 BTU, CSA Flame, CSA Star, NSF (Garland)
