Garland  |  Garland Cuisine  |  SKU: C18-1S

Garland C18-1S Garland Cuisine Gas Ranges

$4,022.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Owner's manual Garland cuisine models guide Check list Brochure
Related Searches
Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

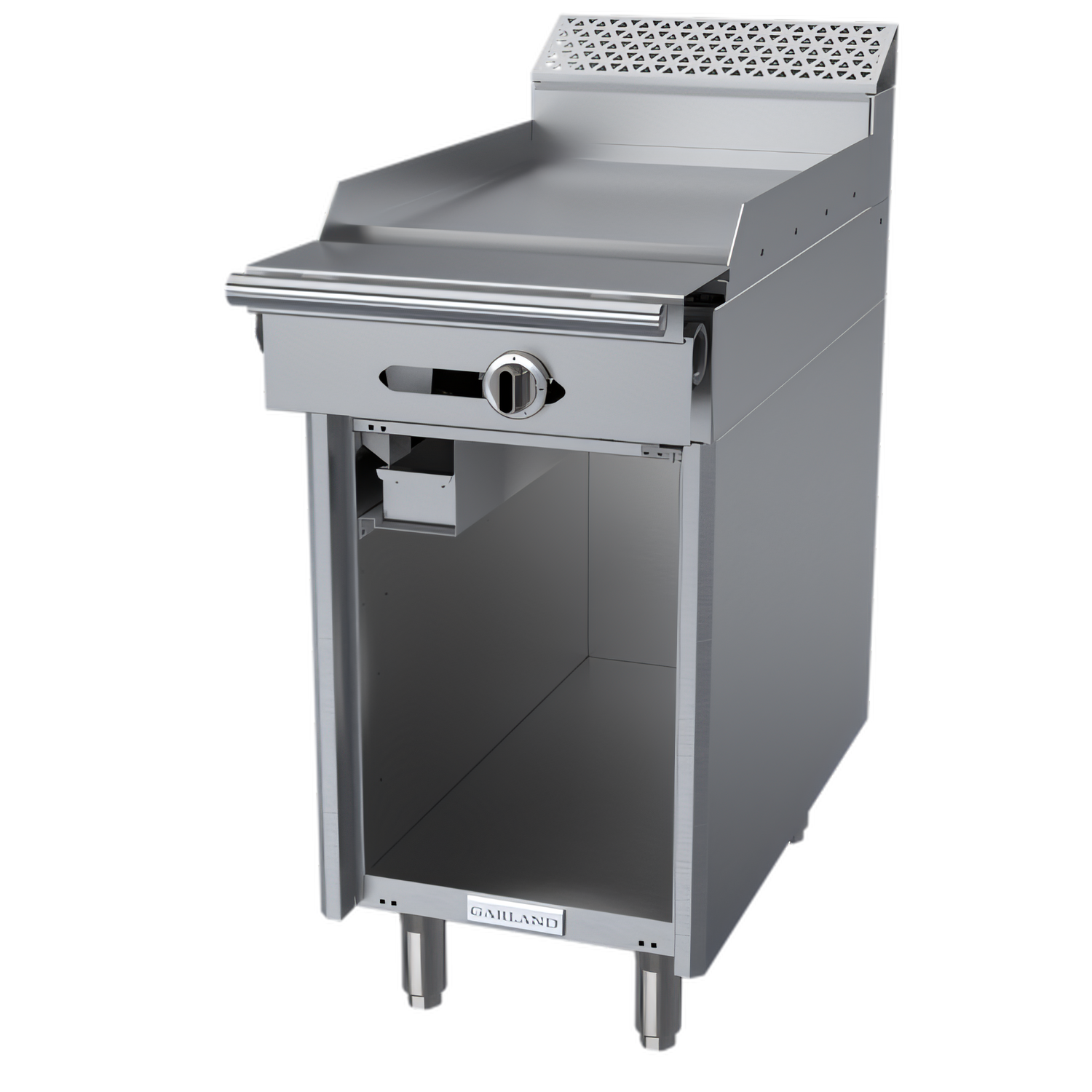

Garland Cuisine C18-1S 18" Heavy-Duty Add-A-Unit Gas Griddle

1" Steel Plate • 30,000 BTU • Open Cabinet Base

Expand production without expanding your footprint. The Garland Cuisine C18-1S Add-A-Unit delivers full-size griddle muscle in just 18 inches, making it the ideal gap-filler or starter piece for a custom Garland Cuisine battery.

Key Features

  • Compact 18" (457 mm) width integrates seamlessly into existing cook lines.

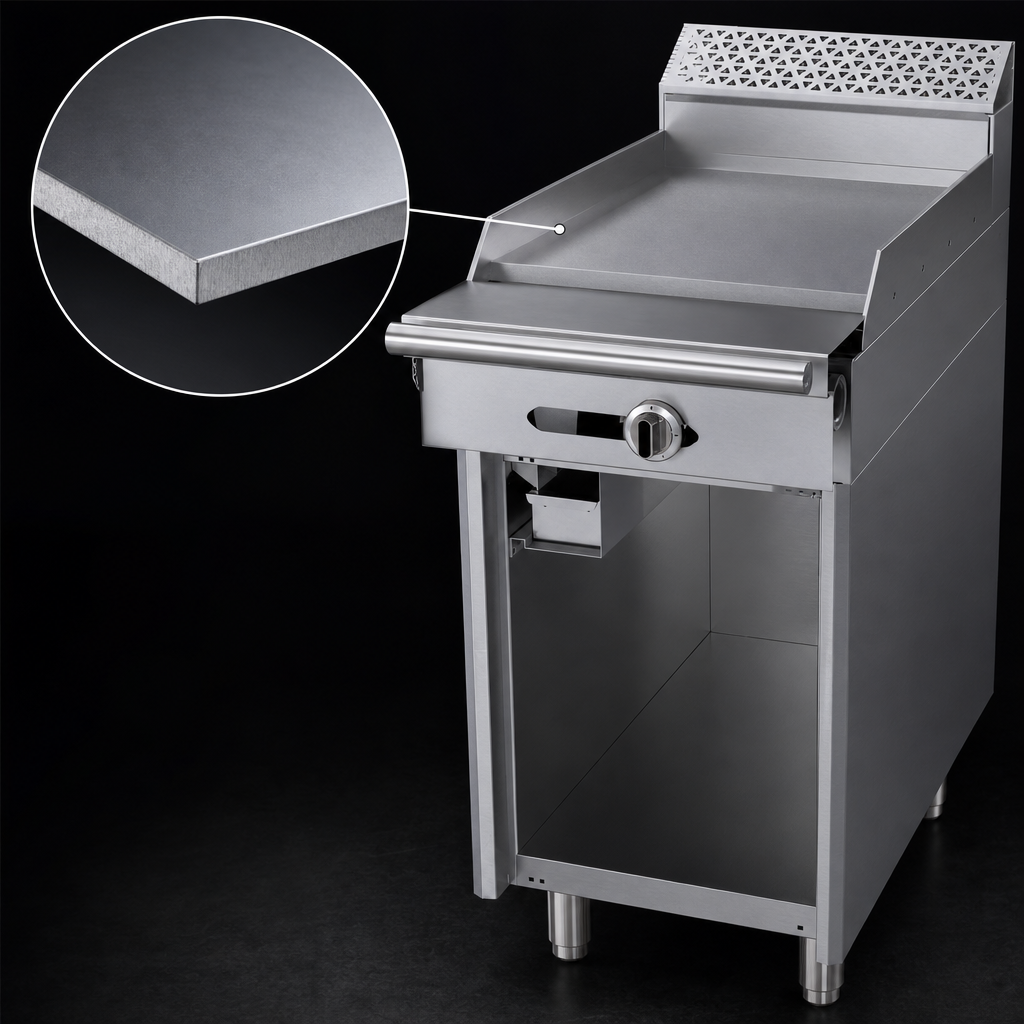

  • 1" (25 mm) thick polished steel griddle plate for rapid recovery and even heat.

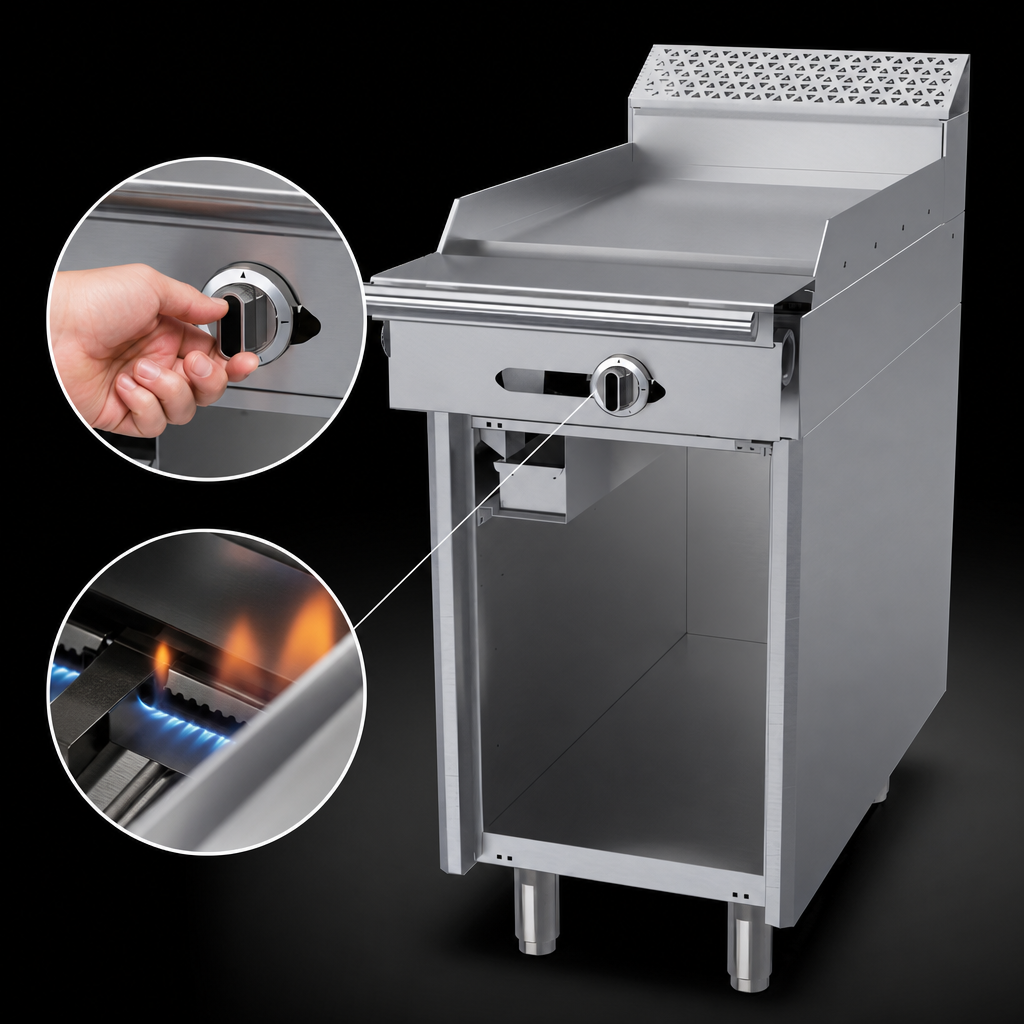

  • Single 30,000 BTU/h Starfire Pro burner with simple Hi-Lo valve control.
  • 7" (178 mm) stainless stub backguard contains splatter without blocking views.
  • Open cabinet base keeps hotel pans, spices and utensils right where you need them.
  • Stainless steel front, sides, front rail and burner box built for relentless commercial use.
  • 6" (152 mm) stainless adjustable legs for easy leveling and under-unit cleaning.
  • 1-1/4" NPT front gas manifold; connect as a stand-alone or in a continuous battery.
  • Field convertible for Natural or Propane gas (specify when ordering).
  • Certified: CSA Flame, CSA Star & NSF.

Why It Performs Better

Garland engineers the Cuisine series for punishing, high-volume schedules. The hefty plate locks in heat while the 30K BTU burner delivers instant sear-power for burgers, fajitas or breakfast favorites. Faster caramelization means shorter ticket times and happier guests.

Specifications

Model C18-1S (manual valve)
Cooking Surface 18" × 24 7⁄8" (457 × 631 mm)
Plate Thickness 1" (25 mm) steel
Total Input 30,000 BTU/h (Natural or Propane)
Width 18" (457 mm)
Depth 39 3⁄8" (1,001 mm)
Height (to plate) 30 1⁄4" (769 mm)
Height w/ legs 36 1⁄4" (921 mm)
Gas Inlet 1-1/4" NPT front (optional rear connection)
Manifold Pressure 6" WC Nat. / 10" WC Pro.
Clearances (Combustible) Sides 10" (254 mm) • Back 6" (152 mm)
Certifications CSA Flame • CSA Star • NSF

Pair with additional Garland Cuisine ranges, hot tops or refrigerated bases to create a seamless, high-capacity cook suite.

Installation Note: Gas equipment must be installed by a qualified technician in accordance with all local codes. Units on casters require an approved restraining device.

Features & Specs

Manufacturer

Garland

Brand_name

Garland Cuisine

Certifications

NSF, CSA Star, CSA Flame

Height

42.0in

Width

18.0in

Depth

37.88in

Shipping Weight

315.0lbs

Base

storage base

Plate Thickness

1.000" = 1"

Exterior Finish

stainless steel front & sides

Type

add-a-unit

Top

(1) griddle

Specifications

Garland Cuisine Series Heavy Duty Range, gas, 18", Add-A-Unit, griddle, 1" thick steel plate, Hi-Lo valve controls, open cabinet base, 7"H backguard, stainless steel front, sides, front rail & burner box, 6" adjustable legs, 30,000 BTU, CSA Flame, CSA Star, NSF (Garland)
