Garland C18-10S Garland Cuisine Gas Ranges
$3,589.00
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Garland C18-10S Garland Cuisine Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland C18-10S Garland Cuisine Gas Ranges
$3,589.00
Unit price
/
Unavailable
Description

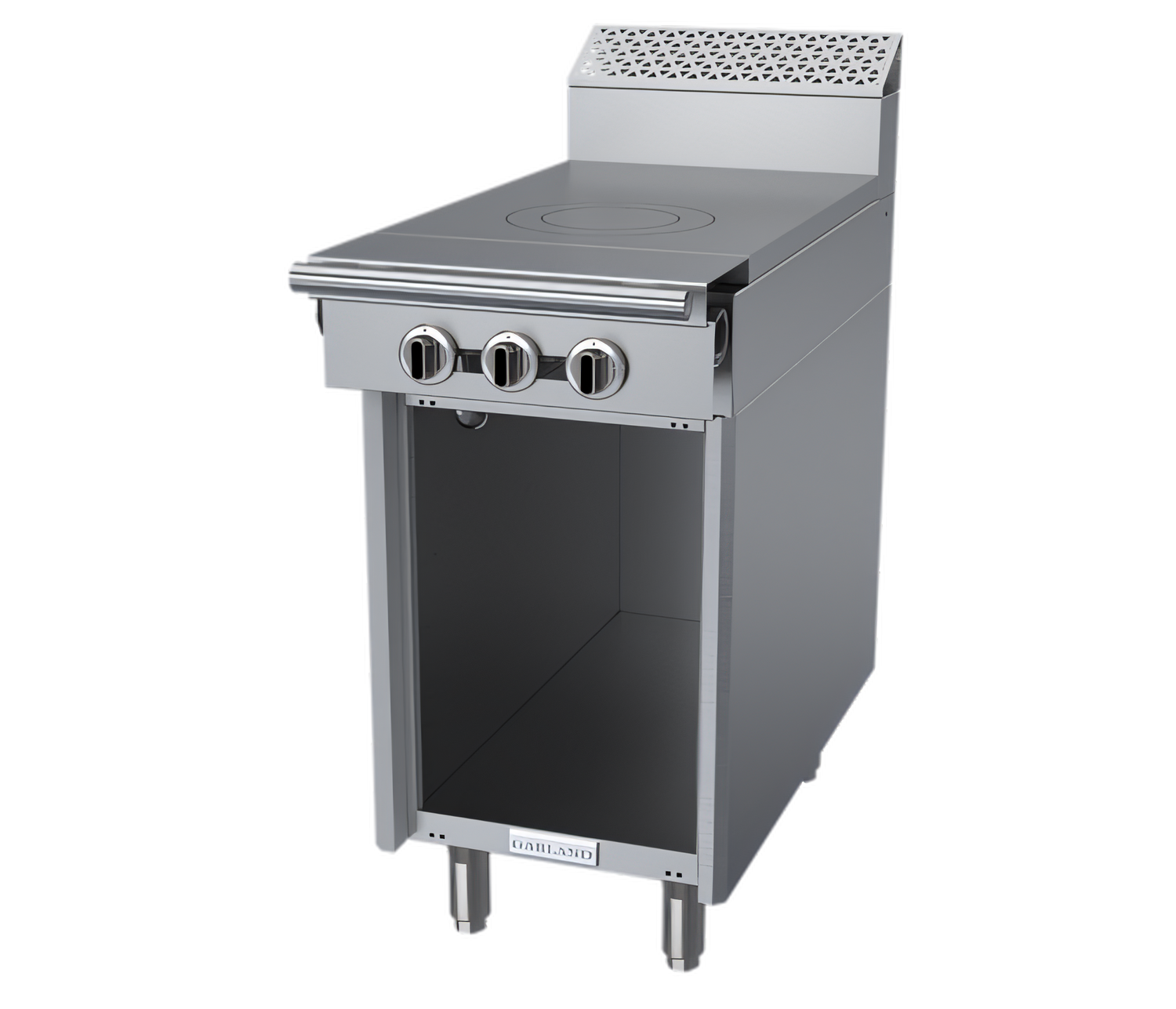

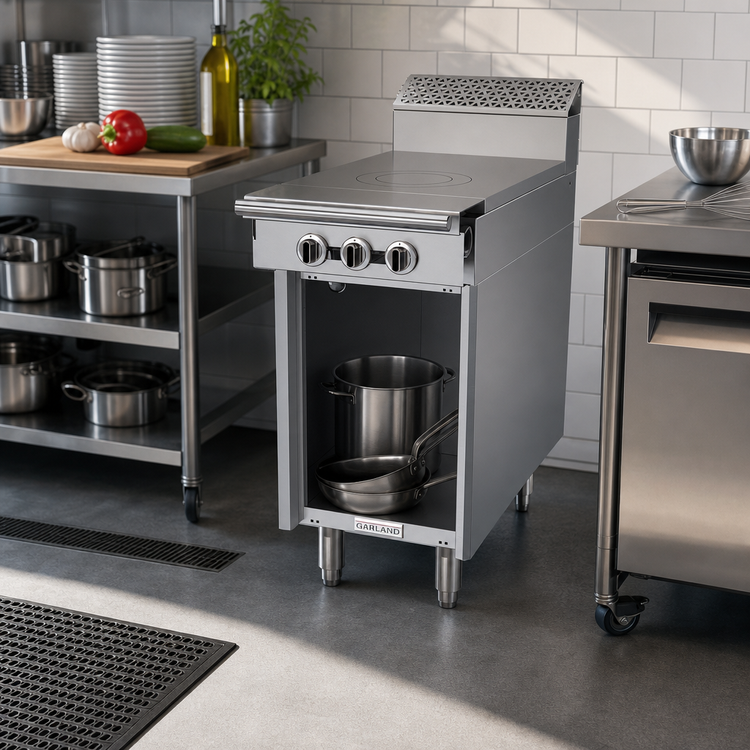

Garland Cuisine 18" Add-A-Unit Front-Fired Hot Top

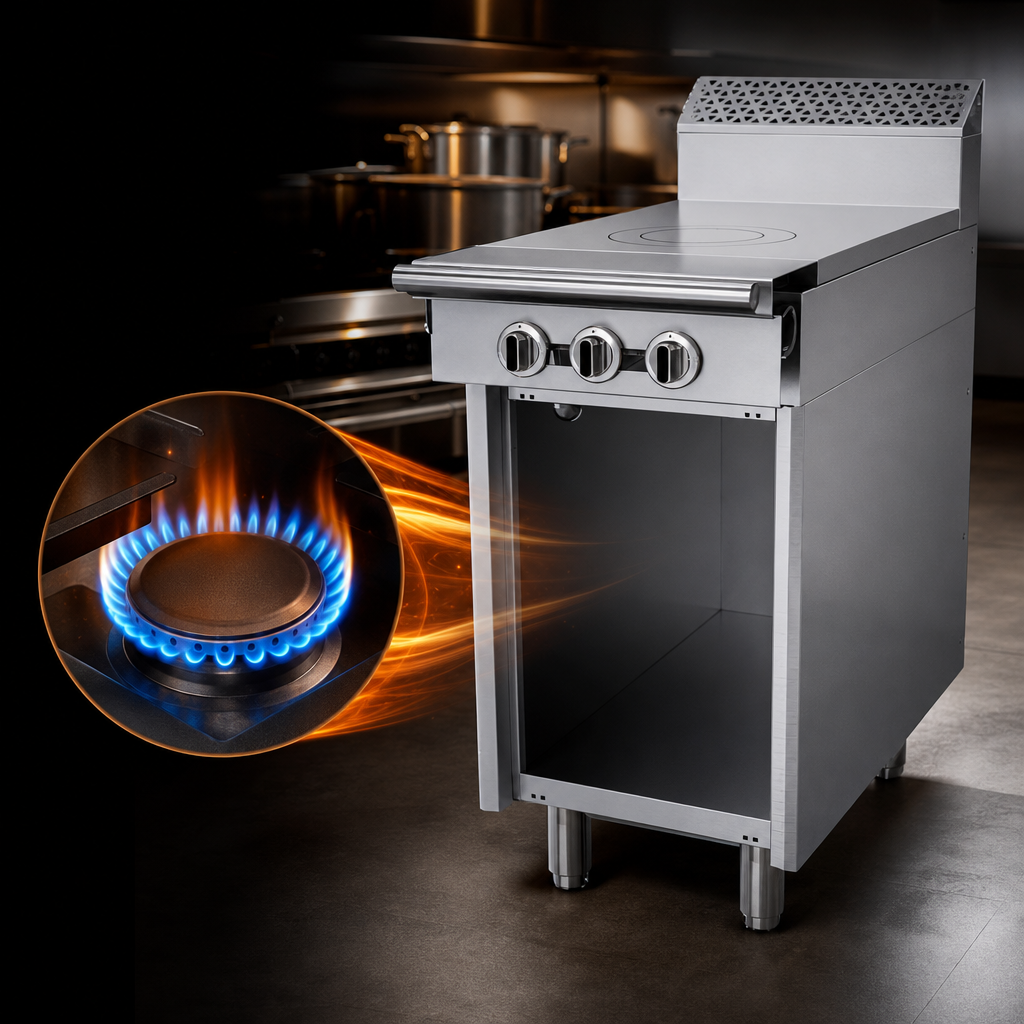

Model C18-10 • 37,500 BTU • Gas (CSA Flame & Star, NSF)Expand your cook-line without sacrificing space. Measuring just 18" wide, this heavy-duty Add-A-Unit drops a searing 37,500 BTU of power into a front-fired hot top that handles stock pots, sauté pans, and everything in between—perfect for custom batteries, replacement modules, or stand-alone duty.
Key Performance Features

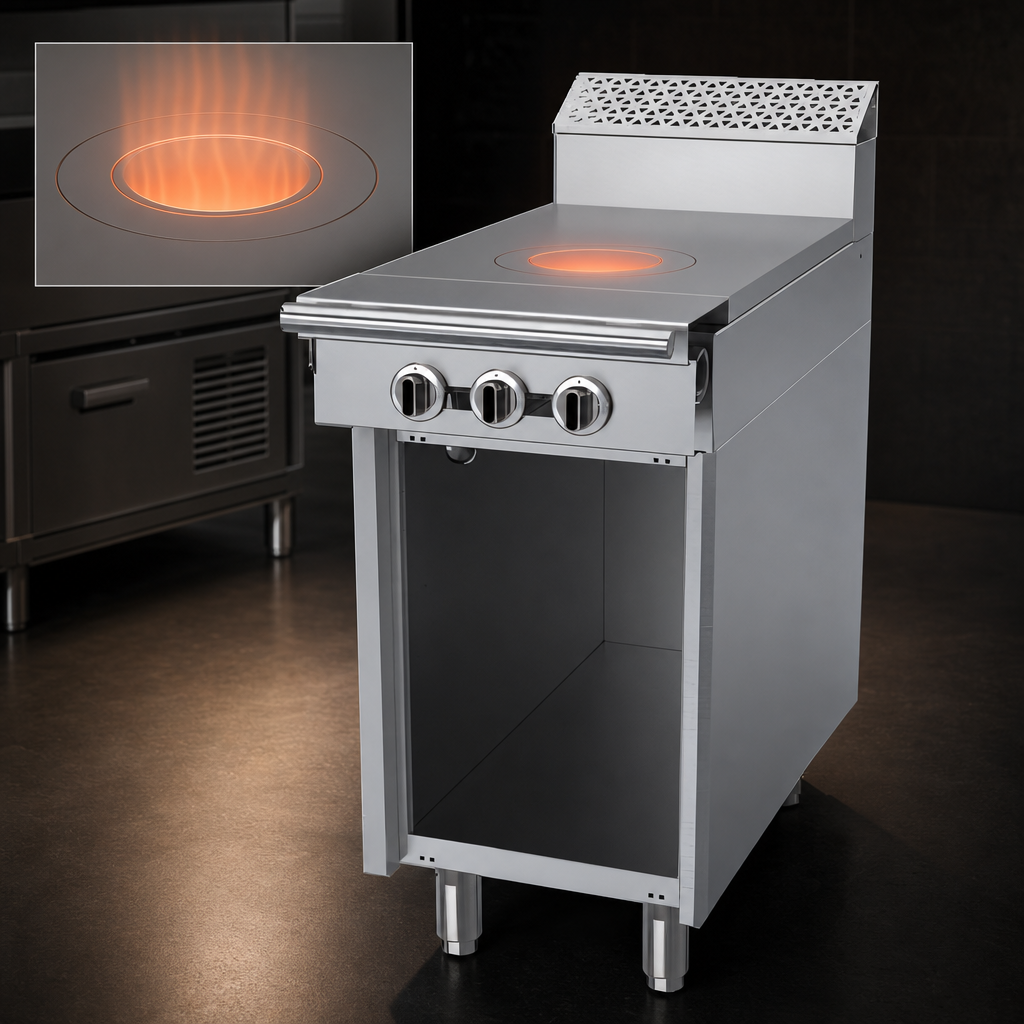

- One 18" (457 mm) front-fired hot top with three 12,500 BTU burners for fast, even heat.
- Removable cast-iron lids & rings let you concentrate heat or open flame instantly.
- Hi-lo valve controls on each burner provide precise simmer-to-sear versatility.
- Rugged stainless-steel construction on front, sides, rail and burner box stands up to daily abuse.
- Open cabinet base keeps sheet pans and utensils within arm’s reach (no doors to ding or warp).
- 7" (178 mm) stainless stub backguard protects walls and makes battery integration easy.
- 6" (152 mm) adjustable stainless legs for quick leveling and simple cleaning underneath.
- Factory-installed 1 ¼" NPT front gas manifold—ideal for line-ups; rear connection optional.
- CSA Flame & Star and NSF listings for worry-free code compliance.
Dimensions & Utilities
| Width | 18" / 457 mm |
|---|---|
| Depth | 39 ⅜" / 1,001 mm |
| Height (body) | 30 ¼" / 769 mm |
| Height w/ 6" legs | 36 ¼" / 921 mm |
| Total Input | 37,500 BTU h (Natural or Propane) |
| Burners | 3 × 12,500 BTU front-fired hot-top burners |
| Gas Inlet | 1 ¼" NPT (front standard) |
| Manifold Pressure | 6" WC (Nat) | 10" WC (Propane) |
| Min. Supply Pressure | 7" WC (Nat) | 11" WC (Propane) |
| Clearance to Combustibles | Sides 10" / 254 mm | Back 6" / 152 mm |
| Shipping Weight | 225 lb / 102 kg |
Popular Options & Accessories
- Single or double-deck high shelf / back riser
- Full-height tubular stand with intermediate or cabinet shelf
- Stainless door kit for cabinet base
- 5" or 6" swivel casters (front locking) or flanged feet (floor-mount)
- Gas regulator or quick-disconnect flex hose (¾", 1", 1 ¼")
- Continuous plate rails for 48-72" battery runs
- Extension rack for 1/9 condiment pans
Installation Notice: Units supplied with casters must be secured with an approved restraining device. Professional gas hookup and ventilation in accordance with local codes is required.
Garland reserves the right to change specifications without prior notice.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
Garland Cuisine
Certifications
NSF, CSA Star, CSA Flame
Height
42.0in
Width
18.0in
Depth
39.38in
Shipping Weight
225.0lbs
Type
add-a-unit
Base
storage base
Exterior Finish
stainless steel front & sides
Top
(1) hotplate
Specifications
Garland Cuisine Series Heavy Duty Range, gas, 18", Add-A-Unit, (1) 18" front fried hot top, removable lid & ring, open cabinet base, 7"H backguard, stainless steel burner box, stainless steel front, sides, front rail & burner box, 6" adjustable legs, 37,500 BTU, CSA Flame, CSA Star, NSF (Garland)
