Description

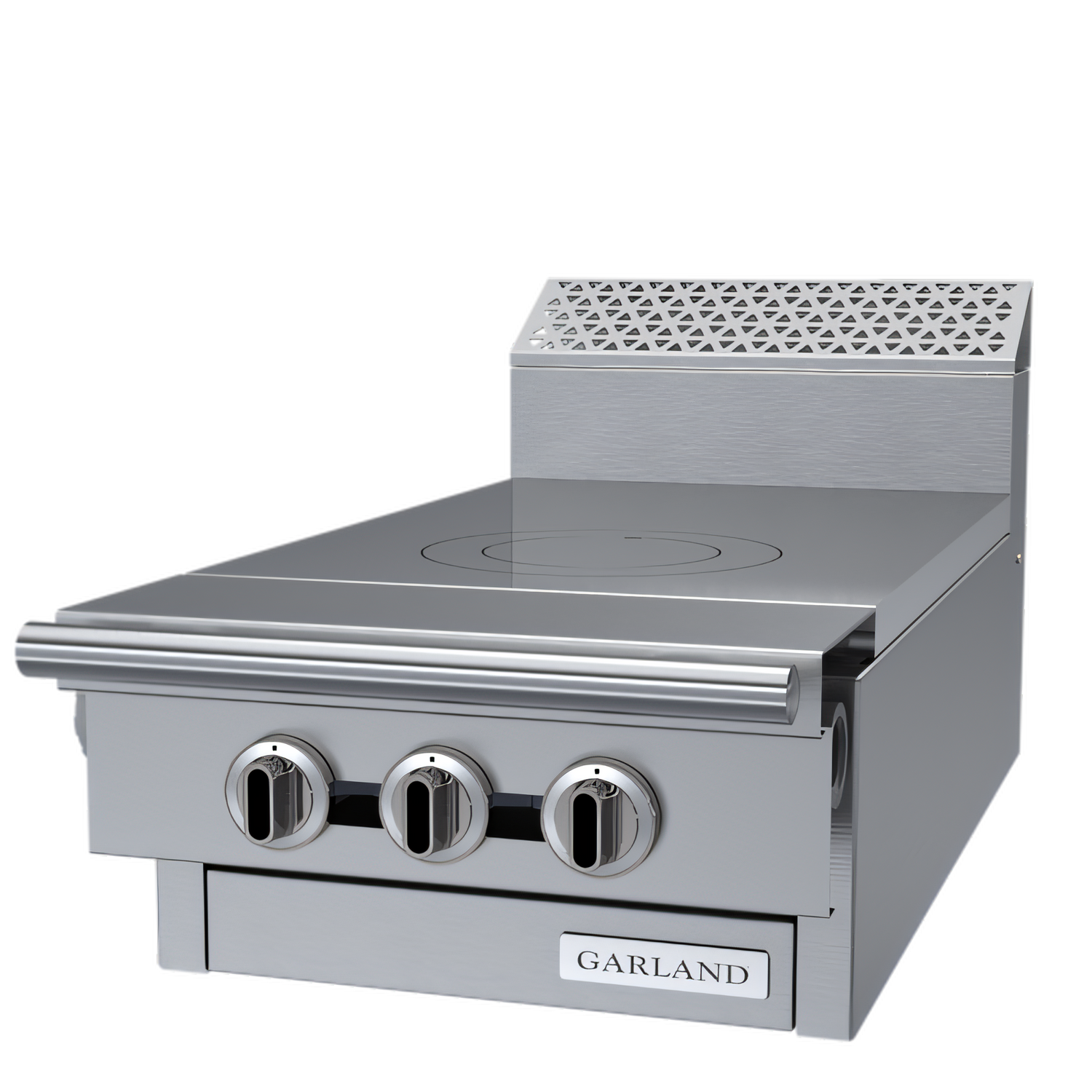

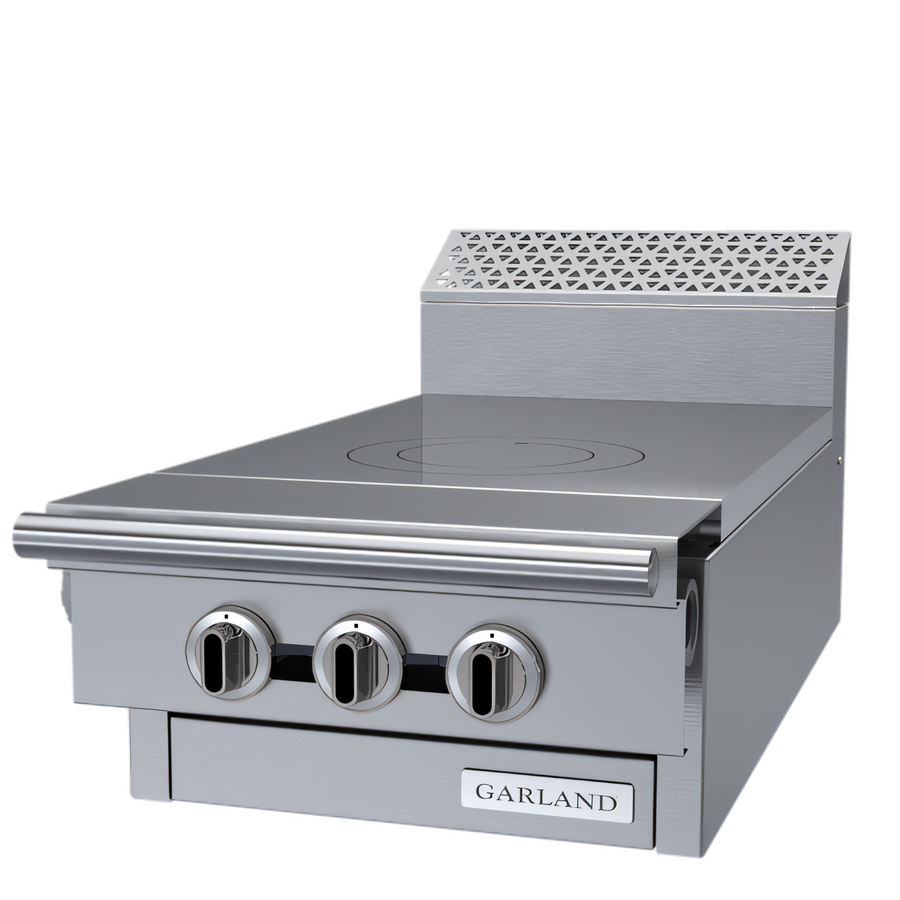

Garland Cuisine 18" Front-Fired Hot Top Add-A-Unit – Modular (C18-10M)

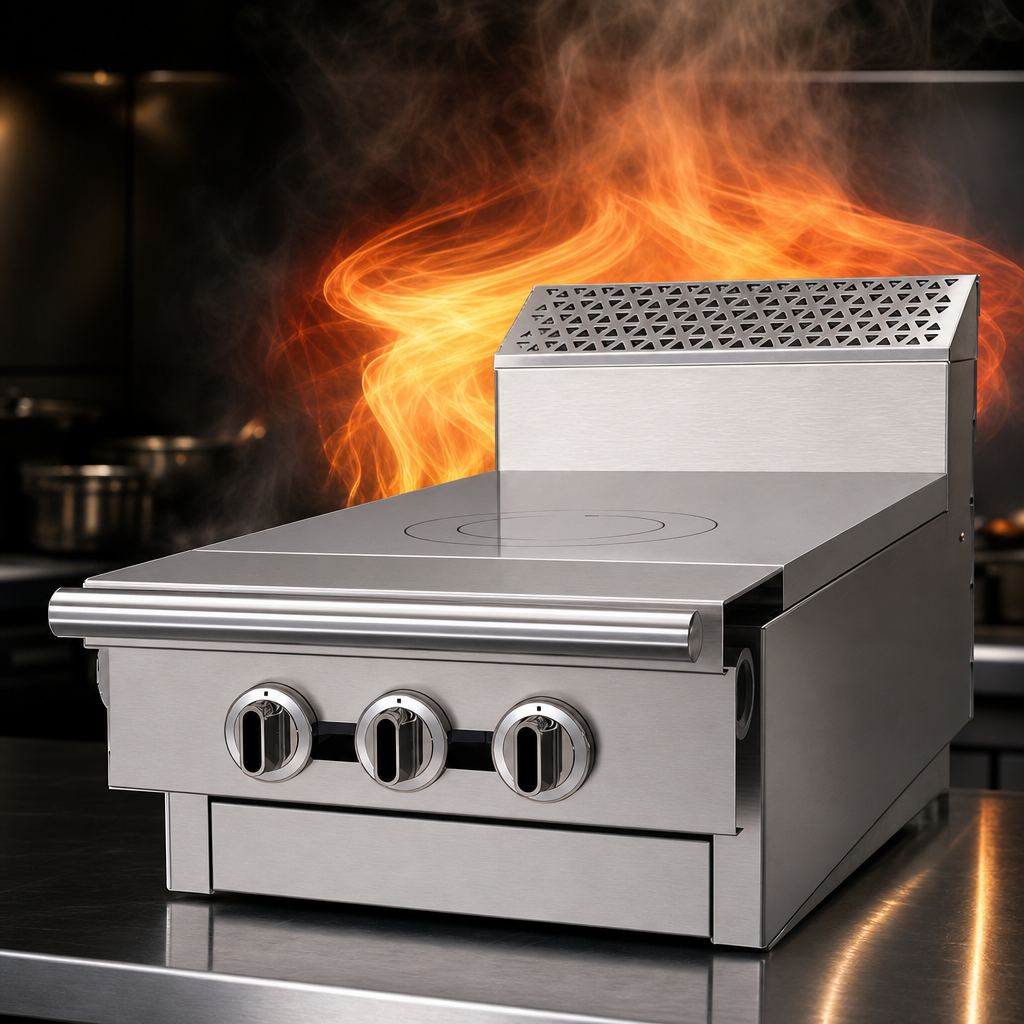

37,500 BTU | Heavy-Duty Gas Range Section

Turn any Cuisine-series battery into a high-heat powerhouse. The C18-10M drops a blistering 37,500 BTU/h into just 18" of lineal space, giving chefs the speed of open flame with the durability of a one-piece hot top.

Key features

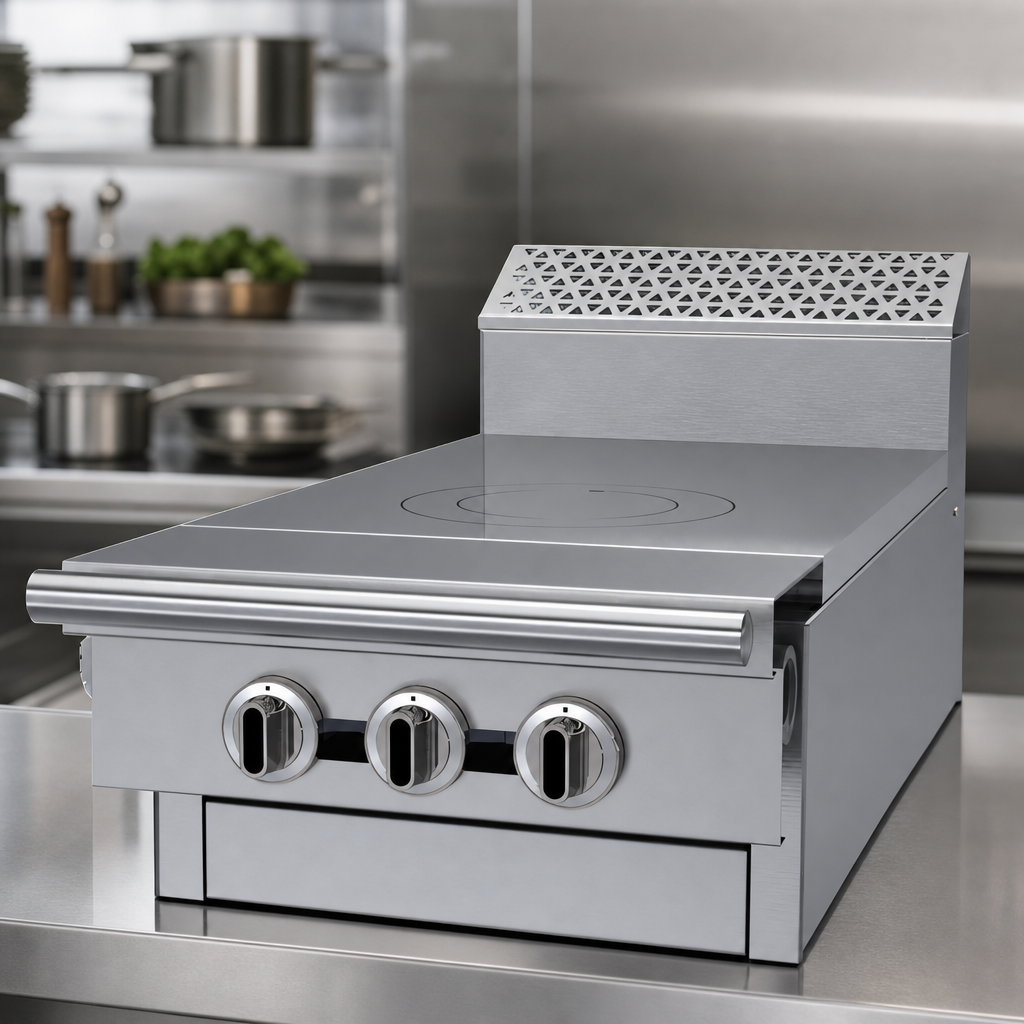

  • One 18" (457 mm) front-fired hot top section delivering 37,500 BTU/h.
  • Three cast-iron burners below the plate—12,500 BTU/h each—provide even heat across the surface.
  • Manual hi-lo valves for precise power control on every burner.
  • Removable cast-iron lids & rings speed up cleaning and service.
  • All-stainless exterior (front, sides, rail & burner box) stands up to the toughest kitchen abuse.
  • 7" (178 mm) stainless stub backguard included for a clean battery line-up.
  • 1 ¼" NPT front gas manifold; optional rear connection kit available.

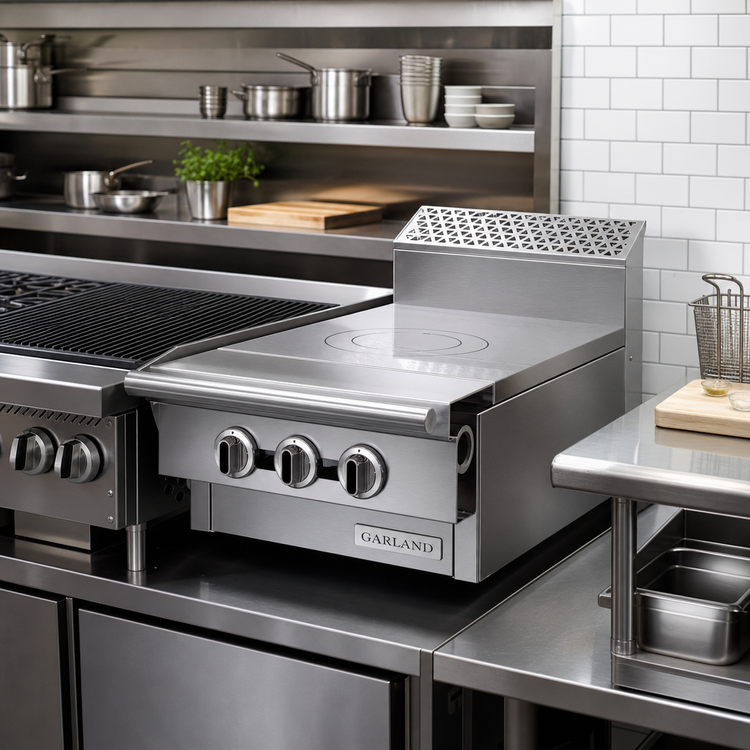

  • Modular “Add-A-Unit” design mounts on a Polar Cuisine refrigerated base, Garland stand, or in a continuous range battery.
  • CSA Flame, CSA Star & NSF listed.
Specifications
Model C18-10M
Cooking surface 18" Front-Fired Hot Top (removable rings)
Total input 37,500 BTU/h  (Natural or Propane)
Individual burner input 3 × 12,500 BTU/h
Controls Manual hi-lo valves
Dimensions (W × D × H) 18" × 39 3/8" × 30 1/4" (457 × 1001 × 769 mm)
Height with 6" legs 36 1/4" (921 mm) – optional stand or curb mount
Gas pressure Nat: 7" WC supply / 6" WC manifold
LP: 11" WC supply / 10" WC manifold
Gas connection 1 ¼" NPT (front standard)
Clearances to combustibles Sides 10" (254 mm) | Back 6" (152 mm)
Shipping weight 225 lb (102 kg)
Certifications CSA Flame, CSA Star, NSF
Popular options (sold separately)
  • Single or double-deck high shelf / back riser
  • Full-height stainless stand with adjustable feet or locking casters
  • Stainless intermediate shelf or cabinet door kits
  • Flexible gas hose with quick disconnect (¾", 1", 1 ¼")
  • Rear gas connection kit
  • Extension rail for 1/9 pans
Installation note: Units mounted on casters must be secured with an approved restraining device. Specify gas type (Natural or Propane) and any optional rear gas connection at time of order.

Garland reserves the right to change materials or specifications without notice. Photos may show optional accessories.

Features & Specs

Manufacturer

Garland

Brand_name

Garland Cuisine

Certifications

NSF, CSA Star, CSA Flame

Height

10.0in

Width

18.0in

Depth

39.38in

Shipping Weight

235.0lbs

Base

modular

Type

add-a-unit

Top

(1) hotplate

Exterior Finish

stainless steel front & sides

Specifications

Garland Cuisine Series Heavy Duty Range, gas, 18", modular, Add-A-Unit, (1) 18" front fried hot top, removable lid & ring, 7"H backguard, stainless steel burner box, stainless steel front, sides, front rail & burner box, 37,500 BTU, CSA Flame, CSA Star, NSF (Garland)
