Garland C12-8M Garland Cuisine Gas Ranges
Description

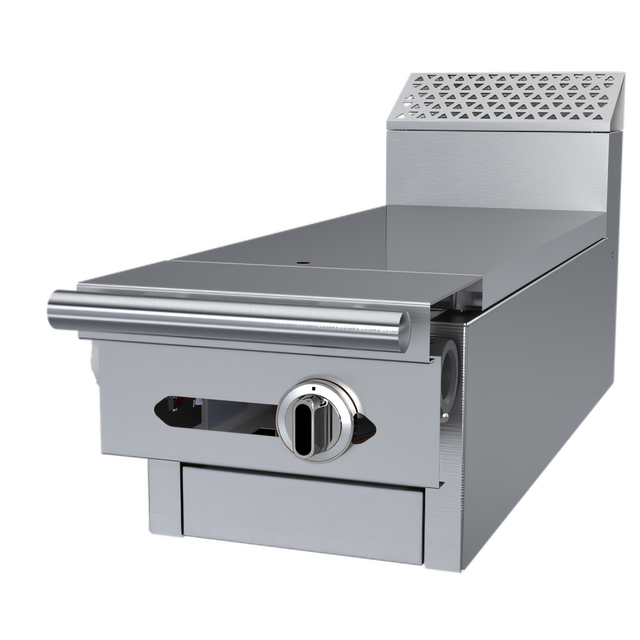

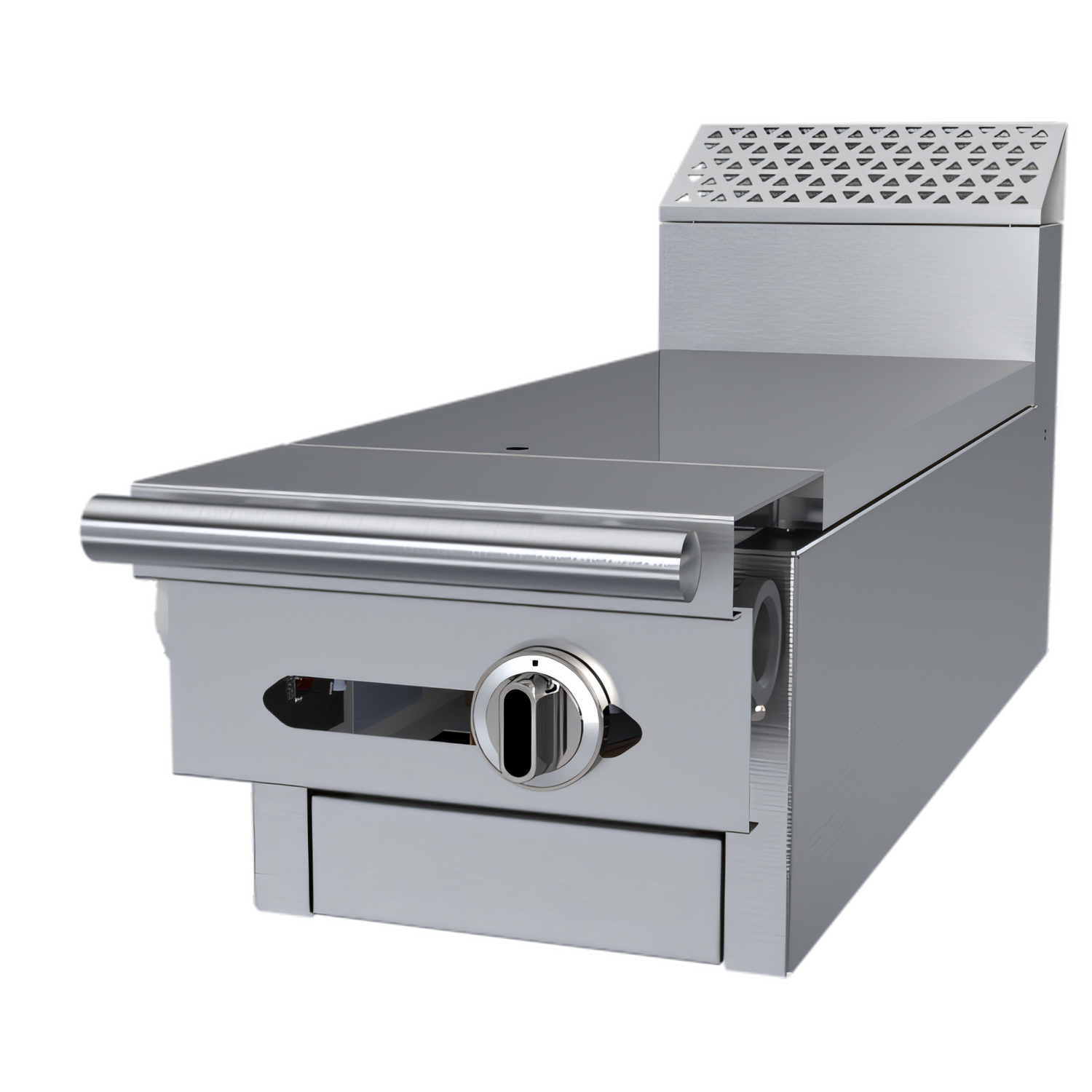

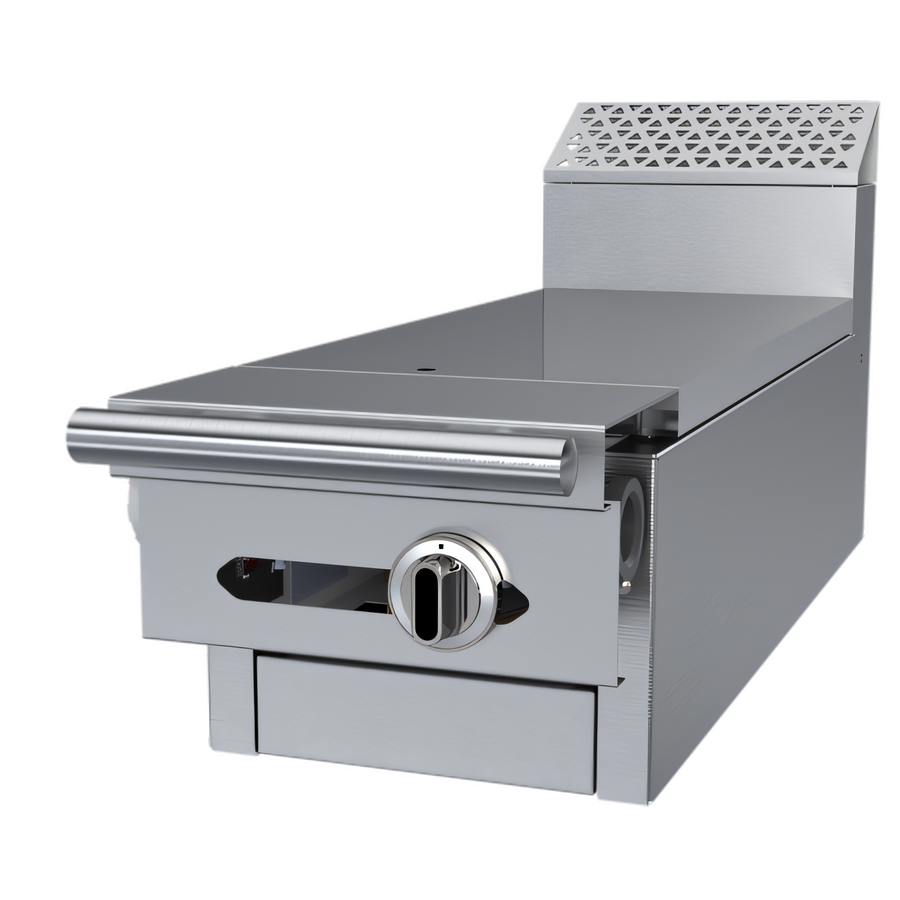

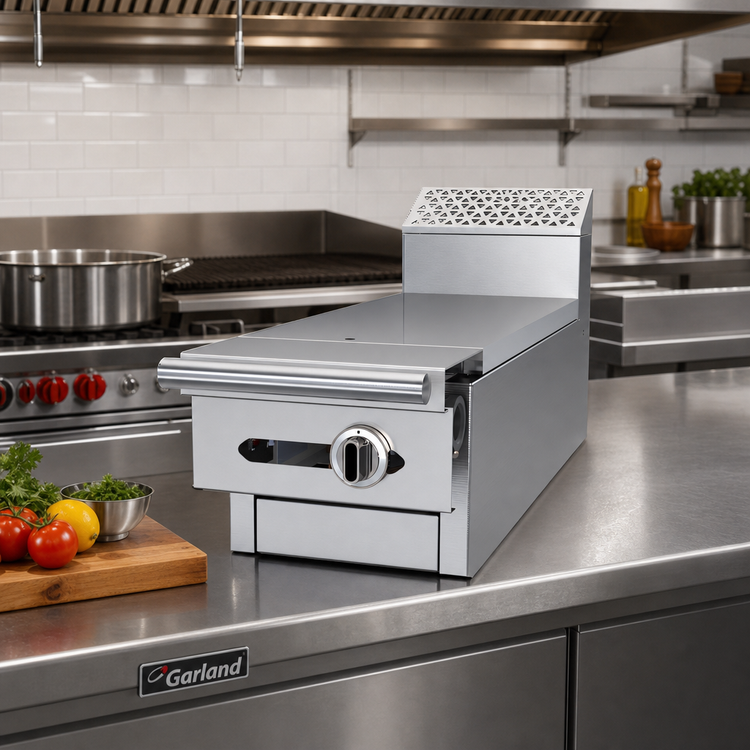

Garland Cuisine 12" Heavy-Duty Add-A-Unit Hot Top – Modular (C12-8M)
25,000 BTU | Even-Heat Hot Top | Gas | CSA Flame & Star | NSFBuilt for chefs who need an extra surge of searing, holding or finishing power without sacrificing line space, the Garland Cuisine Series 12" Modular Hot Top delivers a steady 25,000 BTU of even heat from edge to edge. Battery it with your existing Cuisine Series equipment or drop it onto a refrigerated/utility base and enjoy the same rugged reliability found across Garland’s heavy-duty range family.
At a Glance

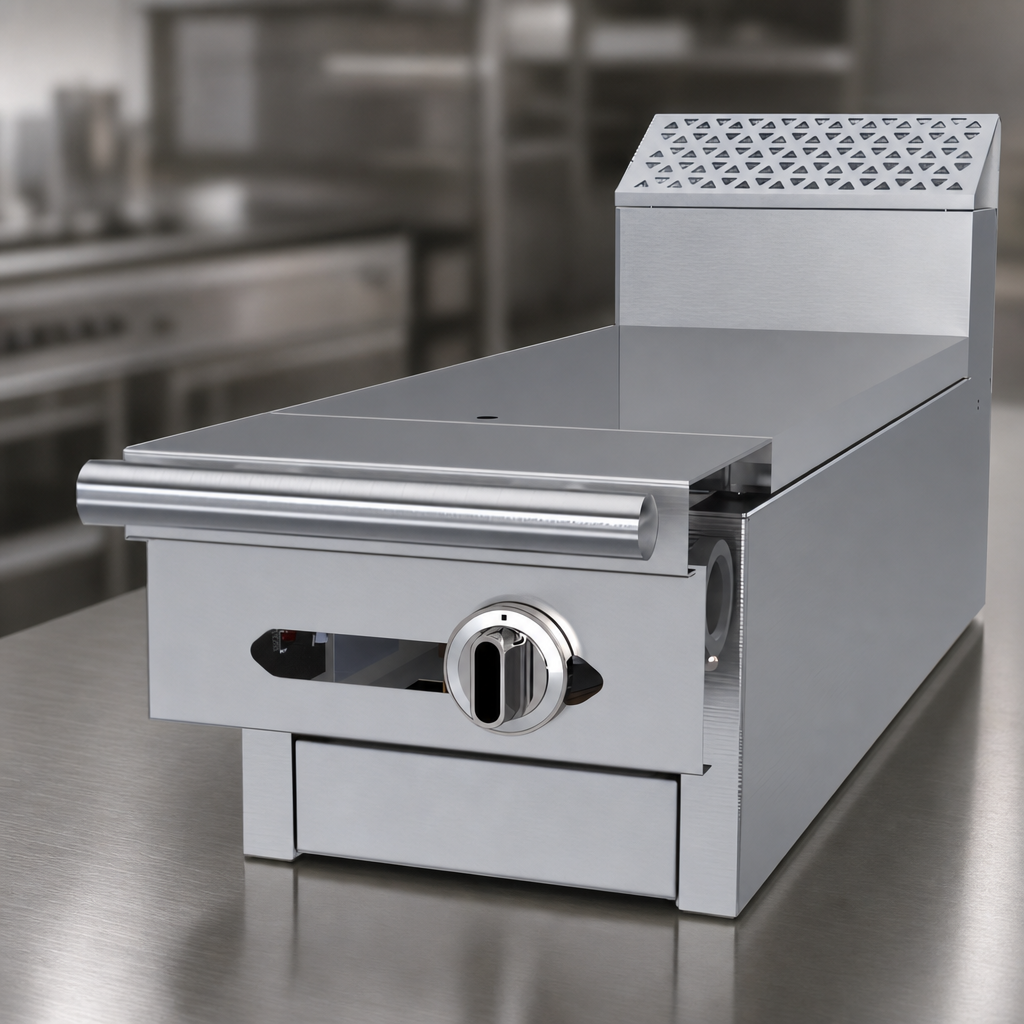

- One 12" (305 mm) even-heat hot top rated at 25,000 BTU/hr (natural or propane).
- Hi-lo valve gives instant flame adjustments for everything from low-temp holding to high-heat searing.
- 7" (178 mm) stainless-steel stub backguard protects walls and lines up cleanly with adjoining units.
- All-stainless front, sides, plate rail and burner box stand up to years of commercial abuse.
- 1-1/4" NPT front gas manifold with matching Cuisine battery ports for quick installation.

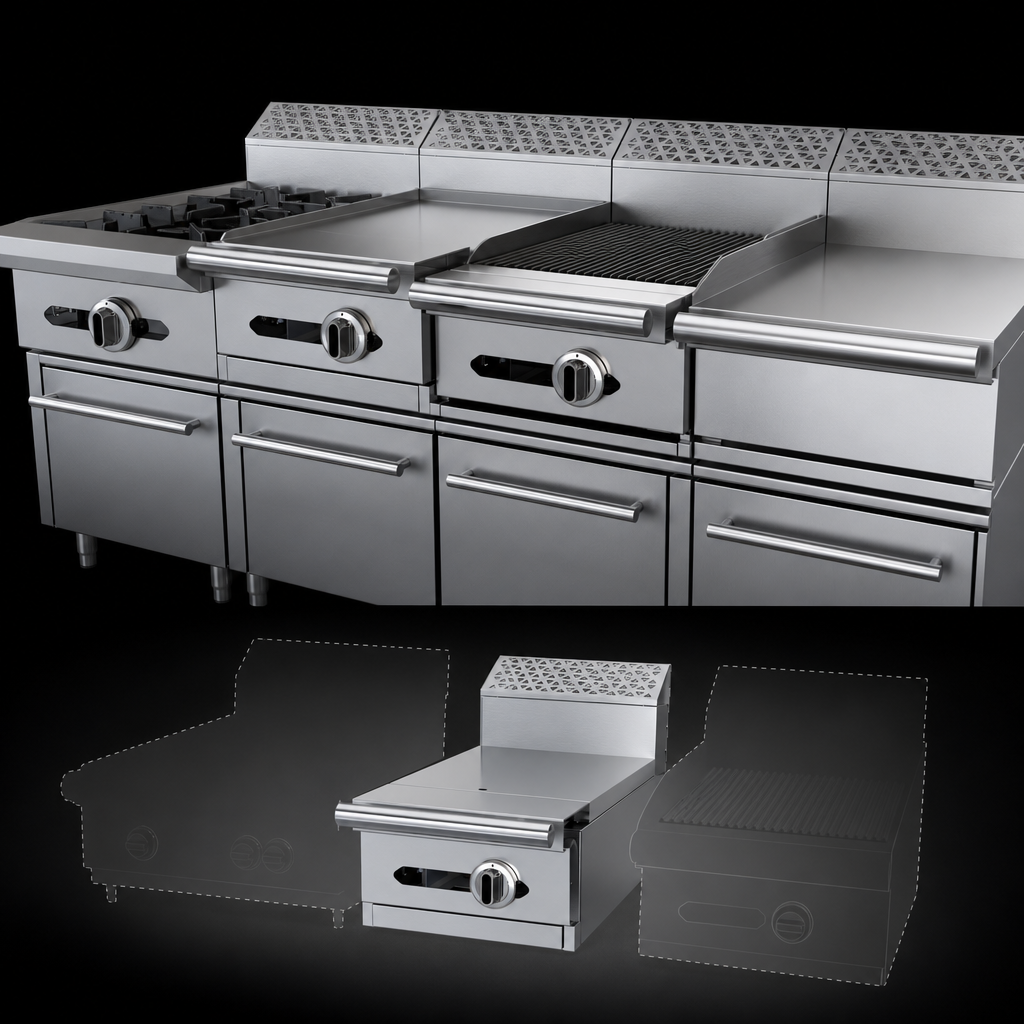

- Modular “Add-A-Unit” design drops on counter, equipment stand or Polar Cuisine refrigerated base.
- Tested & approved – CSA Flame, CSA Star and NSF listed for peace of mind and code compliance.
Construction Highlights
- Heavy-gauge stainless steel exterior resists rust, dings and daily cleaning chemicals.
- One-piece hot top ensures uniform heat distribution and reduces hot spots.
- Removable burner box simplifies access for routine service.
- Continuous plate rail aligns flush with other Cuisine Series ranges (48"–72" rails available for full batteries).
Performance Benefits
- Perfect for finishing sauces, keeping pans flight-ready or holding stocks without occupying an open burner.
- Even-heat surface eliminates scorching, allowing gentle melts or rapid boils with a twist of the knob.
- Compact 12" footprint frees valuable cook-line real estate.
Specifications
| Model | C12-8M – 12" Modular Hot Top |
|---|---|
| Cooking surface | 1 × 12" (305 mm) hot top, even-heat design |
| Total input | 25,000 BTU/hr (natural or propane) |
| Controls | Manual hi-lo valve |
| Gas connection | 1-1/4" NPT front manifold |
| Manifold pressure | Natural 6" WC | Propane 10" WC |
| Minimum supply pressure | Natural 7" WC | Propane 11" WC |
| Clearances (combustible) | Sides 10" (254 mm) | Rear 6" (152 mm) |
| Overall dimensions (W × D) | 12" × 39-3/8" (305 × 1001 mm) |
| Shipping weight | ≈ 190 lb (86 kg) |
| Certifications | CSA Flame, CSA Star, NSF |
Popular Options & Accessories
- Single or double-deck stainless steel high shelf / back riser.
- Full-height modular stand with legs or locking casters.
- Stainless intermediate or cabinet base shelf.
- Gas shut-off valve, regulator and quick-disconnect hose (¾", 1", 1 ¼").
- Extension rail for 1/9-size pans (ideal for mise en place).
Garland reserves the right to change design or specifications without prior notice.
