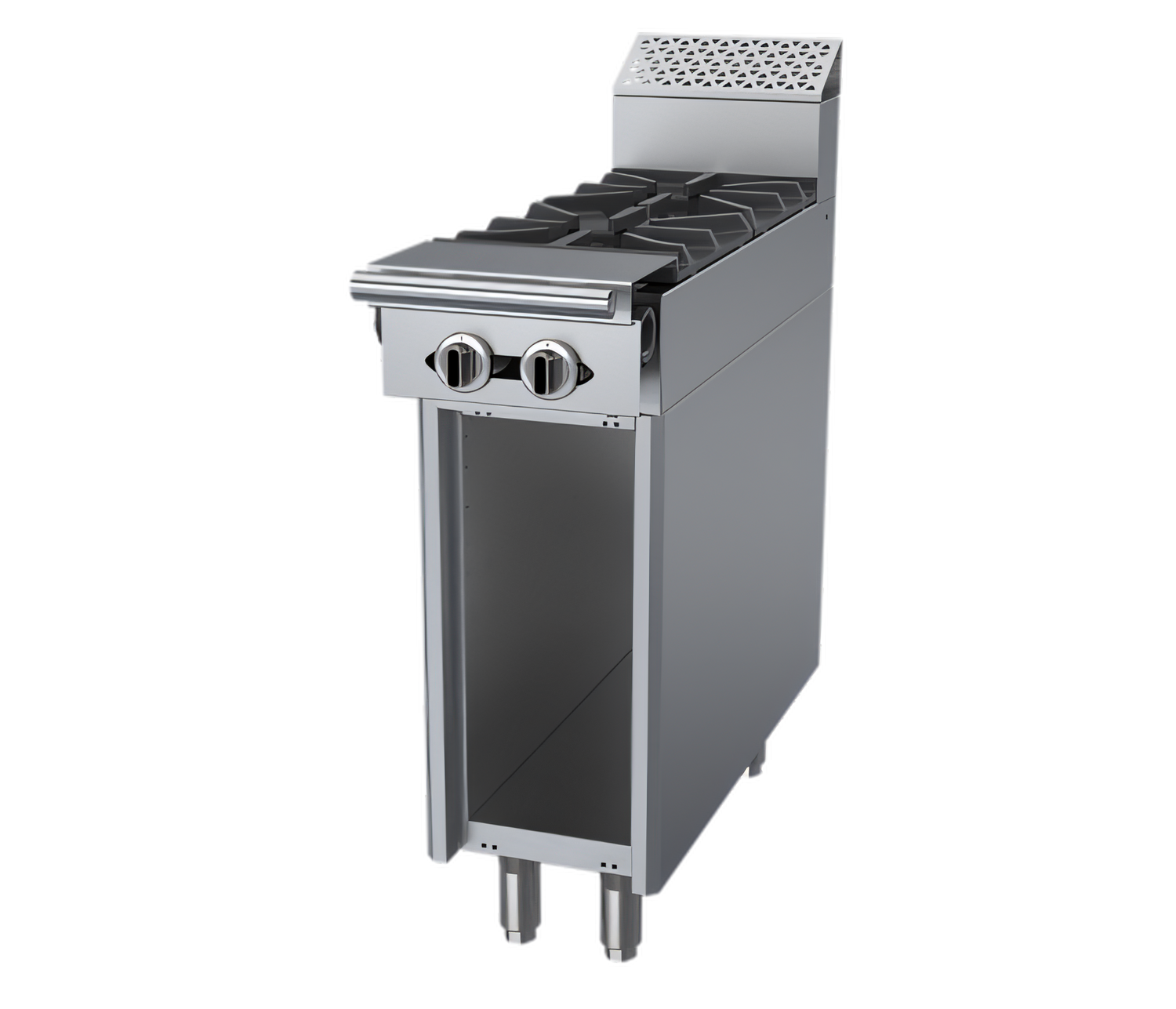

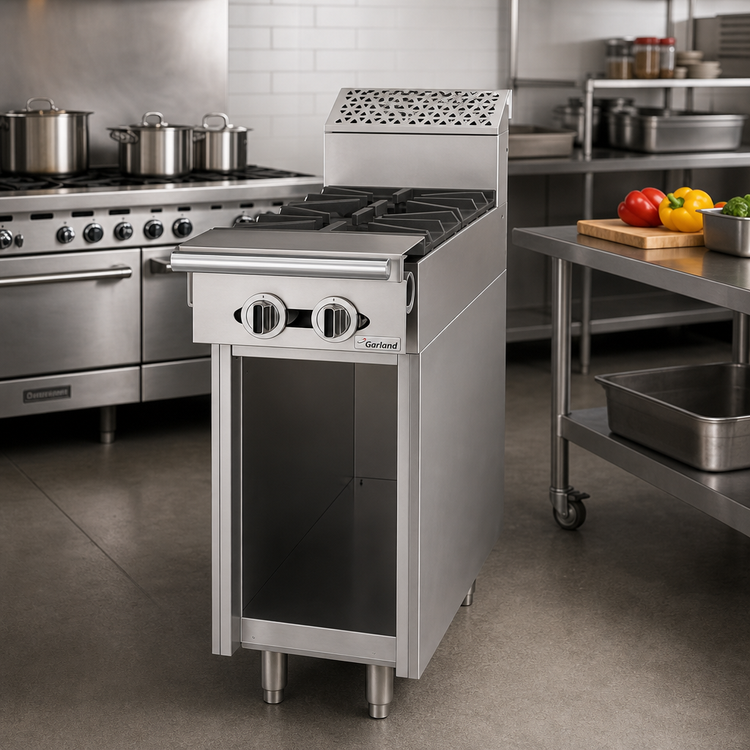

Garland Cuisine Series 12-Inch Heavy-Duty Gas Add-A-Unit Range with Storage Base and 2 Open Burners

Stainless Steel Front and Sides, 7-Inch Stub Back, 6-Inch Adjustable Legs

This compact 12-inch gas range module delivers two high-output open burners in a durable stainless steel body with a storage base and flexible battery-installation options.

  • Compact 12-inch add-a-unit design with two open burners for space-saving line integration.
  • Two 35,000 BTU/h burners deliver fast heat and responsive cooking performance.
  • Open cabinet base adds convenient under-unit storage.
  • Stainless steel front, sides, burner box, and front rail for long-lasting durability.
  • 7-inch stainless steel stub back helps protect surrounding surfaces.
  • 6-inch adjustable stainless steel legs help level the unit and set working height.
  • Can be installed individually or as part of a battery setup.

Overall Dimensions:

12.0"W x 39.38"D x 36.0"H

Product Weight:

190.0 lb

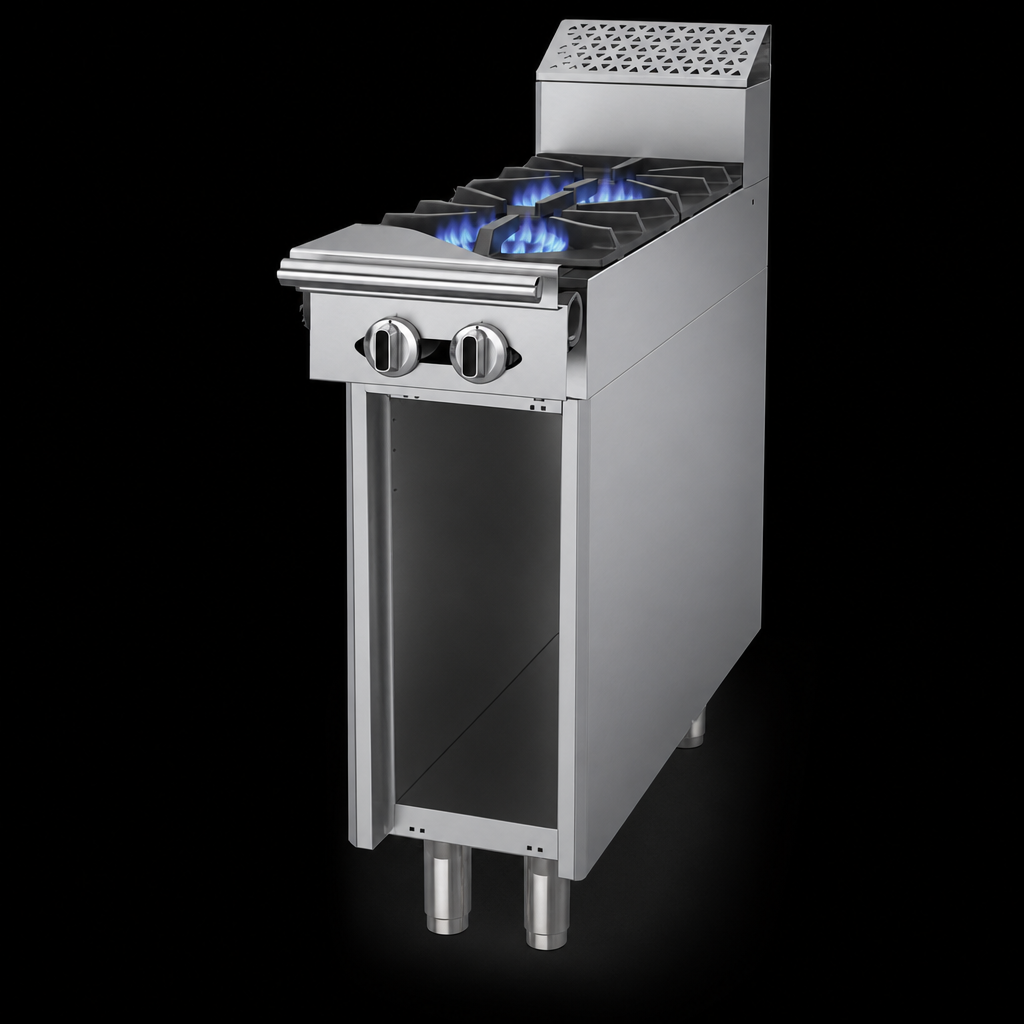

Two Open Burners

Includes two Starfire open top burners rated at 35,000 BTU/h each on natural gas.

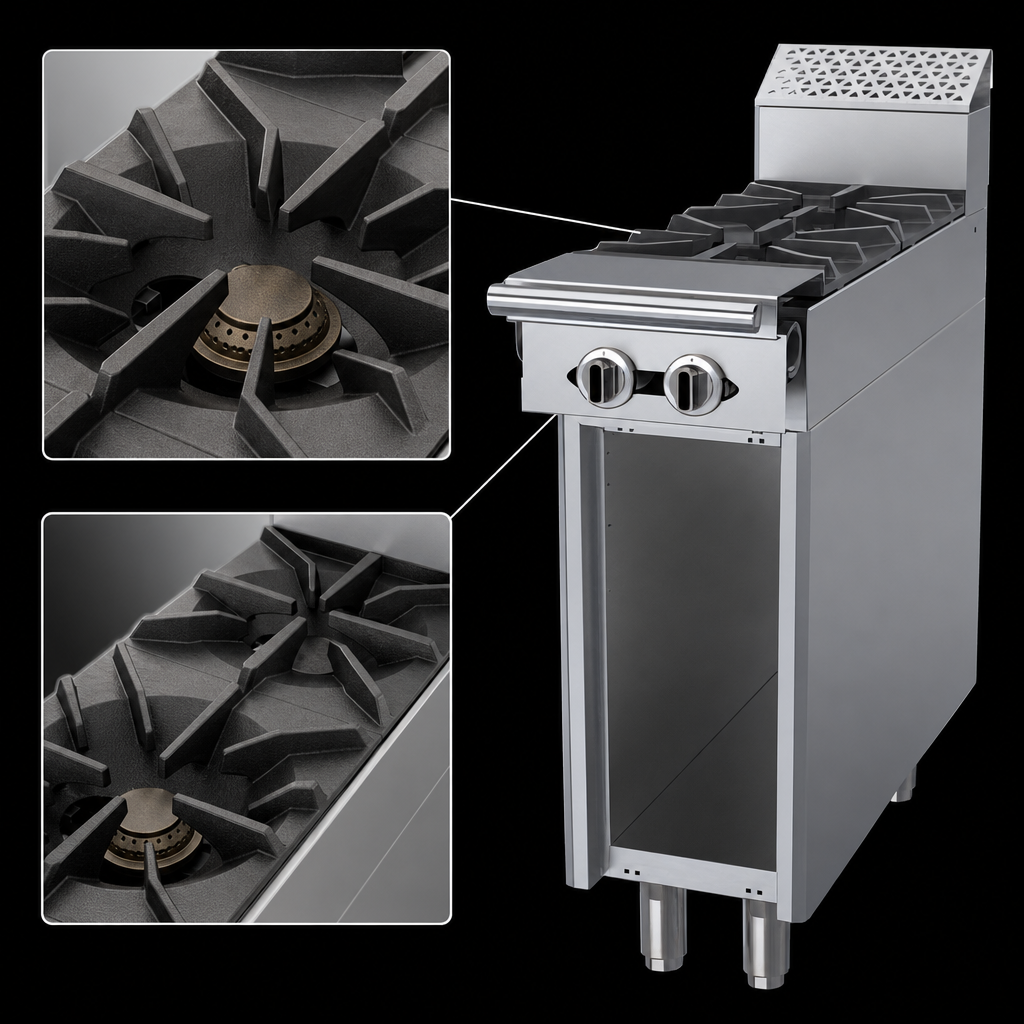

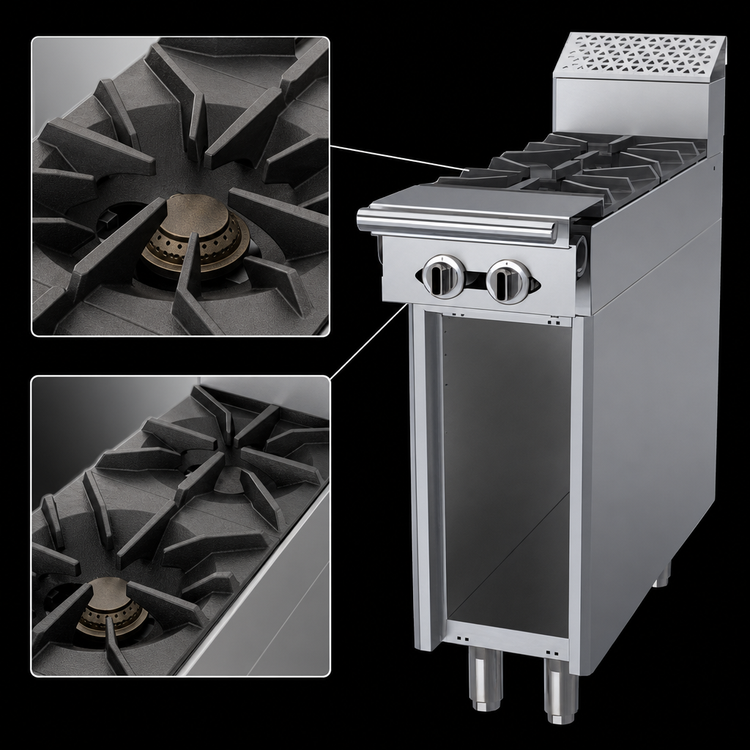

Cast Iron Grates and Bowls

One-piece cast iron grates and bowls sit over each burner for stable cookware support and easier cleaning.

Stainless Steel Construction

Stainless steel front, sides, front rail, and burner box provide a durable commercial finish.

Open Cabinet Storage Base

The storage base design adds under-unit space for cookware or supplies.

7-Inch Stub Back

A stainless steel stub back helps contain splashes and protect the rear wall.

Adjustable Legs

6-inch stainless steel adjustable legs help level the range in installation.

Battery-Friendly Design

Can be installed individually or in a battery with other matching units.

Front Gas Manifold

Features a 1-1/4 inch NPT front gas manifold for connection flexibility.

Type Add-A-Unit Range
Style Open Burner
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
BTU 70,000 BTU/h Total Natural Gas; 66,000 BTU/h Total Propane
Gas Type Natural Gas / Propane
Gas Connection Size 1-1/4 Inches NPT
Gas Inlet Pressure Natural Gas: 7 Inches W.C.; Propane: 11 Inches W.C.
Selling Unit Each
Units Per Case 1
Shipping Width 12 Inches
Shipping Depth 40 Inches
Shipping Height 36 Inches
Shipping Weight 190 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Check list PDF Download PDF Owner's manual PDF Download PDF Garland cuisine models guide PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It has two open top burners.
Each burner is rated at 35,000 BTU/h on natural gas and 33,000 BTU/h on propane.
Yes. The unit can be installed individually or in a battery setup.
It uses a 1-1/4 inch NPT front gas manifold.
It includes a 7-inch high stainless steel stub back.
Yes. Optional caster sets are listed, and units supplied with casters must be installed with an approved restraining device.
