Garland

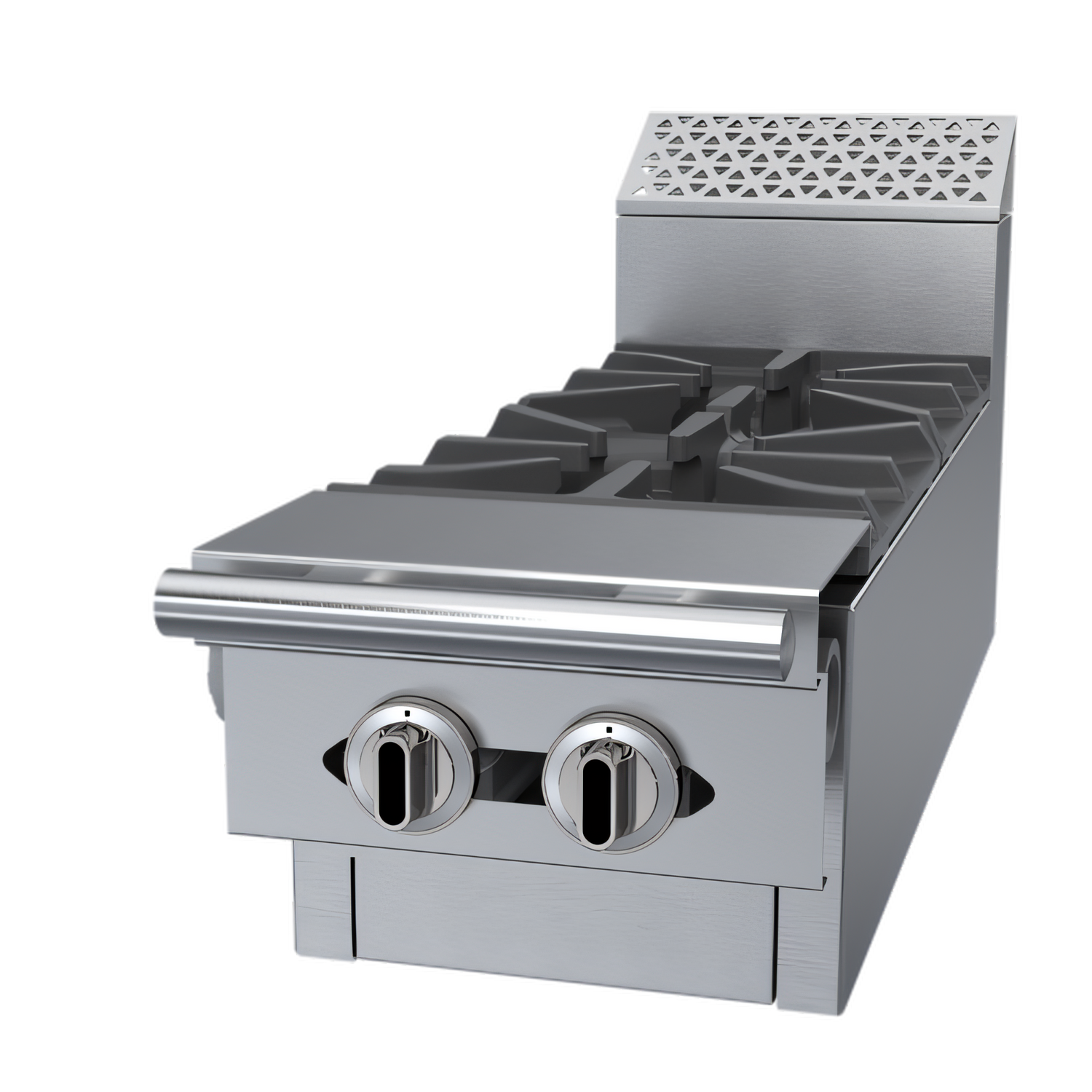

Garland Cuisine Series 12-Inch Modular Gas Add-A-Unit Range with Two Open Burners

SKU: C12-6M
$2,393.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Garland Gas Ranges New Arrivals Ranges Restaurant Equipment

Garland Cuisine Series 12-Inch Modular Gas Add-A-Unit Range with Two Open Burners

Stainless Steel Front and Sides, 70,000 BTU Total

This compact 12-inch modular add-a-unit delivers two high-output open burners in a heavy-duty stainless steel package built for flexible cookline installation.

  • Compact 12-inch add-a-unit design with two open burners for extra cooking capacity.
  • 70,000 BTU total input on natural gas and 66,000 BTU total input on propane.
  • Heavy-duty stainless steel front, sides, front rail, and burner box.
  • One-piece cast iron grates and bowls help support cookware and simplify cleanup.
  • Can be installed individually or in a battery for cookline expansion.
  • 7-inch stainless steel stub back and 1-1/4 inch NPT front gas manifold support installation flexibility.

Overall Dimensions:

12.0"W x 39.38"D x 10.0"H

Product Weight:

190.0 lb

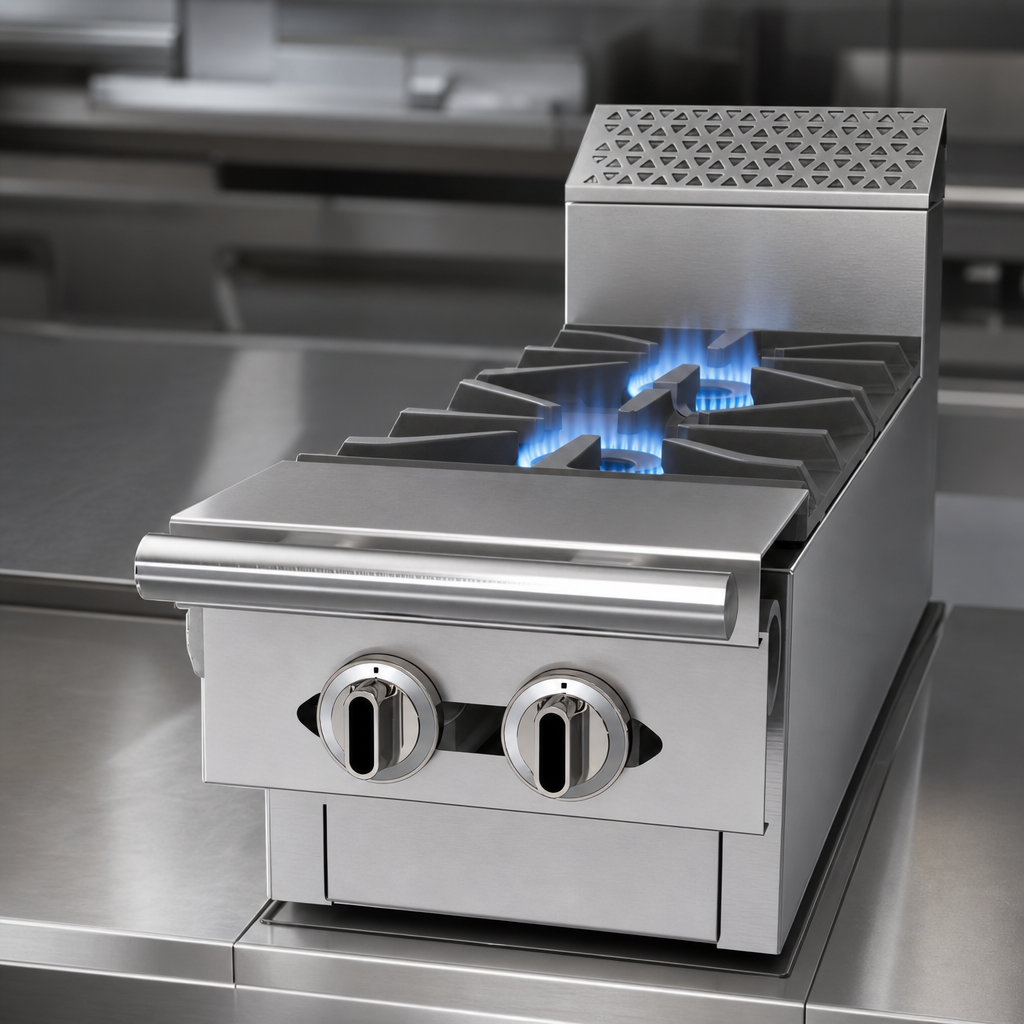

Two High-Output Open Burners

Equipped with two 35,000 BTU/h open top burners for fast, responsive cooking performance on natural gas.

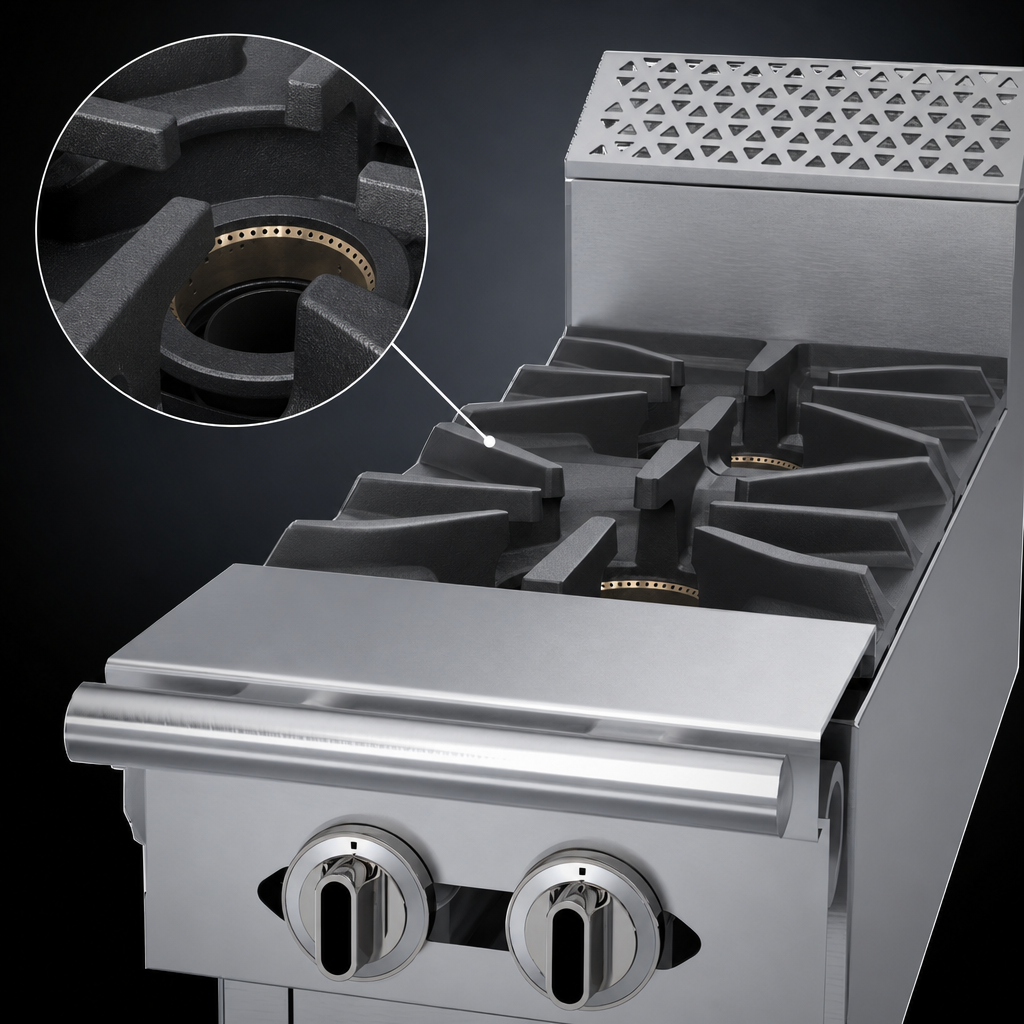

Heavy-Duty Cast Iron Burner Support

One-piece cast iron grates and bowls sit over each burner for durability and stable pan support.

Stainless Steel Construction

Stainless steel front, sides, front rail, and burner box provide a rugged commercial finish.

7-Inch Stub Back

A stainless steel stub back helps contain splatter and adds rear protection behind the burners.

Front Gas Manifold Connection

Features a 1-1/4 inch NPT front gas manifold for gas hookup.

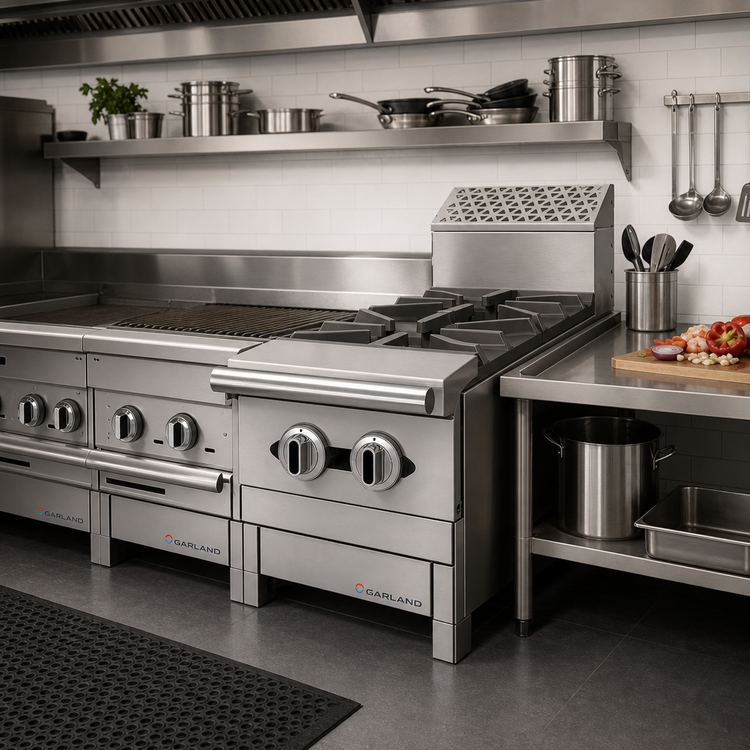

Flexible Cookline Installation

Can be installed individually or in a battery, and the modular unit can be mounted on a Polar Cuisine refrigerated base.

Type Add-A-Unit
Style Open Burner
Material Stainless Steel
Finish Stainless Steel
Burner Count 2
BTU 70,000 BTU Total (Natural Gas) / 66,000 BTU Total (Propane)
Burner BTU 35,000 BTU Each (Natural Gas) / 33,000 BTU Each (Propane)
Gas Type Natural Gas / Propane
Gas Connection Size 1-1/4 Inches NPT
Gas Inlet Pressure 7 Inches W.C. (Natural Gas) / 11 Inches W.C. (Propane)
Backguard Height 7 Inches
Shipping Width 12 Inches
Shipping Depth 40 Inches
Shipping Height 10 Inches
Shipping Weight 190 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Check list PDF Download PDF Owner's manual PDF Download PDF Garland cuisine models guide PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It has two Garland Starfire open top burners rated at 35,000 BTU/h each on natural gas.
Yes. The documentation lists performance and gas pressure values for both natural gas and propane.
Yes. It can be installed individually or in a battery.
It uses a 1-1/4 inch NPT front gas manifold connection.
The documentation calls for 10 inches of clearance on the sides and 6 inches at the back to combustible walls.
Yes. The modular unit can be mounted on a Polar Cuisine refrigerated base.
