Garland C12-1S Garland Cuisine Gas Ranges
Description

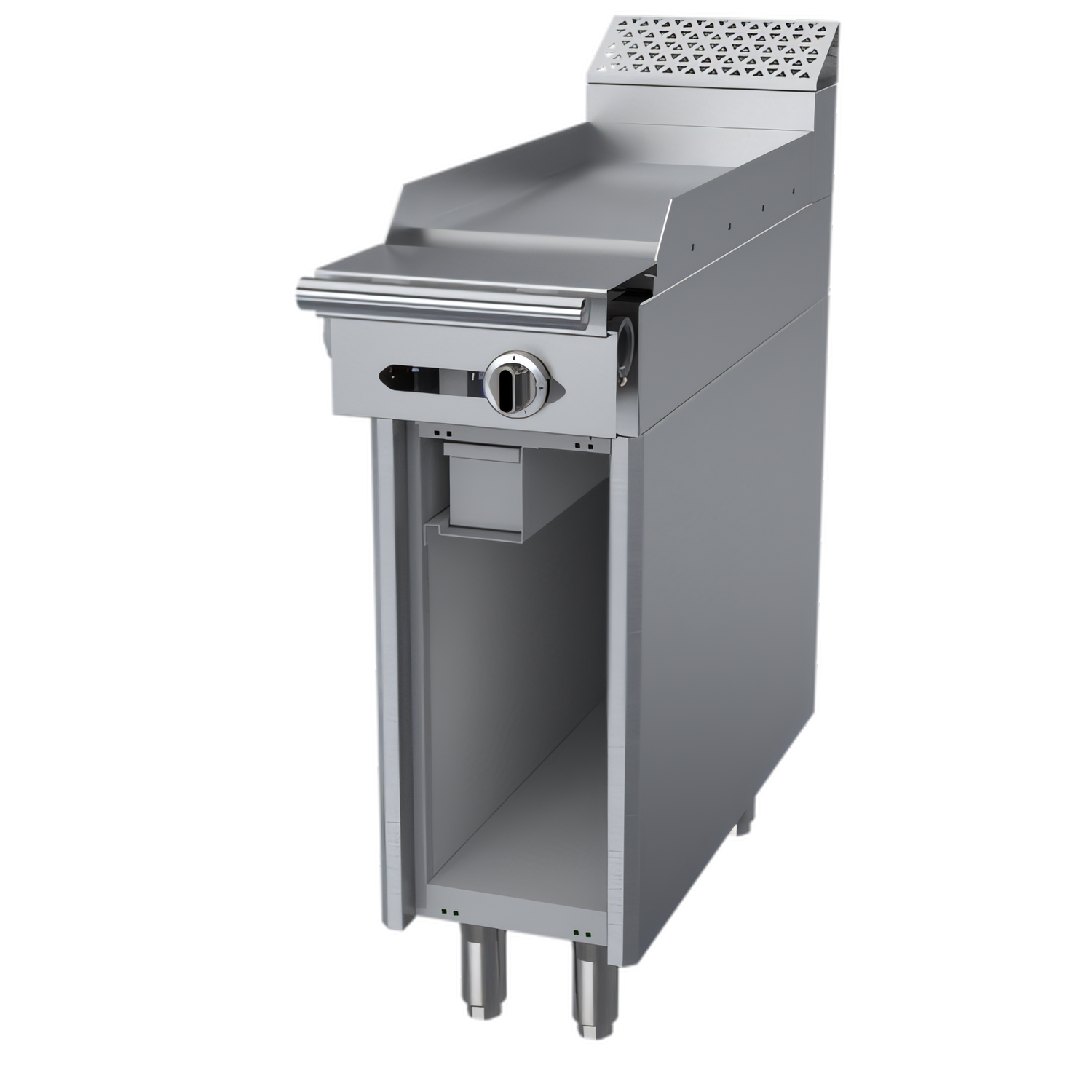

Garland Cuisine Series 12" Add-A-Unit Gas Griddle
Model C12-1S | 30,000 BTU Manual-Control Griddle SectionNeed just a little more griddle space without giving up valuable line footage? The Garland Cuisine 12" Add-A-Unit drops a full-size, heavy-duty griddle into a compact footprint that bolts seamlessly onto any Garland Cuisine battery – or stands on its own with 6" adjustable legs. A 1" thick steel plate, 30,000 BTU burner and rugged stainless construction make it the go-anywhere workhorse for breakfast bars, short-order stations and satellite cooking lines.
Built for Real-World Kitchens
- 12" (305 mm) wide heavy-duty griddle section – perfect when you need “one more zone.”
- 1" (25 mm) polished steel plate for superior heat retention and fast recovery.

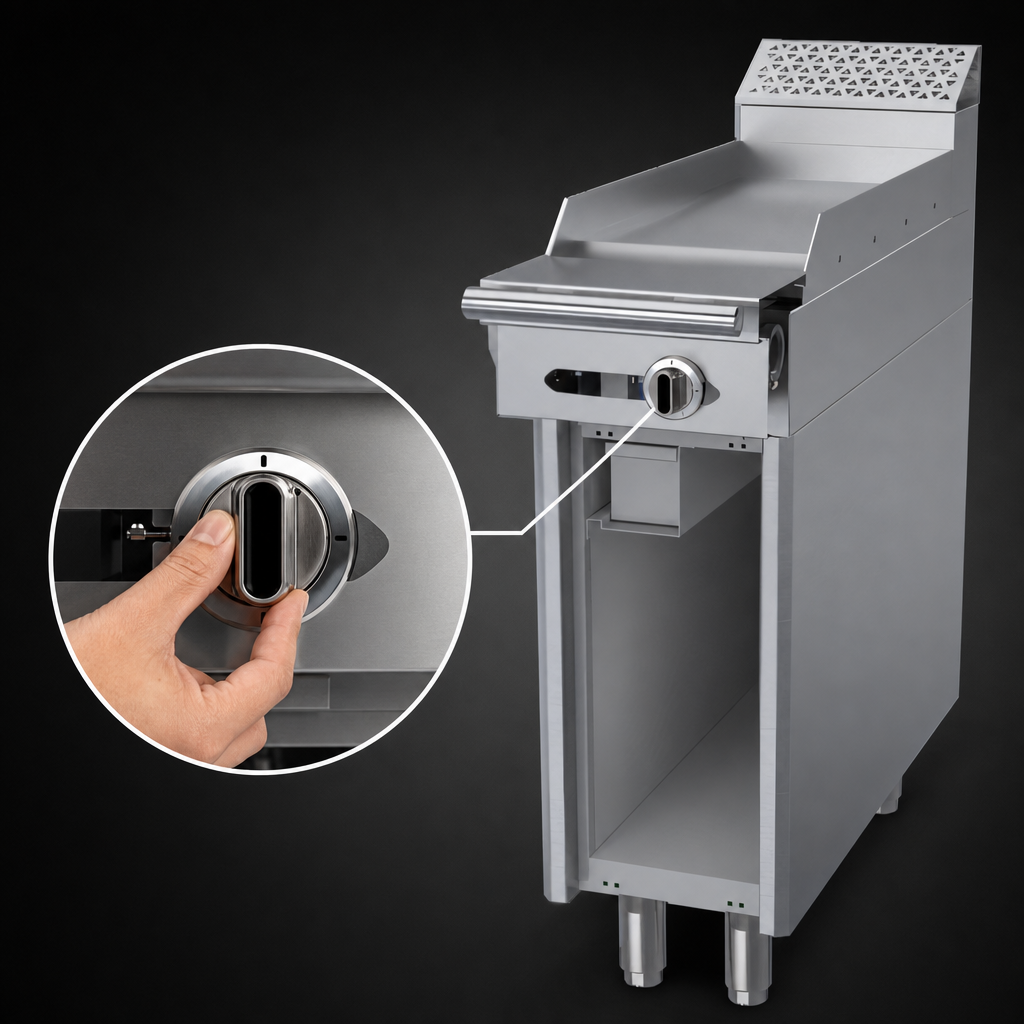

- 30,000 BTU U-shape burner with manual hi-lo valve for precise low-to-high control.
- 3" (76 mm) wide front grease trough and large-capacity tray for quick clean-ups.
- 7" (178 mm) stainless stub backguard protects walls and meets code.
- All stainless front, sides, plate rail and burner box resist corrosion and wipe clean easily.
- Open cabinet base offers quick-grab storage for sheet pans, smallwares or chemicals.
- 6" (152 mm) adjustable stainless legs level the unit on uneven floors; optional casters available.
- 1-1/4" NPT front gas manifold lets you connect singly or in a multi-unit battery.
- Certified to CSA Flame, CSA Star & NSF standards for commercial foodservice use.
Technical Specs
| Cooking surface | 12" × 24-7/8" (305 × 631 mm) |
|---|---|
| Plate thickness | 1" (25 mm) polished steel |
| Control type | Manual hi-lo valve |
| Burner rating | 30,000 BTU/h (Natural or Propane) |
| Gas inlet | 1-1/4" NPT (front manifold) |
| Minimum supply pressure | 7" W.C. Nat | 11" W.C. LP |
| Operating manifold pressure | 6" W.C. Nat | 10" W.C. LP |
| Overall width | 12" (305 mm) |
| Overall depth | 39-3/8" (1,001 mm) |
| Height (cook surface) | 30-1/4" (769 mm) |
| Height w/ legs | 36-1/4" (921 mm) |
| Shipping weight | ≈ 190 lb (86 kg) |
| Clearances to combustibles | Sides 10" | Back 6" |
| Certifications | CSA Flame • CSA Star • NSF |
Popular Accessories (Sold Separately)
- Single or double deck high shelf / riser
- Stainless steel door kit for enclosed storage base
- 5" or 6" swivel casters with front brakes
- Rear gas connection kit & shut-off valves
Looking to build a full battery? Combine this 12" unit with any Garland Cuisine open-burner, hot-top or refrigerated base module to create the exact cookline your menu demands.
