Garland C12-1M Garland Cuisine Gas Ranges

Garland Cuisine Series™ 12" Add-A-Unit Gas Griddle – Manual

Slip powerful griddle performance into the tightest cook-line with the Garland Cuisine Series 12" Add-A-Unit. Built for heavy-duty, high-volume kitchens, this modular section delivers an even, blistering sear from a single 30,000 BTU burner while sharing a common gas manifold with the rest of your Cuisine Series battery. Its 1" thick steel plate locks in heat, the 7" stainless backguard keeps splatter in check, and the hi-lo manual valve gives chefs instant, intuitive control.

Why you’ll love it

• Space-saving 12" (305 mm) width slides effortlessly into any Cuisine Series battery or stand-alone line-up.

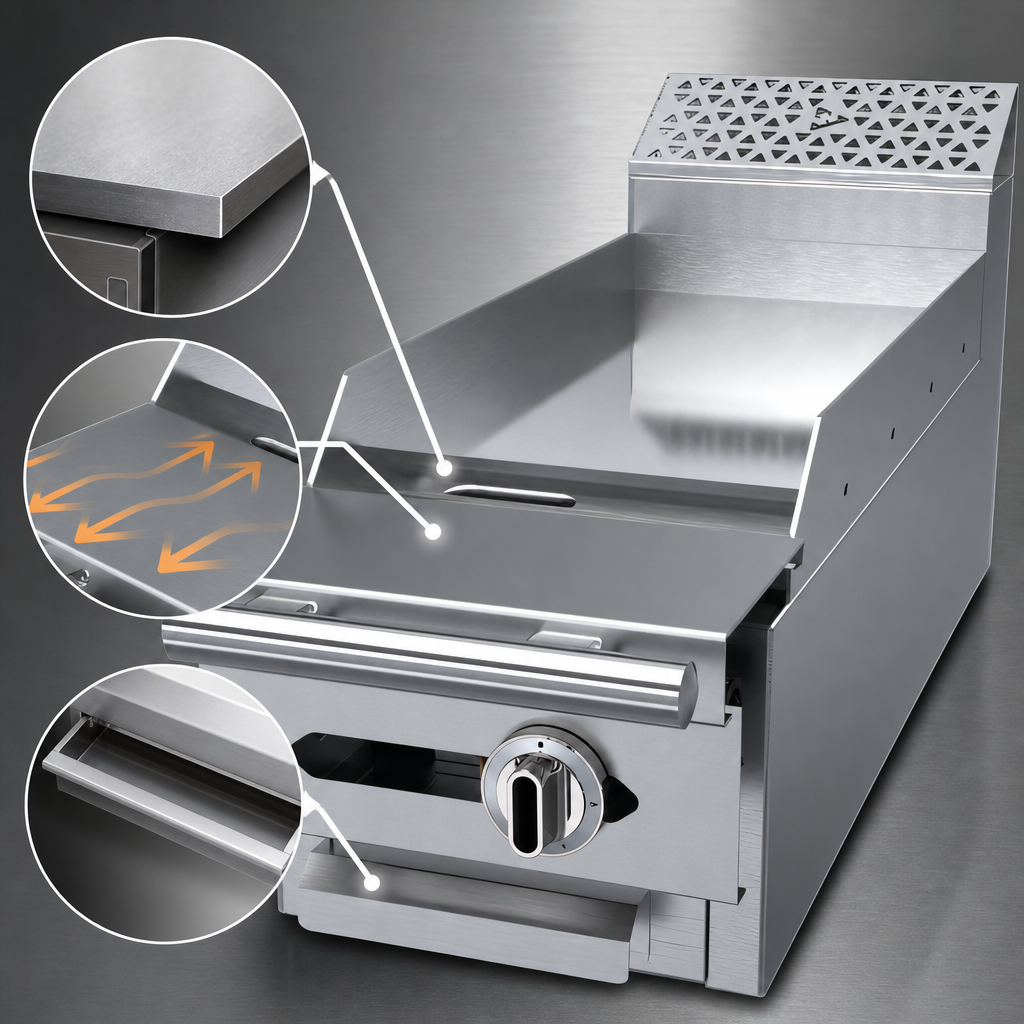

• 1" (25 mm) polished steel plate delivers outstanding heat retention for consistent caramelization and faster recovery.
• High-output 30,000 BTU cast-iron “U” burner blankets the plate with even heat.

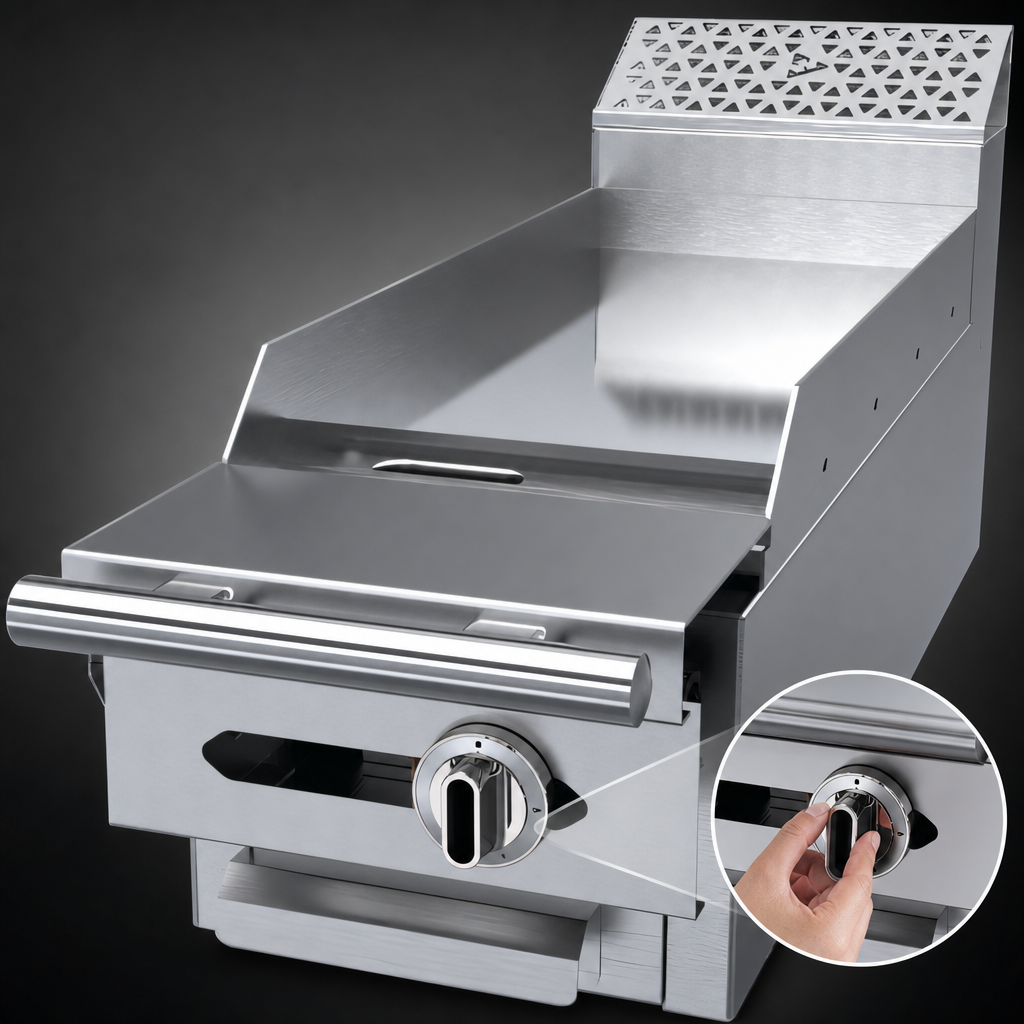

• Simple hi-lo valve control lets cooks rocket from holding to searing temperatures (approx. 320 °F – 730 °F).
• Wide 3" (76 mm) grease trough channels runoff to the front for quick, mess-free clean-up.
• 7" (178 mm) stainless stub backguard protects the wall and mates flush with adjoining Garland equipment.
• Rugged stainless steel front, sides, plate rail & burner box stand up to daily abuse and wipe down fast.
• Front 1-1/4" NPT gas manifold lets you connect, disconnect or extend a battery without pulling the line out from the wall.
• Fully certified for commercial kitchens – CSA Flame, CSA Star & NSF.

Perfect for

• Short-order stations & diners needing an extra sear zone
• Hotel & banquet lines where modular flexibility is critical
• Food trucks or concession trailers that demand heavy-duty muscle in minimal space

Technical specifications

Commercial installation only – not approved for residential use.
