Garland C12-15S Garland Cuisine Gas Ranges
Garland C12-15S Garland Cuisine Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland C12-15S Garland Cuisine Gas Ranges
Description

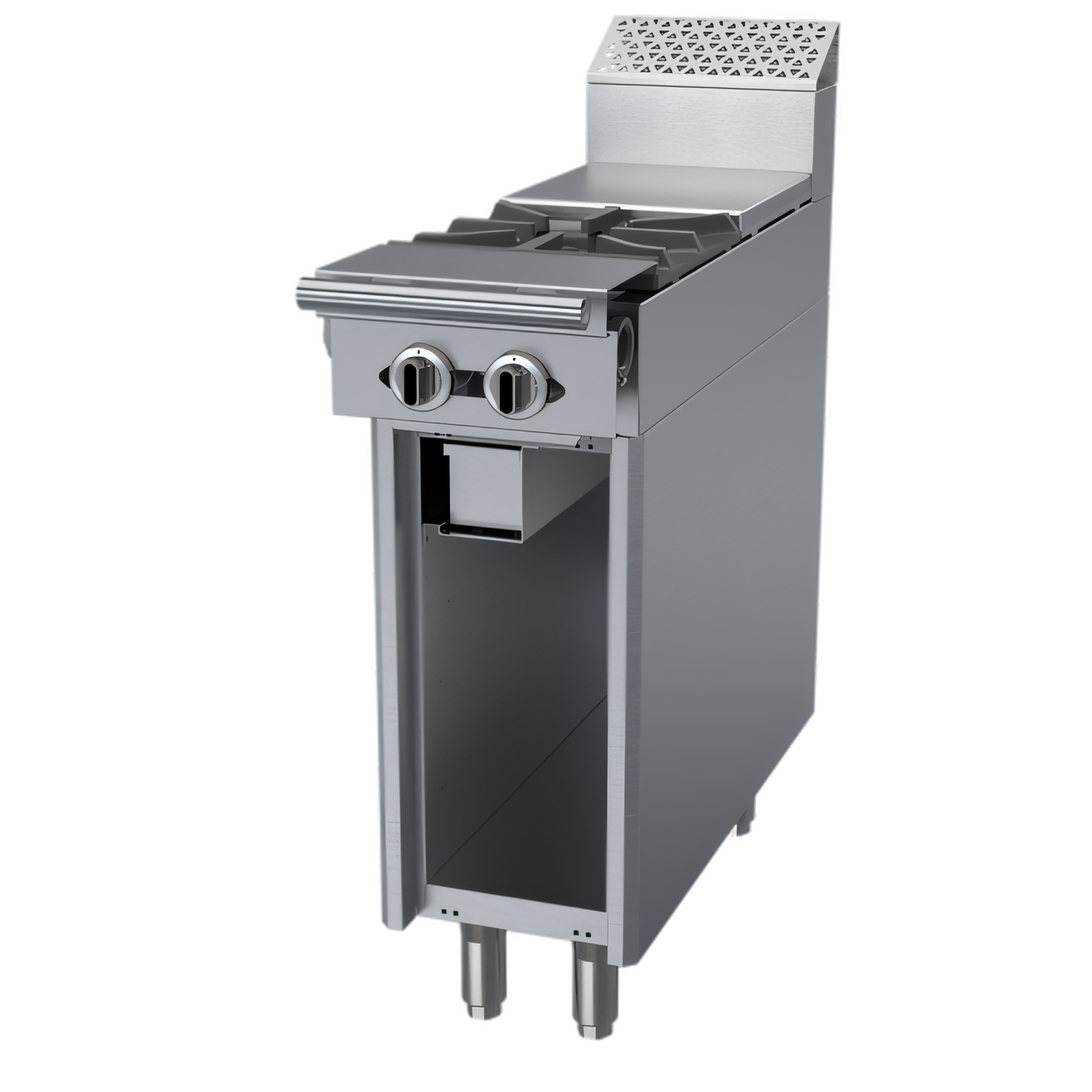

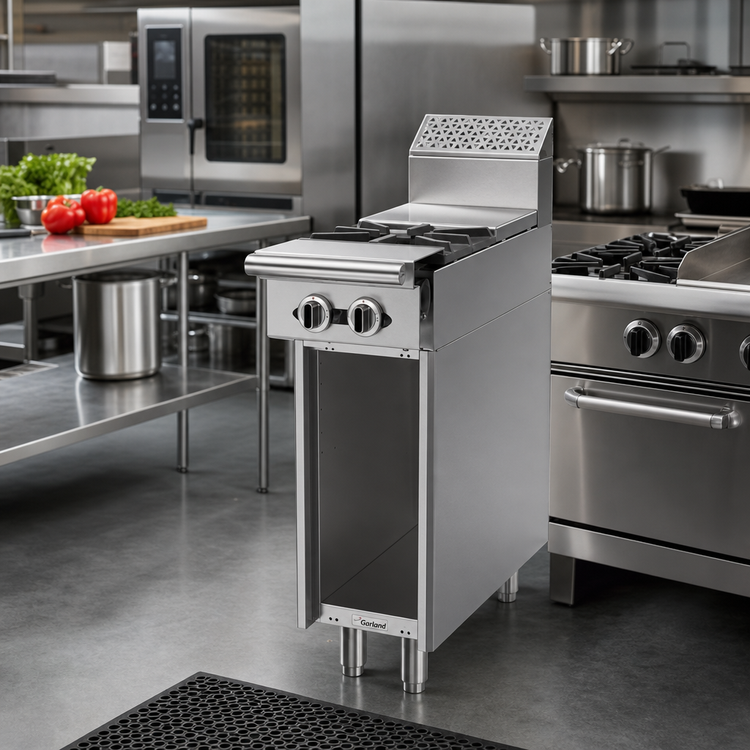

Garland Cuisine Series 12" Heavy-Duty Add-A-Unit – Modular Hot Top & Open Burner
Model C12-15M | 50,000 BTU total outputBuild the exact cookline you need—one powerful 12-inch section at a time. The Garland Cuisine C12-15M slots seamlessly into any Cuisine Series battery, delivering a blazing 35,000 BTU Starfire™ open burner up front and a gentle-simmer 15,000 BTU hot-top at the rear. Rugged stainless-steel construction, modular flexibility and industry-leading certifications make it a space-saving powerhouse for demanding commercial kitchens.
Key Features
- Compact 12" (305 mm) width—perfect for custom cookline layouts and Add-A-Unit batteries.

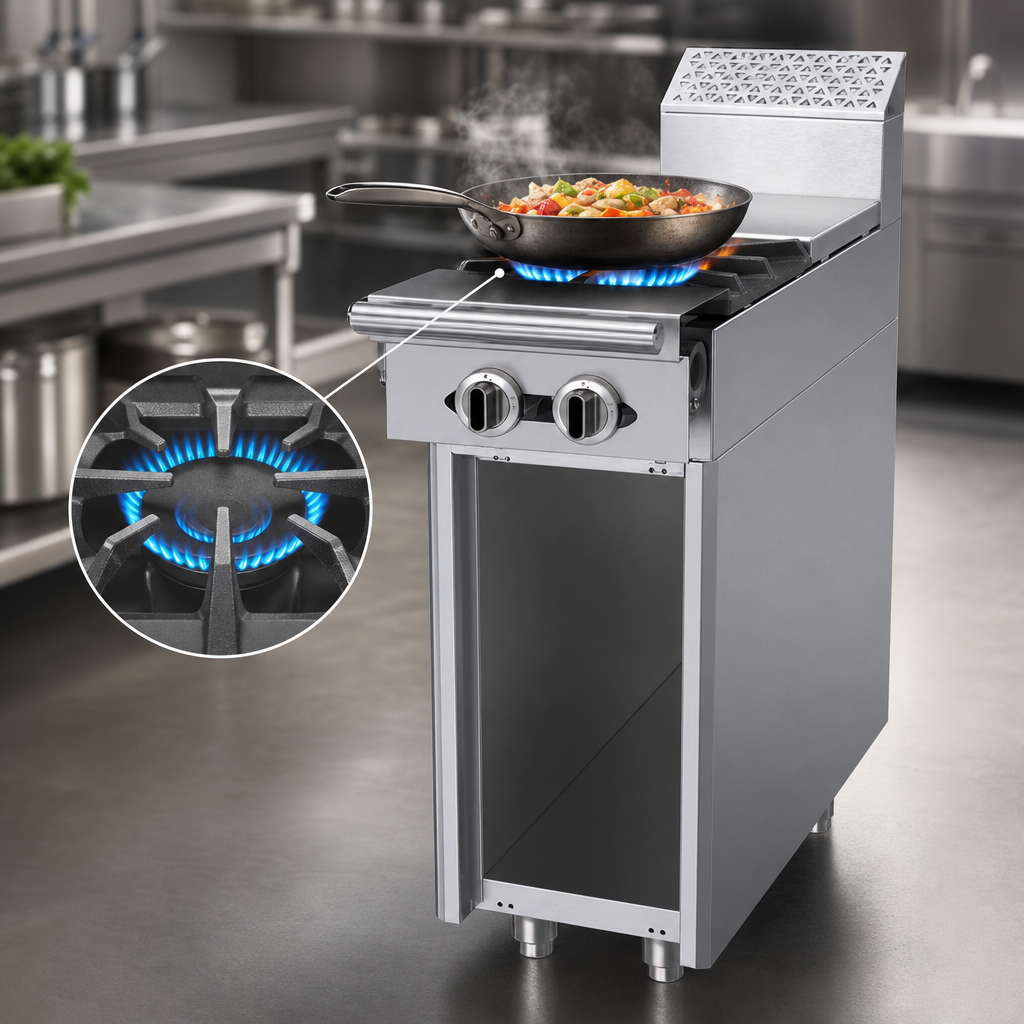

- Front Starfire™ open burner cranks out 35,000 BTU for rapid boil & high-heat searing.

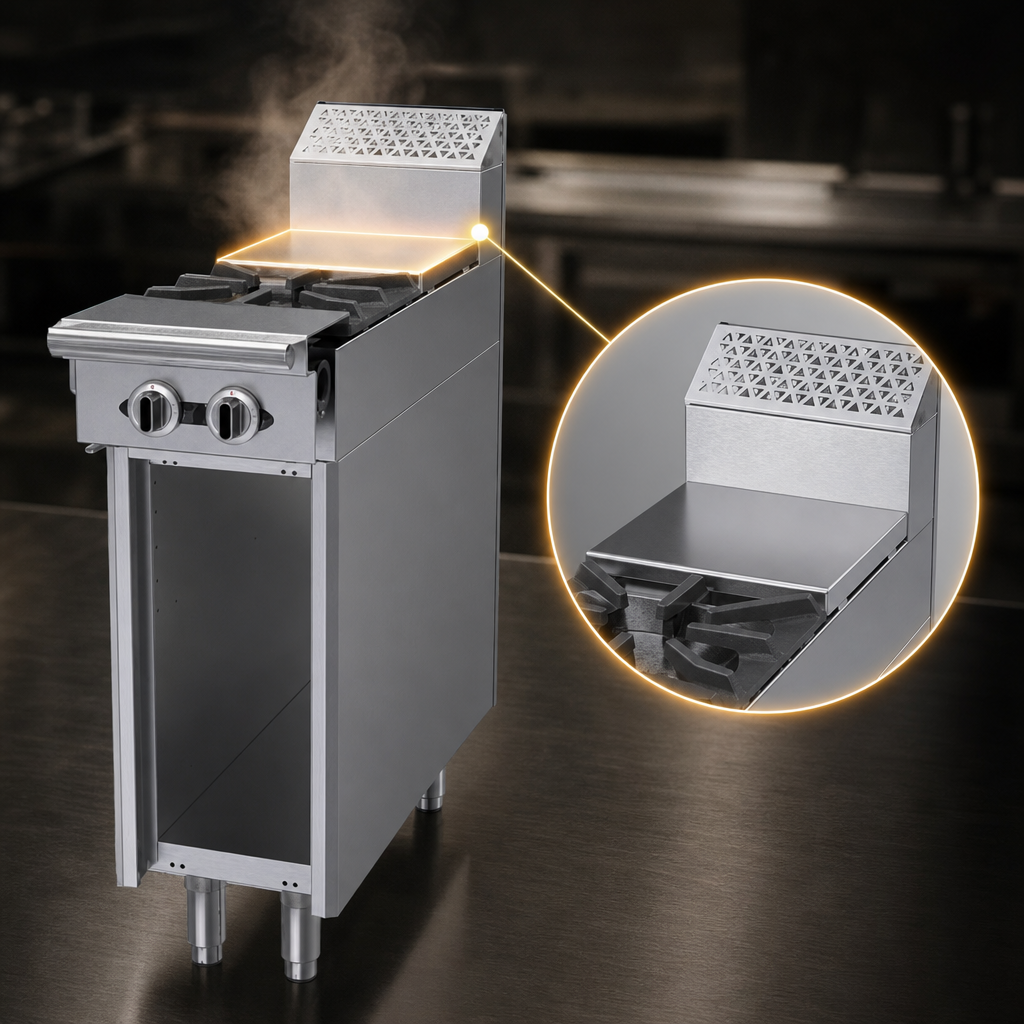

- Rear 12" hot-top delivers 15,000 BTU of even heat—ideal for sauces, stocks & holding.
- Hi-lo valve controls give precise flame adjustment on both sections.
- 7" (178 mm) stainless steel stub backguard helps contain heat & splatter.
- All-stainless front, sides, continuous plate rail and burner box for maximum durability and easy wipe-down cleaning.
- Open cabinet base provides convenient under-counter storage and easy access for utilities.
- 6" (152 mm) adjustable stainless legs level the unit and raise the body for floor-mopping clearance.
- 1-1/4" NPT front gas manifold simplifies connection to other Garland Cuisine modules.
- Field convertible for Natural Gas or Propane (qualified technician required).
- CSA Flame, CSA Star and NSF listed for peace-of-mind compliance.
Performance & Utility
| Gas type | Natural or Propane |
|---|---|
| Total input | 50,000 BTU/h (Natural) | 48,000 BTU/h (Propane) |
| Front open burner | 35,000 BTU/h |
| Rear hot-top | 15,000 BTU/h |
| Manifold pressure | 6" WC (Natural) | 10" WC (Propane) |
| Minimum supply pressure | 7" WC (Natural) | 11" WC (Propane) |
| Gas connection | 1-1/4" NPT front manifold |
Dimensions
| Overall width | 12" / 305 mm |
|---|---|
| Overall depth | 32" / 813 mm top depth + 7" stub back (39-3/8" / 1001 mm max) |
| Cooking-surface height | 30-1/4" / 769 mm |
| Height with 6" legs | 36-1/4" / 921 mm |
| Shipping weight | ≈ 207 lb / 94 kg |
Options & Accessories (sold separately)
- Single or double-deck high-shelf / back riser
- Full-height modular stand with legs or casters
- Intermediate & cabinet base shelves or stainless doors
- Quick-disconnect gas flex hose kits (¾", 1", 1-¼")
- Swivel or flanged casters (requires approved restraining device)
- Continuous plate rails for 48"–72" battery runs
Garland Cuisine Series equipment is engineered for commercial use only and is not intended for residential installations.
