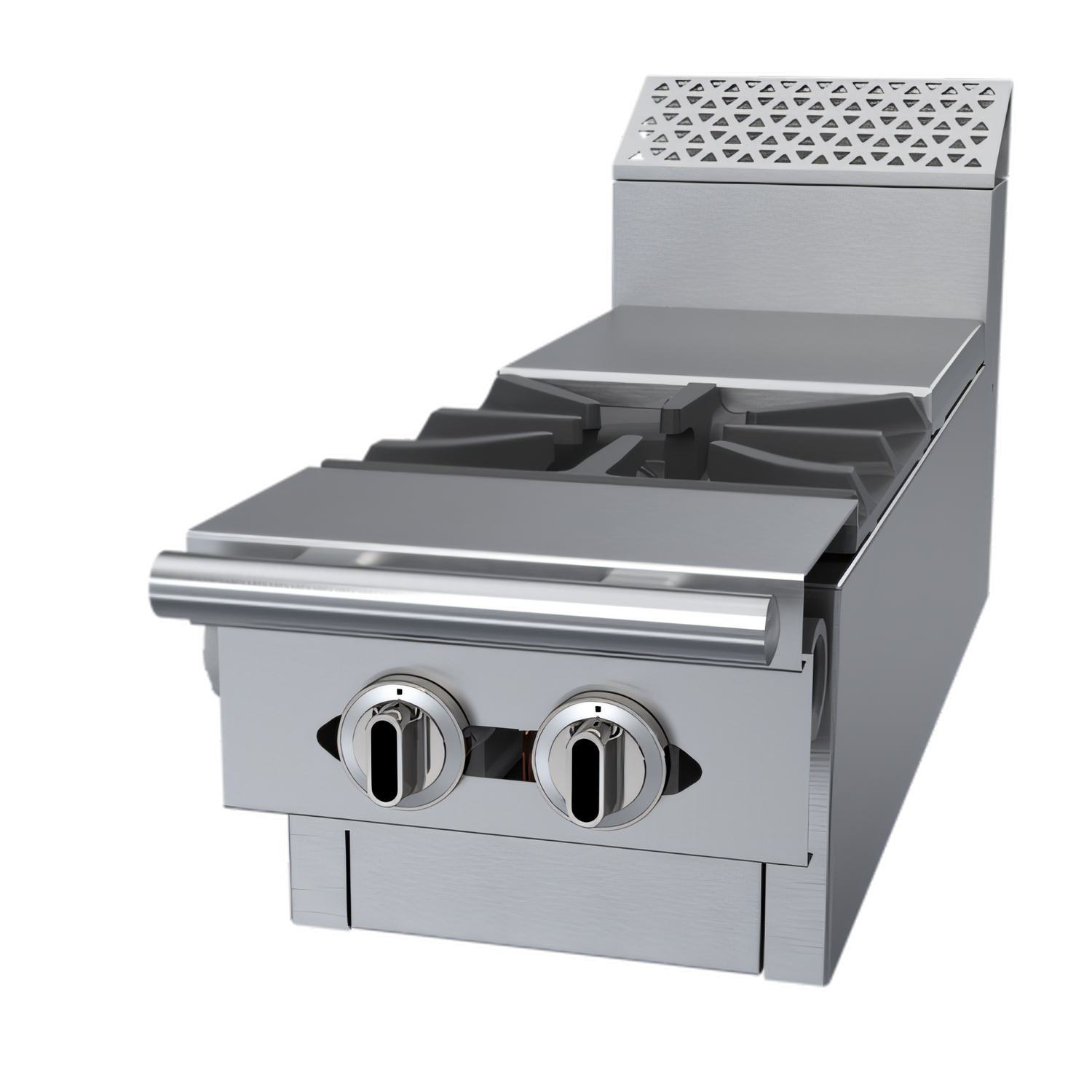

Garland Cuisine Series 12-Inch Modular Gas French Top Add-A-Unit with Open Burner and Hot Top

Heavy-Duty, Modular Top, 50,000 BTU Total

This compact 12-inch modular add-a-unit combines a high-output open burner and hot top in a durable stainless steel design for flexible commercial cooking.

  • 12-inch modular French top add-a-unit with one 35,000 BTU open burner and one 15,000 BTU hot top
  • 50,000 BTU total input on natural gas; 48,000 BTU total on propane
  • Hi-lo valve burner control and removable lids/rings help operators manage heat and clean up quickly
  • Stainless steel front, sides, front rail, and burner box for heavy-duty durability
  • 1-1/4" NPT front gas manifold supports front gas connection
  • Can be installed individually or in a battery, and the modular unit can mount on a Polar Cuisine refrigerated base

Overall Dimensions:

12.0"W x 39.38"D x 10.0"H

Product Weight:

207.0 lb

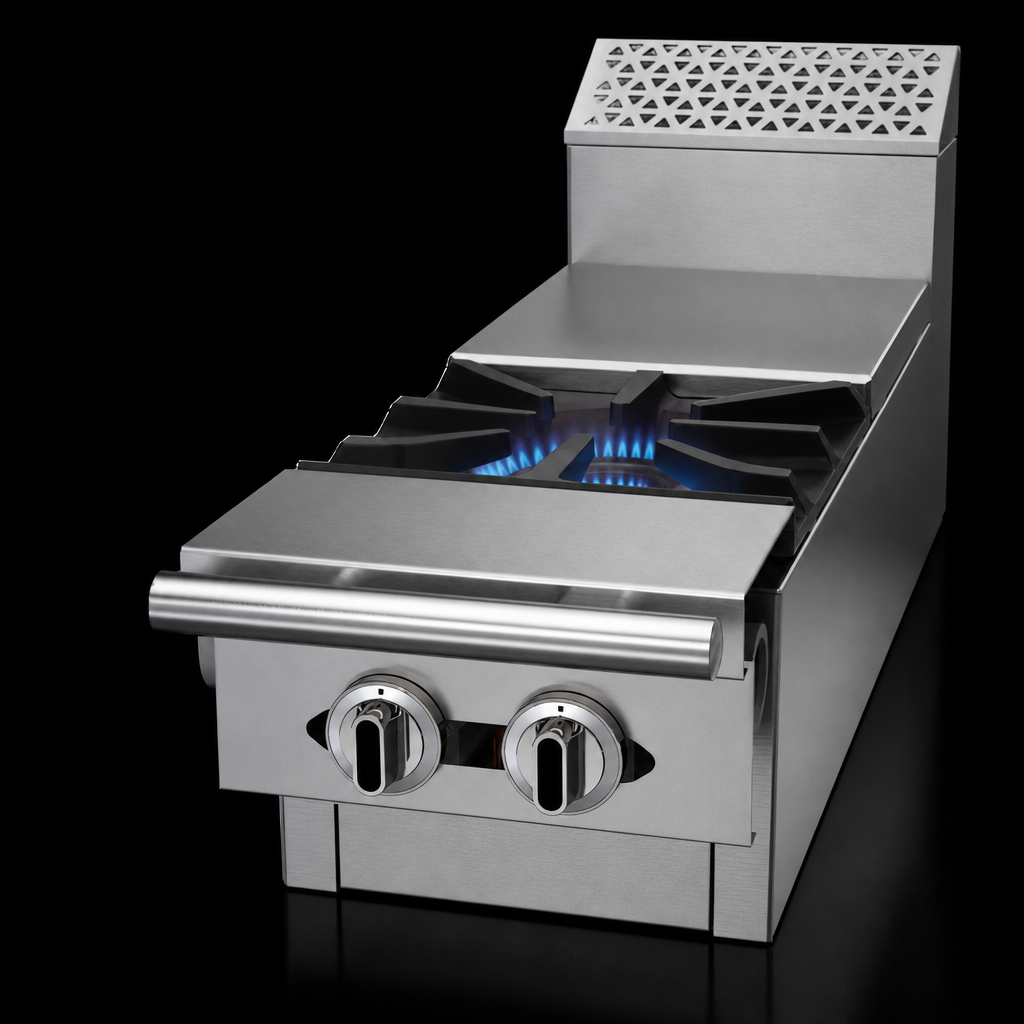

Open Burner

One 35,000 BTU/h open burner provides high-output heat for fast cooking.

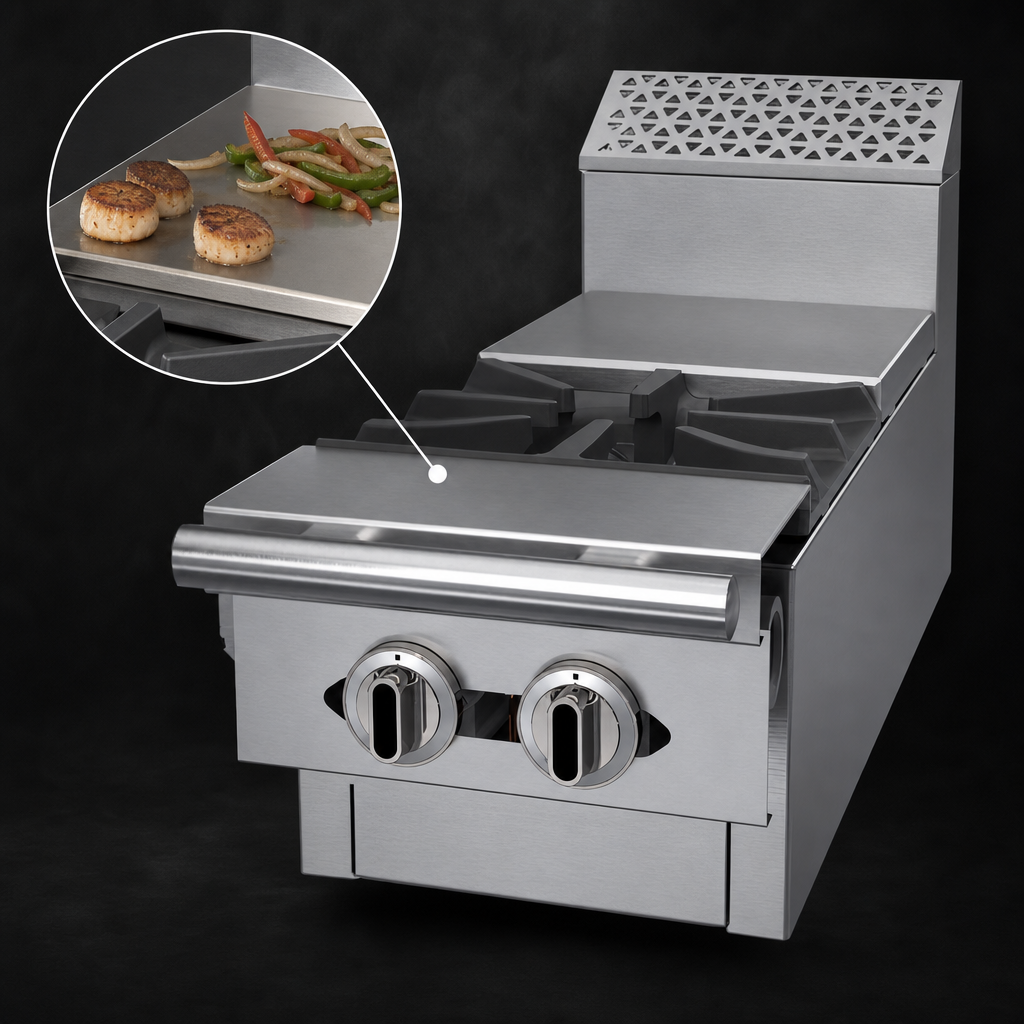

Hot Top Section

One 15,000 BTU/h 12-inch hot top adds a versatile heated surface.

French Top Configuration

Compact 12-inch add-a-unit layout combines open-burner and hot-top cooking in a single module.

Hi-Lo Valve Control

Adjustable burner control helps dial in heat levels for different cooking tasks.

Removable Lids and Rings

Removable components support easier cleaning and maintenance.

Stainless Steel Construction

Stainless steel front, sides, front rail, and burner box support durability and easy cleaning.

Front Gas Manifold

1-1/4-inch NPT front gas manifold simplifies gas connection.

Flexible Installation

Can be installed individually or in a battery; modular unit can mount on a Polar Cuisine refrigerated base.

Adjustable Legs and Stub Back

Includes 6-inch stainless steel adjustable legs and a 7-inch stainless steel stub back for installation support.

Type Add-A-Unit
Style Modular Top
Controls Hi-Lo Valve
Material Stainless Steel
Finish Stainless Steel
BTU 50,000 BTU/h
Gas Connection Size 1-1/4 Inches NPT
Gas Inlet Pressure 7 Inches W.C. Natural Gas / 11 Inches W.C. Propane
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Garland cuisine models guide PDF Download PDF Check list PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It includes one 35,000 BTU/h open burner and one 15,000 BTU/h hot top section.
Yes. The unit is designed for natural gas or propane; specify the fuel type when ordering.
The total input is 50,000 BTU/h on natural gas and 48,000 BTU/h on propane.
Yes. The modular unit can be installed individually or in a battery, and it can mount on a Polar Cuisine refrigerated base.
It uses a 1-1/4-inch NPT front gas manifold.
Allow 10 inches at the sides and 6 inches at the back.
