Garland

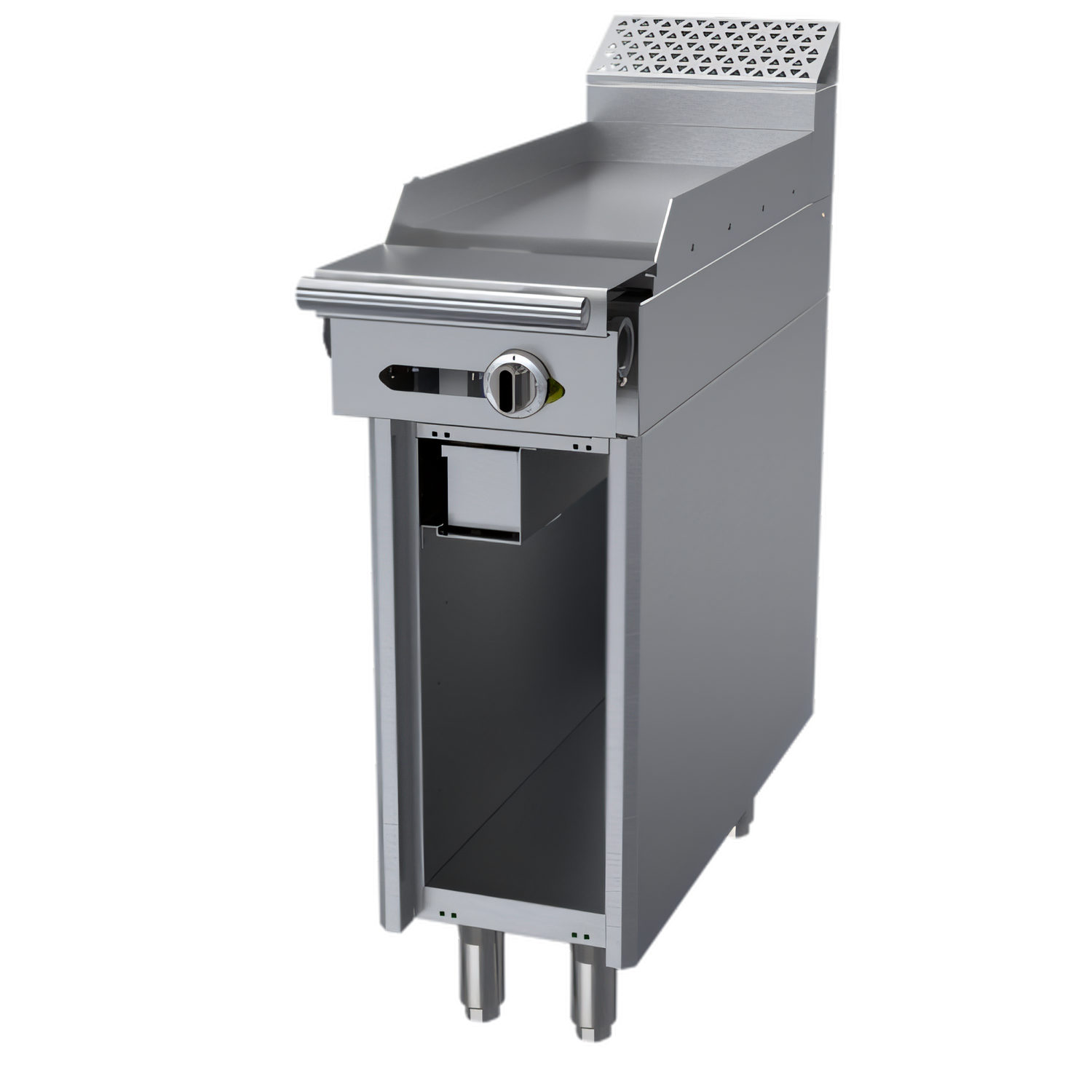

Garland Cuisine Series Heavy-Duty 12-Inch Gas Thermostatic Griddle Add-A-Unit Range with Open Cabinet Base

SKU: C12-1-1S
$3,433.05
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Garland Gas Ranges New Arrivals Ranges Restaurant Equipment

Garland Cuisine Series Heavy-Duty 12-Inch Gas Thermostatic Griddle Add-A-Unit Range with Open Cabinet Base

1-Inch Steel Plate, 30,000 BTU, 7-Inch Backguard, Stainless Steel Finish

A compact, battery-ready griddle section that combines precise thermostatic control with heavy-duty stainless steel construction.

  • 12-inch add-a-unit griddle is ideal for compact commercial line configurations.
  • Thermostatic control helps maintain consistent cooking temperatures up to 450°F.
  • 1-inch steel plate and 30,000 BTU burner support strong heat retention and recovery.
  • Stainless steel front, sides, rail, and burner box are built for demanding kitchen use.
  • Open cabinet base provides underunit storage, while adjustable legs help with leveling.
  • 7-inch stainless steel backguard helps contain heat and splatter.

Overall Dimensions:

12.0"W x 37.88"D x 42.0"H

Product Weight:

190.0 lb

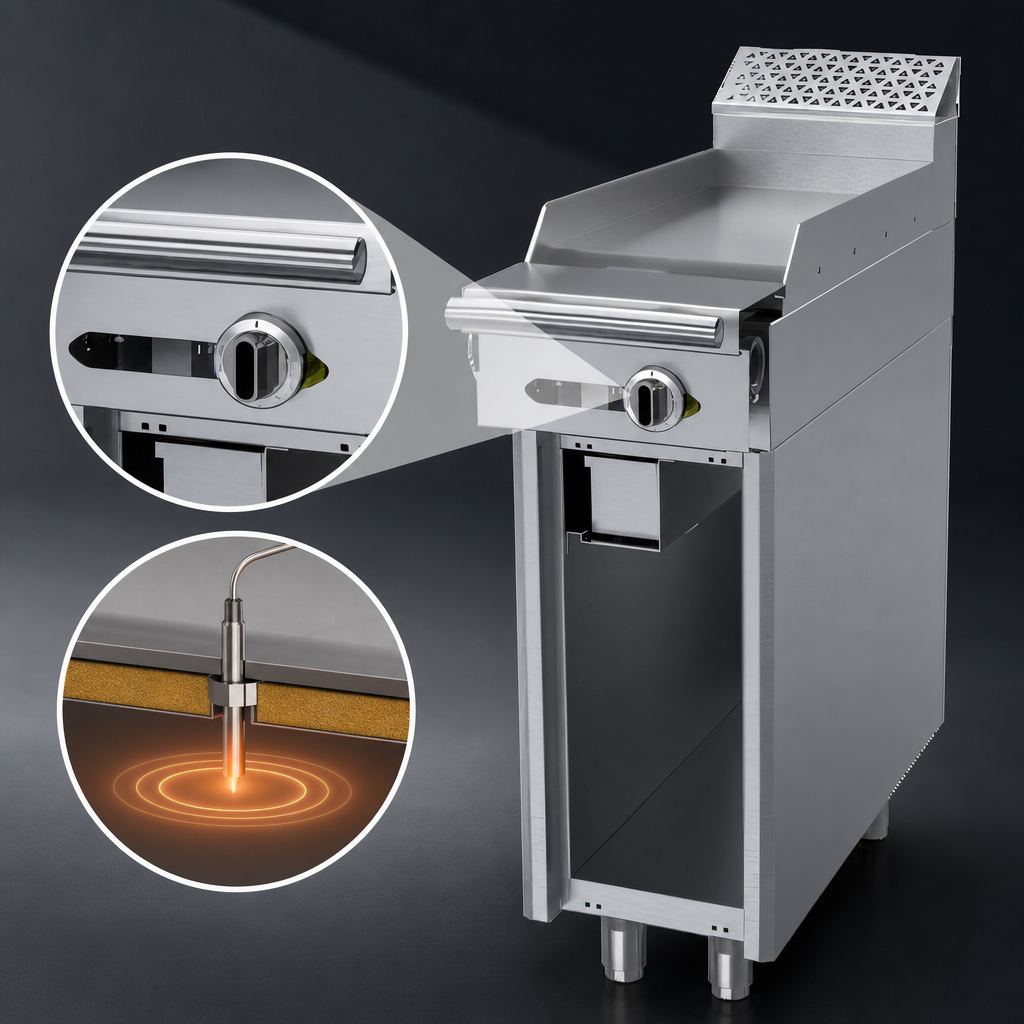

Thermostatic Griddle Control

Embedded thermostat sensor bulb provides precise temperature control from low to 450°F.

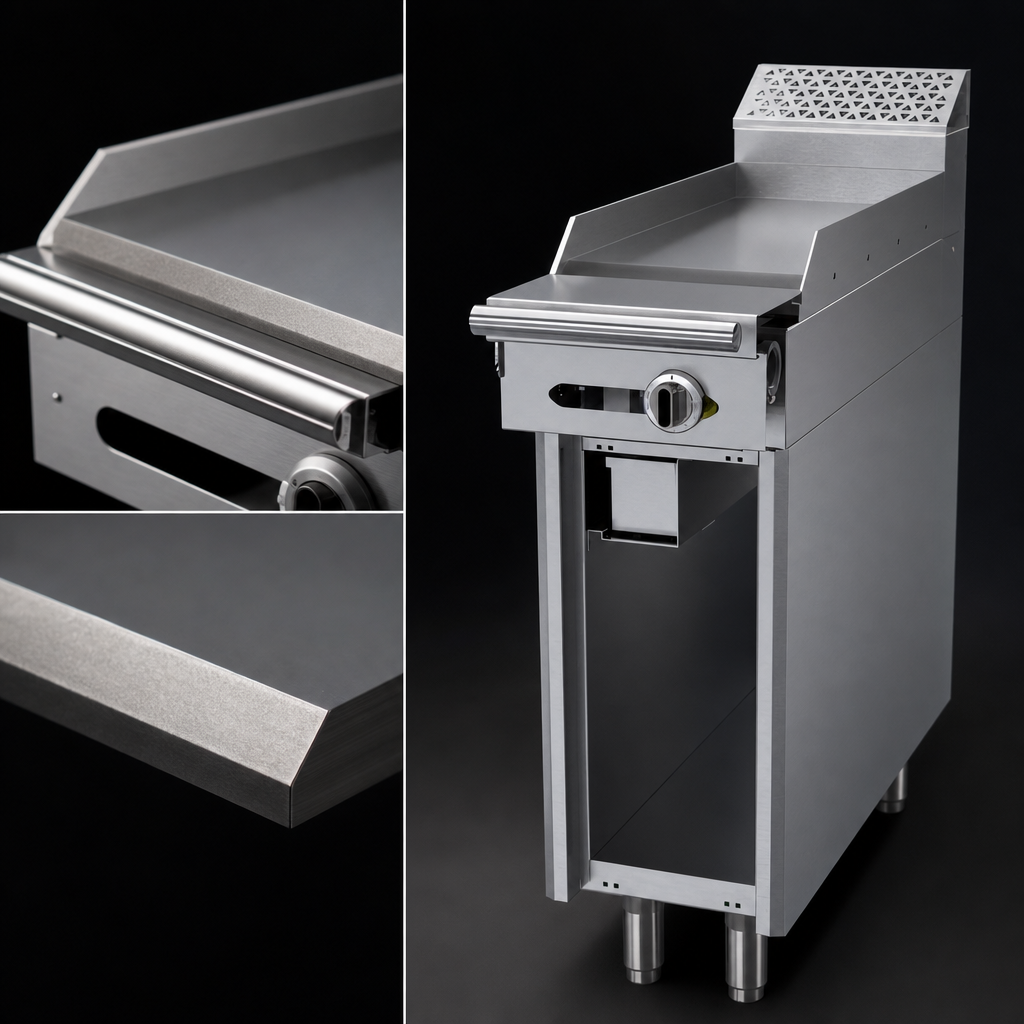

1-Inch Steel Griddle Plate

Thick steel plate helps retain heat and promotes even cooking across the 12-inch section.

30,000 BTU Burner

Single high-output burner delivers fast heat recovery for steady service.

Stainless Steel Construction

Stainless steel front, sides, front rail, and burner box improve durability and simplify cleaning.

Open Cabinet Base

Cabinet-style base offers open storage space beneath the cooking surface.

7-Inch Stainless Backguard

Stub backguard helps protect the wall area behind the unit and helps contain splatter.

6-Inch Adjustable Legs

Adjustable stainless steel legs help level the unit during installation.

Battery-Ready Design

Unit can be connected individually or as part of a battery setup using the front gas manifold.

Type Add-A-Unit
Style Griddle
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Controls Thermostatic
Temperature Range Low To 450°F (232°C)
BTU 30,000 BTU
Gas Connection Size 1 1/4 Inches NPT
Gas Inlet Pressure 7 Inches W.C. Natural Gas / 11 Inches W.C. Propane
Selling Unit Each
Units Per Case 1
Shipping Width 12 Inches
Shipping Depth 38 Inches
Shipping Height 42 Inches
Shipping Weight 190 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Garland cuisine models guide PDF Download PDF Owner's manual PDF Download PDF Check list PDF Download PDF Brochure PDF Download

Frequently Asked Questions

This model uses thermostatic control with an embedded thermostat sensor bulb.
The griddle has a 1-inch thick steel plate.
The burner is rated at 30,000 BTU/h.
Yes. It can be connected individually or in a battery.
It can be used with natural gas or propane. Specify the gas type when ordering.
