Garland C12-1-1M Garland Cuisine Gas Ranges
Description

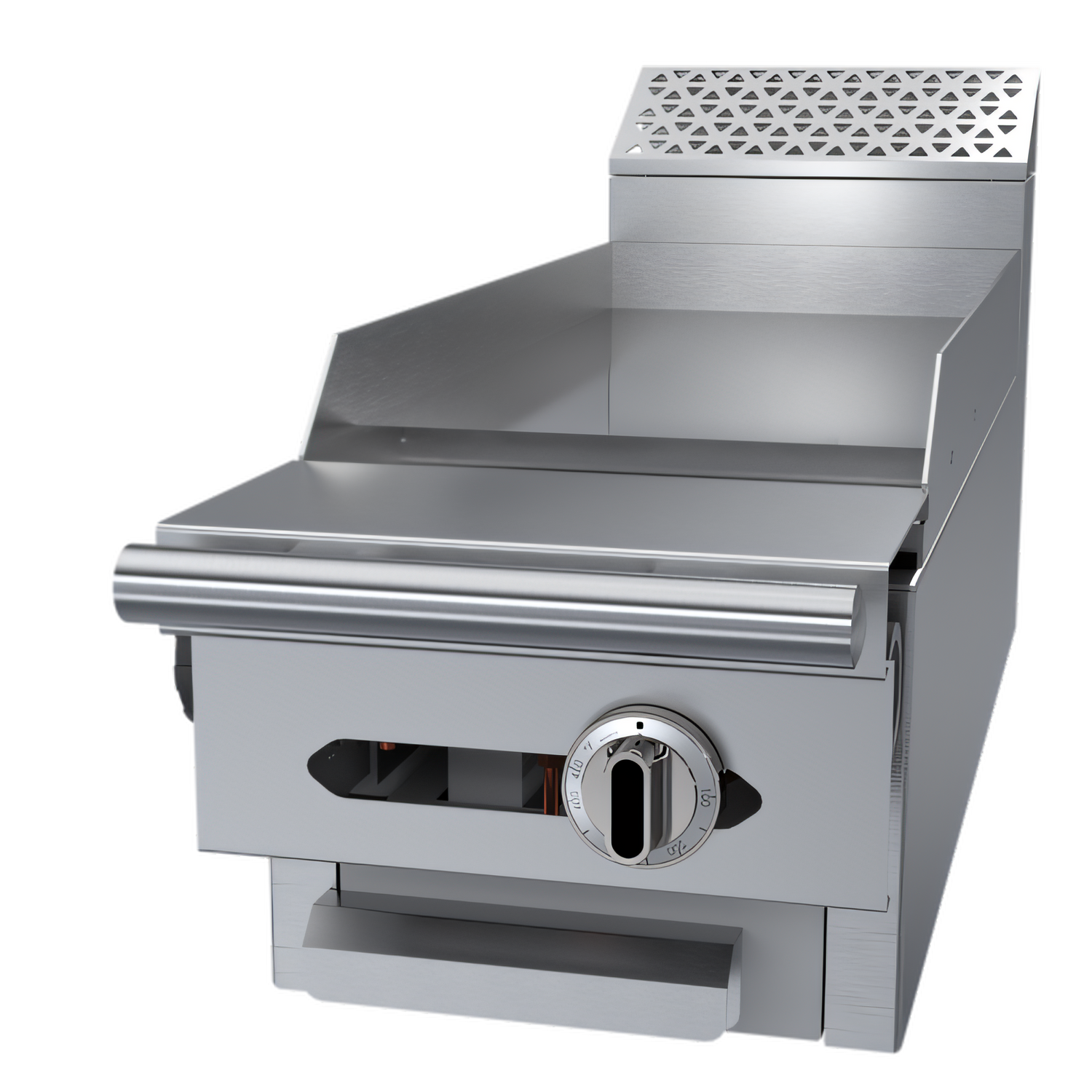

Garland Cuisine Series 12" Heavy-Duty Gas Griddle Add-A-Unit
Model C12-1-1M | Thermostatic Control | 30,000 BTU/hDrop precision griddling into the tightest spot on your cookline. The 12" Garland Cuisine Add-A-Unit delivers 30,000 BTU/h of even heat through a full-inch thick steel plate, all governed by an embedded thermostat that keeps surface temperatures locked in from low-simmer to 450 °F (232 °C). Battery it with other Cuisine modules or mount it on a refrigerated base—either way you gain heavy-duty performance without sacrificing valuable line space.
Key Features

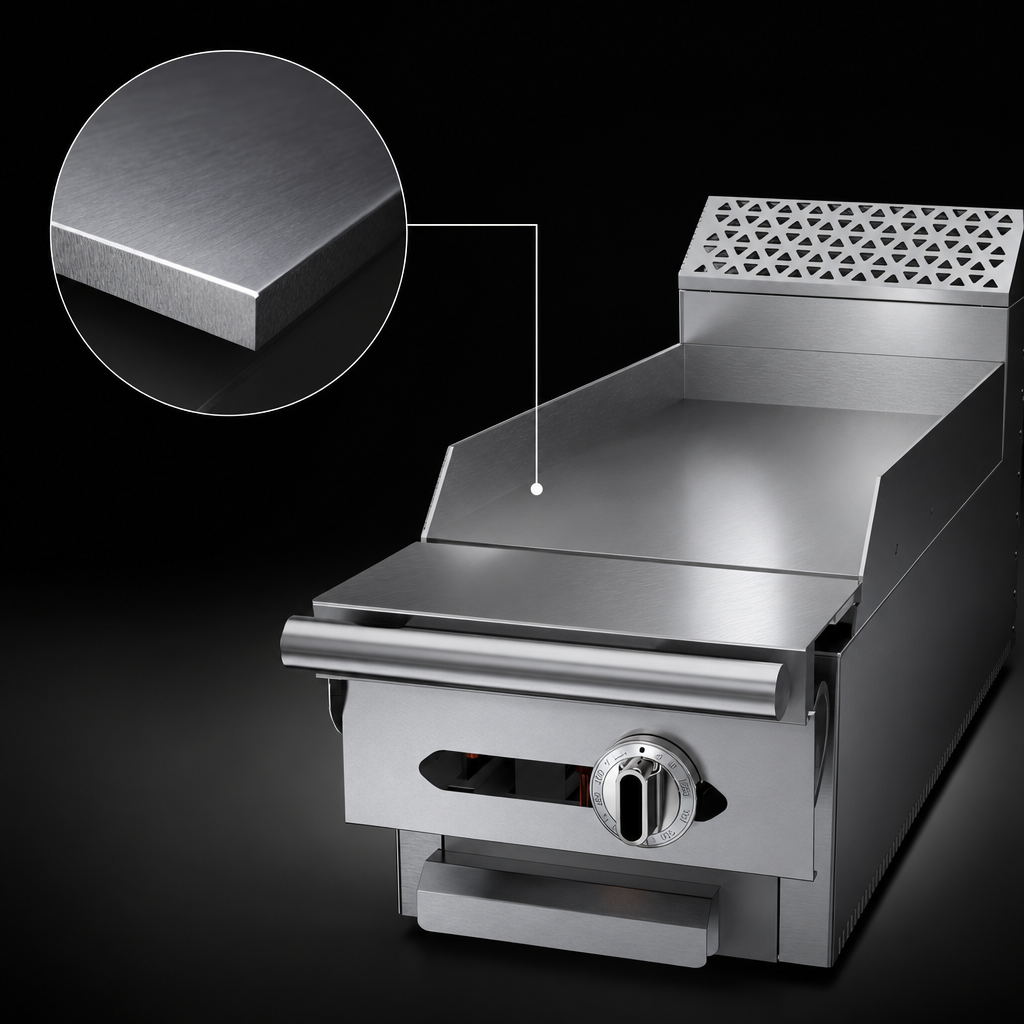

- 1" (25 mm) thick polished steel griddle plate for superior heat retention and fast recovery.

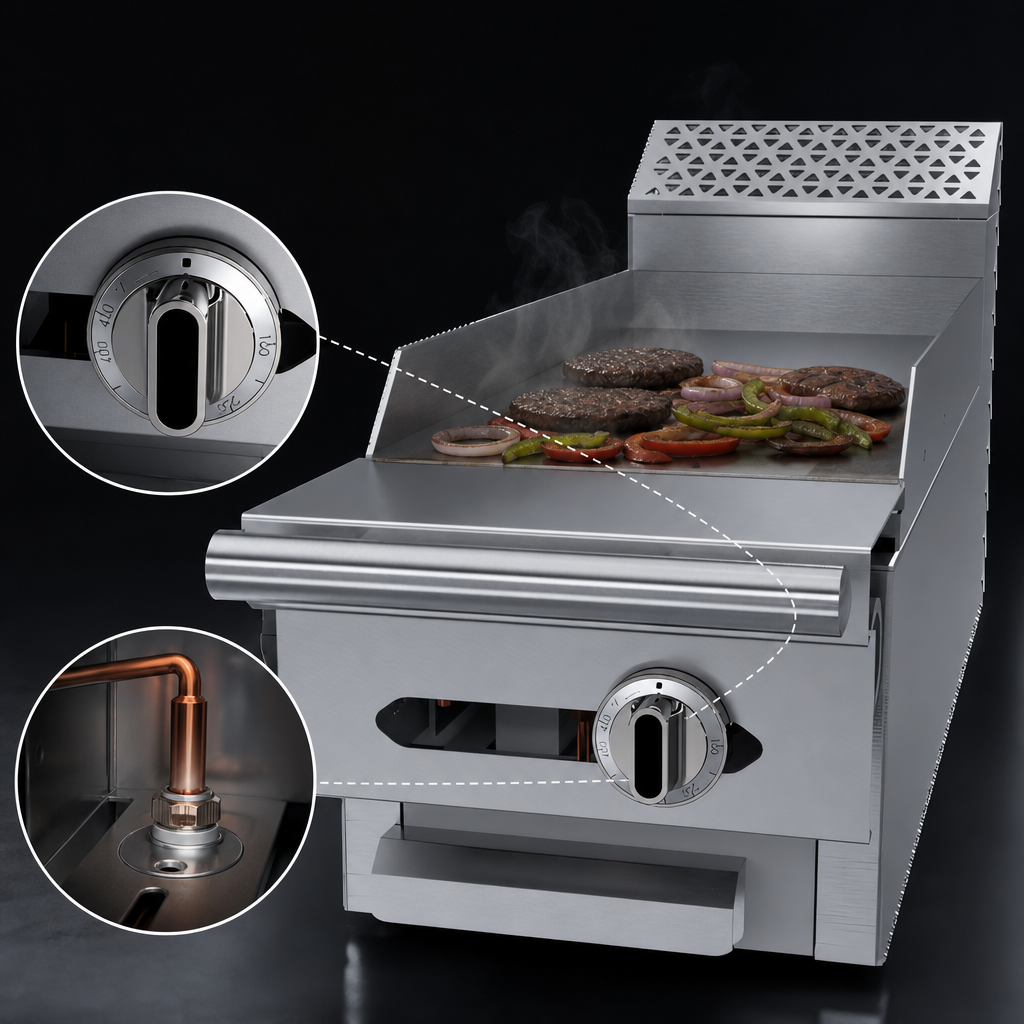

- Embedded thermostat sensor maintains LOW–450 °F (232 °C) surface accuracy for repeatable results.
- Wide 3" (76 mm) front grease trough channels runoff into a removable stainless collection drawer for quick clean-ups.
- 7" (178 mm) stainless steel stub backguard protects walls and adjacent equipment from splatter.
- Rugged stainless steel front, sides, plate rail and burner box stand up to daily commercial abuse.
- Front-mounted 1 ¼" NPT gas manifold – connect as a single unit or in a full Cuisine battery.
- Low-profile modular design (≈10" high) integrates seamlessly on counters, stands or refrigerated bases.
- Certified for commercial kitchens: CSA Flame, CSA Star, NSF.
Technical Specifications
| Cooking surface | 12" W x 24 ⅞" D (305 mm × ≈631 mm) 1" thick steel |
|---|---|
| Control type | Thermostatic, embedded bulb sensor |
| Temperature range | LOW to 450 °F (232 °C) |
| Burner rating | 30,000 BTU/h (Natural or Propane) |
| Gas connection | 1 ¼" NPT front manifold |
| Overall dimensions (modular) | 12" W × 39 ⅜" D × ≈10" H (305 × 1001 × 254 mm) |
| Backguard height | 7" (178 mm) stainless stub |
| Clearances to combustibles | 10" (254 mm) sides | 6" (152 mm) rear |
| Shipping weight | 190 lb (86 kg) |
| Listings | CSA Flame, CSA Star, NSF |
Popular Accessories (sold separately)
- Single or double-deck high shelves / back risers
- Full-height equipment stand with casters or adjustable feet
- Stainless cabinet base with door & intermediate shelf
- Quick-disconnect gas hose kits (¾", 1", 1 ¼")
- Continuous plate rail for multi-unit batteries
- Extension rail for 1/9 condiment pans
Garland products are engineered for commercial use only. Residential installation voids all warranty and service support.
