Garland 36ES16 36E Series Electric Ranges
Description

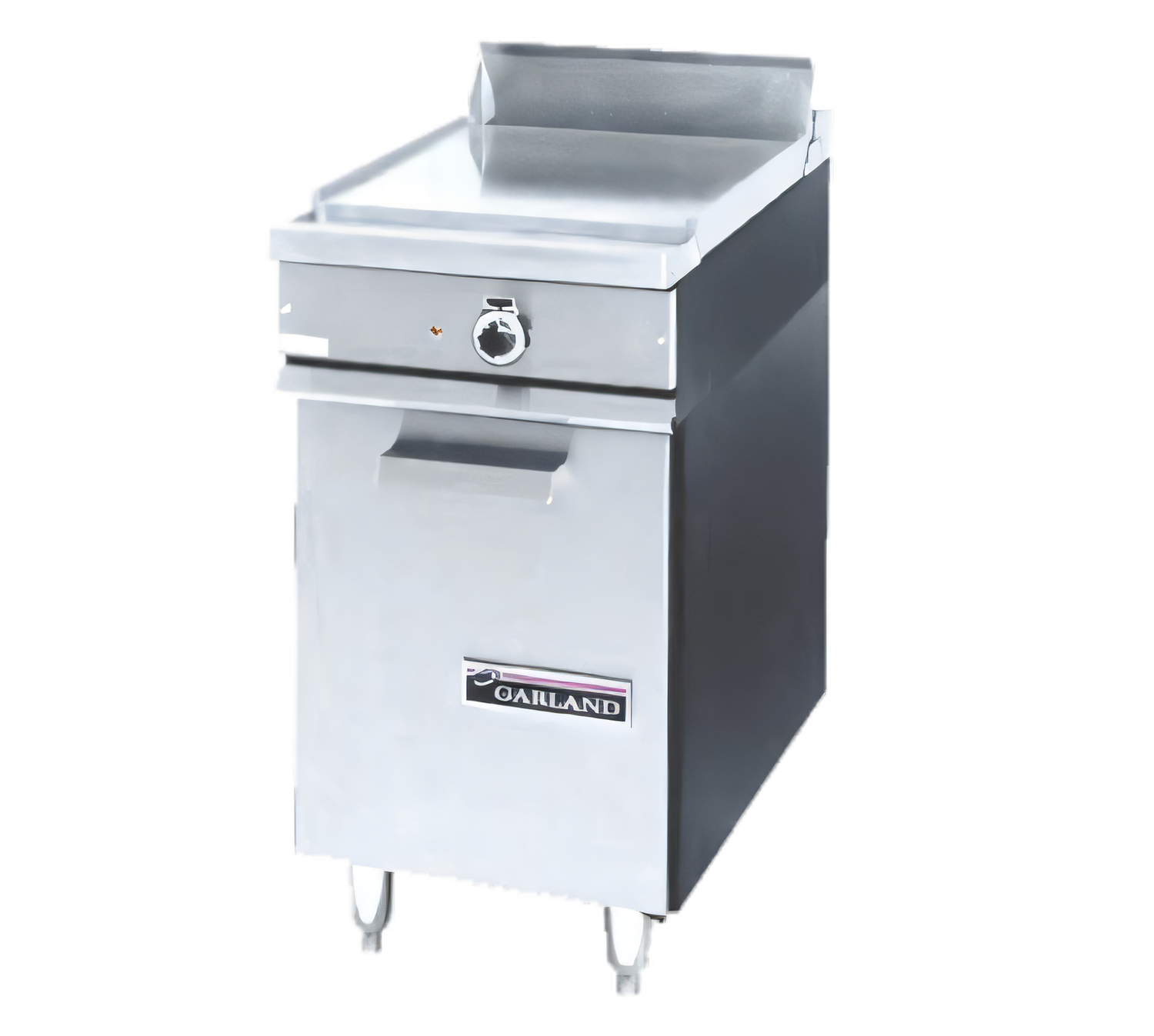

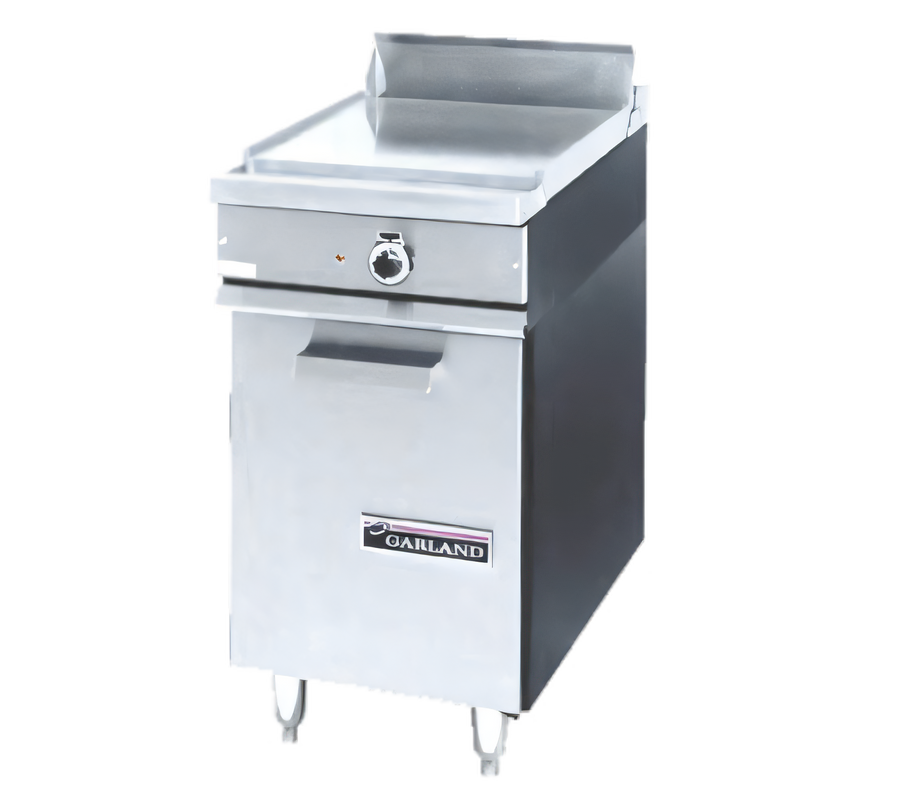

Garland 36E Series Heavy Duty Range Attachment – 18" All-Purpose Plate (Model 36ES16)
6 kW Electric Add-A-Unit with Storage Base & Thermostatic ControlsExpand your cookline without expanding your footprint. The Garland 36E Series 36ES16 slots seamlessly next to your existing equipment, delivering a powerful, precision-controlled 18" cooking surface and built-in storage—all wrapped in rugged stainless steel ready for the busiest commercial kitchens.
Key Features
- 18" (457 mm) all-purpose plate with ½" raised side lips for superior grease control
- Thermostatic range 290°–650 °F (143°–343 °C) for consistent, repeatable results
- 6 kW single-phase element delivers fast, even heat recovery
- Stainless steel front, sides, and full-width front rail for unmatched durability
- Integrated storage base with stainless steel door keeps pans and tools close at hand
- 3" (76 mm) vent riser safely channels heat and vapors away from the operator
- 6" (152 mm) adjustable chrome-plated legs—NSF-approved for easy cleaning underneath
- Certified cCSAus & NSF for safety and sanitation
- One-year limited parts & labor warranty (USA & Canada)
Why It Works for Your Operation
- Space-saving “Add-A-Unit” design grows with your menu—no remodel required
- Precision thermostatic control minimizes waste and maximizes food quality
- Heavy ½" plate recovers fast between batches—ideal for searing, sautéing or holding
- Low-maintenance stainless exterior streamlines end-of-shift cleanup
Specifications
| Model | 36ES16 (36E Series) |
|---|---|
| Cooking Surface | 18" (457 mm) all-purpose plate, ½" raised lips |
| Temperature Range | 290°–650 °F (143°–343 °C) |
| Total Power | 6 kW, single phase |
| Amperage Draw | 29 A @ 208 V | 25 A @ 240 V | 13 A @ 460 V (option) |
| Overall Dimensions (W × D × H) | 18" × 30" × 36" (457 mm × 762 mm × 914 mm) – without riser |
| Clearances to Combustibles | Sides 3" (76 mm) | Rear ½" (13 mm) |
| Shipping Weight | ≈ 255 lb (116 kg) |
| Certifications | cCSAus, NSF |
| Warranty | 1-year parts & labor (USA & Canada) |
Popular Options & Accessories
- Stainless steel main back panel
- Polyurethane non-marking swivel casters with front brakes
- 6" adjustable stainless steel legs
- High-voltage 460 V configuration
- Marine package – storm rails, hand rails, drip-tray stop, deck fasteners
Building a full battery? Pair this attachment with other Garland heavy-duty modules to create the perfect high-performance cookline.
