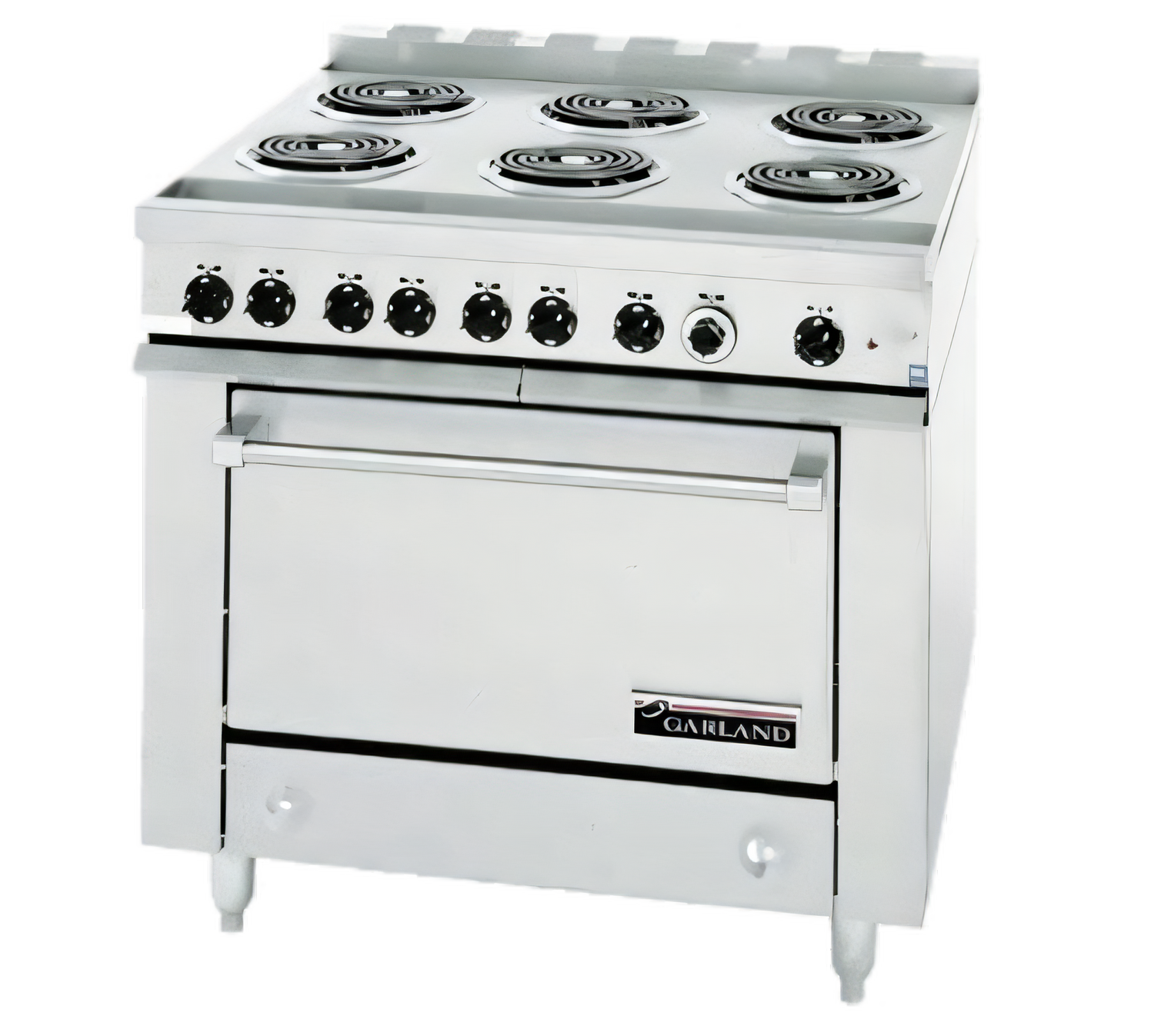

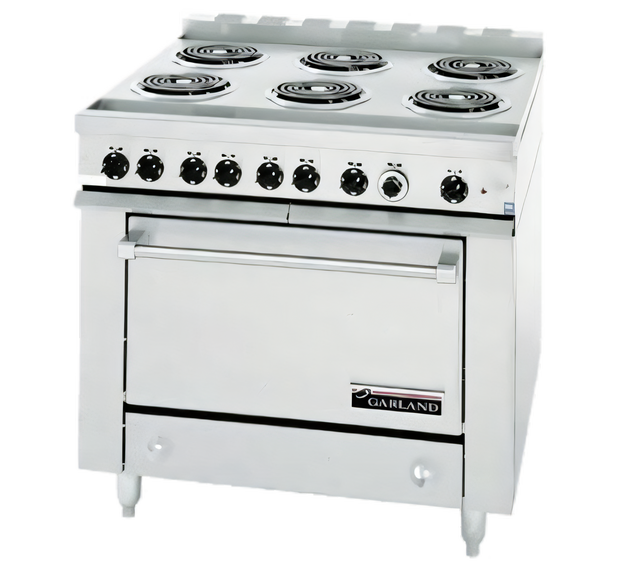

Garland 36ER33 – 36E Series Heavy-Duty 36" Electric Range
Six Open Coil Elements • Full-Size Oven • 19.1 kWEngineered for high-volume, all-day service, the Garland 36ER33 delivers uncompromising power and durability in a space-saving 36" footprint. Six rapid-response tubular elements give you instant, even heat, while the full-size oven brings dependable baking, roasting and finishing capacity to the line.
Standard Features & Benefits
- (6) heavy-duty tubular coil elements – each governed by a 3-heat switch for precise simmer-to-boil control.
- Full-size oven with electro-mechanical thermostat (150 °F – 500 °F) for consistent, even cooking results.
- Chrome-plated, 4-position rack guides with (1) oven rack included; guides lift out for easy cleaning.
- Stainless steel front, sides & 3" vent riser stand up to the rigors of commercial kitchens.
- Front & rear stainless grease troughs speed clean-up and help maintain a safer work area.
- Heat-resistant, cool-touch oven door handle protects staff from burns.
- 6" adjustable chrome-plated legs allow quick leveling and meet NSF requirements.
- Built-in circuit breakers/fuses protect electrical components for long service life.
Technical Specifications
Model | 36ER33 (36E Series) |
---|---|
Overall Width | 36 in / 914 mm |
Overall Depth | 33 3/4 in / 857 mm |
Height to Cooking Surface | 36 in / 914 mm |
Vent Riser Height | 3 in / 76 mm (stainless steel) |
Adjustable Legs | 6 in / 152 mm chrome-plated |
Oven Interior (H × W × D) | 13.5 × 26.25 × 29 in (343 × 667 × 533 mm) |
Total Load | 19.1 kW |
Voltage | 208/240 V, 1- or 3-phase field connection |
Nominal Amps (Single-phase) | 92 A @ 208 V | 81 A @ 240 V |
Nominal Amps (3-phase 208 V) | X 62 A | Y 45 A | Z 54 A |
Nominal Amps (3-phase 240 V) | X 55 A | Y 40 A | Z 47 A |
Certifications | cCSAus, NSF |
Warranty | 1-Year limited parts & labor (USA & Canada) |
Options & Accessories (sold separately)
- Stainless steel main back
- Additional oven racks
- Swivel casters with front brakes (set of 4)
- 6" adjustable stainless steel legs
- Marine package – storm rails, hand rails, oven door latch, drip-tray stop & deck fasteners
Ranges supplied with casters must be installed with an approved restraining device.
Installation Clearances
Sides (to combustible wall) | 3 in / 76 mm |
---|---|
Rear (to combustible wall) | 1/2 in / 13 mm |
