FWE / Food Warming Equipment Co., Inc.

FWE UHS-20 Mobile Stainless Steel Humidified Heated Holding Transport Cabinet with 20 Universal Tray Slides

SKU: UHS-20
$8,600.40
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

FWE UHS-20 Mobile Stainless Steel Humidified Heated Holding Transport Cabinet with 20 Universal Tray Slides

Holds 20 18" x 26" sheet pans or 40 12" x 20" pans

Keep bulk food hot and moist during transport in a rugged stainless steel cabinet built for universal pan flexibility.

  • Patented Humi-Temp heat and humidity system helps eliminate hot and cold spots while keeping food fresh and hot for hours.
  • Universal tray slides are fully adjustable and removable, making the cabinet flexible for sheet trays, hotel pans, and GN containers.
  • Front-mounted controls include a full-range thermostat and cabinet temperature readout from 90°F to 190°F.
  • Stainless steel interior and exterior construction with insulation throughout supports durability and heat retention.
  • Flush-mounted insulated doors, magnetic edgemount latches, push bar handles, and a wraparound bumper are designed for transport use.
  • Six-inch casters with a two-rigid, four-swivel configuration make it easier to move the cabinet.
  • Removable humidifier components and removable tray slides help simplify cleaning and maintenance.

Overall Dimensions:

58.5"W x 33.5"D x 61.5"H

Product Weight:

500.0 lb

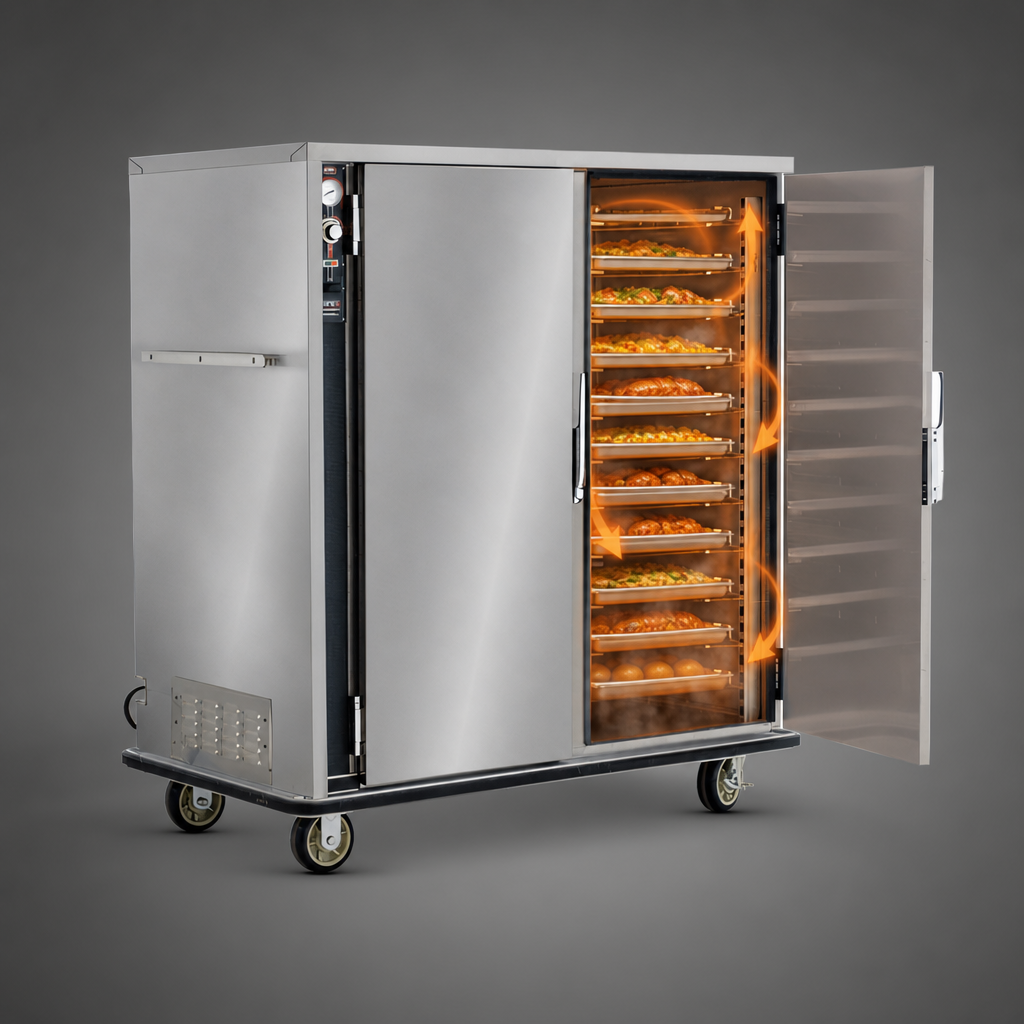

Humi-Temp Heat And Humidity System

Patented system circulates hot, moist air throughout the cabinet to help maintain food quality and reduce hot and cold spots.

Humi-Temp Heat And Humidity System

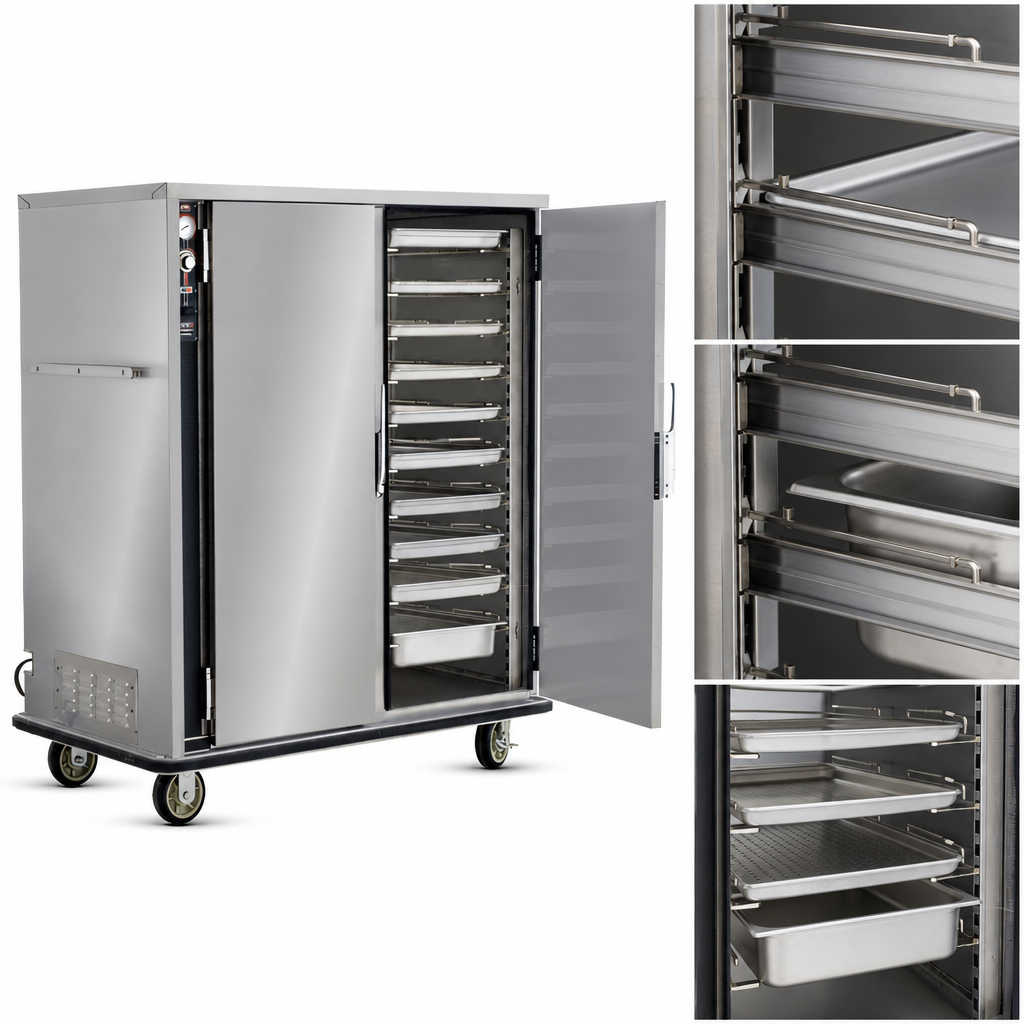

Universal Adjustable Tray Slides

Fully adjustable, removable tray slides support 18" x 26" sheet trays, 12" x 20" pans, and GN containers on 1.5" centers.

Universal Adjustable Tray Slides

Front-Mounted Thermostatic Controls

Up-front recessed controls include a full-range thermostat adjustable from 90°F to 190°F, plus a thermometer that reads cabinet temperature even without power.

Stainless Steel Insulated Construction

Heliarc-welded cabinet construction uses stainless steel inside and out with high-density insulation and easy-to-clean coved corners.

Flush-Mounted Magnetic Doors

Insulated doors feature high-temperature gaskets, heavy-duty edgemount hinges, positive closing latches, and magnetic edgemount latches on the UHS-20.

Transport-Ready Base And Handles

Heavy-duty push bar handles, a wraparound bumper, and a welded tubular base frame are built to withstand transport vibration and shock.

Removable Humidifier Pan

The humidifying chamber and baffled humidifier pan are stainless steel and removable for cleaning.

Heavy-Duty Mobility

Maintenance-free polyurethane casters are configured with two rigid and four swivel wheels with brake for controlled movement.

Type Heated Cabinet
Style Humidified Transport Cabinet
Installation Type Floor Model
Pan Capacity 20 18" x 26" Sheet Pans or 40 12" x 20" Pans
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Controls Mechanical
Temperature Range 90°F to 190°F (32°C to 88°C)
Voltage 220-240 Volts
Watts 1.935 kW
Amps 8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type 6-15P
Selling Unit Each
Units Per Case 1
Shipping Width 59 Inches
Shipping Depth 34 Inches
Shipping Height 62 Inches
Shipping Weight 500 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

2-year limited warranty

Frequently Asked Questions

It holds 20 18" x 26" trays or 40 12" x 20" pans on universal tray slides, and the slides are adjustable for other compatible tray and pan sizes.
The thermostat is adjustable from 90°F to 190°F (32°C to 88°C).
Yes. The Humi-Temp system conditions circulated heat with humidity, and it includes a removable humidifier pan.
It features stainless steel construction, insulation, push bar handles, a wraparound bumper, and 6" casters in a two-rigid, four-swivel setup.
Yes. The UHS series is available with pass-thru doors, see-thru Lexan doors, and Dutch door configurations.
The cutsheet lists NSF, cULus, UL, and IPX4, and it notes a two-year limited warranty.
