FWE / Food Warming Equipment Co., Inc.

FWE TS-1633-36 Mobile Heated Pizza Holding Cabinet, 36 x 16-18.5 Inch Pizza Box Capacity

SKU: TS-1633-36
$5,869.20
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

FWE TS-1633-36 Mobile Heated Pizza Holding Cabinet, 36 x 16-18.5 Inch Pizza Box Capacity

Full-Height, Insulated, Humi-Temp Heat System, Single Door, Quick Ship

Keep pizzas hot, fresh, and ready to serve for extended periods with FWE's advanced Humi-Temp heating system.

  • Maintains ideal pizza temperature and freshness with patented Humi-Temp heat and humidity system.

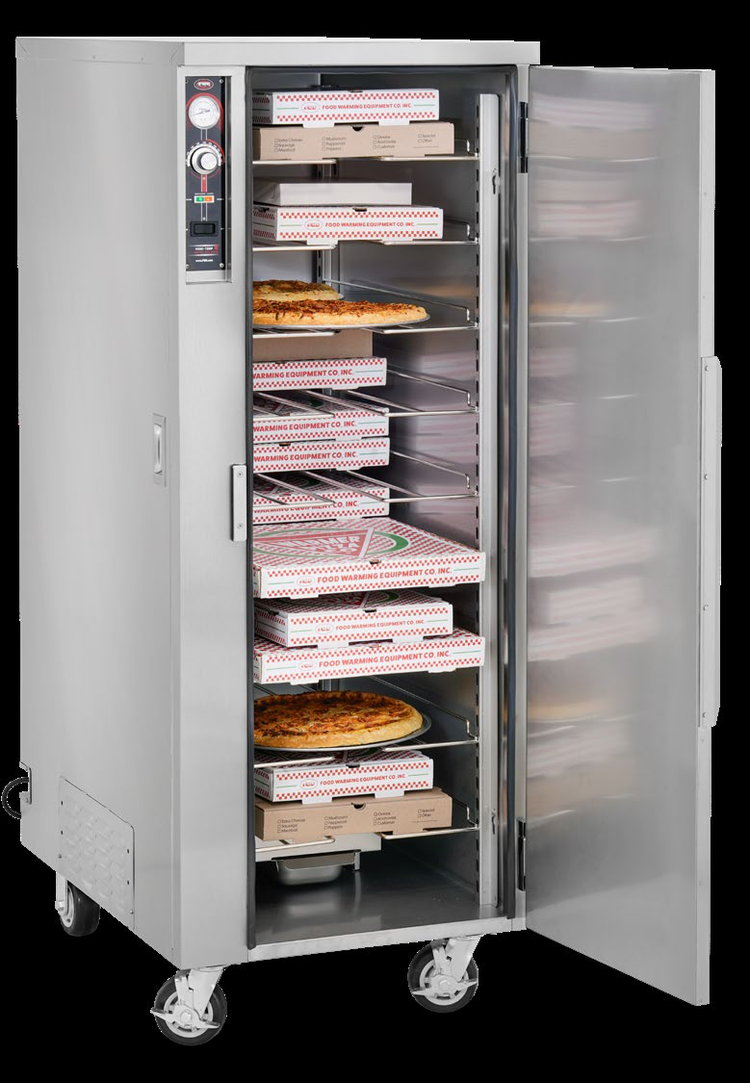

  • High capacity design holds up to 36 x 16-18.5 inch pizza pans or boxes, double deep.
  • Durable all-stainless steel construction with "Ultra-Guard" high-density fiberglass insulation ensures long-lasting performance and energy efficiency.
  • User-friendly eye-level controls provide a full-range Fahrenheit/Celsius thermostat for precise temperature management.
  • Mobile design with 5-inch casters (2 rigid, 2 swivel with brakes) allows for easy transport and positioning.
  • Magnetic work flow door handle offers reliable operation without mechanical latch hardware, reducing maintenance.
  • Available for immediate shipment under FWE's Quick Ship program.

Overall Dimensions:

26.0"W x 39.5"D x 69.5"H

Product Weight:

420.0 lb

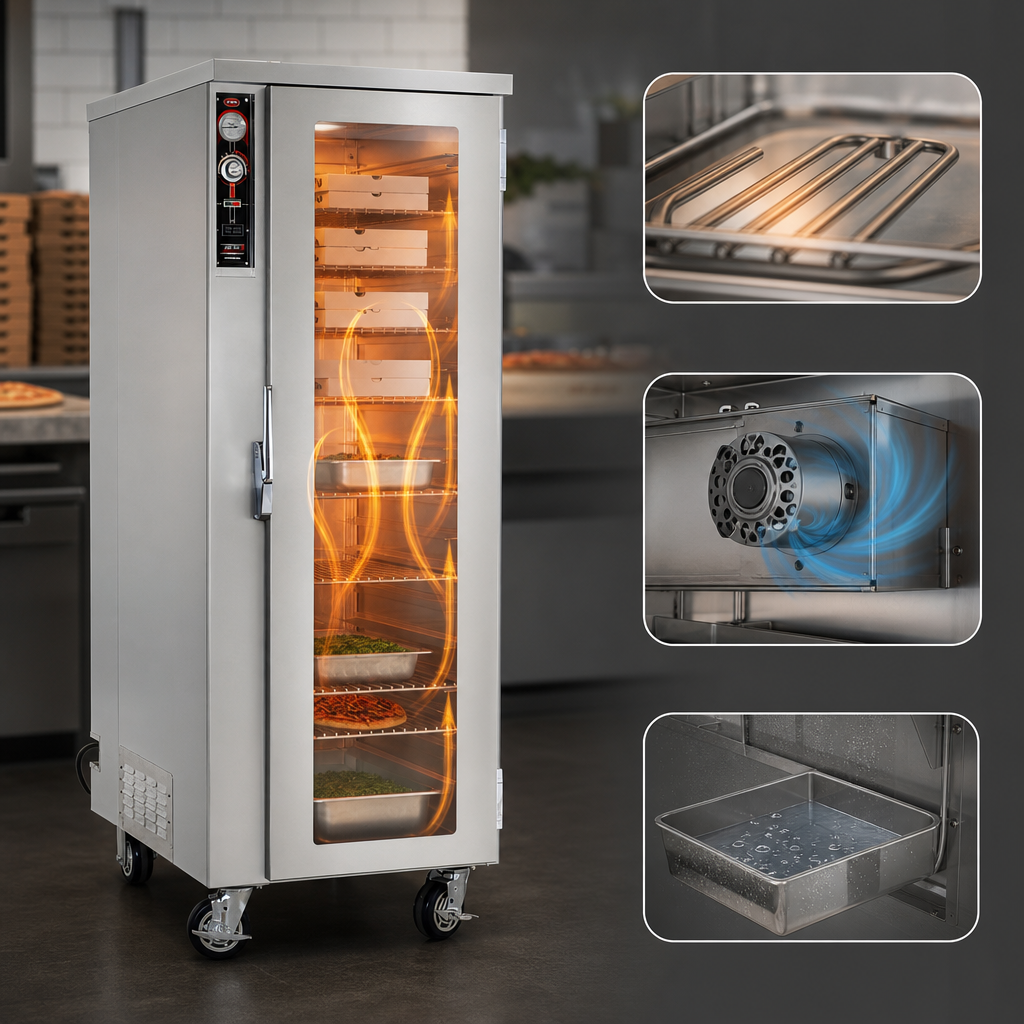

Humi-Temp Heat and Humidity System

Patented built-in system includes an Incoloy nickel-chromium alloy heating element and Hi-Temp, self-lubricated, impedance protected fan-cooled blower motor, gently circulating hot, moist air to eliminate hot and cold spots. The unit can also be run with the humidifier pan dry for holding fried or coated products without compromising quality.

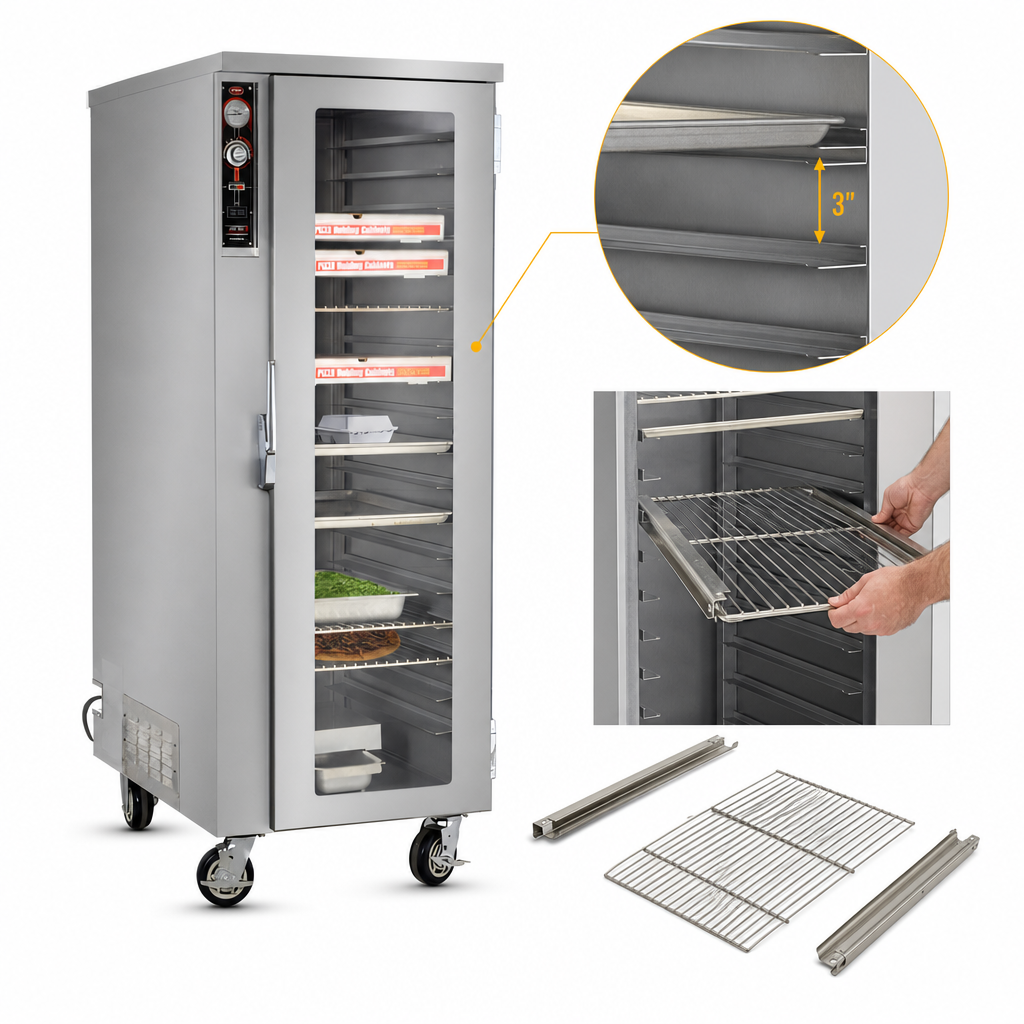

Fixed Rack Design

Unique fixed channels, spaced at 3 inches, are designed to accommodate two (2) 16"-18.5" pizza pans or boxes (double deep), one (1) 18" x 26" tray, or one (1) 18" x 26" wire shelf per pair of rails. The removable rack assembly easily lifts off without tools.

Magnetic Work Flow Door Handle

Magnetic operation eliminates the need for mechanical latch hardware, providing a cleaner look and saving on replacement parts and maintenance fees with no moving parts to bind or wear out.

Eye-Level Controls

Up-front, recessed controls are easy to read and set, featuring a full-range thermostat adjustable from 90° to 190°F (32° to 88°C). Includes an operational range thermometer, power supply light, thermostat cycling light, and a 20 amp ON/OFF switch.

Durable Stainless Steel Construction

Heliarc welded, single unit construction with a 20 gauge polished stainless steel exterior and a 22 gauge stainless steel interior with easy-to-clean coved corners. The welded tubular base frame is 1" square, heavy gauge stainless steel tubing.

Ultra-Guard Insulation

"Ultra-Guard" UG-26 high density fiberglass insulation is installed throughout the top, back, bottom, sides, and door(s) for superior heat retention and energy efficiency.

Heavy-Duty Casters

Equipped with maintenance-free polyurethane tire casters in a configuration of two (2) rigid and two (2) swivel with brake for robust mobility. Caster mounting plates are secured to 10 gauge stainless steel reinforcing stress plates.

Recessed Hand Grips

Form grip flush-in-wall hand grips are recess mounted on each side of the unit, providing comfortable and secure handling during transport.

Type Heated Holding Cabinet
Style Full-Height
Installation Type Floor Model (With Casters)
Pan Capacity 36 x 16-18.5 Inch Pizza Pans/Boxes (Double Deep)
Tray Capacity 18 x 18" x 26" Trays
Shelves 3 x 18" x 26" Shelves
Compartments 1
Controls Full-Range Thermostat (F/C)
Temperature Range 90-190°F
Material Stainless Steel
Interior Finish Stainless Steel
Exterior Finish Polished Stainless Steel
Insulation Ultra-Guard High Density Fiberglass
Voltage 120 Volts
Watts 1550 Watts
Amps 12.9 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P (USA), NEMA 5-20P (Canada)
Cord Length 6 Feet
Caster Diameter 5 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 26 Inches
Shipping Depth 40 Inches
Shipping Height 70 Inches
Shipping Weight 420 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

2-year limited warranty

Frequently Asked Questions

This cabinet's fixed rack design can hold 16" to 18.5" pizza pans or boxes, double deep. It can also accommodate 18" x 26" trays and wire shelves.
The cabinet features a full-range thermostat adjustable from 90° to 190°F (32° to 88°C).
The 120V configuration of this model requires a dedicated circuit. It operates on 120 Volts, 12.9 Amps, 1550 Watts, 60 Hz, single phase, and comes with a NEMA 5-15P plug (USA) or 5-20P (Canada).
The TS-1633-36 model is designed to hold up to 36 x 16-18.5 inch pizza pans or boxes when loaded double deep.
Yes, it is equipped with maintenance-free polyurethane tire casters, including two rigid and two swivel with brakes, making it easy to transport and position in your kitchen.
The FWE TS-1633-36 comes with a two-year limited warranty.
