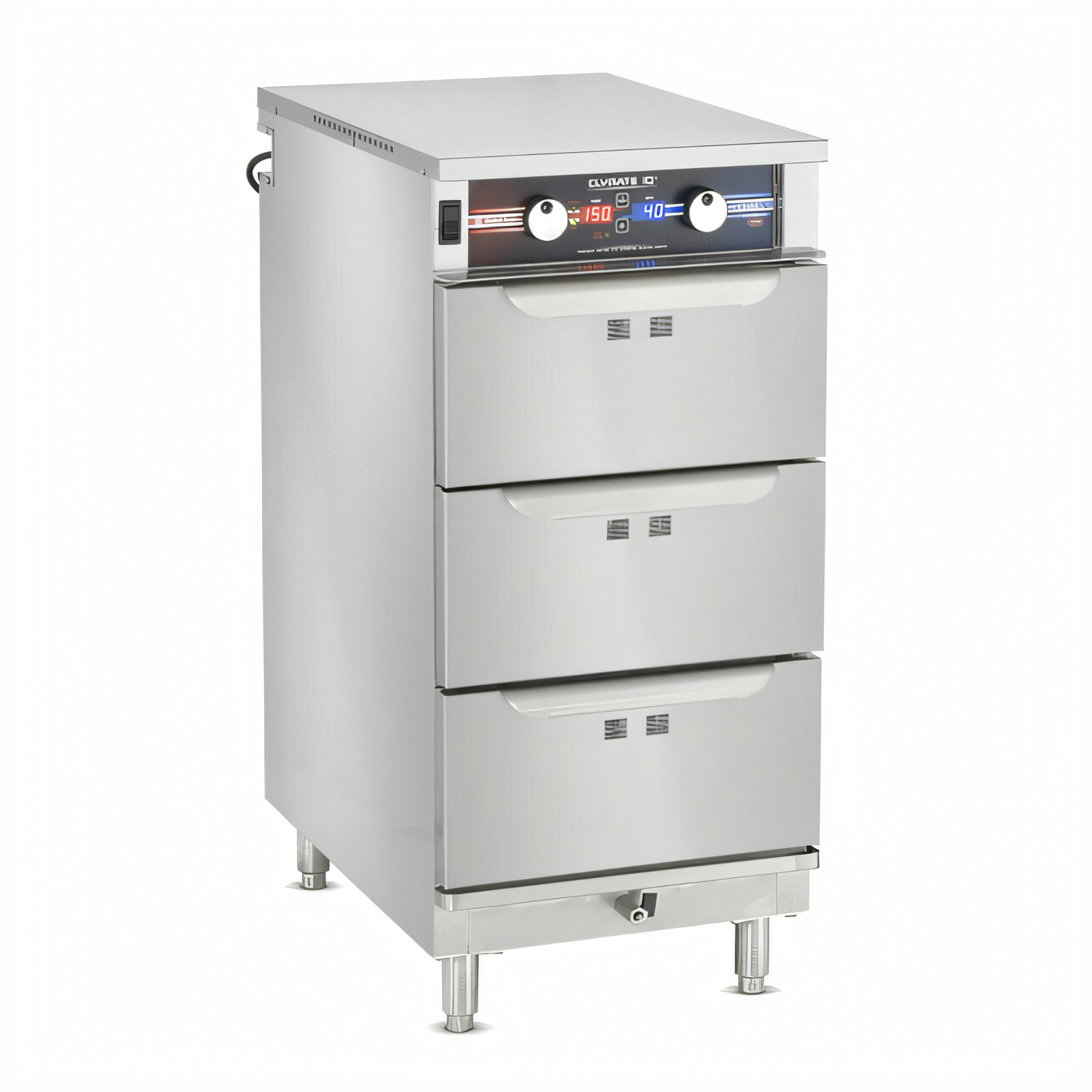

Clymate IQ 3-Drawer Heated Holding & Humidified Drawer Cabinet

Freestanding, Narrow Drawer, 18-1/2 Inch Wide, Holds 3 Full-Size 12 x 20 Pans Up to 6 Inches Deep

Keep hot foods at precise temperature and moisture levels with independent holding controls in a compact 3-drawer cabinet.

  • Maintains food quality with precise temperature and humidity settings for crisp-to-moist holding.
  • Holds up to 3 full-size 12 x 20 pans in a compact 18-1/2 inch-wide footprint.
  • Magnetic workflow drawer handles provide quick access during busy service.
  • Removable drawers and slides simplify cleaning and maintenance.
  • Stainless steel interior and exterior construction supports durability and easy sanitation.
  • Standard 120V electrical setup with multi-voltage options available.

Overall Dimensions:

18.5"W x 28.75"D x 40.25"H

Product Weight:

220.0 lb

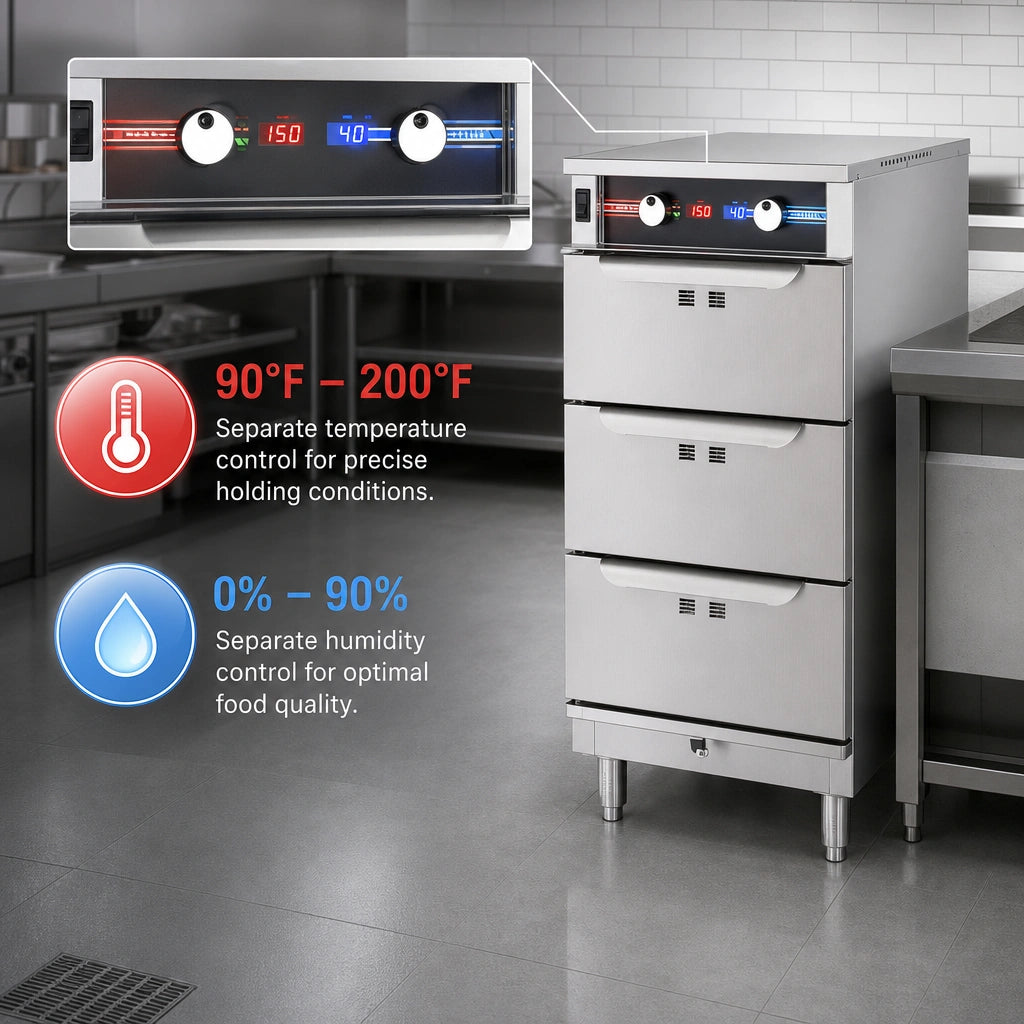

Precise Humidity Temperature Technology

Separate temperature and moisture controls let operators set holding conditions from 90°F to 200°F and 0% to 90% relative humidity.

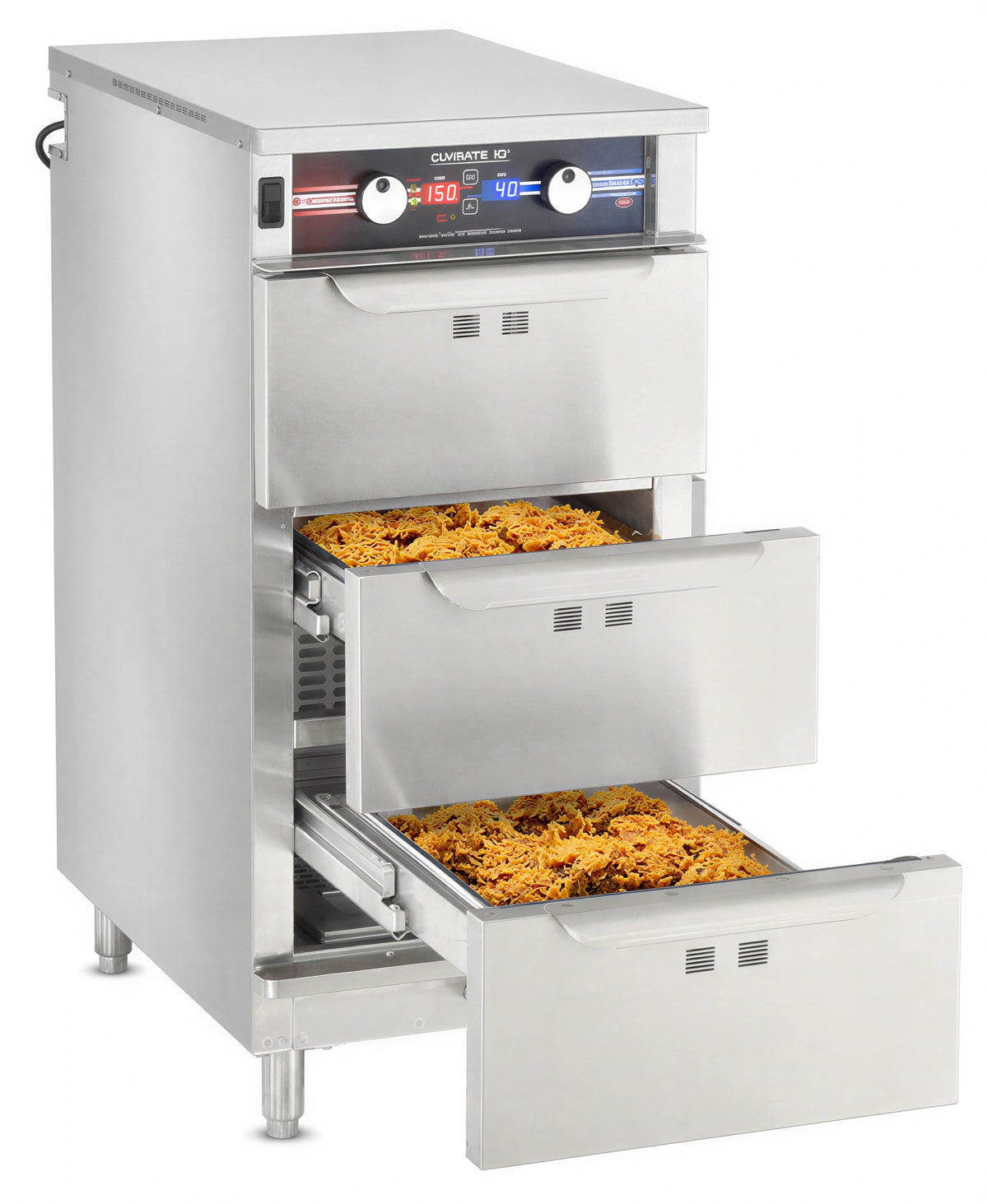

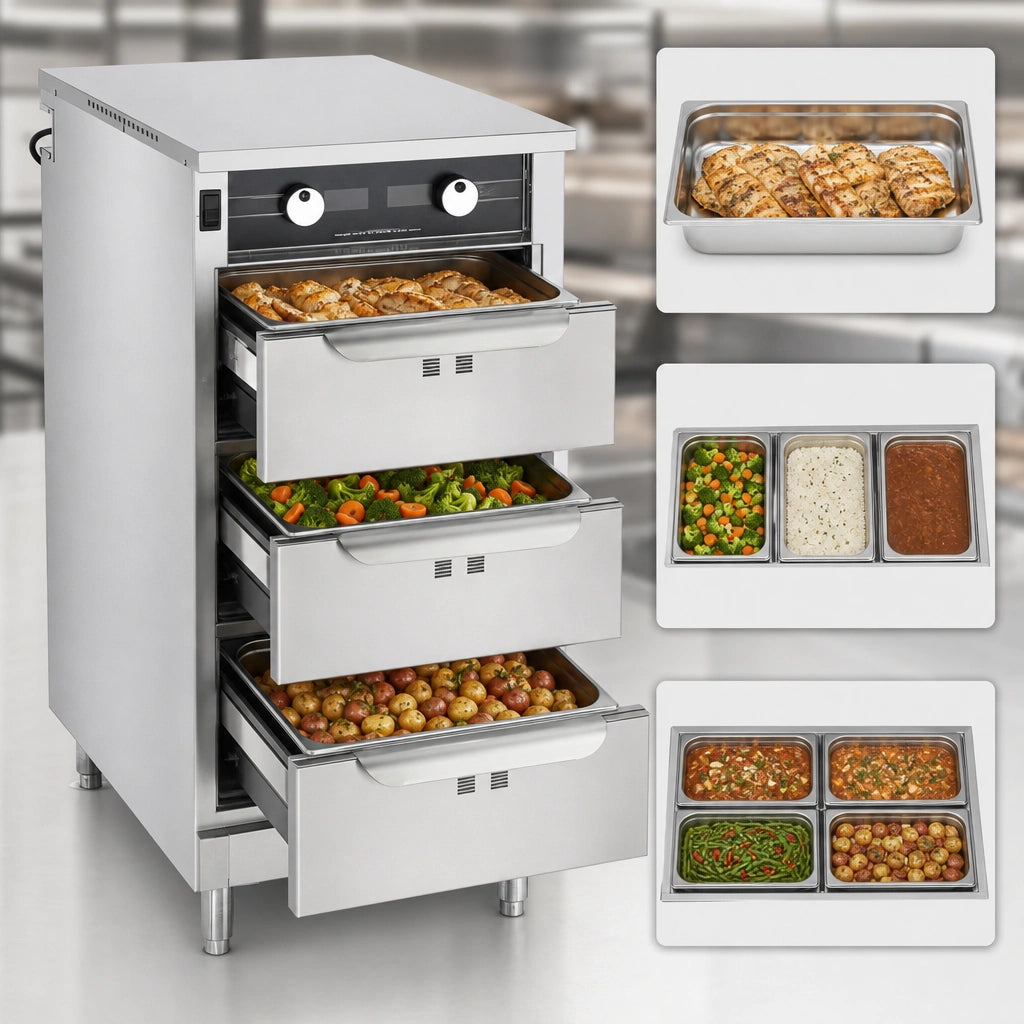

Three-Drawer Capacity

Accommodates up to three full-size 12 x 20 pans up to 6 inches deep, with support for fractional pan configurations.

Magnetic Workflow Handles

Magnetic handles make it easy to open and access drawers quickly during service.

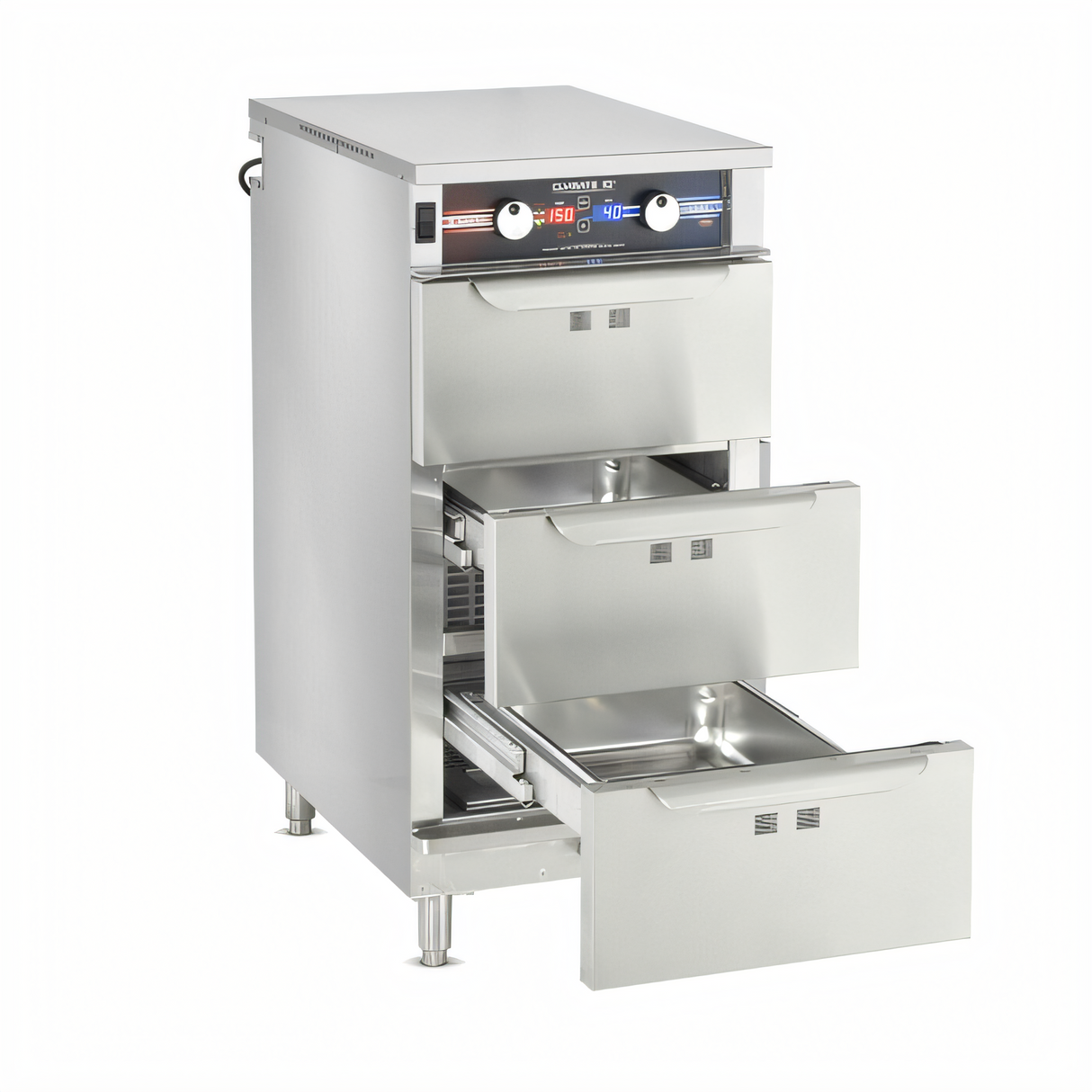

Removable Drawer Assembly

Drawers and slides remove without tools for easier cleaning and upkeep.

Stainless Steel Construction

Welded stainless steel interior and exterior construction is built for heavy-duty commercial use.

Fast Recovery Heating

Dual heating elements and a circulating fan help the cabinet recover temperature and humidity quickly after opening.

Built-In Water Reservoir

A stainless steel water reservoir with handle and built-in drip trough supports humidified holding.

Flexible Placement

The tri-directional AC cord pocket and rear-mounted power cord help with plug placement and installation flexibility.

Safety Monitoring

Low water and temperature alarms help protect product quality during operation.

4-Inch Legs

Standard 4-inch legs raise the unit for easier access and installation.

Type Heated Holding & Humidified Drawer Cabinet
Style Narrow Drawer
Installation Type Freestanding
Capacity 3 Drawers
Pan Capacity 3 Full-Size 12 x 20 Inch Pans
Pan Size 12 x 20 Inches
Controls Thermostatic
Temperature Range 90°F - 200°F
Humidity Range 0% RH - 90% RH
Material Stainless Steel
Interior Finish Stainless Steel
Voltage 120 Volts
Amps 14.9 Amps
Watts 1.792 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type 5-15P
Shipping Width 19 Inches
Shipping Depth 29 Inches
Shipping Height 41 Inches
Shipping Weight 220 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

Two-year limited warranty.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It accommodates fractional and full-size 12 x 20 pans up to 6 inches deep, and the 3-drawer model holds up to three full-size pans.
The temperature range is 90°F to 200°F and the humidity range is 0% RH to 90% RH.
Yes. The drawers and slides are removable without tools for easier cleaning.
The standard electrical setup is 120 Volts, 14.9 Amps, 1.792 kW, 60 Hz, single phase with a 5-15P plug. Other voltage options are also listed in the spec sheet.
Yes. The product includes low water and temperature alarms, along with a low-temperature indicator and optional audible alarm noted in the documentation.
The spec sheet lists 6-inch adjustable legs and flanged feet as optional extras.
