FWE / Food Warming Equipment Co., Inc.

FWE Clymate IQ Controlled Venting Proofing/Heated Cabinet for 18 Donut Screens

SKU: PHTT-2333-18-CV
$11,246.40
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dough Proofers & Retarders Equipment Food Holding & Warming Equipment Food Holding & Warming Equipment Food Warmers & Holding Equipment FWE / Food Warming Equipment Co., Inc. Holding Cabinets Holding Cabinets New Arrivals Proofing Cabinets Proofing Cabinets Restaurant Equipment

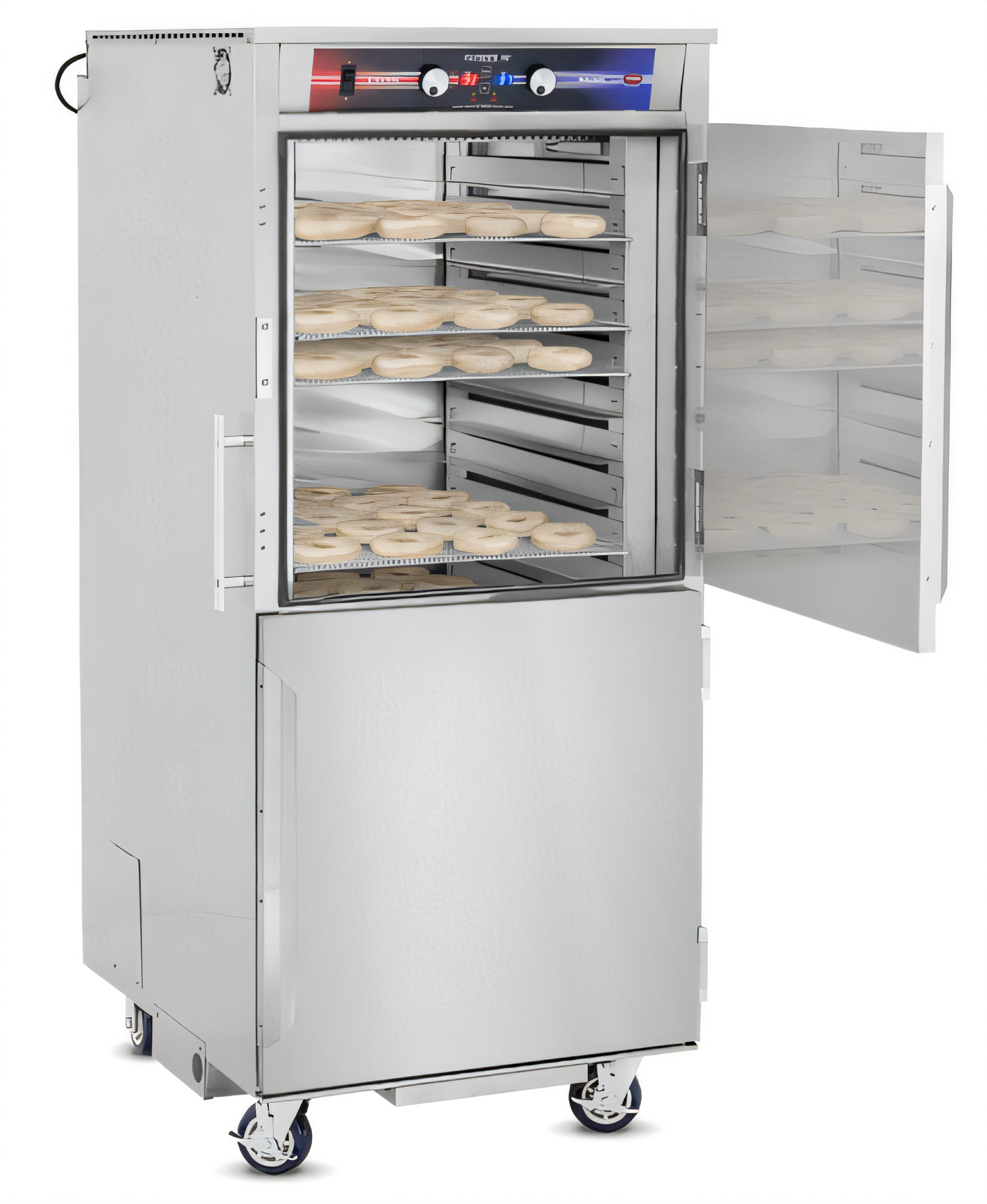

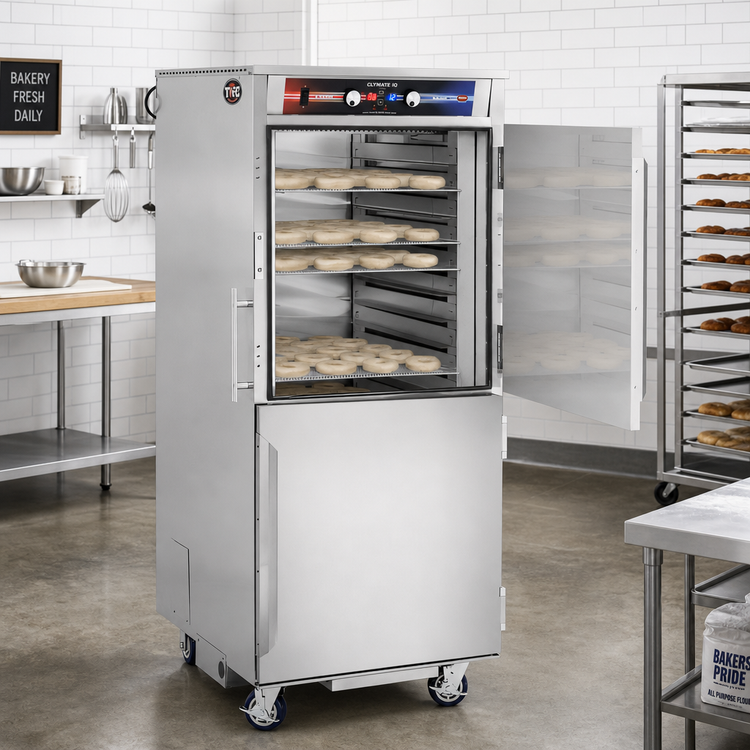

FWE Clymate IQ Controlled Venting Proofing/Heated Cabinet for 18 Donut Screens

Stainless Steel, Dutch Doors, 3-Inch Fixed Centers

Maintain precise proofing and holding conditions with a humidity-controlled cabinet that handles 18 donut screens and automatically vents excess moisture for sensitive doughs.

  • Controlled venting helps protect delicate doughs by releasing excess humidity at the set point.
  • Independent humidity and temperature controls let you dial in ideal holding conditions for consistent results.
  • Removable stainless steel rack holds 18 donut screens with 3-inch centers and removes without tools for cleaning.
  • Insulated stainless steel construction and self-closing Dutch doors help retain heat and humidity.
  • Removable water reservoir and built-in drip trough simplify sanitation and maintenance.
  • Five-inch casters with brakes make the cabinet easy to reposition and secure in place.

Overall Dimensions:

32.25"W x 39.75"D x 75.5"H

Product Weight:

545.0 lb

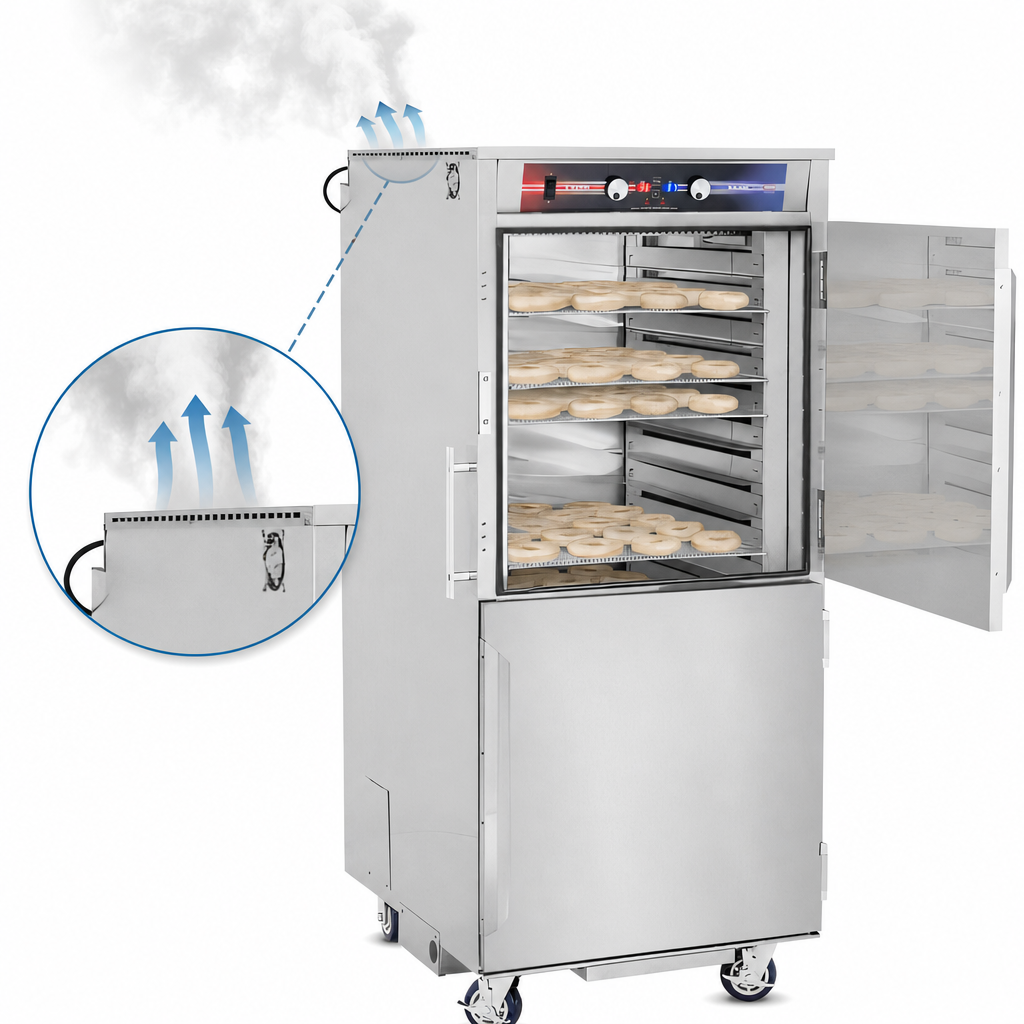

Controlled Venting System

Automatically recognizes excess moisture and releases humidity through the chimney vent when levels exceed the user's set point.

Controlled Venting System

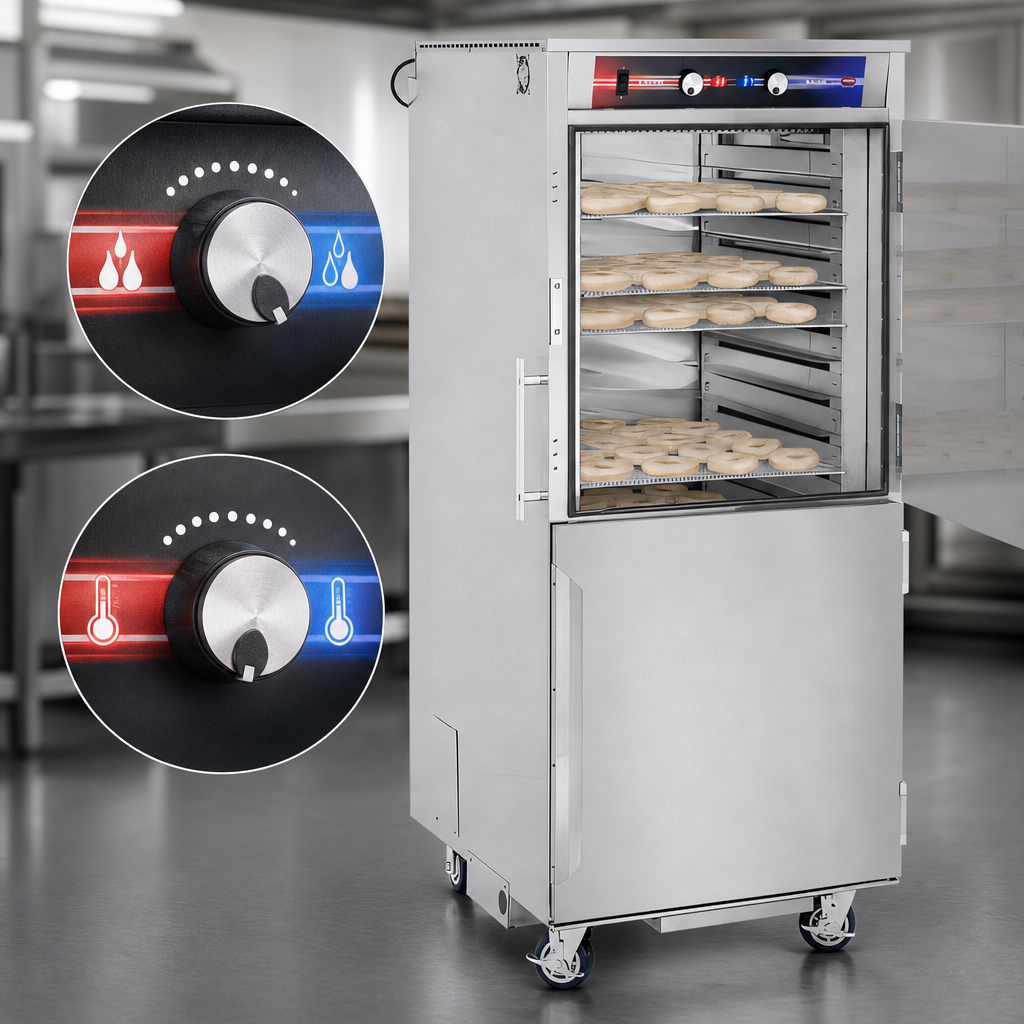

Precise Humidity And Temperature Control

Independent controls let operators set relative humidity from 0% to 90% RH and temperature from 90°F to 200°F (32°C to 93°C).

Precise Humidity And Temperature Control

Removable Stainless Steel Rack

Fixed 3-inch center rack is die-stamped for strength, accommodates 23" x 33" or 23" x 23" donut screens, and removes without tools for cleaning.

Humidified Holding System

Built-in hydro immersion water bath and circulating fan support even humidity distribution and faster heat recovery.

Insulated Stainless Steel Cabinet

Single-unit stainless steel construction with high-density insulation throughout helps retain heat and humidity.

Dutch Doors With Self-Closing Hinges

Two half-size Dutch doors are self-closing, field reversible, and sealed with high-temperature gaskets for better heat retention.

Removable Water Reservoir

Stainless steel water reservoir removes easily for cleaning and sanitation; built-in drip trough includes a removable drain plug.

Mobility On Braked Casters

Equipped with two rigid and two swivel polyurethane casters with brakes for stable movement and positioning.

Type Proofer/Heated Cabinet
Style Dutch Door
Installation Type Floor Model
Capacity 18 Donut Screens
Compartments 1
Controls Manual
Temperature Range 90°F to 200°F
Humidity Range 0% RH to 90% RH
Material Stainless Steel
Interior Finish Stainless Steel
Finish Polished Stainless Steel
Voltage 120 / 208 / 220-240 Volts
Amps 18.3 / 9.6 / 10.8 Amps
Watts 2.192 / 1.996 / 2.596 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type 5-20P / 6-15P
Water Connection Not Required
Drain Connection Not Required
Selling Unit Each
Units Per Case 1
Shipping Width 33 Inches
Shipping Depth 40 Inches
Shipping Height 76 Inches
Shipping Weight 545 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

2-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The fixed rack accommodates 23" x 33" and 23" x 23" donut screens.
Temperature is adjustable from 90°F to 200°F, and humidity can be set from 0% RH to 90% RH.
Yes. The CV model includes an integrated controlled venting system that releases humidity when levels exceed the set point.
No external water connection is required. The cabinet uses a removable stainless steel water reservoir.
Standard capacity is 18 donut screens at 3-inch spacing.
Yes. The stainless steel rack is removable without tools for easier cleaning and sanitation.
