FWE / Food Warming Equipment Co., Inc.

FWE Clymate IQ® Undercounter Humidified Heated Holding Cabinet, 7 x 12" x 20" Pan Capacity

SKU: PHTT-1220-7-UC
$6,686.40
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

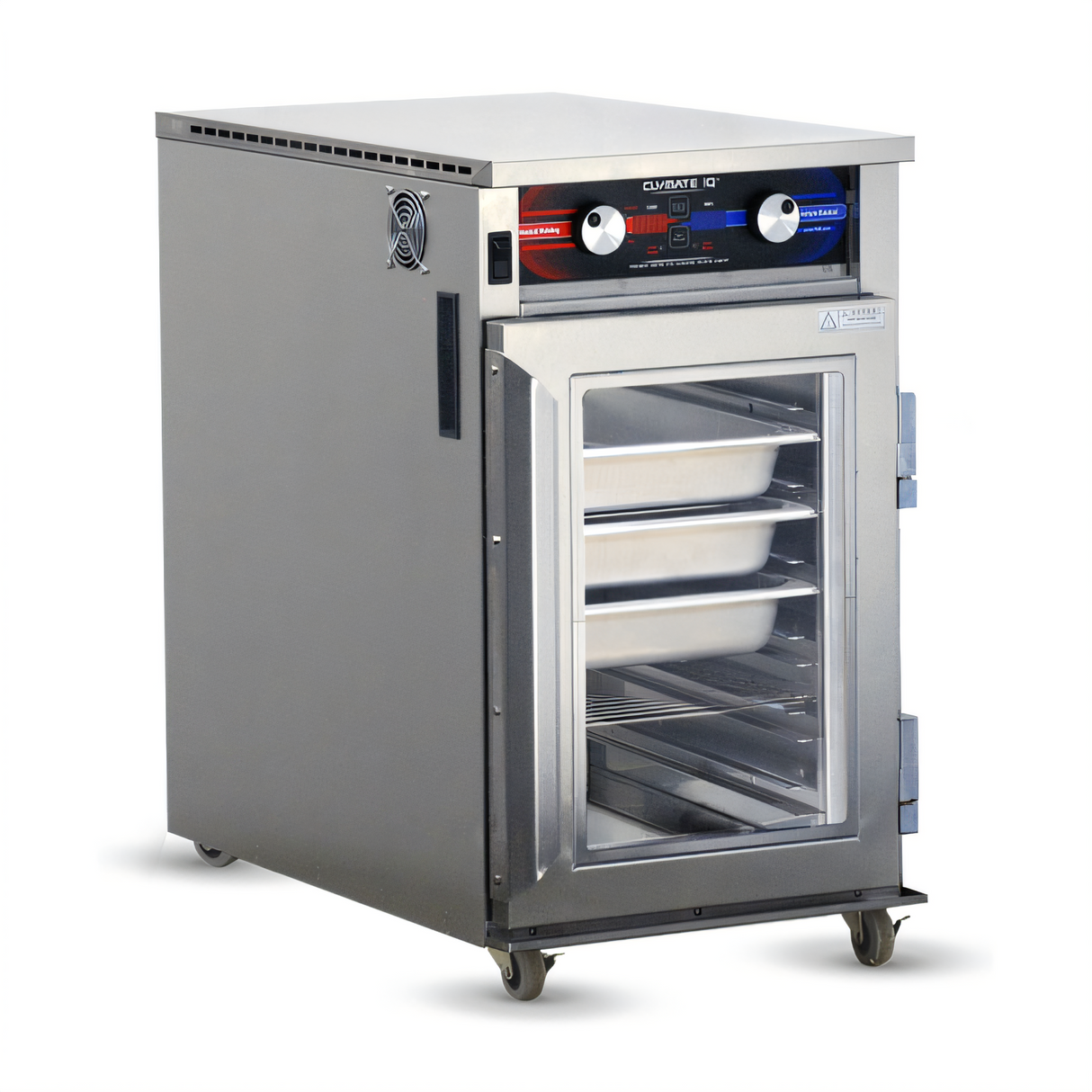

FWE Clymate IQ® Undercounter Humidified Heated Holding Cabinet, 7 x 12" x 20" Pan Capacity

Fixed 2-5/8" Spacing, Stainless Steel Interior/Exterior, Solid Flush-Mounted Door

Keep foods hot, moist, and service-ready with precise humidity/temperature control in a compact undercounter cabinet built for fast recovery and easy cleaning.

  • Holds up to 7 12" x 20" pans with fixed 2-5/8" spacing.
  • Humidified holding system helps preserve food quality and moisture during service.
  • Adjustable heat and humidity controls support precise holding conditions.
  • Fast recovery and uniform air distribution help maintain consistent results after door openings.
  • Stainless steel interior and exterior with insulated construction for durability and efficiency.
  • Undercounter design with recessed hand grips, swivel casters, and a flush-mounted solid door.

Overall Dimensions:

18.25"W x 30.5"D x 33.75"H

Product Weight:

200.0 lb

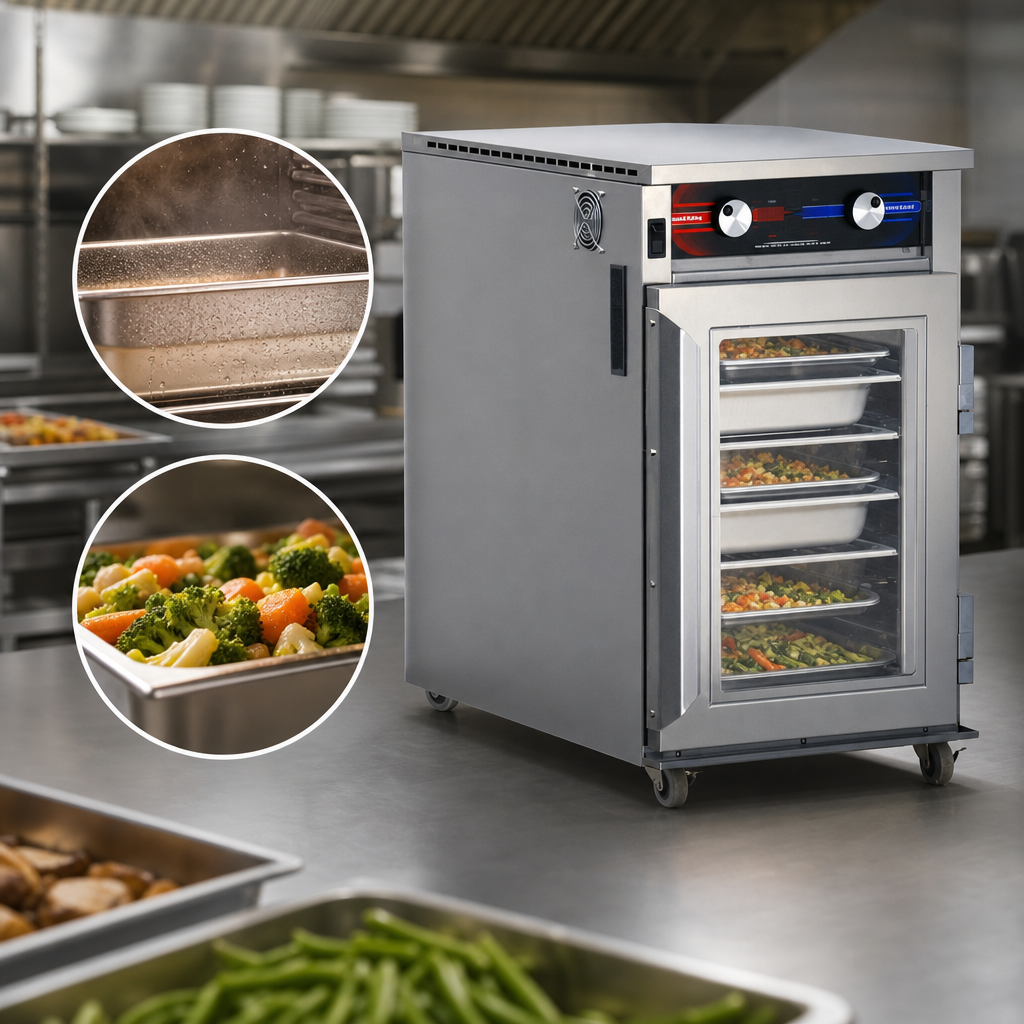

Precise Humidity Temperature Technology

Designed to reach and maintain set humidity and temperature quickly for consistent holding results.

Precise Humidity Temperature Technology

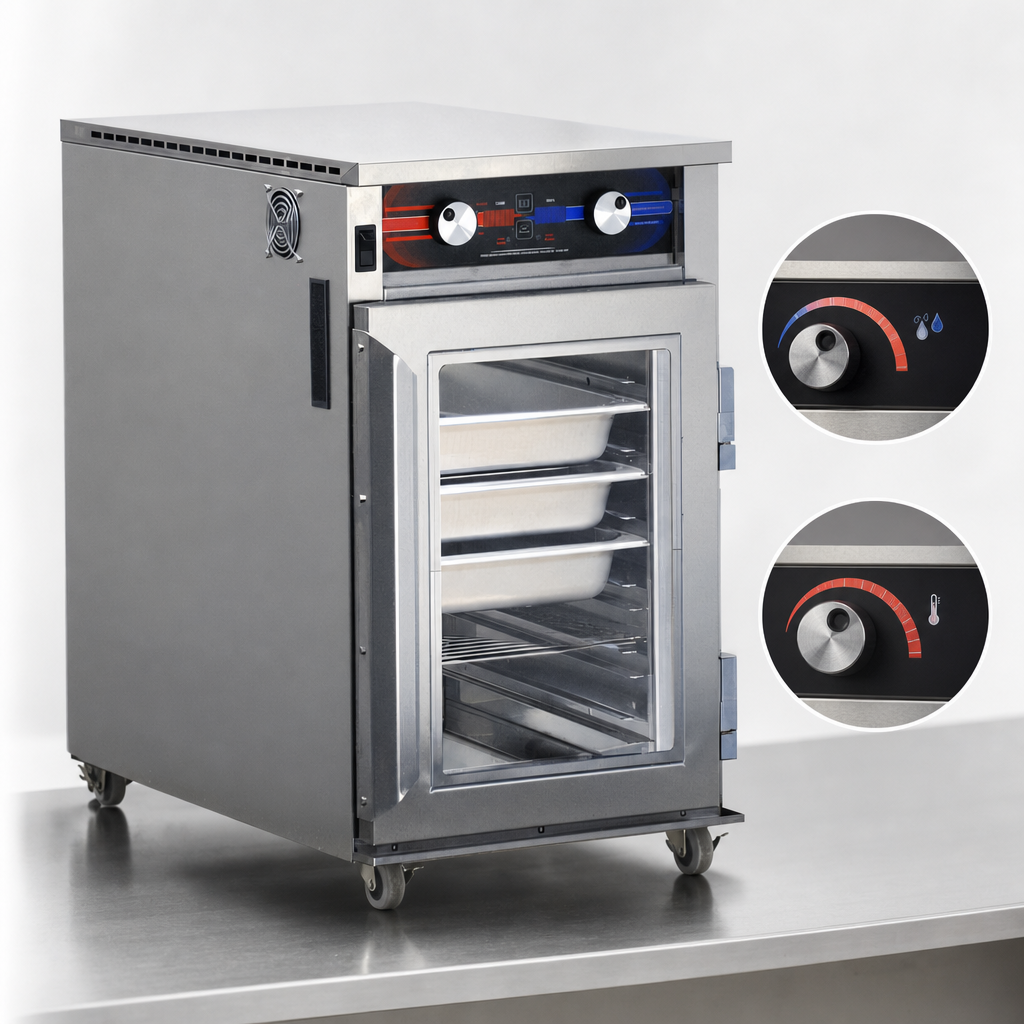

Humidity and Temperature Range

Adjustable from 0% RH to 90% RH and 90°F to 200°F (32°C to 93°C).

Humidity and Temperature Range

Individual Heat & Humidity Controls

User-friendly, color-coded controls make it easy to set holding conditions for different foods.

Fast Recovery

Returns to set temperature quickly after the door is opened during peak service.

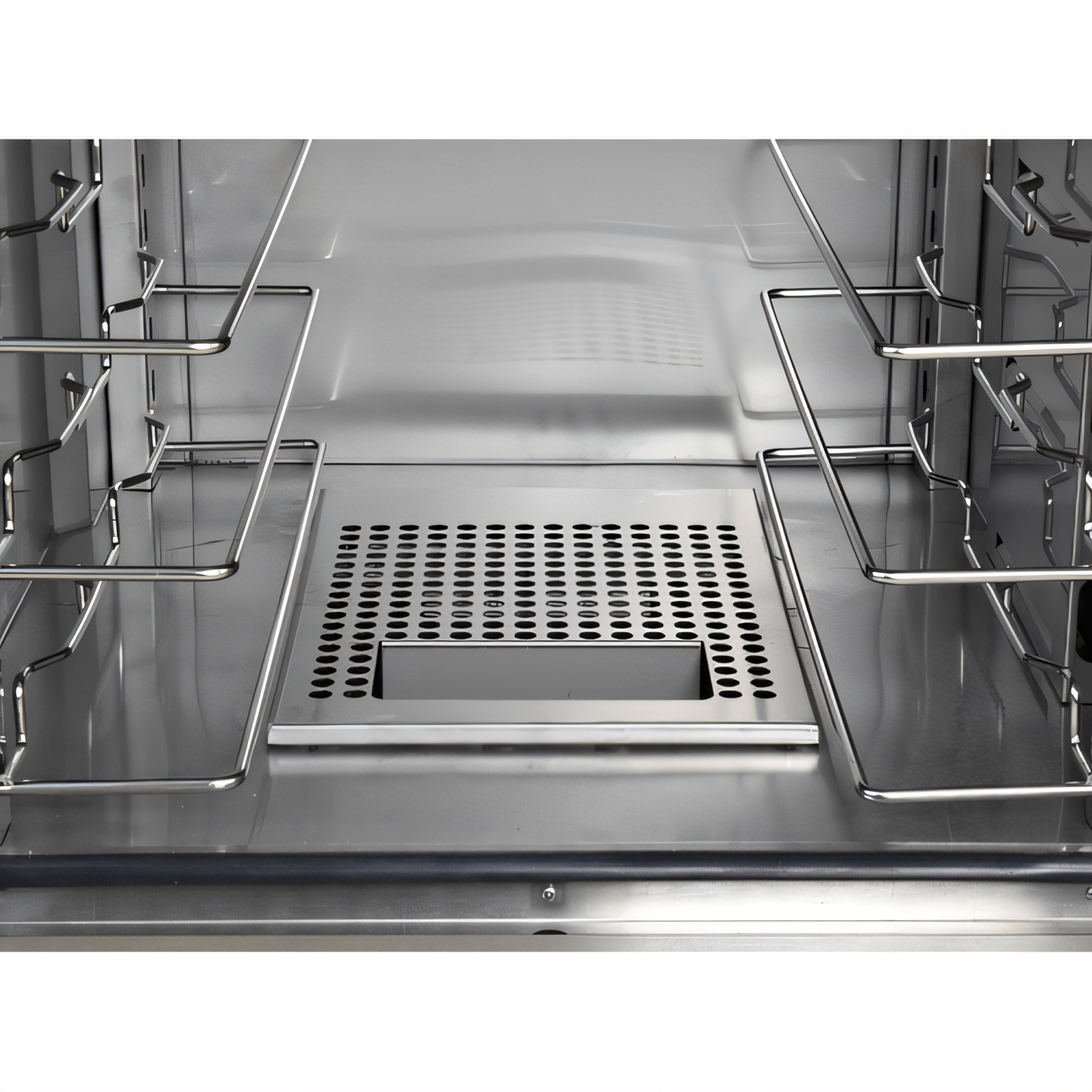

Uniform Air Distribution System

Push/pull air circulation provides even temperature and humidity throughout the cabinet.

Removable Water Reservoir

Large-volume removable water pan simplifies refilling and cleaning.

Stainless Steel Construction

Stainless steel interior and exterior with insulated cabinet construction for long-term durability.

Service-Friendly Design

Includes a flush-mounted solid door, recessed hand grips, fixed 2-5/8" spacing, and 3-1/2" swivel casters.

Low Water and Temperature Alarm

Built-in alarm alerts the operator to low water or temperature conditions.

Type Humidified Heated Holding Cabinet
Installation Type Undercounter
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Capacity 7 Pans
Pan Capacity 7 12 Inches x 20 Inches Pans
Pan Size 12 Inches x 20 Inches, 18 Inches x 13 Inches, GN 1/1
Compartments 1
Controls Individual Heat & Humidity
Temperature Range 90°F to 200°F (32°C to 93°C)
Humidity Range 0% RH to 90% RH
Hertz 60 Hz
Phase 1-Phase
Shipping Width 19 Inches
Shipping Depth 31 Inches
Shipping Height 34 Inches
Shipping Weight 200 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year limited warranty

Frequently Asked Questions

It accommodates shallow and deep 12" x 20" pans, 18" x 13" trays, and GN 1/1 containers.
The cabinet can be set from 0% RH to 90% RH and from 90°F to 200°F (32°C to 93°C).
Yes. It features individual heat and humidity controls with easy-to-read, color-coded settings.
A push/pull air distribution system helps maintain uniform temperature and humidity on every level.
The cutsheet shows 120V single-phase with a G 5-20P plug and 220/240V single-phase with a G 6-15P plug.
Yes. The cabinet includes a low water and temperature alarm.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
