FWE / Food Warming Equipment Co., Inc.

Clymate IQ Mobile Controlled Venting Heated Holding Cabinet, 10 Full-Size Sheet Pan Capacity

SKU: PHTT-10-CV
$10,288.79
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

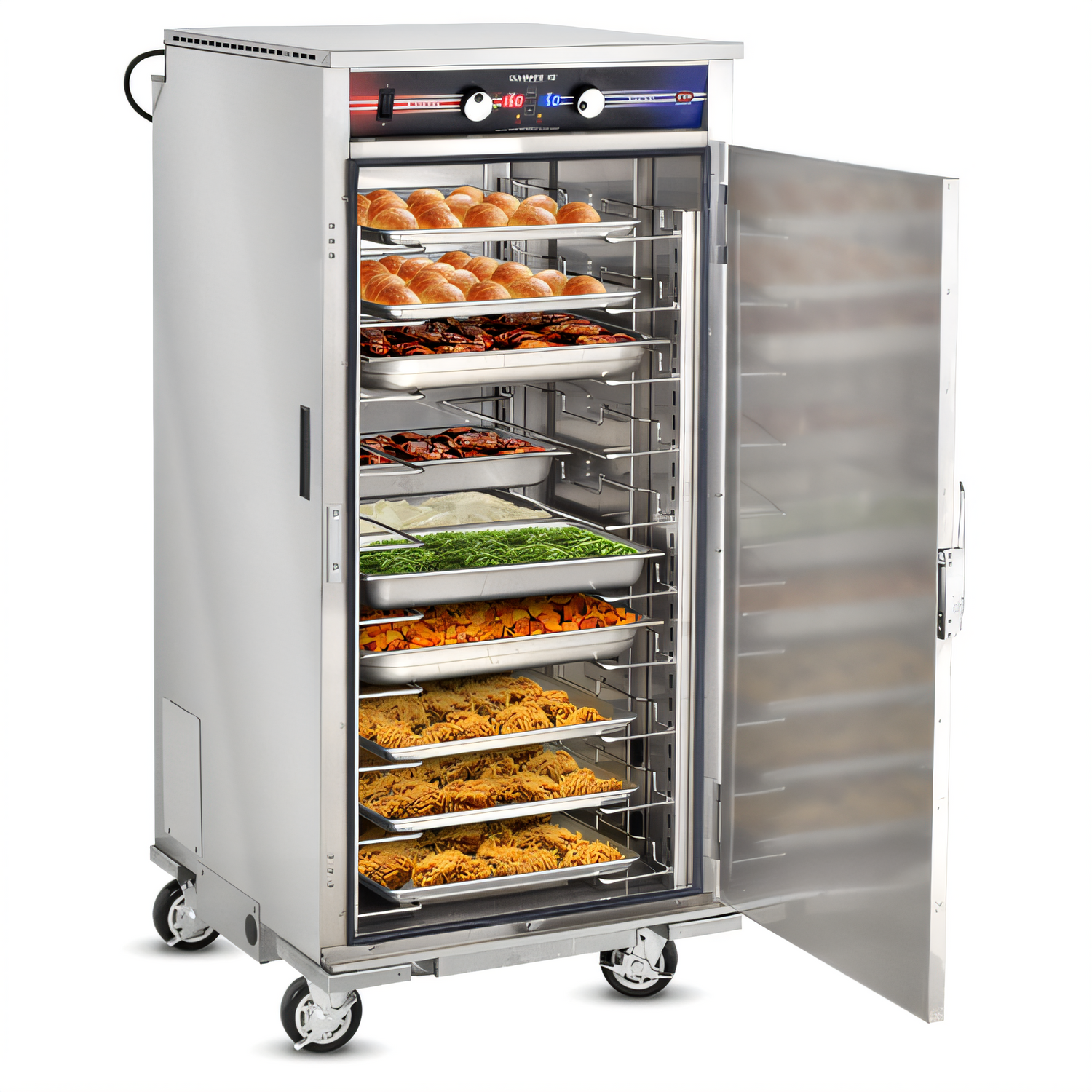

Clymate IQ Mobile Controlled Venting Heated Holding Cabinet, 10 Full-Size Sheet Pan Capacity

Humidified holding system, stainless steel interior and exterior, 1 flush-mounted door

Automated controlled venting and independent heat and humidity control help keep sensitive foods at peak quality during long holding periods.

  • Holds 10 full-size 18" x 26" trays or 20 full-size 12" x 20" trays with universal tray slides.
  • Controlled venting automatically releases excess humidity to help maintain precise holding conditions.
  • Humidified holding system and insulated cabinet support moisture retention and temperature stability.
  • Adjustable slide centers can be set on 1-1/2 inch increments for flexible loading.
  • Stainless steel interior and exterior are built for durability and easy cleanup.
  • Mobile design includes 5-inch casters, with two rigid and two swivel with brakes.
  • Removable water reservoir and lift-up heating element simplify cleaning and maintenance.

Overall Dimensions:

27.75"W x 35.25"D x 62.0"H

Product Weight:

340.0 lb

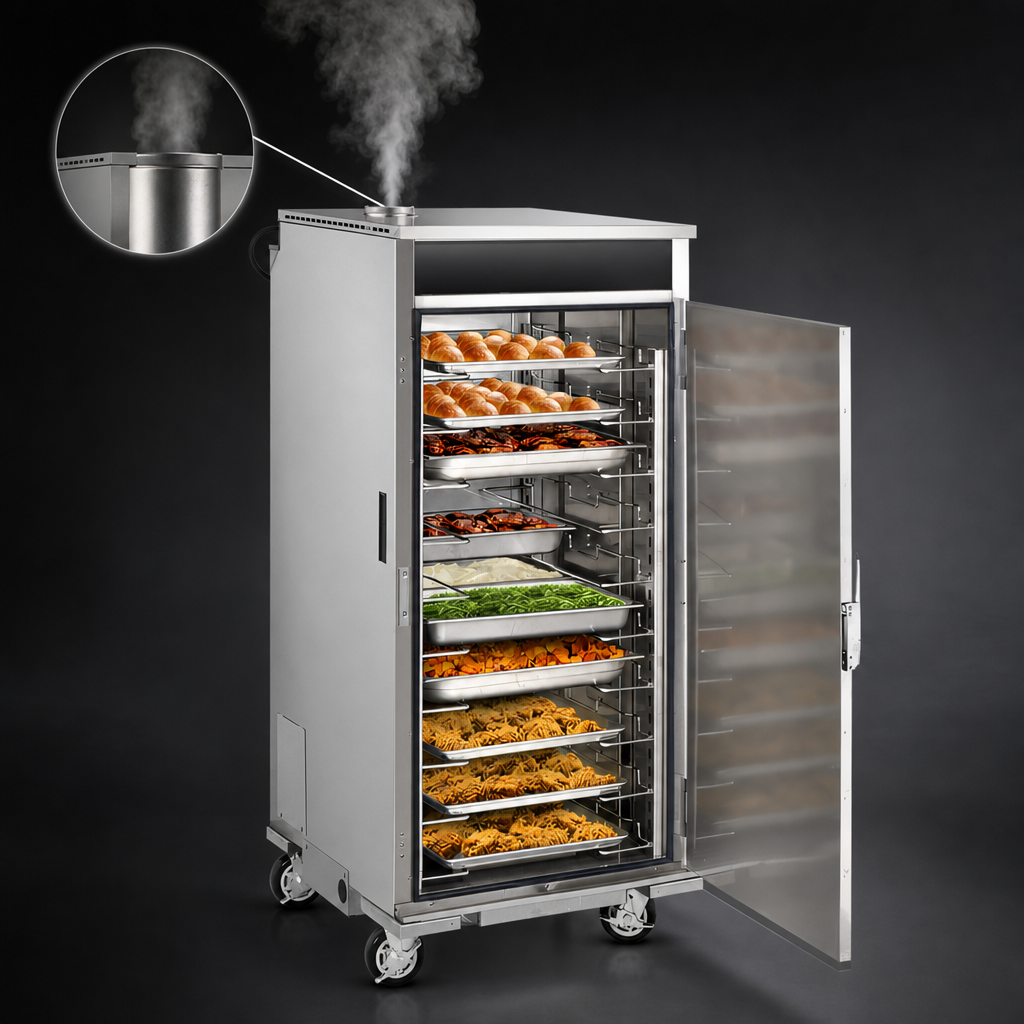

Controlled Venting Technology

Automatically releases excess humidity through a chimney vent when conditions rise above the set point.

Controlled Venting Technology

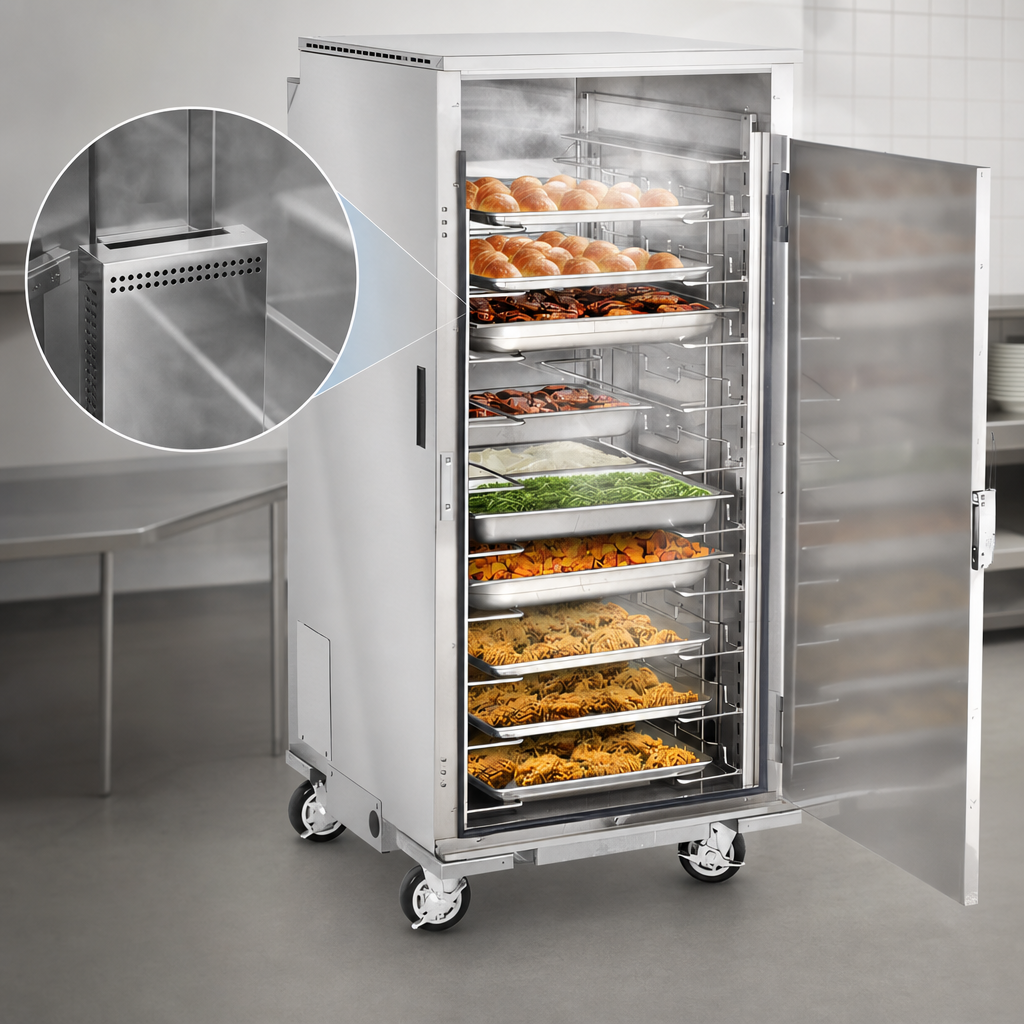

Humidified Holding System

Helps maintain internal moisture for sensitive foods while they are held for service.

Humidified Holding System

Insulated Cabinet

Insulated construction helps retain heat and humidity for more stable holding performance.

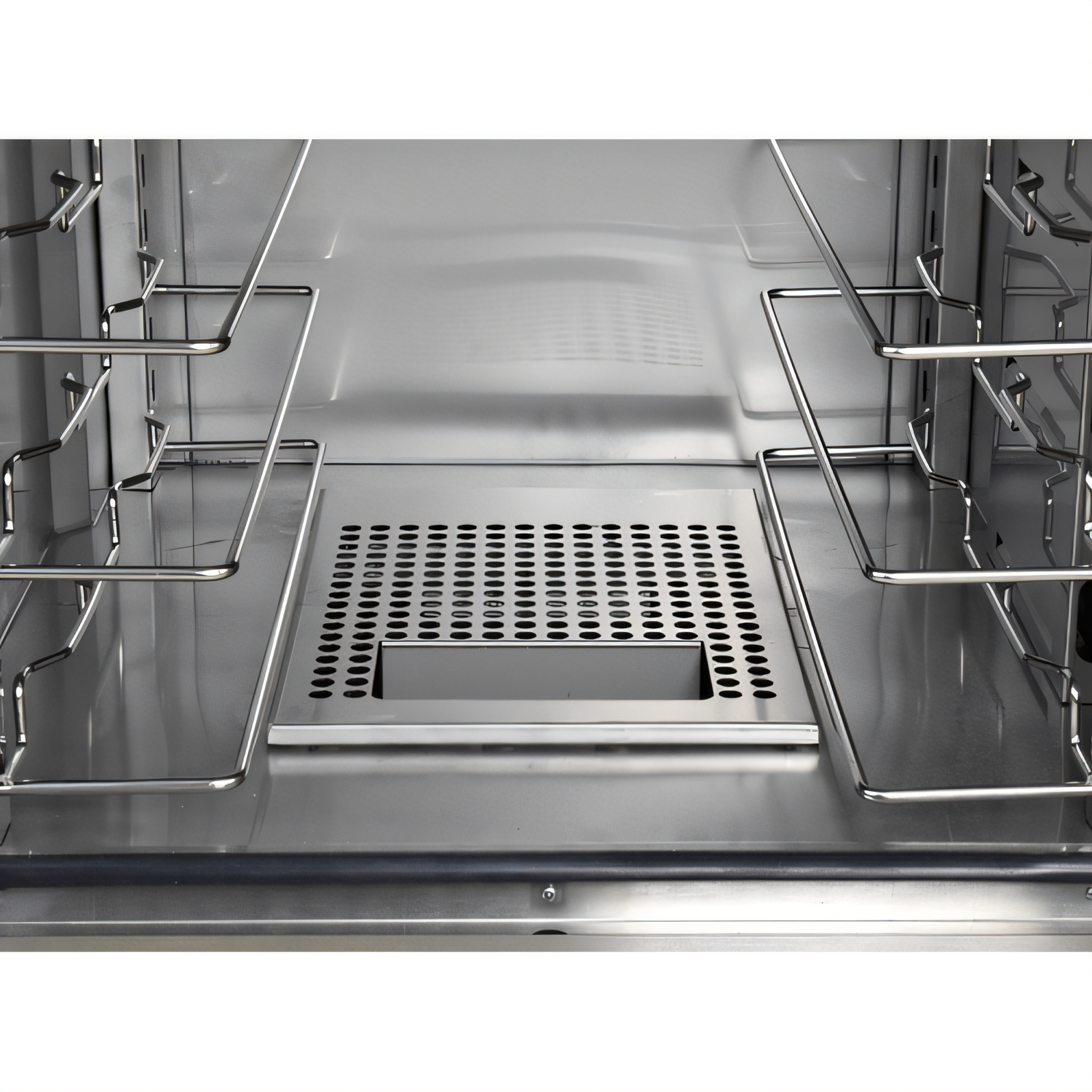

Adjustable Universal Tray Slides

Removable stainless steel tray slides accommodate a wide range of trays and pans and adjust on 1-1/2 inch increments.

Fast Recovery Heating

The heat and moisture system preheats quickly and recovers rapidly in high-volume environments.

Easy-Clean Water Reservoir

The large-volume removable water reservoir makes cleanup and maintenance simpler.

Stainless Steel Construction

Stainless steel interior and exterior provide durability and support easy sanitation.

Mobile Casters

5-inch casters, with two rigid and two swivel with brakes, improve maneuverability and stability.

Flush-Mounted Door with Recessed Hand Grips

A clean-profile door design with recessed grips improves handling and everyday use.

Type Heated Holding Cabinet
Style Mobile
Installation Type Floor Model (With Casters)
Compartments 1
Capacity 10 Full-Size Sheet Pans or 20 Full-Size Hotel Pans
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Controls Independent Heat and Humidity
Temperature Range 90°F to 200°F (32°C to 93°C)
Humidity Range 0% RH to 90% RH
Slide Centers 4.5 Inches Standard, Adjustable to 1.5 Inch Increments
Voltage 120 Volts / 208 Volts / 220-240 Volts
Amps 18.3 / 9.6 / 10.8 Amps
Watts 2.192 kW / 1.996 kW / 2.596 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type 5-20P / 6-15P
Shipping Width 28 Inches
Shipping Depth 36 Inches
Shipping Height 62 Inches
Shipping Weight 340 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

Two-year limited warranty.

Frequently Asked Questions

It holds 10 full-size 18" x 26" trays or 20 full-size 12" x 20" trays using universal tray slides.
It automatically releases excess humidity through a chimney vent to keep product moisture and holding conditions within set tolerances.
The temperature range is 90°F to 200°F (32°C to 93°C), and the humidity set range is 0% RH to 90% RH.
The removable water reservoir and lift-up heating element make cleanup easier.
Yes. It includes 5-inch casters, with two rigid and two swivel casters with brakes.
The cutsheet lists 120V, 208V, and 220-240V single-phase electrical options with matching plug types.
