FWE LCH-6-SK-LV-G2

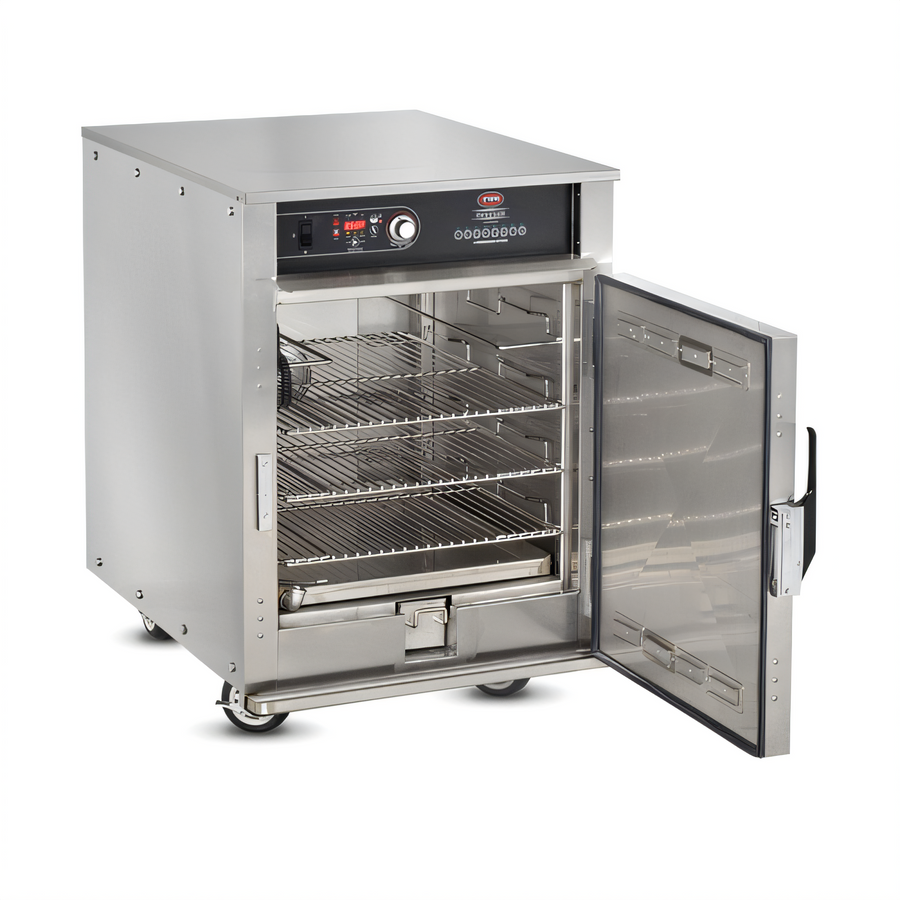

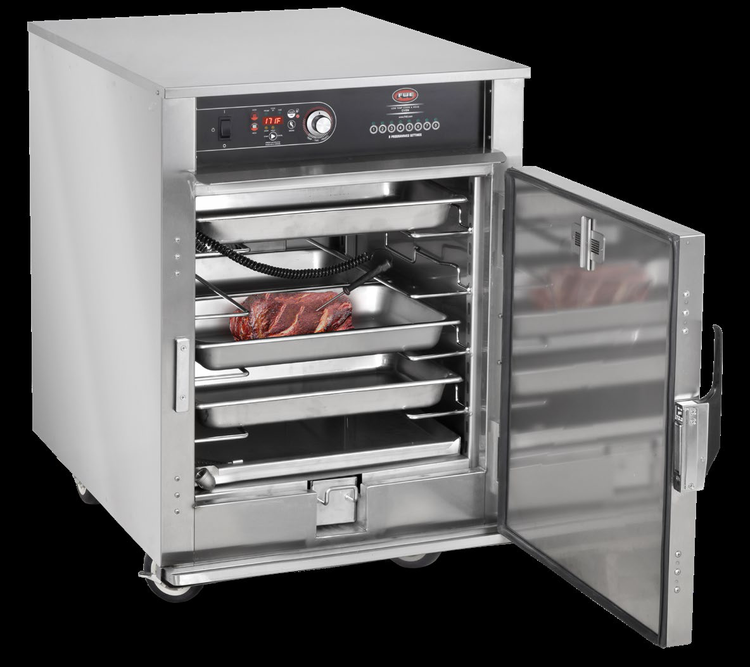

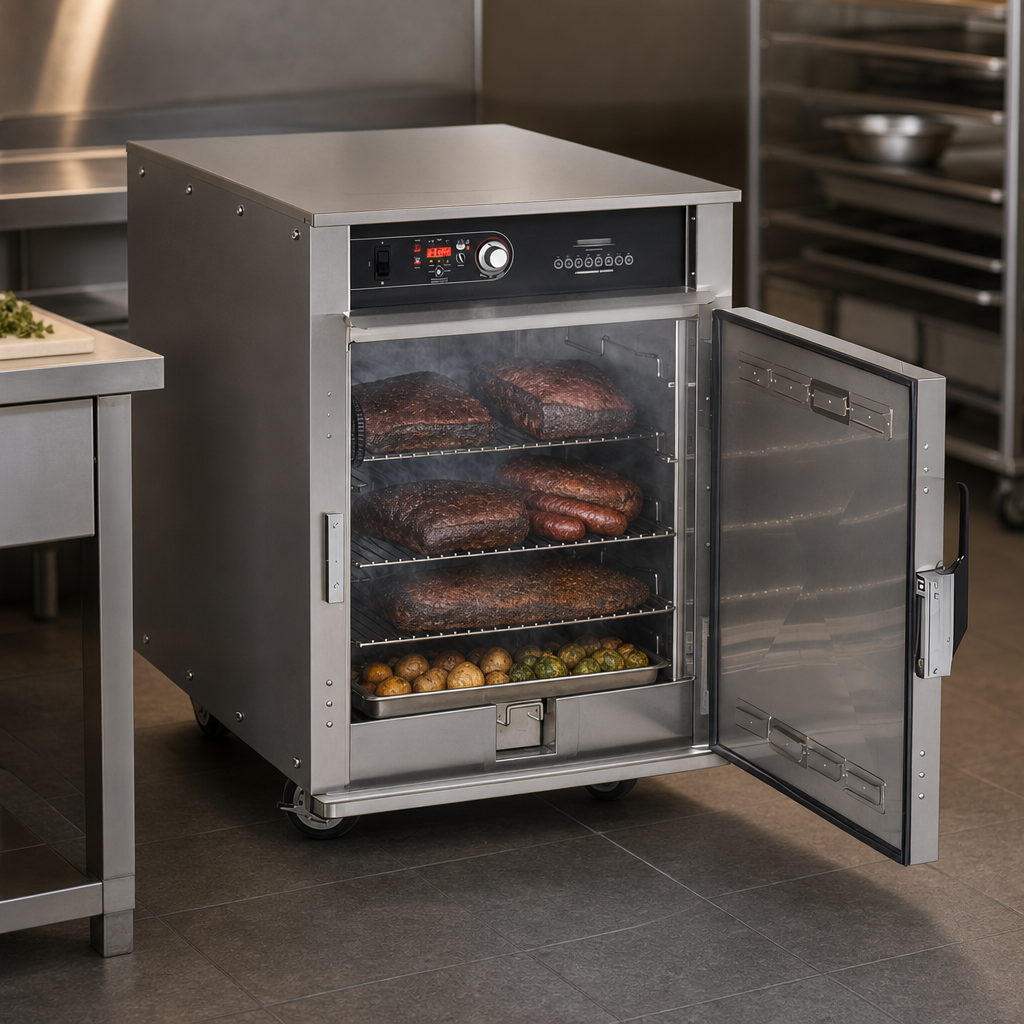

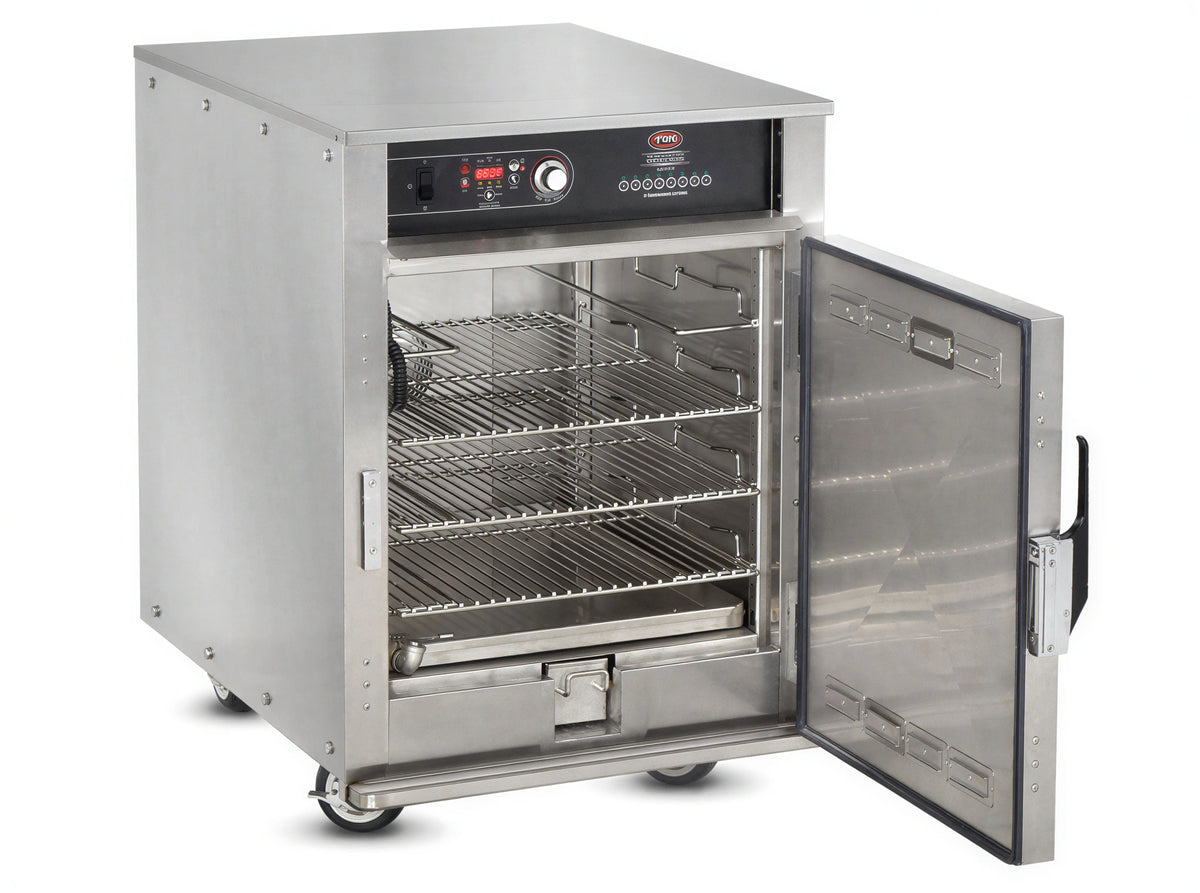

FWE G2 Series LCH-6-SK-LV-G2 Half-Height Low-Temp Cook & Hold Smoker Cabinet Oven, Mobile, Stainless Steel

$9,080.40
/each
Ships in 10–13 business days
Amperage
19.7 A
Phase
Single phase
Dimensions
27.5"W × 39.0"D × 39.0"H
Product Type
Low-temperature cook-and-hold smoker cabinet oven
Cabinet Type
Half height
Installation
Mobile, undercounter

Questions before you buy?

Talk to an equipment specialist — usually within 1 hour, 9am–6pm EST.

(888) 307-5030 Call Get custom quote

Specifications

Product Type Low-temperature cook-and-hold smoker cabinet oven
Cabinet Type Half height
Installation Mobile, undercounter
Control Type Thermostatic automatic controls with LED display
Cooking Temperature Up to 350°F
Holding Temperature Up to 200°F
Tray/Pan Slides 4 pairs
Standard Slide Spacing 4-1/2 in. on center; adjustable to 1-1/2 in. increments
Full Size Sheet Pan Capacity (4) 18 x 26 in. pans
Full Size Hotel Pan Capacity (8) 12 x 20 in. pans
G/N Pan Capacity (8) 1/1 pans
Half Size Sheet Pan Capacity (8) 13 x 18 in. pans
Air Circulation R85/F15 low-volume air circulation; approximately 85% radiant and 15% forced-air convection
Smoke Duration 1–4 hours
Smoker Element 300 W, independently controlled
Door 1 flush-mounted door
Temperature Probe Included
Interior Finish Stainless steel interior
Exterior Finish All stainless steel exterior
Insulation High-density ceramic and fiberglass insulation throughout
Caster Configuration 5 in.; (2) rigid and (2) swivel with brakes
Voltage 120 V
Power 2364 W
Amperage 19.7 A
Frequency 60 Hz
Phase Single phase
Electrical Circuit Dedicated circuit

Description

The FWE LCH-6-SK-LV-G2 is a mobile, undercounter, low-voltage cook-and-hold smoker cabinet oven with a stainless steel interior and exterior.

Automatic controls support cooking by time or internal product temperature, with an included temperature probe, LED display, and automatic transition from cook to hold when the cook cycle is complete.

  • Provides four pairs of tray slides at 4-1/2 in. spacing, adjustable to 1-1/2 in. increments.
  • Accommodates four 18 x 26 in. pans or eight 12 x 20 in. pans.
  • Includes a removable smoke drawer and drip tray, one flush-mounted door, and 5 in. casters.

Overall Dimensions:

27.5"W x 39.0"D x 39.0"H

Product Weight:

355.0 lb

Cook-and-hold control

Automatic controls support cooking by time or internal product temperature and switch from cook to hold when the cook cycle is complete.

Temperature control

The cook control adjusts up to 350°F and the holding control adjusts up to 200°F.

Programmable operation

The controller stores and retrieves up to eight recipe presets and displays cabinet and probe temperatures on an LED display.

Adjustable tray loading

Four pairs of stainless steel tray slides use 4-1/2 in. standard spacing and adjust in 1-1/2 in. increments.

Low-volume heating system

R85/F15 air circulation combines approximately 85% radiant heat with 15% forced-air convection.

Smoking function

An independently controlled smoker element supports 1–4 hour smoking through the control interface, with a removable smoke drawer.

Stainless steel construction

The cabinet has a stainless steel interior and exterior, insulated construction, and a flush-mounted insulated door.

Mobile base

The unit has 5 in. casters configured with two rigid casters and two swivel casters with brakes.

Documentation

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Frequently Asked Questions

The cooking temperature adjusts up to 350°F, and the holding temperature adjusts up to 200°F.
It accommodates four 18 x 26 in. pans or eight 12 x 20 in. pans. The listed capacity also includes eight 1/1 GN pans and eight 13 x 18 in. pans.
Yes. It includes a temperature probe and supports cooking by internal product temperature or by time.
Yes. It has a removable smoke drawer and an independently controlled smoker element adjustable for 1–4 hours.
The unit is rated at 120 V, 2364 W, 19.7 A, 60 Hz, single phase, and requires a dedicated circuit.
The product measures 27.5 in. wide, 39 in. deep, and 39 in. high, with a listed weight of 355 lb.
The FWE limited warranty provides parts coverage for two years and labor coverage for one year from the original shipment date, subject to the stated warranty terms and conditions.
