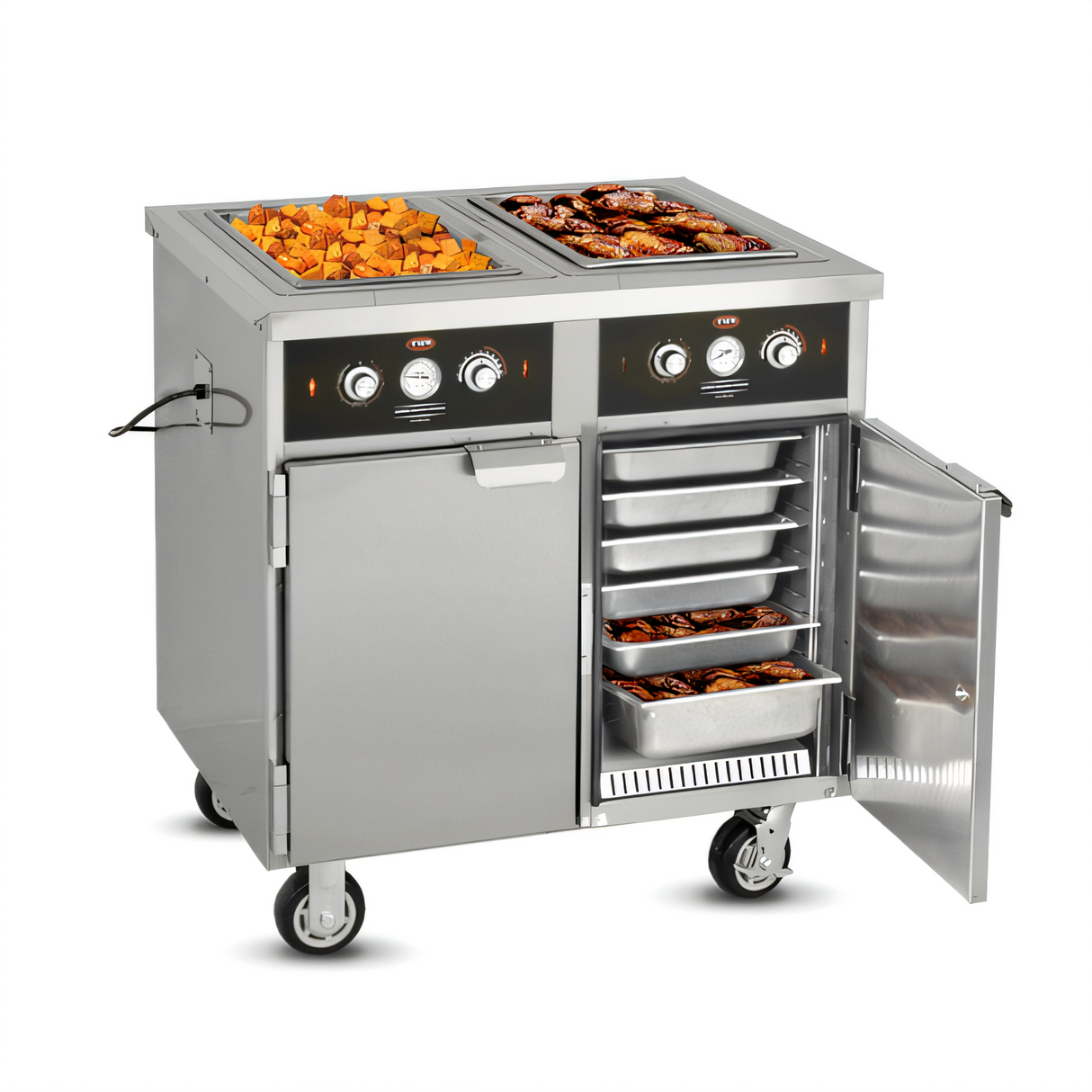

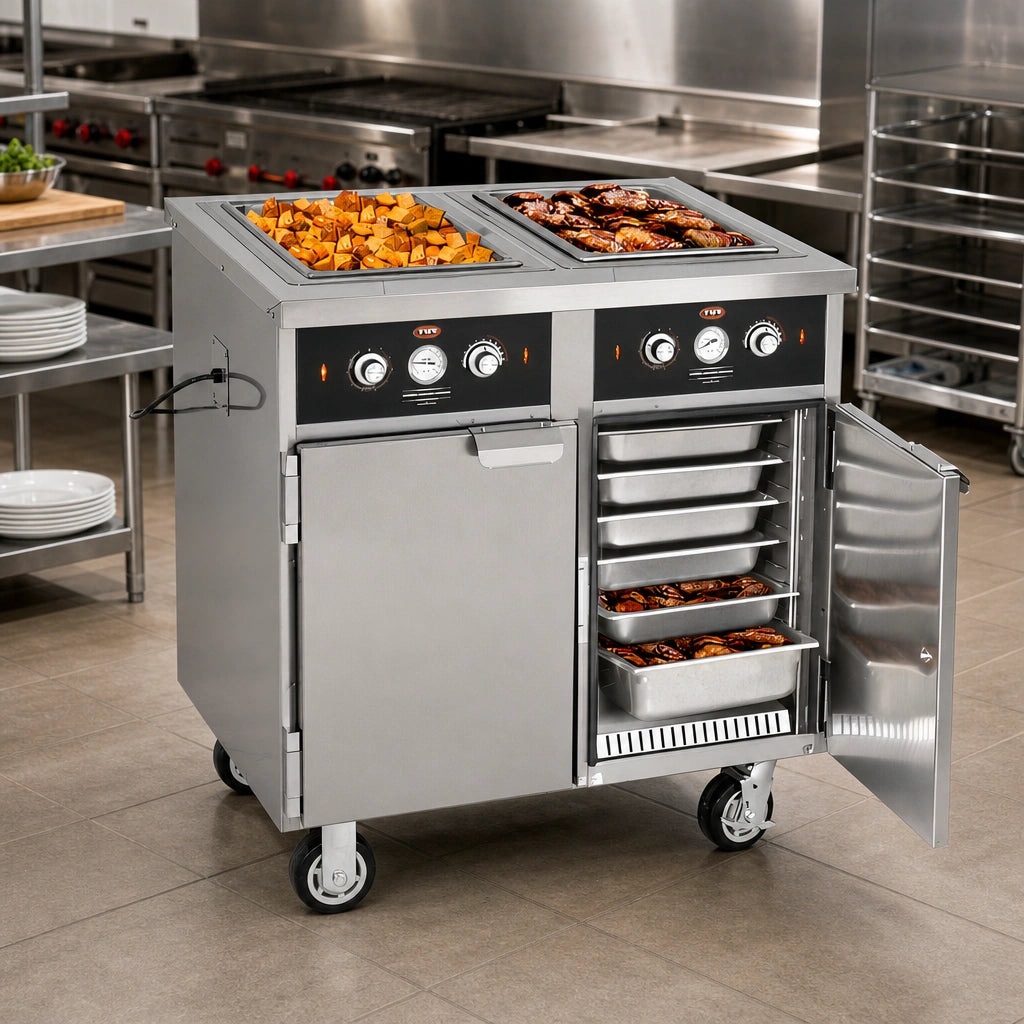

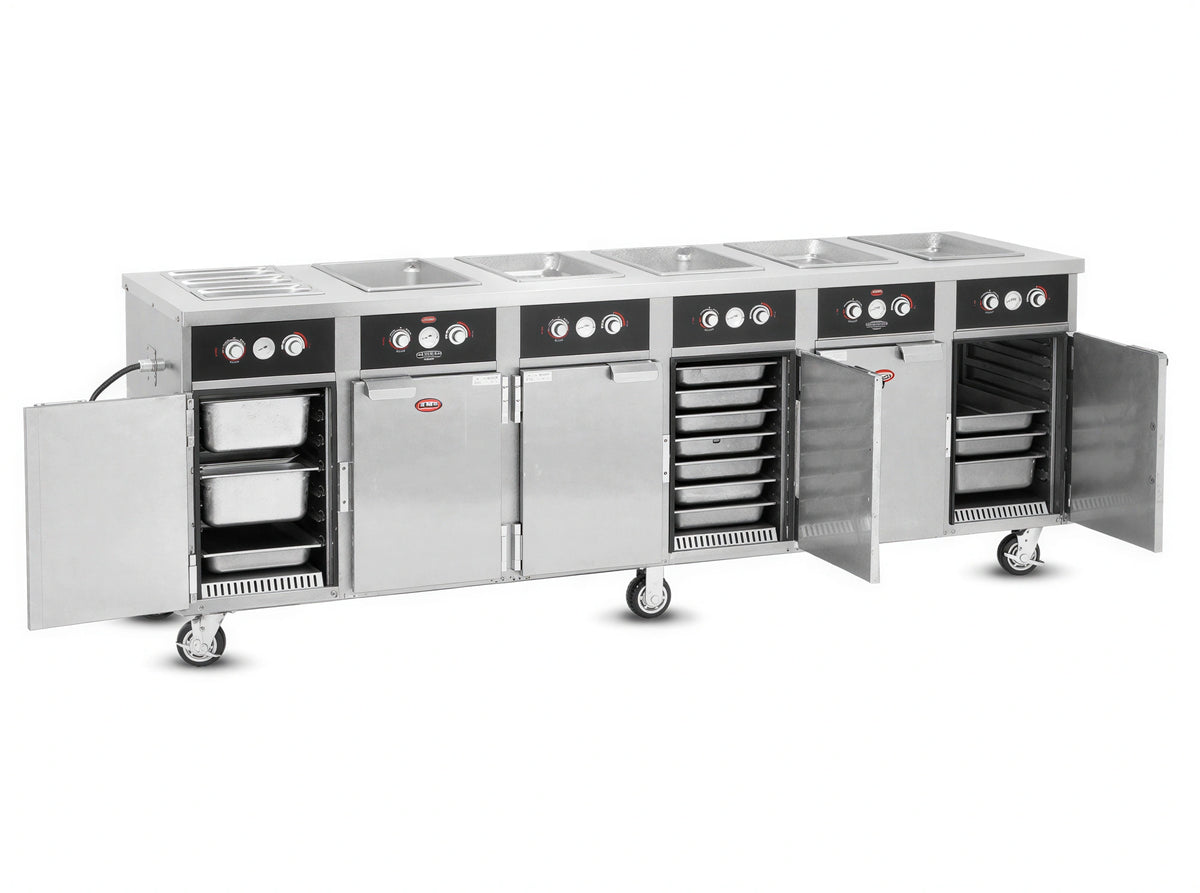

FWE Tray Line HLC-6W6-7H-42-HWR Mobile Heated Serving & Holding Cabinet, 6-Well, 42-Pan, Stainless Steel
- Amperage
- 38.7 A
- Phase
- Single phase
- Dimensions
- 103.25"W × 27.5"D × 37.25"H
- Type
- Mobile heated serving and holding cabinet
- Construction
- Stainless steel interior and exterior
- Insulation
- Insulated
Specifications
Description
The FWE Tray Line HLC-6W6-7H-42-HWR is a mobile heated serving and holding cabinet with six 12" x 20" x 6-1/2" deep wells and capacity for 42 12" x 20" x 2-1/2" pans.
It combines dry radiant heating, individual thermostatic controls, adjustable thermostats, insulated construction, and stainless steel interior and exterior. Six flush-mounted hinged doors and six 5" all-swivel casters with brakes support access and mobility.
- Six dry serving wells with 2-5/8" fixed spacing
- 42-pan capacity for 12" x 20" pans
- Six flush-mounted hinged doors
- Six 5" all-swivel casters with brakes
Overall Dimensions:
103.25"W x 27.5"D x 37.25"HProduct Weight:
850.0 lbSix dry serving wells

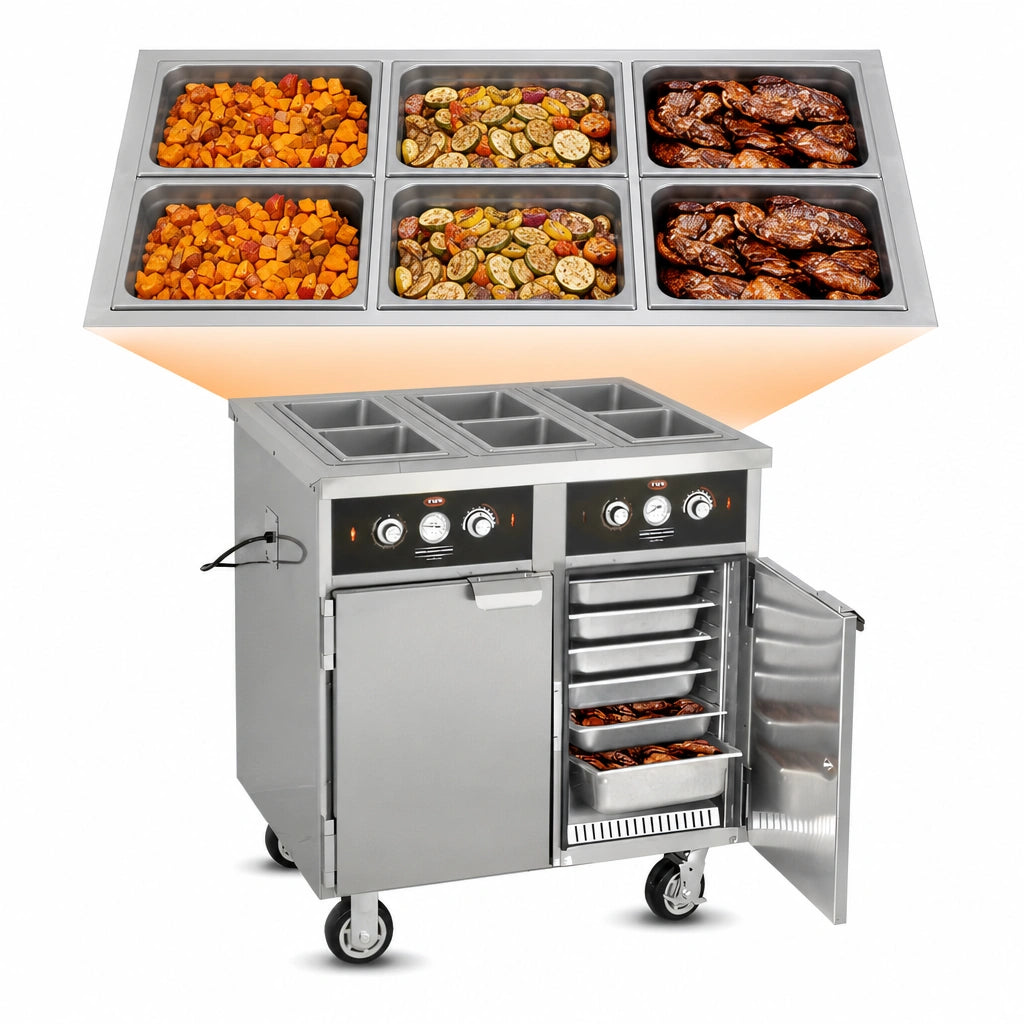

The six stainless steel wells measure 12" x 20" x 6-1/2" deep, are designed for dry use, and have separate adjustable thermostats and indicating lights.

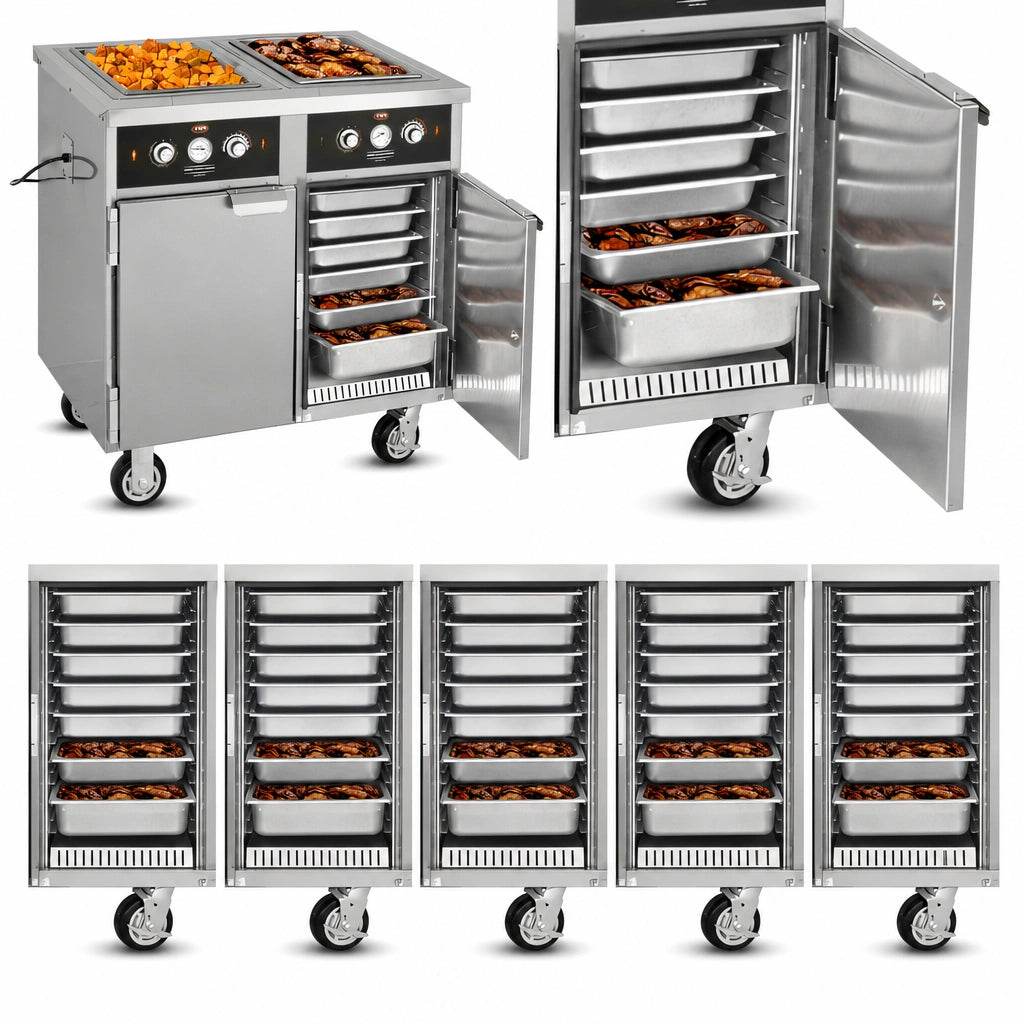

42-pan capacity
The cabinet accommodates 42 12" x 20" x 2-1/2" pans at the specified fixed spacing.
Radiant heat system
The heated serving and holding system uses radiant heat with individual thermostatic controls.
Stainless steel construction
The specification identifies stainless steel interior and exterior construction, with an 18-gauge polished exterior and 22-gauge interior.
Insulated cabinet
High-density fiberglass insulation is specified throughout the top, back, bottom, sides and doors.
Flush-mounted doors
Six flush-mounted stainless steel hinged doors include horizontal magnetic workflow handles.
Removable pan slides
One-piece stainless steel pan slides use 2-5/8" spacing and are removable without tools for cleaning.
Mobile base
The cabinet has six 5" all-swivel casters with brakes.
