FWE / Food Warming Equipment Co., Inc.

Handy Line HLC-5W6-7H-35-DRN Mobile Heated Wet Well Serving Cabinet

SKU: HLC-5W6-7H-35-DRN
$14,932.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

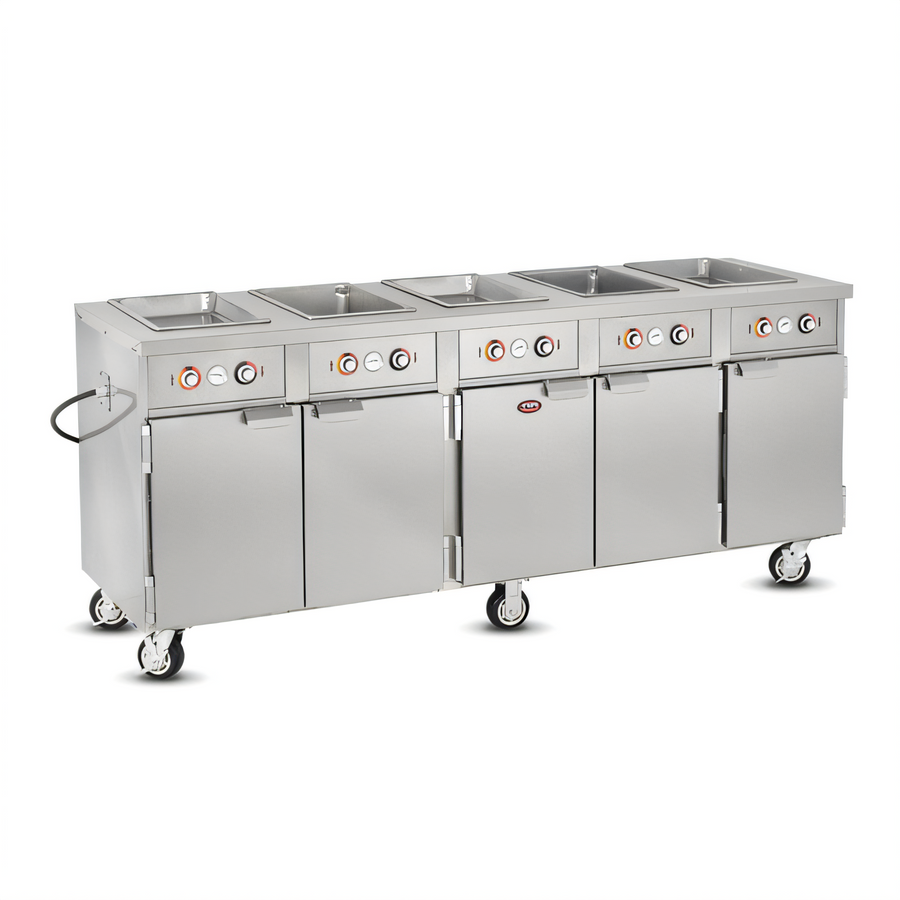

Handy Line HLC-5W6-7H-35-DRN Mobile Heated Wet Well Serving Cabinet

86" Wide, (5) Wet Wells, (35) Pan Understorage, 220-240V

This heavy-duty, mobile serving cabinet provides versatile wet well holding and radiant heated understorage, ensuring your bulk food stays at optimal serving temperatures wherever it's needed.

  • Provides both wet well and radiant heated storage to keep food at optimal serving temperatures.
  • Features (5) wet wells for gentle, uniform heat and (5) heated understorage compartments with 35 full-size pan capacity.
  • Individual controls for each well and compartment allow for versatile menu management.
  • Heavy-duty stainless steel construction and mobile design with durable casters ensure reliable transport.
  • Equipped with a common manifold drain system and magnetic workflow door handles for ease of use and maintenance.

Overall Dimensions:

86.0"W x 27.5"D x 37.25"H

Product Weight:

750.0 lb

Wet Well Heating System

Utilizes water as a heat buffer to prevent overheating, providing the most uniform and gentle heat possible for pans, which maximizes product quality by creating steam.

Radiant Heated Understorage Compartments

Keeps backstock food close at hand, providing soft, radiant, and uniform heat that gently surrounds food to ensure better appearance, taste, and longer holding times.

Independent Temperature Controls

Each heated well and understorage compartment is controlled separately with adjustable thermostats, offering versatility to accommodate diverse menu items (wells: low to high; compartments: 90°-190°F / 32°-88°C).

Common Manifold Drain System

Built-in system connects all heated wells to a common drain manifold with an easily accessible external shut-off valve for convenient emptying into a floor drain.

Robust Mobile Construction

Fully constructed of durable stainless steel with a tubular welded base frame, designed to absorb vibration and shock during transport, and equipped with 5" casters (2 rigid, 4 swivel with brakes) for easy mobility.

Versatile Pan Accommodation

Designed to accommodate shallow and deep 12" x 20" pans, 18" x 13" trays, and GN 1/1 containers, making it suitable for various serving needs.

Removable Pan Slide Racks

One-piece die-stamped stainless steel pan slide racks feature relieved front edges for easy loading and are removable for thorough cleaning.

Magnetic Work Flow Door Handles

Features magnetic operation that eliminates the need for latch hardware, contributing to less maintenance and lower replacement part costs.

Insulated Design

The entire cabinet is insulated, ensuring efficient heat retention and consistent temperatures.

Flush Mounted Doors

Equipped with five flush-mounted doors for a sleek appearance and easy access to understorage compartments.

Type Serving Cabinet
Style Mobile Serving Cabinet
Installation Type Floor Model (Mobile)
Top Construction Stainless Steel
Base Finish Stainless Steel
Material Stainless Steel
Interior Finish Stainless Steel
Wet Well Pan Capacity 5 Full-Size (12" x 20" x 6-1/2")
Understorage Pan Capacity 35 Full-Size (12" x 20" x 2-1/2")
Pan Spacing 2-5/8 Inches
Compartments 5 (Heated Understorage)
Controls Adjustable Thermostats, Individual
Temperature Range (Compartments) 90°-190°F
Temperature Range (Wells) Low to High
Voltage 220-240 Volts
Watts 5950 Watts
Amps 24.8 Amps
Hertz 50/60 Hz
Phase 1-Phase
Plug Type NEMA 6-30P
Water Connection Not Required
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 86 Inches
Shipping Depth 28 Inches
Shipping Height 38 Inches
Shipping Weight 750 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

2-year limited warranty

Frequently Asked Questions

The serving cabinet features wet wells that use water as a heat buffer for uniform, gentle heat, and heated compartments for understorage that provide soft, radiant heat.
Yes, each wet well and each heated compartment is controlled separately with its own adjustable thermostat, offering versatile temperature management for different food items.
This unit has (5) wet wells designed for 12" x 20" x 6-1/2" deep pans and (5) heated understorage compartments with a total capacity of (35) 12" x 20" x 2-1/2" pans, or equivalent GN 1/1 containers and 18" x 13" trays.
Yes, it is a heavy-duty mobile server constructed of stainless steel with a tubular welded base frame and 5" casters (2 rigid, 4 swivel with brakes), specifically designed to absorb vibration and shock during transport.
No, the wet wells are manually filled with water. However, the unit features a built-in common manifold drain system with an easy-access external shut-off valve, which requires a drain connection for emptying.
The HLC-5W6-7H-35-DRN operates on 220-240 Volts, 1-Phase, drawing 24.8 Amps and 5950 Watts. It comes with a NEMA 6-30P plug.
