Follett Products, LLC (Middleby) Maestro Plus D414AS Nugget Ice Machine, Air-Cooled Self-Contained, 425 lb/24 hr, RIDE Remote Delivery

SKU: D414AS
$6,837.00
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

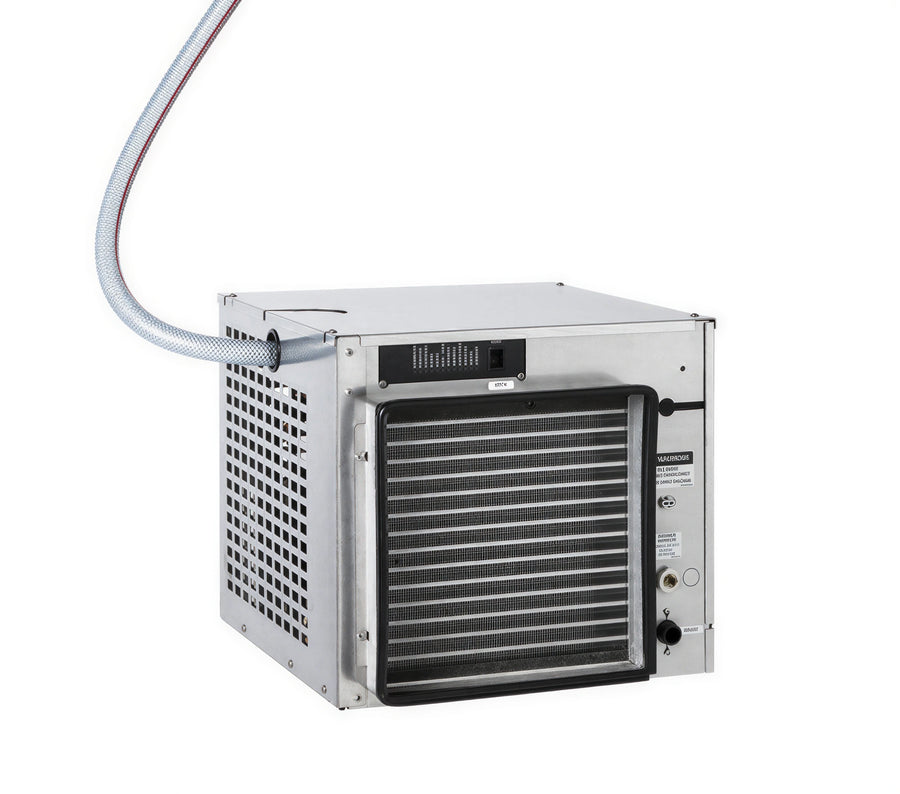

The D414AS is a Maestro Plus ice machine for RIDE remote ice delivery installations. Its air-cooled, self-contained refrigeration system produces up to 425 lb (193 kg) of Chewblet nugget ice in 24 hours at 70°F air and 50°F water.

RIDE technology automatically transports ice through a tube from the machine to a dispenser or ice storage bin up to 20 ft (6 m) away. The unit operates on 115 V/60/1-phase power and has a stainless steel exterior frame.

  • Automatic self-flushing removes impurities from the ice machine.
  • No noisy harvest cycles support quiet ice production.
  • An LED control board provides at-a-glance machine status.

Overall Dimensions:

18.8"W x 22.09"D x 17.1"H

Product Weight:

127.0 lb

RIDE remote ice delivery

Automatically transports ice through a tube from up to 20 ft (6 m) away.

Chewblet nugget ice

Produces Chewblet nugget ice for compatible dispensers and ice storage bins.

Air-cooled refrigeration

Uses an air-cooled condenser with self-contained refrigeration.

Automatic self-flushing

Automatically flushes the ice machine to remove impurities.

Quiet production

Produces ice without noisy harvest cycles.

Stainless steel construction

Includes a stainless steel exterior frame, evaporator, auger and top bearing.

LED machine status

LED control board provides at-a-glance machine status.

Related Searches

Best Sellers Commercial Ice Makers Cut Resistant Gloves Follett Products, LLC (Middleby) Ice Machines Ice Machines & Handling Ice Makers & Bins Ice Production Equipment Kitchen Knives New Arrivals Refrigeration & Ice Smallwares
Ice type Chewblet nugget ice
Condenser Air-cooled
Refrigeration Self-contained
Production per 24 hours Up to 425 lb (193 kg) at 70°F air and 50°F water
Electrical 115 V/60/1 phase
Current 7.2 A
Required circuit Dedicated 15 A circuit
Plug NEMA 5-15
Refrigerant R290
Refrigerant charge 3.49 oz (99 g)
Water inlet 3/8 in FPT
Drain connection 3/4 in MPT
Operating air temperature 50–100°F (10–38°C)
Operating water temperature 45–90°F (10–32°C)
Potable water pressure 10–70 psi (69–483 kPa)
Energy consumption 5.4 kWh per 100 lb (45.4 kg) of ice at 90°F air and 70°F water
Water consumption 12.0 gal (45.4 L) of potable water per 100 lb (45.4 kg) of ice
Heat rejection 5,000 BTU/hr (1,260 kcal/hr)
Installation environment Indoor use only

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

3 years parts and labor; 5 years compressor parts.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It produces up to 425 lb (193 kg) in 24 hours at 70°F air and 50°F water. The listed production is 340 lb (154 kg) at 90°F air and 70°F water.
The D414AS produces Chewblet nugget ice.
Yes. It has an air-cooled condenser and self-contained refrigeration.
Yes. RIDE technology transports ice through a tube up to 20 ft (6 m) to a compatible dispenser or ice storage bin.
The machine operates at 115 V/60/1 phase, draws 7.2 A, and requires a dedicated 15 A circuit with a NEMA 5-15 plug.
The product dimensions are 18.8 in wide, 22.75 in deep and 17.1 in high, with a listed weight of 127 lb.
The warranty provides 3 years of parts and labor coverage and 5 years of compressor parts coverage.
