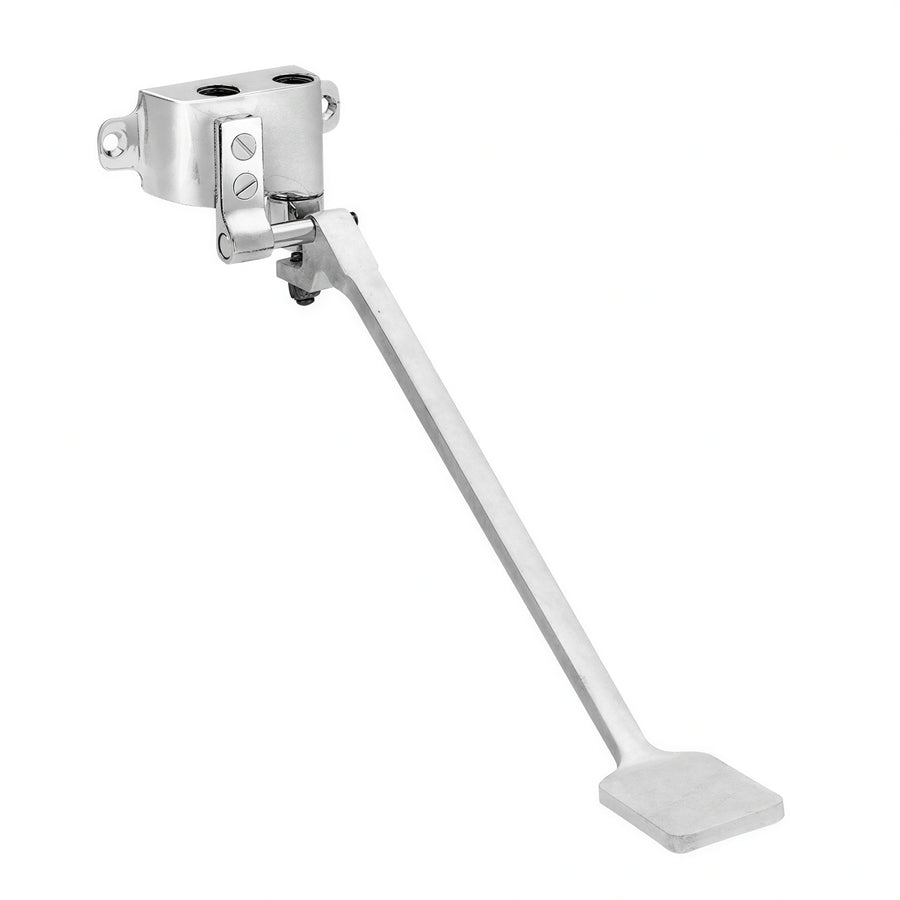

Play manufacturer video for Fisher 48062 Foot Control Valve, Wall-Mount, Single Pedal, 1/2" NPT Female Inlet and Outlet, Stainless SteelFisher 48062 Foot Control Valve, Wall-Mount, Single Pedal, 1/2" NPT Female Inlet and Outlet, Stainless Steel
SKU: 48062
$151.03
The Fisher 48062 is a wall-mount foot control valve with a single pedal and 1/2 in NPT female inlet and outlet connections.
It features a stainless steel construction, anodized aluminum pedal, and a cylinder that closes with water flow. The documented system limits are 40°F minimum to 140°F maximum temperature and 200 PSI maximum static pressure.
Product Weight:
3.5 lbWall-mount design
Designed for wall-mount installation.
Single-pedal control
Uses one pedal for foot-operated control.
Female NPT connections
Includes 1/2 in NPT female inlet and outlet connections.
Stainless steel construction
The valve is specified with stainless steel construction.
Anodized aluminum pedal
The pedal is made of anodized aluminum.
Water-flow closing cylinder
The cylinder closes with water flow.
Product type
Foot control valve
Mounting
Wall mount
Control type
Single pedal
Inlet connection
1/2 in NPT female
Outlet connection
1/2 in NPT female
Material
Stainless steel
Pedal material
Anodized aluminum
Recommended setting
110°F at 80 PSI
System temperature range
40°F minimum to 140°F maximum
Maximum static pressure
200 PSI
Weight
3.5 lb
Certifications & Compliance
Documents
Frequently Asked Questions
It is a wall-mount foot control valve with a single pedal.
It uses a 1/2 in NPT female inlet and a 1/2 in NPT female outlet.
The system temperature range is 40°F minimum to 140°F maximum, with a maximum static pressure of 200 PSI.
The pedal is made of anodized aluminum.
